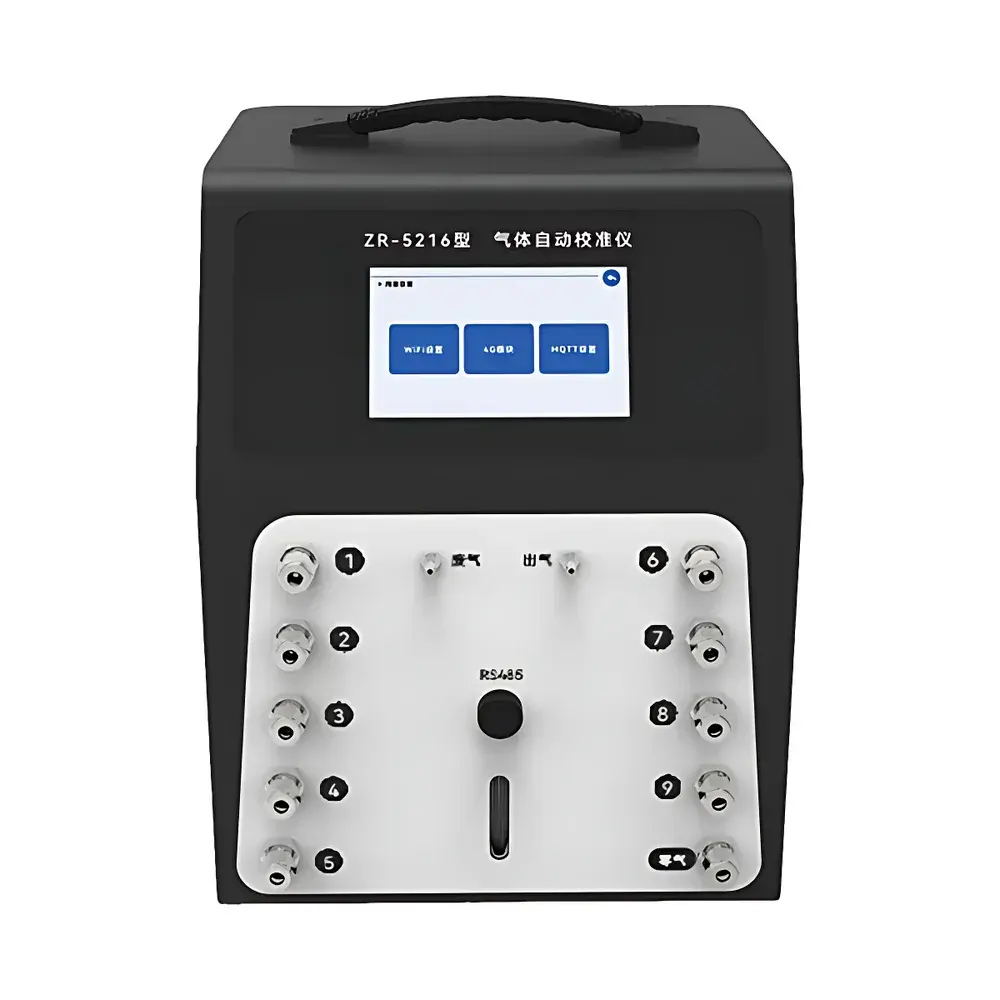

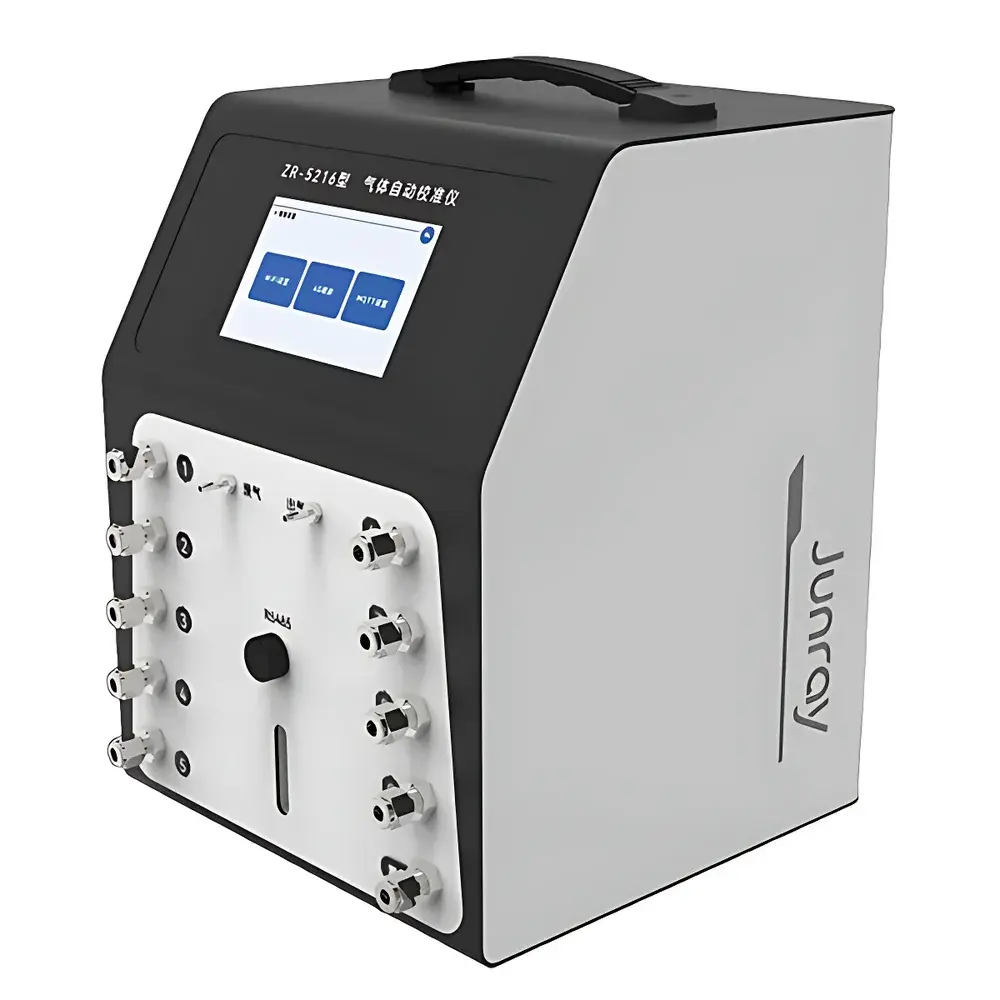

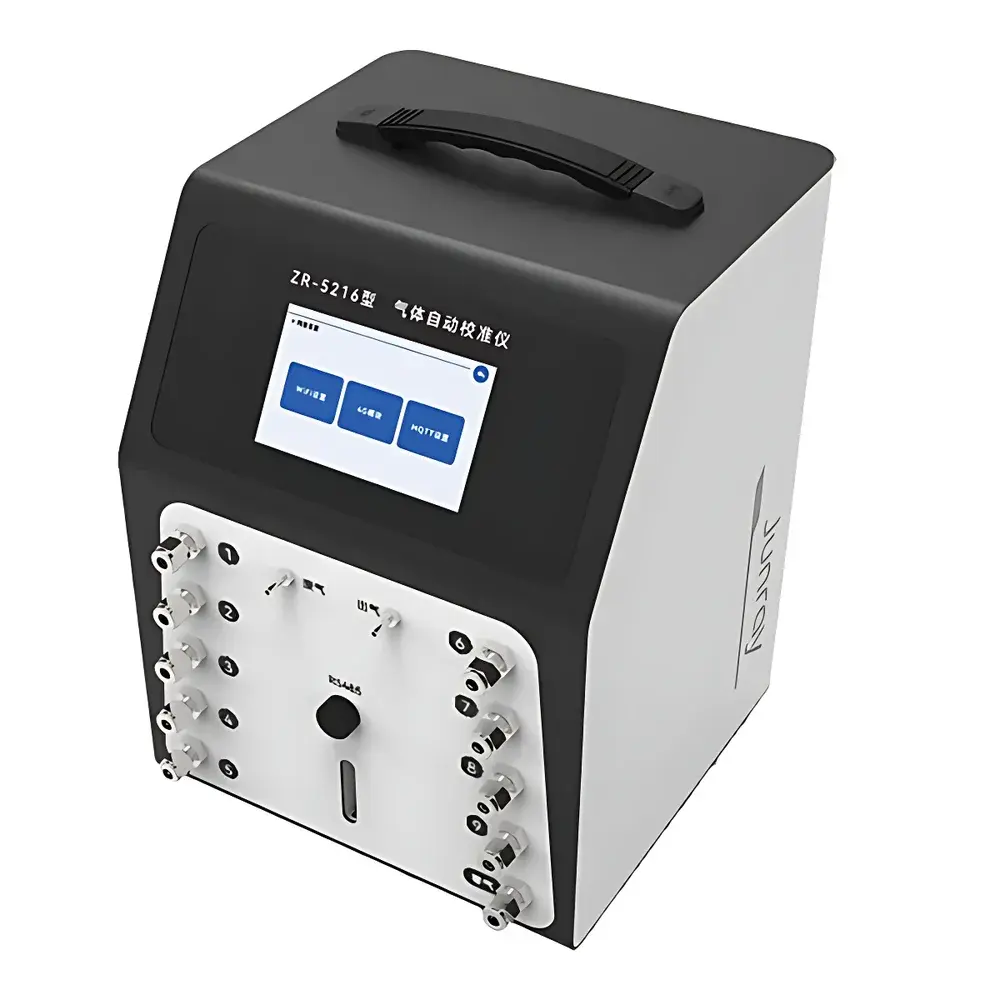

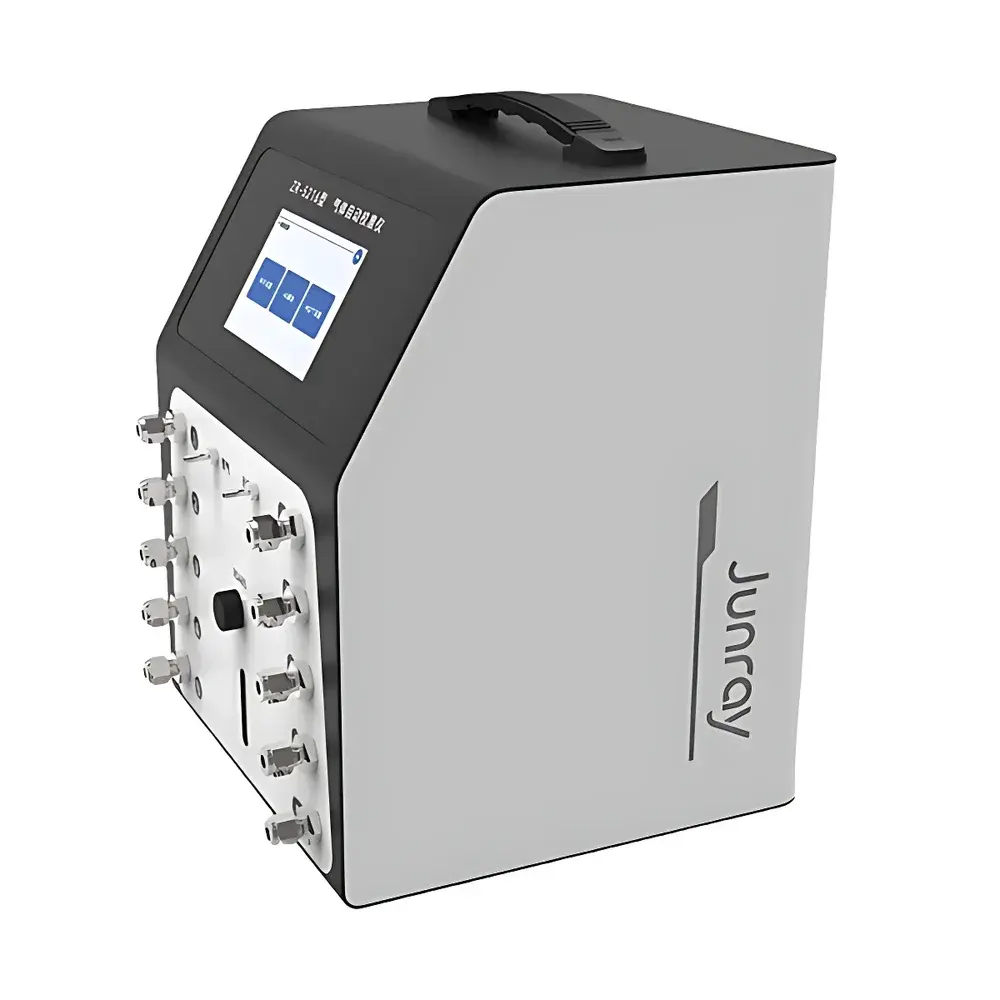

Junray ZR-5216 Automated Gas Calibrator
| Brand | Junray |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Domestic |
| Model | ZR-5216 |
| Pricing | Available Upon Request |
Overview
The Junray ZR-5216 Automated Gas Calibrator is an engineered solution for traceable, high-integrity calibration of continuous emission monitoring systems (CEMS), portable gas analyzers, and fixed-stack analyzers used in environmental, industrial hygiene, and regulatory compliance applications. It operates on the principle of dynamic dilution and mass-flow-controlled gas delivery, enabling precise, repeatable introduction of certified reference gases into the measurement path of target analyzers. Unlike manual calibration setups requiring operator intervention at every stage—including cylinder selection, pressure regulation, flow adjustment, and timing—the ZR-5216 executes fully automated sequence-based calibration protocols. Its architecture integrates proportional control valves, thermal mass flow sensors, corrosion-resistant fluidic pathways, and embedded logic to ensure metrological consistency across zero, span, and multi-point linearity checks—critical for maintaining analyzer accuracy per EPA Method 205, ISO 12039, and EN 14181 requirements.
Key Features
- 10-channel gas selection system: 9 independent span gas channels + 1 dedicated zero-air channel, expandable via optional modular valve manifold
- Corrosion-resistant fluidic path: All wetted components—including proportional valves, solenoid valves, and internal tubing—constructed from electropolished 316L stainless steel, PTFE-lined fittings, and chemically inert elastomers to prevent adsorption or reaction with acidic, oxidizing, or sulfur-containing calibration gases (e.g., SO₂, NOₓ, HCl, NH₃)
- Dynamic flow control: Dual-stage regulation using precision proportional valves paired with calibrated thermal mass flow meters (±1% FS accuracy) ensures stable, programmable output flows from 0.1 to 5.0 L/min, independent of upstream pressure fluctuations
- Intelligent channel mapping: Auto-detection of connected analyzers via analog/digital I/O or Modbus RTU enables automatic assignment of appropriate calibration gas concentrations based on configured instrument parameters
- Self-documenting operation: Each calibration event logs timestamp, gas ID, concentration, flow rate, duration, analyzer response, and pass/fail status against user-defined acceptance criteria
Sample Compatibility & Compliance
The ZR-5216 supports calibration of analyzers measuring CO, CO₂, O₂, NO, NO₂, SO₂, NH₃, HCl, CH₄, and volatile organic compounds (VOCs) within typical flue gas and ambient air matrices. It accommodates standard 2L–50L high-pressure aluminum or stainless-steel calibration cylinders equipped with CGA-600/CGA-675 fittings. All gas handling conforms to ASTM D6522-22 (Standard Test Method for Determination of Nitrogen Oxides, Carbon Monoxide, and Oxygen in Emissions from Stationary Sources) and aligns with QA/QC protocols required under U.S. EPA 40 CFR Part 60, Appendix B and EU Directive 2010/75/EU (IED). The system’s design supports GLP-compliant data integrity through audit-trail-enabled firmware and tamper-evident logging.
Software & Data Management
The embedded Linux-based controller runs proprietary calibration management firmware with a responsive touchscreen interface. It stores ≥100,000 complete calibration records internally with timestamped metadata, including pre- and post-calibration analyzer readings, drift calculations, and alarm flags. Data export is supported via USB 2.0 (FAT32-formatted drives) for CSV or XML formats compatible with LIMS and enterprise QA databases. Optional Bluetooth 5.0 module enables direct printing to certified thermal receipt printers (e.g., Zebra ZQ520), generating hard-copy reports with QR-coded traceability links. Firmware updates are performed offline via USB or remotely over secure SSH/TLS connections—fully compliant with FDA 21 CFR Part 11 electronic record and signature requirements when deployed in regulated environments.
Applications
- Periodic verification and multi-point linearity validation of CEMS in power plants, cement kilns, and waste incinerators
- Field calibration of portable FTIR, NDIR, and electrochemical gas analyzers used in stack testing and fugitive emission surveys
- Quality assurance workflows in environmental laboratories accredited to ISO/IEC 17025:2017
- Automated daily zero/span checks mandated by EN 15267-3 for certified analyzer type approval
- Method validation studies supporting regulatory submissions under EU MRV or U.S. GHG Reporting Program (40 CFR Part 98)
FAQ
Does the ZR-5216 support custom calibration sequences with non-standard gas mixtures?
Yes—users can define up to 50 programmable calibration routines, each specifying gas channel, concentration, dwell time, flow setpoint, and pass/fail thresholds.
Is the system compatible with third-party analyzers using Modbus TCP or Ethernet/IP?
It supports Modbus RTU over RS-485 natively; Modbus TCP and EtherNet/IP integration require optional gateway modules with configuration assistance from Junray technical support.
How is traceability maintained for calibration gas certificates?
The device allows manual or barcode-scanned entry of gas certificate IDs, expiration dates, and uncertainty values, which are embedded in all exported reports and internal logs.
Can the ZR-5216 operate unattended for extended periods?
Yes—it includes watchdog timers, low-pressure alarms, and automatic shutdown on cylinder depletion or communication loss, enabling overnight or weekend calibration cycles without supervision.
What maintenance intervals are recommended for long-term reliability?
Valve manifolds and flow sensors require annual verification against NIST-traceable standards; consumables (filters, O-rings) are rated for 12 months under typical usage conditions.
