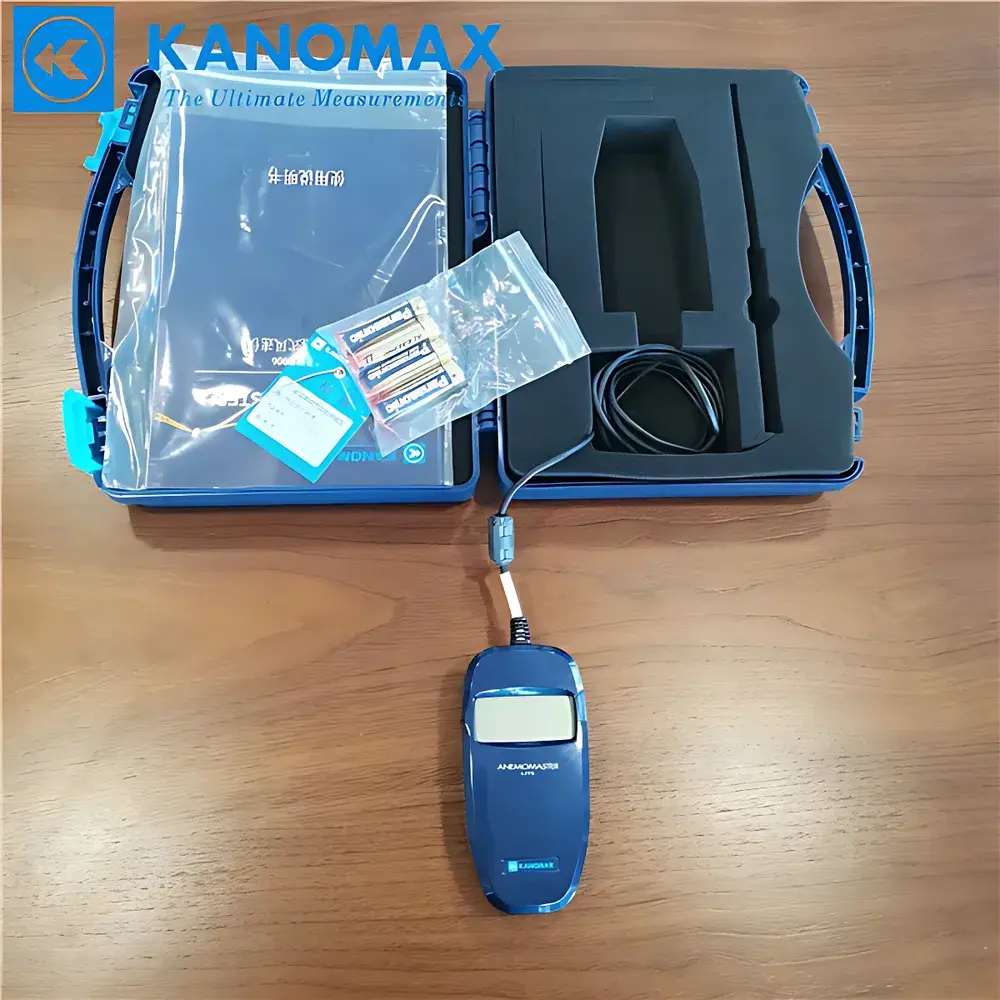

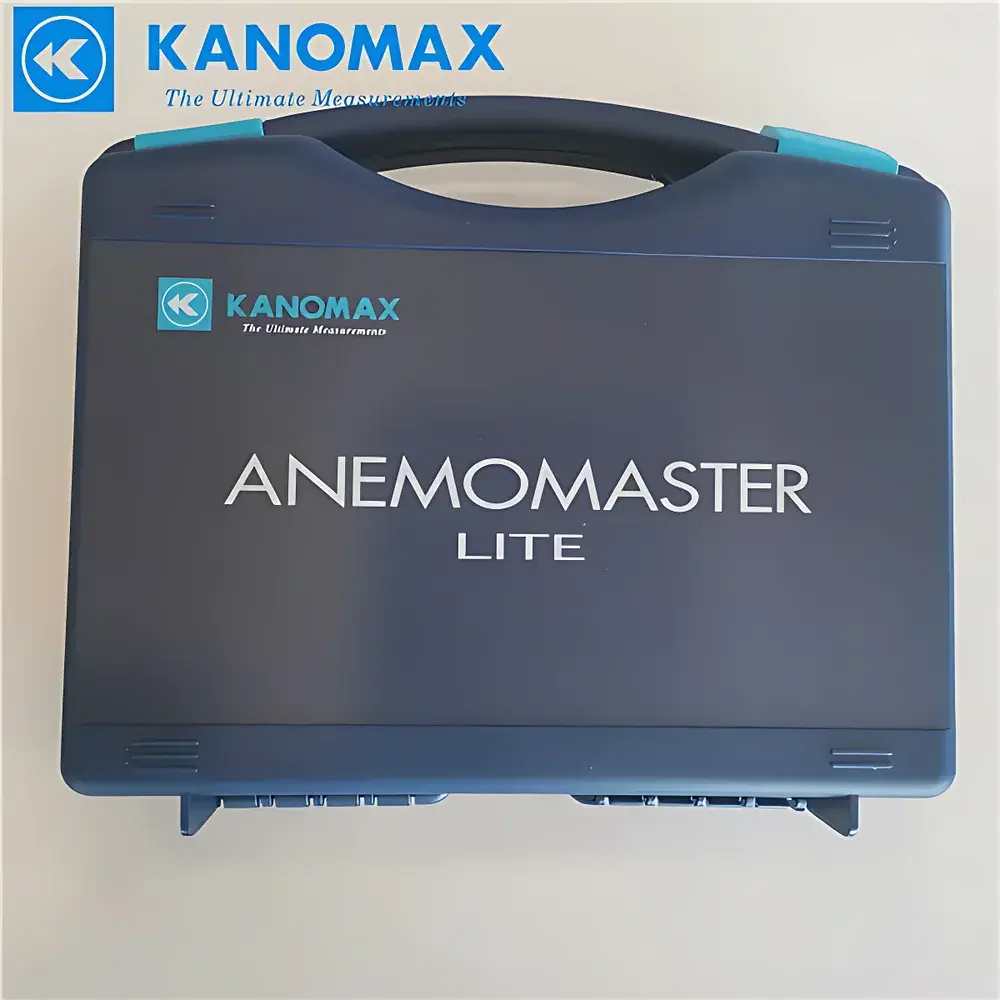

Kanomax 6006 Thermal Anemometer
| Brand | Kanomax |
|---|---|
| Origin | Japan |
| Model | 6006 |
| Instrument Type | Thermal Anemometer |
| Measurement Range | 0.01–20.0 m/s |
| Resolution | 0.01 m/s (0.01–9.99 m/s), 0.1 m/s (10.0–20.0 m/s) |
| Temperature Range | −20 to +70 °C (air), 0 to +50 °C (probe), +5 to +40 °C (body) |
| Accuracy | ±5% of reading (wind speed), ±1 °C (temperature) |
| Response Time | <1 s (90% for wind speed at 1 m/s), <30 s (90% for temperature at 1 m/s) |
| Display | Dual-parameter (wind speed + air temperature), unit switchable (m/s/°C ↔ fpm/°F), FAST/SLOW averaging (1 s / 5 s), battery level indicator (4-level), hold function |
| Probe Dimensions | Ø6.1 mm (Ø10.6 mm with sheath) × 205 mm |
| cable | Ø3.3 mm × ~1.5 m |
| Main Unit Dimensions | 60 × 120 × 34 mm |
| Weight | ~180 g (including batteries) |
| Storage Temp. | −10 to +50 °C |
| Compliance | Designed for laboratory, HVAC, and industrial airflow verification per ISO 16813, ASHRAE Guideline 12, and JIS B 7555 standards |
Overview
The Kanomax 6006 Thermal Anemometer is a precision-engineered handheld instrument designed for reliable, real-time measurement of low-velocity airflows in environmental monitoring, HVAC commissioning, cleanroom validation, and industrial ventilation assessments. Operating on constant-temperature anemometry (CTA) principles, the device employs a thermally sensitive platinum resistance sensor housed in a compact, interchangeable probe. As ambient air flows across the heated sensing element, convective heat loss is quantified and converted into a linear wind speed output—enabling stable, repeatable measurements from 0.01 m/s upward. Integrated temperature compensation circuitry ensures metrological consistency across its full operational range (−20 to +70 °C ambient air temperature), with optimal accuracy maintained between +10 and +40 °C per JIS B 7555 calibration protocols. Its lightweight, ergonomic form factor and single-button interface support rapid deployment in field applications where portability and intuitive operation are critical.
Key Features
- Interchangeable thermal probes with factory-matched calibration data—ensures traceable accuracy without recalibration upon probe replacement.
- Dual-parameter display showing simultaneous wind speed and air temperature, with user-selectable units (m/s & °C or fpm & °F) via DIP switch.
- Configurable averaging modes: FAST (1-second moving average) for dynamic flow profiling; SLOW (5-second moving average) for stabilized readings in turbulent or fluctuating environments.
- High-resolution digital readout: 0.01 m/s resolution below 10 m/s, 0.1 m/s above—optimized for both laminar duct flows and low-velocity room air studies.
- Built-in battery level indicator (4-segment LED), data hold function, and auto-power-off after 10 minutes of inactivity to extend operational life.
- Ruggedized probe housing (stainless steel tip, reinforced PTFE-insulated cable) rated for continuous use within 0–50 °C probe temperature limits and 5–40 °C main unit operating conditions.
Sample Compatibility & Compliance
The Kanomax 6006 is validated for use with ambient air under standard atmospheric pressure (86–106 kPa). It is not intended for corrosive, particulate-laden, or high-humidity (>85% RH) environments without optional protective filters. The instrument conforms to Japanese Industrial Standard JIS B 7555 (Anemometers – Performance Requirements and Testing Methods) and supports compliance workflows aligned with ISO 16813 (HVAC performance testing), ASHRAE Guideline 12 (Commissioning of HVAC Systems), and EU Directive 2014/30/EU (EMC). While not inherently 21 CFR Part 11 compliant, audit-ready documentation—including calibration certificates, probe interchange logs, and user-defined test protocols—can be maintained externally for GLP/GMP-aligned validation processes.
Software & Data Management
The Kanomax 6006 operates as a standalone, battery-powered field instrument with no embedded memory or USB connectivity. All measurements are viewed in real time only; no internal data logging or PC interface is provided. For regulatory traceability, users are advised to record readings manually or integrate the device into external data acquisition systems via analog output adapters (sold separately). Calibration reports include NIST-traceable reference data, uncertainty budgets, and environmental condition annotations. Firmware updates are not supported—the device relies on hardware-stable analog signal conditioning and fixed-point digital conversion architecture for long-term metrological integrity.
Applications
- HVAC system balancing and duct traverse surveys per ASHRAE 111 and ISO 12599.
- Cleanroom unidirectional airflow velocity mapping (ISO 14644-3 Class 5–8 environments).
- Local exhaust ventilation (LEV) hood face velocity verification per HSE HSG258 and OSHA 1910.146.
- Environmental chamber airflow uniformity assessment during qualification (IQ/OQ).
- Educational aerodynamics labs requiring low-range, high-resolution air velocity measurement.
- Industrial process cooling airflow verification—e.g., conveyor belt cooling zones, electronic enclosure ventilation.
FAQ
Is the Kanomax 6006 suitable for outdoor wind measurement?
No—it is calibrated for indoor, low-turbulence air streams under controlled pressure and humidity conditions. Outdoor use may exceed its specified humidity (20–85% RH) and temperature stability envelope.
Can the probe be used in high-temperature ducts?
The probe is rated for continuous exposure up to +50 °C. Duct temperatures exceeding this require active cooling sleeves or alternative instrumentation (e.g., Kanomax 6162 with high-temp probe option).
Does the unit meet FDA or ISO 17025 calibration requirements?
The instrument ships with a manufacturer’s calibration certificate traceable to JCSS standards. ISO/IEC 17025-accredited calibration is available through authorized Kanomax service centers upon request.
What is the recommended recalibration interval?
Annual recalibration is advised for routine QA/QC use. In high-use or harsh environments, semi-annual verification against a reference standard is recommended.
Is the probe compatible with other Kanomax models?
Probes are mechanically and electrically specific to the 6006 series. Cross-compatibility with Kanomax 6501, 6511, or 6705 instruments is not supported due to differing signal conditioning architectures.
