Kanomax 6036 Intelligent Thermal Anemometer & Air Flow Meter
| Brand | Kanomax |
|---|---|
| Origin | Japan |
| Model | 6036 |
| Instrument Type | Thermal Anemometer |
| Measurement Range | 0.01–30.0 m/s |
| Accuracy | ±3% of reading + 0.03 m/s |
| Resolution | ±2% of reading |
| Operating Temperature | −20 to +70 °C |
| Operating Humidity | 2.0–98.0 %RH |
| Data Storage Capacity | 1500 sets |
| Probe | Articulating and telescoping |
| Output | Real-time USB data streaming with PC software support |
Overview
The Kanomax 6036 Intelligent Thermal Anemometer & Air Flow Meter is a precision-engineered handheld instrument designed for simultaneous measurement of air velocity, volumetric flow rate, temperature, and differential pressure in HVAC, cleanroom, industrial ventilation, and environmental compliance applications. Based on constant-temperature anemometry (CTA), the device employs a thermally sensitive platinum resistance sensor whose heat dissipation correlates directly with local airflow velocity under controlled thermal boundary conditions. By integrating user-defined duct geometry (rectangular, circular, or irregular cross-sections) and real-time velocity profiling, the 6036 calculates volumetric air flow (m³/h or CFM) with traceable uncertainty propagation—enabling rapid, field-deployable verification of system performance against ASHRAE Standard 111, ISO 16813, and EN 12599 requirements.
Key Features
- Multi-parameter acquisition: Simultaneous real-time logging of air velocity (m/s), temperature (°C/°F), differential pressure (Pa), and computed volumetric flow (m³/h or CFM)

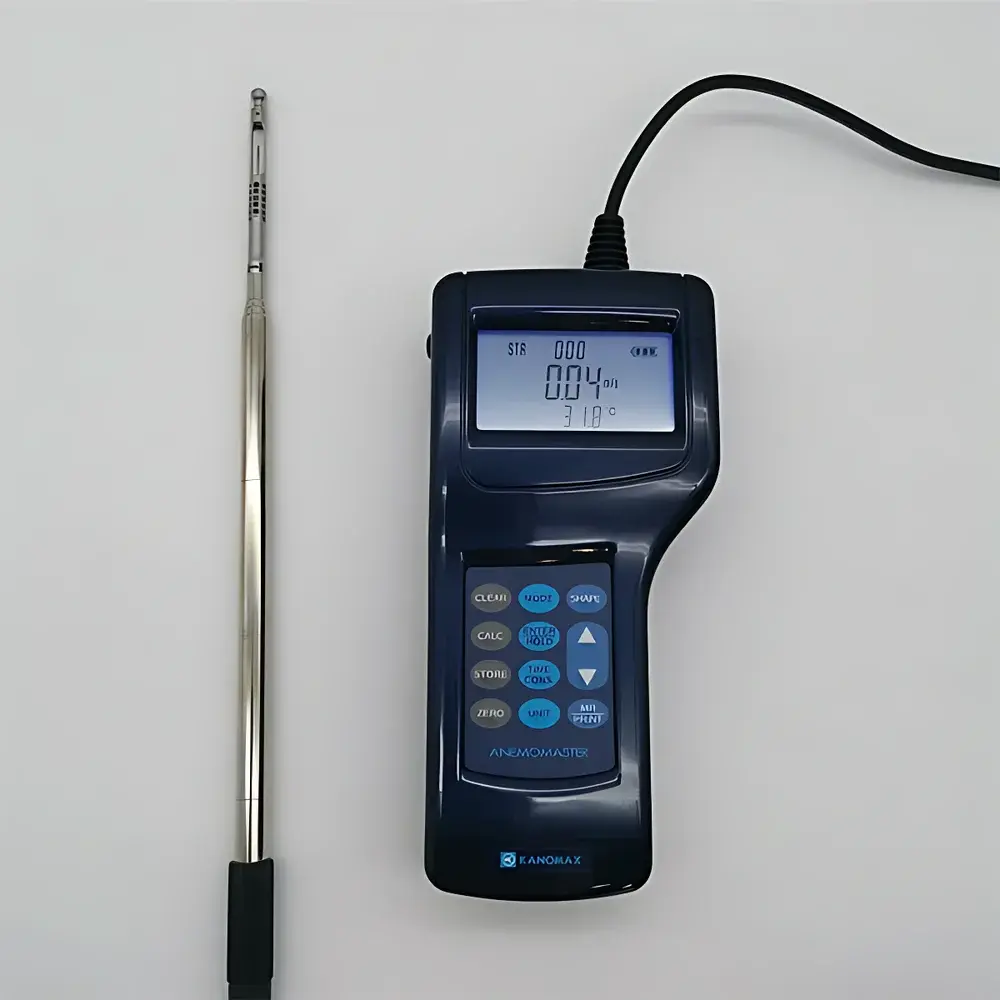

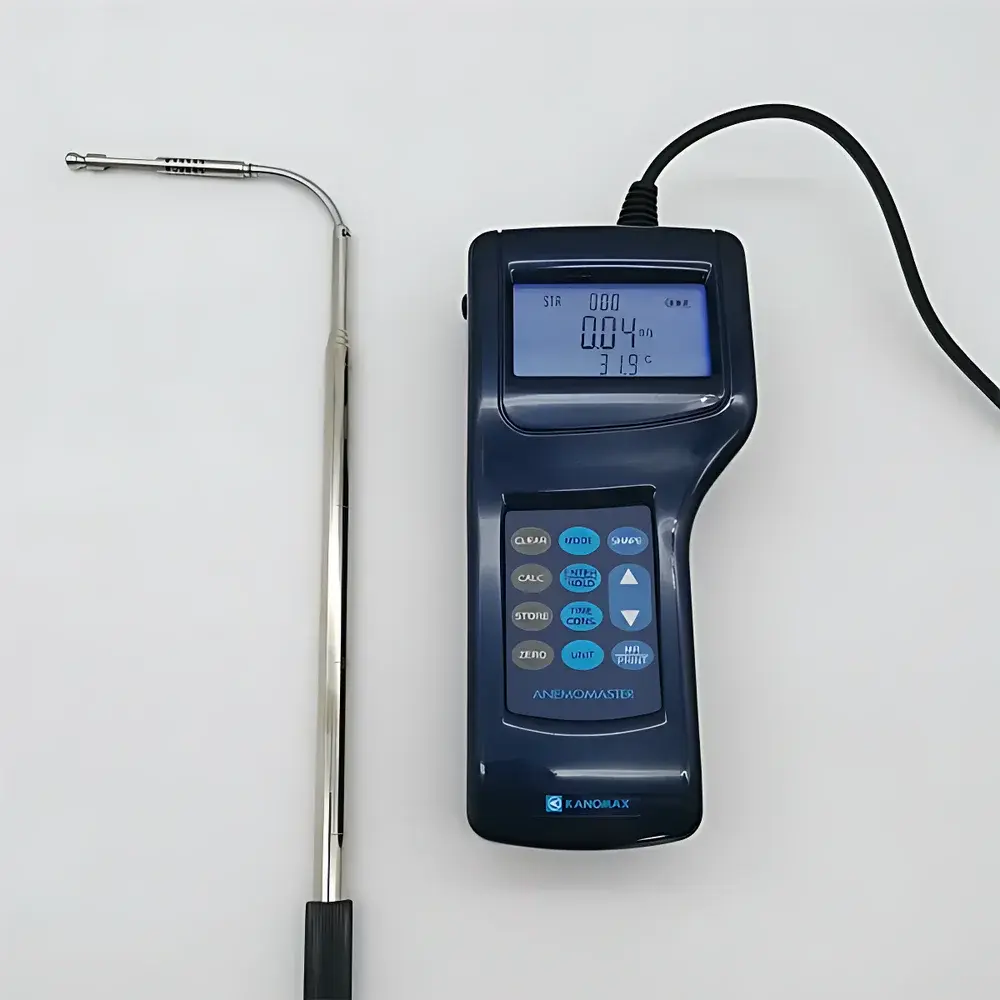

- Articulating and telescoping probe: 360° rotatable sensor head with 400 mm extendable shaft enables access to confined ducts, grilles, and ceiling plenums without disassembly
- On-device statistical processing: Built-in calculation of mean, maximum, minimum, and standard deviation across sequential readings—critical for ISO 14644-3 cleanroom airflow uniformity assessments
- High-resolution LCD with backlight: Graphical interface supports dual-unit display and intuitive menu navigation in English, Japanese, and Chinese firmware languages
- Robust environmental rating: IP54-rated enclosure ensures reliable operation in dusty, humid, or temperature-variable field conditions (−20 to +70 °C ambient; 2–98% RH non-condensing)
- Traceable calibration: Factory-calibrated per ISO/IEC 17025-accredited procedures; optional NIST-traceable certificate available upon request
Sample Compatibility & Compliance
The Kanomax 6036 is validated for use with laminar and turbulent airflow profiles across ducted and open-area environments. Its thermal sensor responds linearly within the specified range (0.01–30.0 m/s) and maintains stability during transient flow events typical of VAV box modulation or fan startup/shutdown cycles. The instrument complies with electromagnetic compatibility standards IEC 61326-1 (industrial environment) and safety standard IEC 61010-1 CAT II 300 V. For regulated environments—including pharmaceutical cleanrooms (ISO 14644-1 Class 5–8), hospital HVAC systems (ASHRAE 170), and laboratory fume hood certification (ANSI/AIHA Z9.5)—the 6036 supports GLP-compliant data integrity when used with its audit-trail-enabled PC software.
Software & Data Management
The included Kanomax Data Logger Software (v3.x) provides full bidirectional communication via USB 2.0. It enables real-time waveform visualization, time-stamped data export to CSV or Excel formats, and automated report generation aligned with ISO/IEC 17025 documentation requirements. Each stored record (up to 1500 entries) retains metadata including date/time stamp, probe position ID, operator ID, and environmental conditions. Software features configurable alarm thresholds, pass/fail criteria based on user-defined limits, and export-ready PDF reports with embedded calibration status and instrument serial number—facilitating FDA 21 CFR Part 11 readiness when paired with electronic signature modules.
Applications
- HVAC commissioning and balancing per TAB (Testing, Adjusting, Balancing) protocols
- Cleanroom airflow mapping and uniformity validation (ISO 14644-3 Annex B)
- Fume hood face velocity verification (ANSI/AIHA Z9.5 Section 6.2.1)
- Industrial exhaust system performance audits and energy efficiency assessments
- Environmental chamber airflow characterization and thermal management validation
- Educational fluid mechanics labs requiring portable, repeatable velocity measurement tools
FAQ
Does the 6036 support automatic duct area input for flow calculation?
Yes—the instrument accepts manual entry of duct dimensions (width × height or diameter) and supports up to 16-point traverse grid configuration for ISO-compliant multi-point averaging.
Can measurement data be exported in compliance with FDA 21 CFR Part 11?
While the base unit does not include electronic signatures, the PC software supports audit trail logging, user access controls, and immutable record export—providing foundational elements for Part 11 implementation when integrated into a validated IT infrastructure.
Is the probe sensor replaceable or field-calibratable?
The thermal sensor module is factory-integrated and not user-replaceable; however, field verification using NIST-traceable reference anemometers is supported via the “Zero & Span” adjustment function.
What is the battery life under continuous operation?
Using four AA alkaline cells, the instrument delivers approximately 12 hours of continuous measurement at 1-second sampling intervals, with low-battery warning and auto-shutdown to preserve data integrity.
Does the 6036 meet ISO 5167 or ISO 14644-3 requirements for airflow measurement uncertainty?
The stated accuracy (±3% of reading + 0.03 m/s) and resolution (±2% of reading) are consistent with ISO 14644-3 guidance for Class 5–8 cleanroom monitoring; for ISO 5167 primary flow measurement, it serves as a secondary verification tool—not a primary orifice plate replacement.
