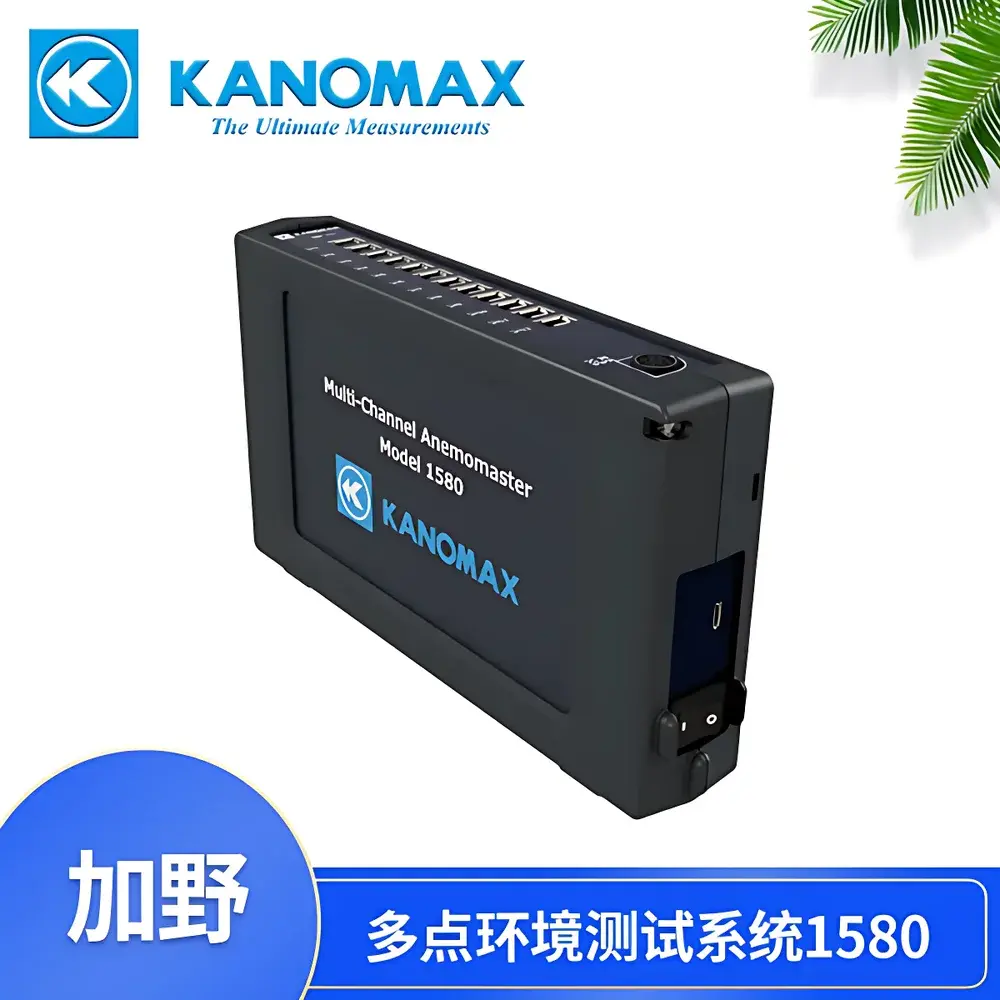

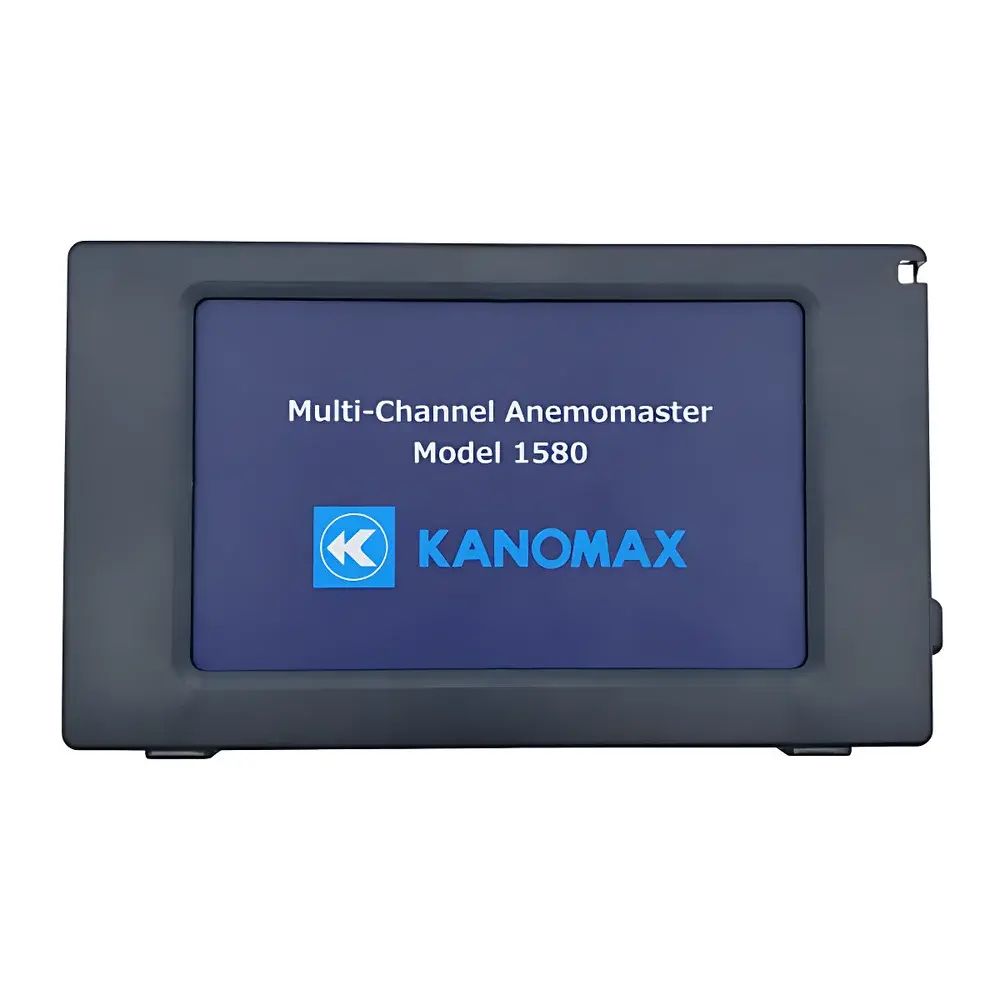

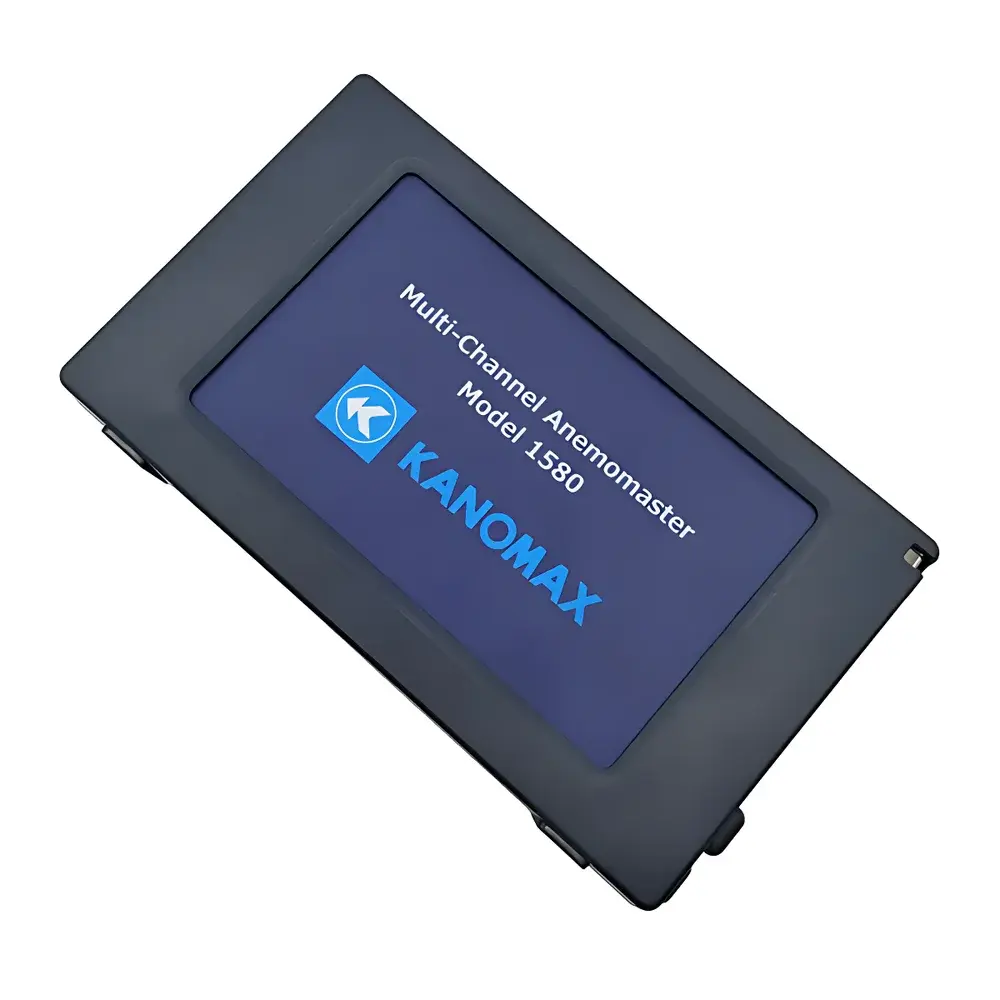

Kanomax MODEL 1580-0C 12-Channel Environmental Monitoring System with Thermal Anemometry

Overview

The Kanomax MODEL 1580-0C is a modular, high-channel-count environmental monitoring system engineered for precision multi-point measurement of air velocity, temperature, and relative humidity in industrial, laboratory, and field applications. Based on constant-temperature anemometry (CTA), the system delivers stable thermal sensor response across low-velocity regimes—down to 0.01 m/s—while maintaining linearity and repeatability through dynamic temperature compensation algorithms embedded in each compatible probe. Its 12-channel architecture enables synchronous acquisition from heterogeneous sensor configurations, eliminating temporal misalignment between spatially distributed measurements—a critical requirement for HVAC commissioning, cleanroom qualification, ventilation validation, and airflow mapping per ISO 14644, ASHRAE Standard 110, and EU GMP Annex 1. The compact main unit (220 × 130 × 40 mm, 0.6 kg) supports both fixed installation and mobile deployment—including vehicle-mounted testing—with dual power input flexibility (AC or DC) and robust environmental tolerance (−10 to +60 °C, 0–100 %RH non-condensing).

Key Features

• Simultaneous 12-channel acquisition supporting mixed sensor types—thermal anemometers, thermistors, and capacitive hygrometers—via standardized serial interface.
• 15 interchangeable probe options including directional and omnidirectional variants, ultra-miniature probes (diameter as small as 1.6 mm), and high-temperature models rated up to +120 °C.
• Integrated temperature compensation across all velocity probes ensures ±2% full-scale accuracy at low flow rates (0.01–1.0 m/s) and maintains traceable performance across ambient and elevated operating conditions.
• Configurable analog output module (MODEL 1592-0C) supporting 4–20 mA or 0–5 V signals per channel; up to three modules may be daisy-chained for scalable integration into SCADA, DCS, or PLC-based data logging systems.
• USB-Micro-B host interface with native Windows 10 software enabling real-time visualization, statistical analysis (min/avg/max), time-stamped Excel export, and per-channel parameter calibration storage.

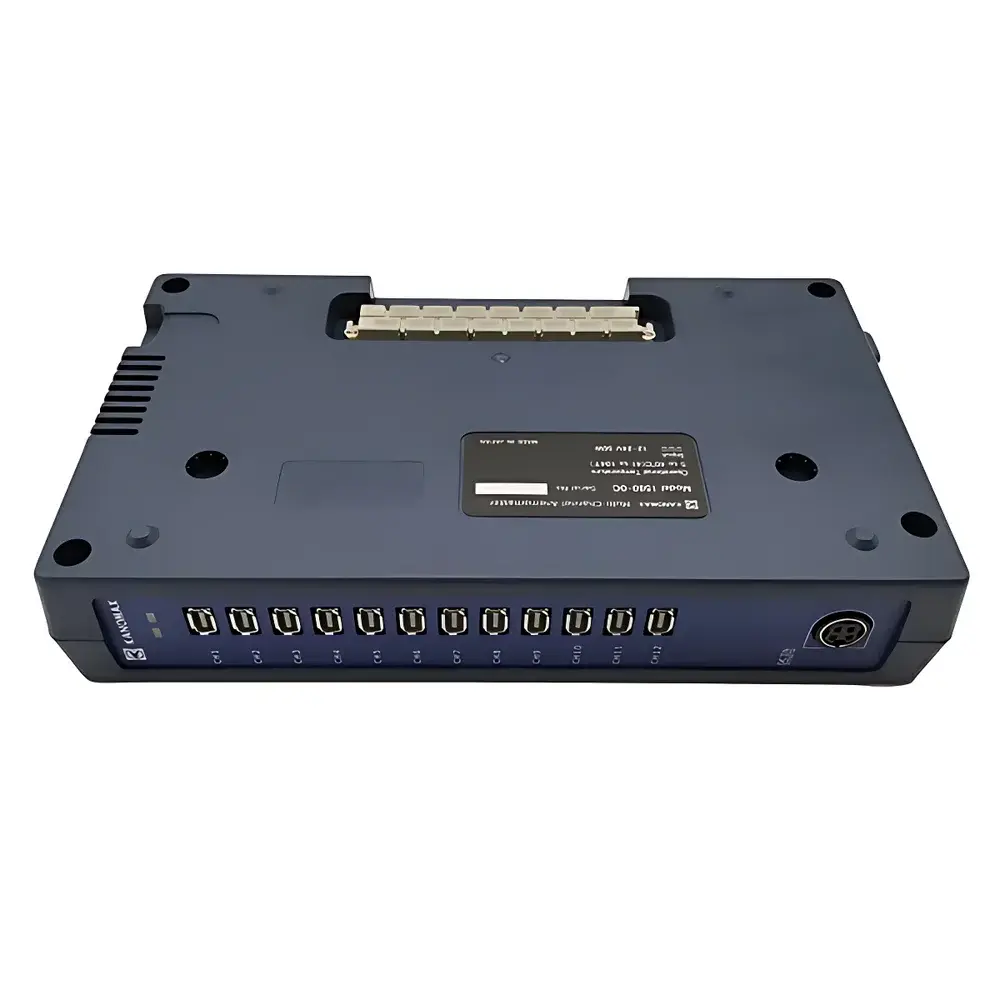

• Modular mechanical design featuring slot-and-pin interconnection between main unit and analog output modules, eliminating wiring complexity and ensuring repeatable electrical contact integrity.

Sample Compatibility & Compliance

The MODEL 1580-0C accommodates probes certified for use in non-hazardous environments per IEC 60079-0 and conforms to electromagnetic compatibility standards IEC 61000-6-3 (emission) and IEC 61000-6-4 (immunity). All humidity probes meet ISO 4677 (hygrometer calibration traceability) and operate within specified uncertainty bands across 5–95 %RH (±3 %RH) and 80–90 %RH (±5 %RH). Temperature measurement complies with ASTM E220 for thermistor-based sensing, with stated accuracy of ±0.5 °C over 0–120 °C. The system supports audit-ready operation under GLP and GMP frameworks via timestamped data logs, user-accessible configuration history, and software-enforced calibration interval tracking. No firmware or hardware modifications are required to meet FDA 21 CFR Part 11 requirements when deployed with validated IT infrastructure.

Software & Data Management

The bundled Windows application provides a deterministic, single-threaded acquisition engine synchronized to the host PC’s high-resolution performance counter. It supports concurrent display of all 12 channels in tabular and graphical formats—including real-time trend plots, histogram distributions, and statistical overlays. Each probe’s unique identifier, calibration date, and correction coefficients are stored in non-volatile memory and auto-loaded upon connection. Data can be exported in CSV or native .xlsx format with embedded metadata (channel ID, units, timestamp, operator name). The software includes configurable alarm thresholds, automatic report generation (PDF), and optional password-protected user roles (Operator, Technician, Administrator) aligned with ALCOA+ data integrity principles.

Applications

• HVAC system balancing and duct traverse verification per ANSI/ASHRAE Standard 111.
• Cleanroom airflow uniformity and turbulence assessment in pharmaceutical manufacturing suites (ISO 14644-3).
• Incubator, stability chamber, and environmental test chamber qualification (IQ/OQ/PQ).
• Automotive cabin airflow characterization and thermal comfort studies.
• Wind tunnel boundary layer profiling using arrays of miniature directional probes.
• Industrial stack emission monitoring where multi-point velocity and temperature profiles inform mass flow calculations.

FAQ

What is the minimum measurable air velocity with the MODEL 1580-0C system?
The system achieves a lower detection limit of 0.01 m/s when equipped with probes model 0972-00, 0975-00, or 0976-xx series—subject to ambient temperature stability and probe-specific calibration.
Can the system operate continuously in high-humidity environments?
Yes—the main unit is rated for continuous operation at 0–100 %RH (non-condensing); however, probe selection must match the expected humidity range (e.g., 0976-15 for 5–95 %RH, 0975-31 for extended RH coverage).
Is analog output available for all 12 channels simultaneously?
A single MODEL 1592-0C module supports 12-channel voltage output or 6-channel current output; up to three modules may be cascaded to provide full 12-channel 4–20 mA capability.
Does the software support automated compliance reporting for regulatory submissions?
While the base software does not generate pre-formatted regulatory reports, it exports fully traceable, time-stamped datasets compatible with third-party validation packages used in FDA, EMA, and PMDA submissions.
Are probe calibrations NIST-traceable?
Kanomax provides factory calibration certificates with uncertainty statements referenced to national metrology institutes; end-users may request NIST-traceable calibration add-ons at time of order.
