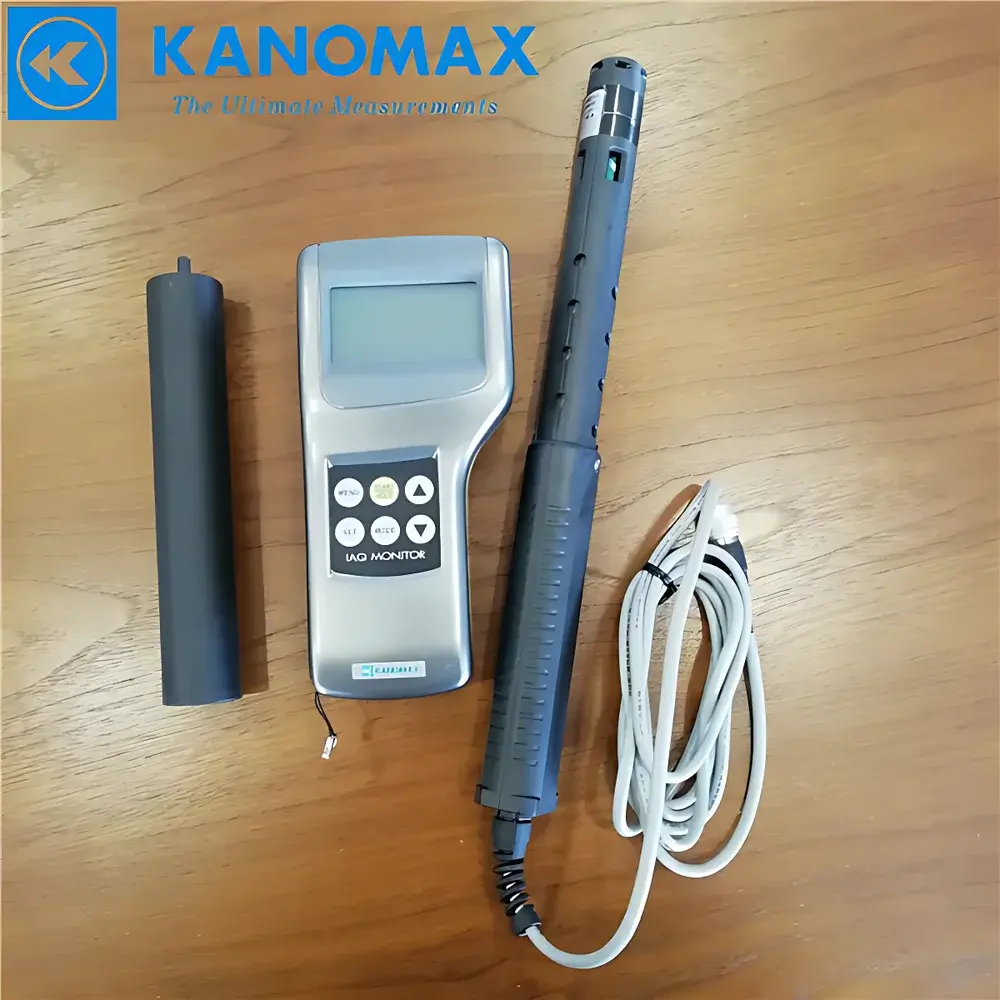

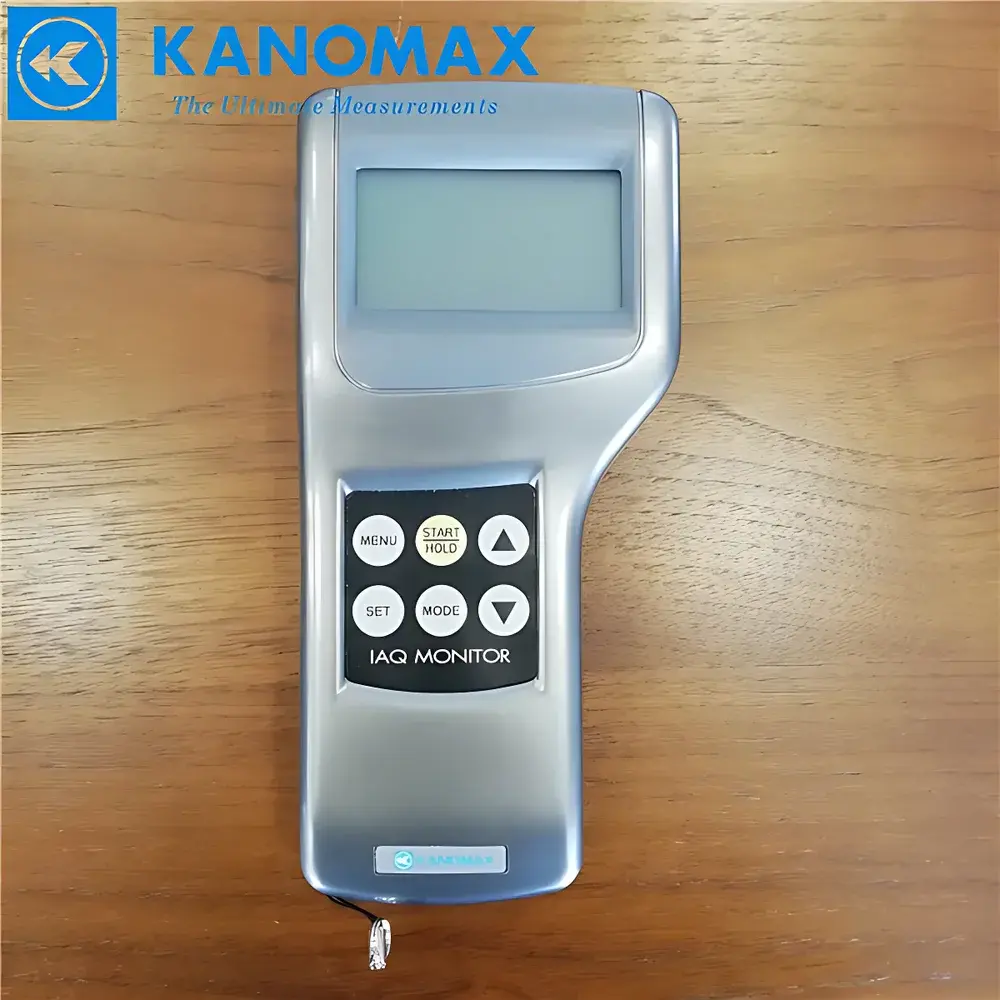

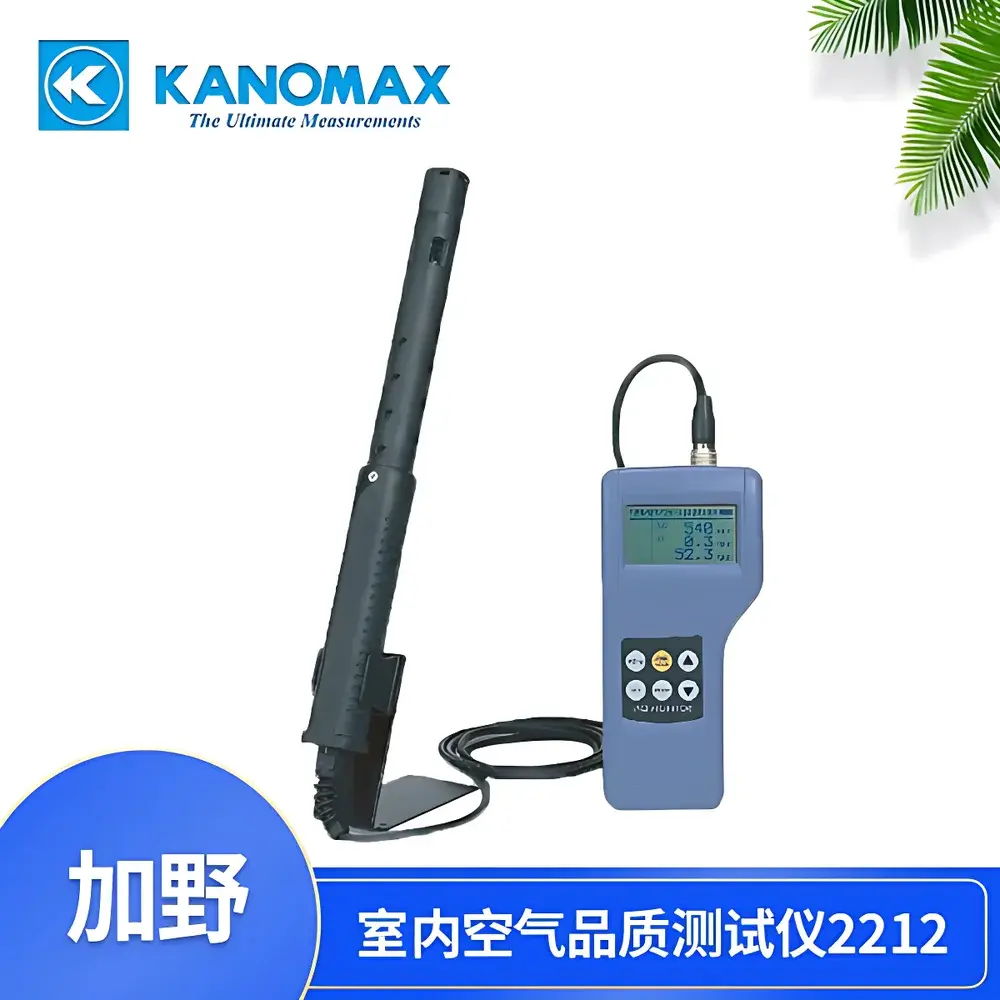

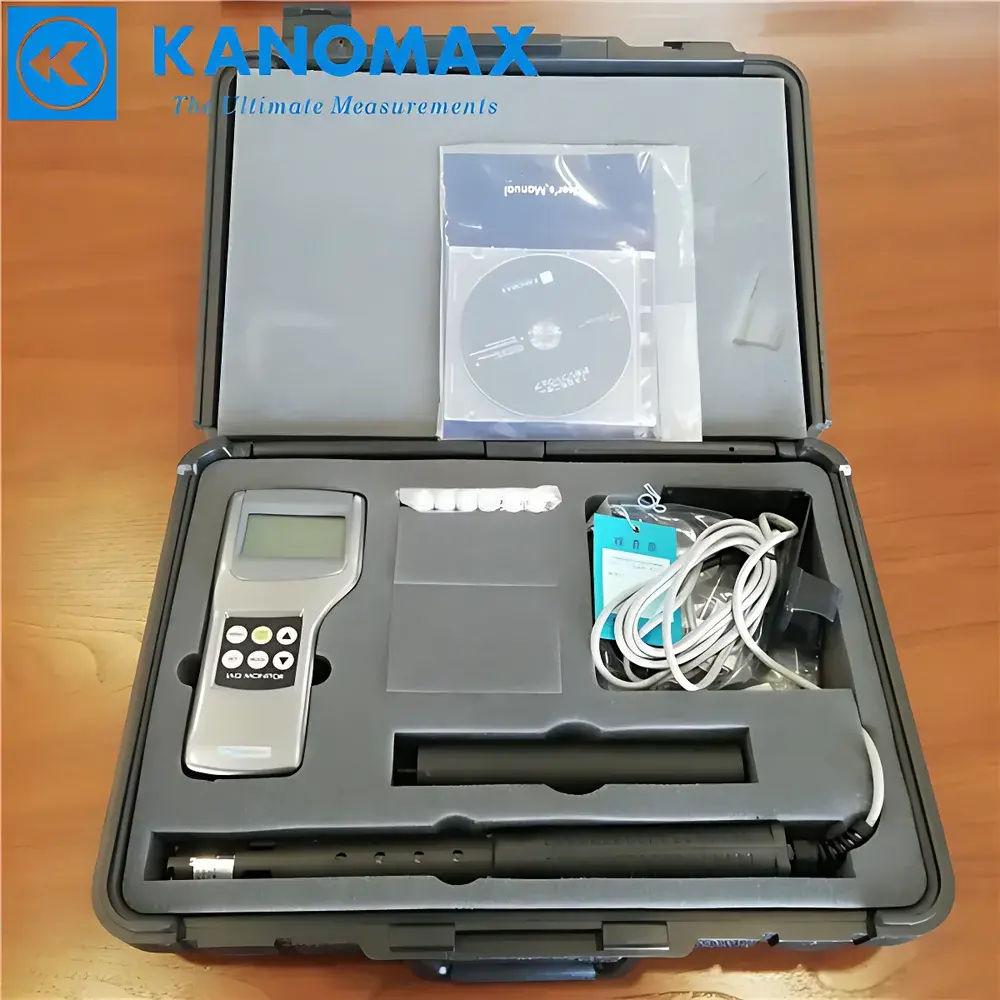

Kanomax Model 2212 Indoor Air Quality (IAQ) Monitor

Overview

The Kanomax Model 2212 Indoor Air Quality (IAQ) Monitor is a handheld, multi-parameter environmental measurement instrument engineered for precision and field reliability in HVAC commissioning, indoor air hygiene assessment, building diagnostics, and occupational health monitoring. It operates on integrated electrochemical sensing for carbon monoxide (CO), non-dispersive infrared (NDIR) detection for carbon dioxide (CO₂), and high-stability capacitive sensing for relative humidity (RH), coupled with a calibrated thermistor-based temperature sensor. These sensor technologies comply with fundamental metrological principles outlined in ISO 16000-23 (indoor air—determination of CO and CO₂) and ASTM D6245 (standard guide for using indoor air quality investigation methodologies). The device computes derived parameters—including dew point temperature, wet-bulb temperature, and absolute humidity—in real time using the Magnus formula and psychrometric algorithms embedded in its firmware, enabling immediate interpretation of thermal comfort and condensation risk without external calculation.

Key Features

• Simultaneous real-time measurement of CO (0–500 ppm), CO₂ (0–5000 ppm), ambient temperature (−20 to +60 °C), and relative humidity (2–98% RH)
• Traceable accuracy per manufacturer calibration protocol: CO accuracy specified as ±3% of reading or ±3 ppm (whichever is greater); CO₂ accuracy at ±3% of reading; temperature uncertainty ±0.5 °C; RH uncertainty ±2% RH (2–80% RH) and ±3% RH (80–98% RH)
• Onboard data logging capacity for up to 1500 measurement records, each timestamped and including computed dew point, wet-bulb temperature, and absolute humidity
• Integrated statistical engine providing automatic calculation of minimum, maximum, and arithmetic mean values across logged datasets
• USB 2.0 interface compliant with CDC (Communication Device Class) standards for direct connection to Windows/macOS/Linux systems without proprietary drivers
• Optional 0–1 V analog output for integration into building management systems (BMS) or PLC-based control loops
• Low-power architecture supporting continuous operation for >12 hours on six standard AA alkaline cells; AC adapter available as accessory

Sample Compatibility & Compliance

The Model 2212 is designed for use in non-explosive, non-corrosive indoor environments typical of offices, schools, hospitals, laboratories, and residential buildings. Its sensor configuration meets functional requirements referenced in ASHRAE Standard 62.1 (Ventilation for Acceptable Indoor Air Quality) and supports compliance verification under LEED IEQ Credit 1 (Outdoor Air Delivery Monitoring) when deployed as part of a documented IAQ baseline survey. While not intrinsically safe, it conforms to IEC 61000-6-3 (EMC emission limits) and IEC 61000-6-1 (immunity requirements), ensuring stable performance near common office electronics. Calibration traceability follows JIS Z 8015 (Japanese Industrial Standard for gas analyzer verification) and aligns with NIST-traceable reference gases used during factory certification.

Software & Data Management

Data export is performed via Kanomax’s proprietary IAQ Manager software (Windows-compatible), which enables batch download, CSV export, time-series graphing, and report generation with customizable headers and metadata fields (e.g., operator ID, location tag, sampling interval). The software enforces audit-ready data integrity: all exported files include embedded timestamps, firmware version, and sensor serial numbers. While the device itself does not implement FDA 21 CFR Part 11 electronic signature controls, its raw data structure and immutability during transfer support GLP-compliant documentation workflows when paired with controlled file handling procedures and version-controlled analysis scripts.

Applications

• HVAC system balancing and ventilation rate validation via CO₂ decay or constant-concentration methods
• Occupational exposure assessment against OSHA PELs and ACGIH TLVs for CO and CO₂
• Thermal comfort evaluation per ISO 7730 and ASHRAE 55 using concurrent T/RH-derived PMV/PPD indices
• Moisture-related building pathology screening (e.g., identifying dew point violations in wall cavities or ductwork)
• Baseline IAQ characterization prior to LEED or WELL Building Standard certification
• Educational demonstrations of psychrometrics and indoor pollutant dynamics in university engineering labs

FAQ

Is the Model 2212 suitable for outdoor ambient air monitoring?
No—it is calibrated and validated exclusively for indoor environments; outdoor particulate loading, UV exposure, and temperature extremes exceed its operational specifications.
Can sensor modules be user-replaced or field-calibrated?
Sensors are factory-sealed and not user-serviceable; full recalibration requires return to an authorized Kanomax service center using NIST-traceable gas standards.
Does the device meet ISO 17025 requirements for accredited testing laboratories?
While the instrument itself is not ISO/IEC 17025 accredited, its metrological performance and calibration documentation satisfy clause 6.4.10 (equipment verification) when incorporated into an accredited lab’s uncertainty budget and maintenance schedule.
What is the recommended calibration interval?
Kanomax recommends annual calibration under normal usage conditions; more frequent verification (e.g., pre- and post-campaign zero/span checks) is advised for regulatory reporting applications.
Is Bluetooth or Wi-Fi connectivity supported?
No—the Model 2212 relies solely on wired USB communication to ensure deterministic data transfer and eliminate RF interference risks in electromagnetically noisy facilities.
