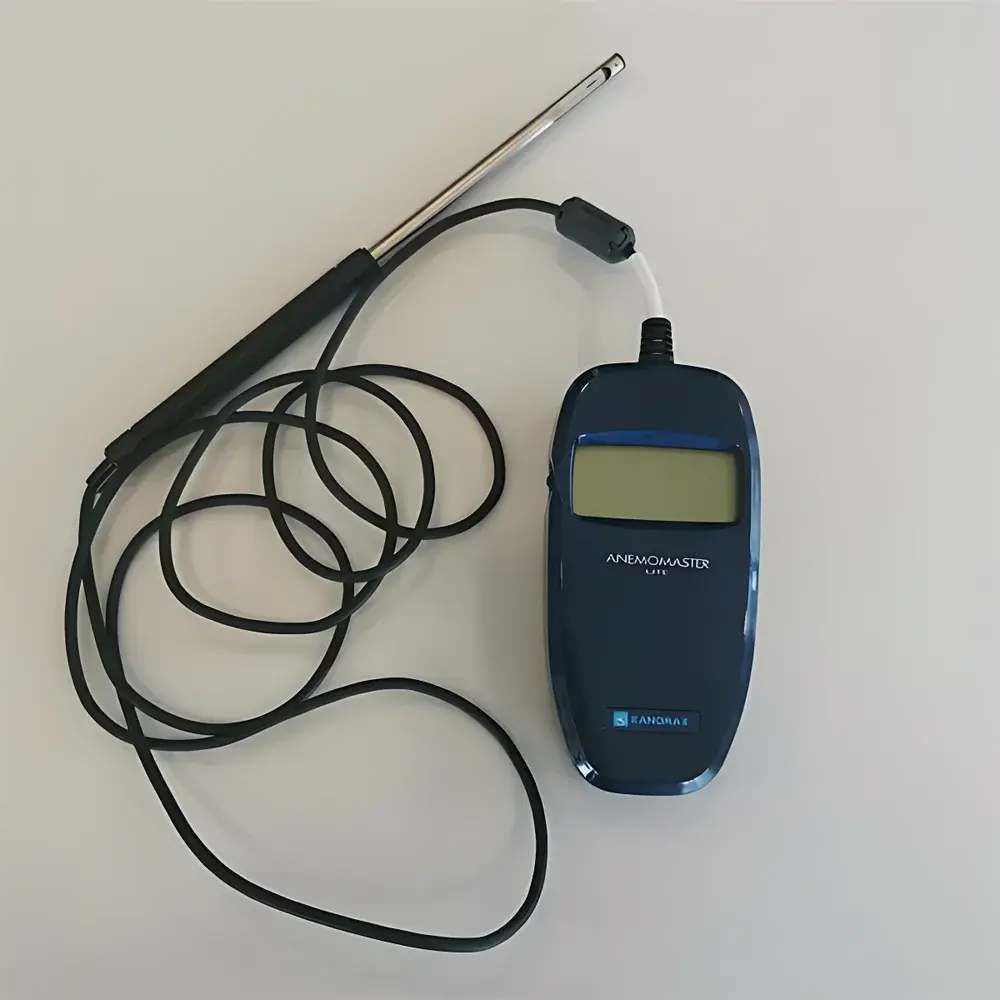

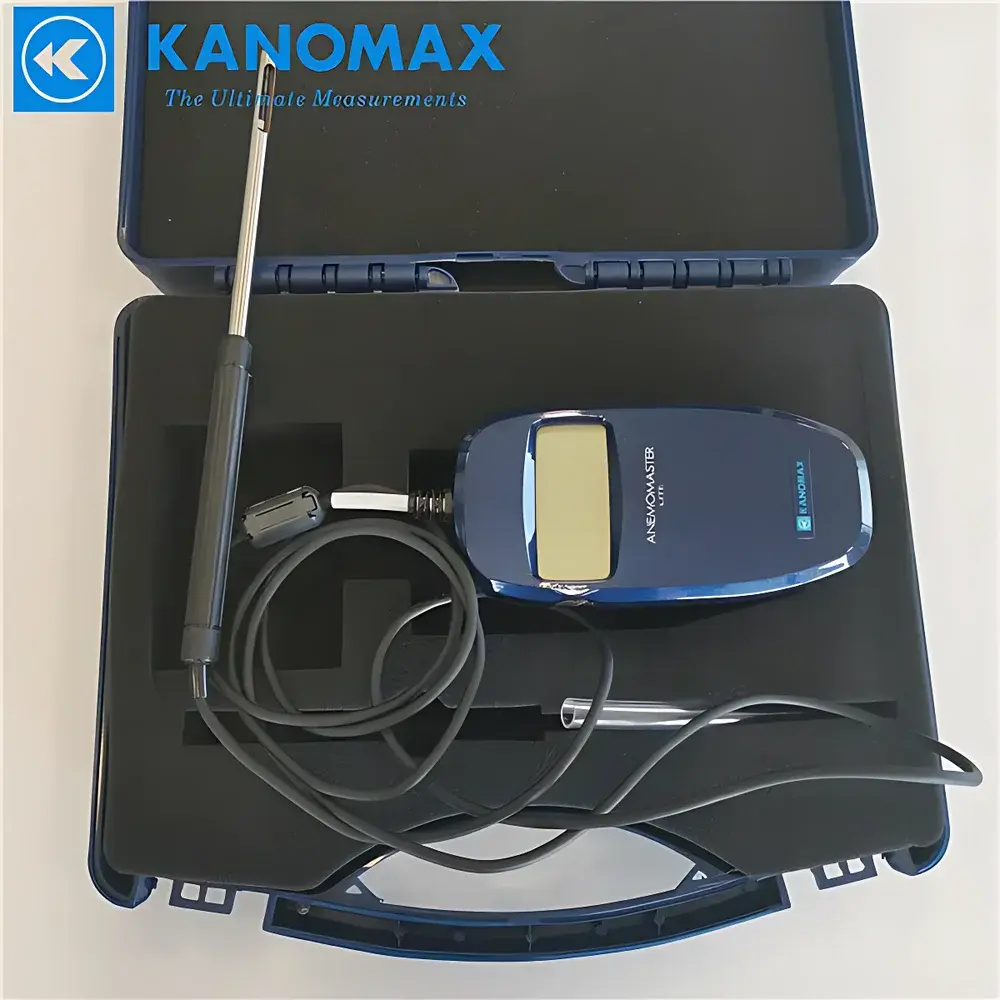

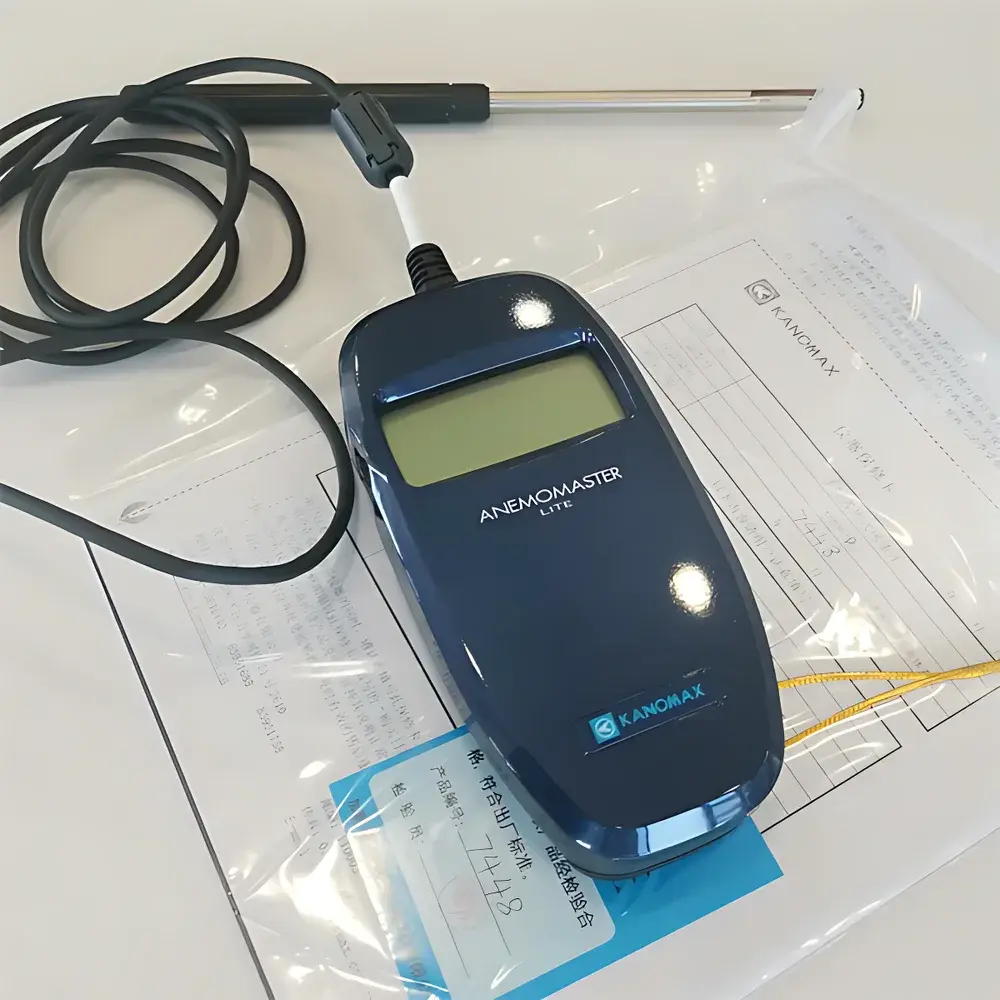

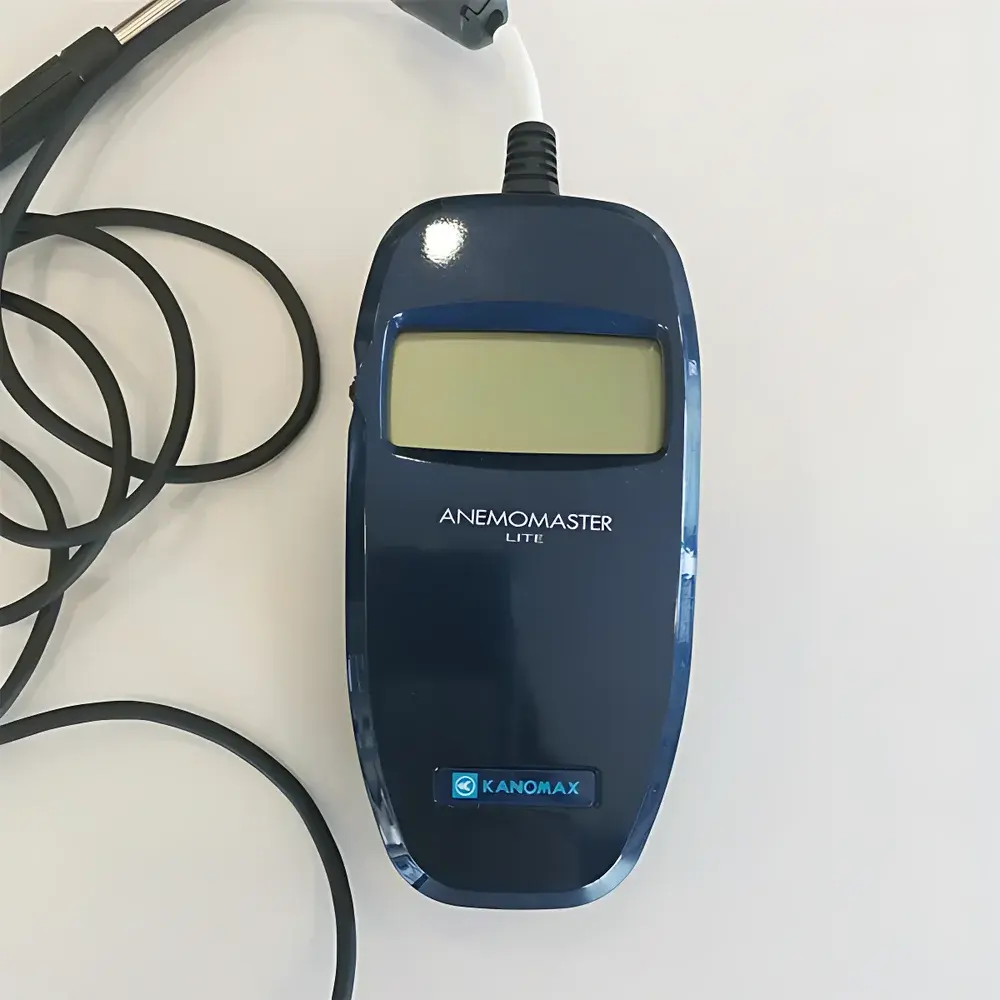

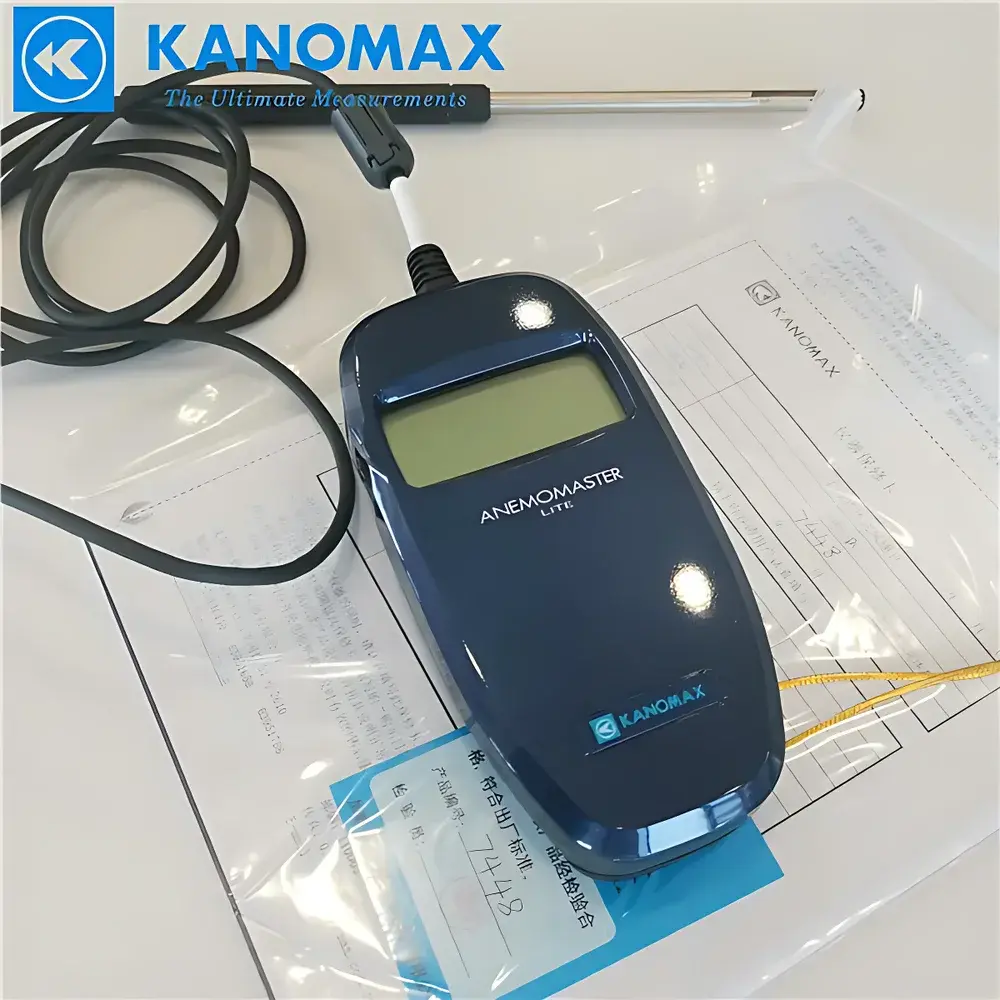

Kanomax Model 6006 Hot-Wire Anemometer
| Brand | Kanomax |
|---|---|
| Origin | Japan |
| Model | 6006 |
| Instrument Type | Thermal Anemometer |
| Measurement Range | 0.01–20.0 m/s |
| Resolution | 0.01 m/s (0.01–9.99 m/s) |
| Accuracy | ±5% of reading (wind speed) |
| Operating Temperature | −20 to +70 °C |
| Operating Humidity | 20–85% RH |
| Power Supply | 4 × AA batteries |
| Dimensions | 60 × 120 × 34 mm |
| Weight | 180 g |
Overview
The Kanomax Model 6006 is a compact, handheld thermal anemometer engineered for reliable, real-time measurement of air velocity and ambient temperature in industrial hygiene, HVAC commissioning, cleanroom validation, laboratory ventilation assessment, and environmental monitoring applications. It operates on the constant-temperature hot-wire anemometry principle: a fine platinum-coated thermistor probe is electrically heated to a fixed temperature above ambient; airflow cools the sensor at a rate proportional to local velocity, enabling precise quantification of convective heat transfer. This physics-based method delivers fast response times (<1 s), low-flow sensitivity down to 0.01 m/s, and minimal flow disturbance—critical for laminar flow characterization and low-velocity duct or fume hood face velocity surveys. Its robust, ergonomic housing and single-button interface support rapid deployment in field conditions without compromising metrological integrity.
Key Features
- Single-button operation with intuitive mode cycling (wind speed, temperature, hold, max/min/avg recall)
- Interchangeable, calibrated spherical thermal probes ensuring traceable accuracy across instrument lifecycles
- Integrated temperature compensation circuitry maintaining ±5% reading accuracy within the 10–40 °C operational envelope
- Low-power design powered by four standard AA alkaline cells, supporting >20 hours of continuous use
- Compact form factor (60 × 120 × 34 mm) and lightweight construction (180 g) optimized for one-handed operation and extended field use
- Auto-power-off function after 10 minutes of inactivity to preserve battery life
Sample Compatibility & Compliance
The Model 6006 is designed for direct measurement in non-corrosive, non-explosive gaseous environments. It is suitable for clean air, conditioned indoor air, and filtered process airstreams but not recommended for high-dust, high-moisture condensation, or chemically aggressive atmospheres (e.g., chlorine, ammonia, or solvent vapors). The device complies with IEC 61000-4 electromagnetic immunity standards for industrial environments and meets JIS C 1510 (Japanese Industrial Standard for anemometers) for performance verification. While not intrinsically safe, it is routinely deployed in accordance with OSHA 1910.142 (ventilation standards) and ISO 14644-3 (cleanroom testing protocols) for airflow uniformity and face velocity assessments. Calibration certificates are provided with NIST-traceable reference data per probe serial number.
Software & Data Management
The Model 6006 operates as a standalone instrument with no onboard memory or PC connectivity. All measurements are displayed in real time on a high-contrast LCD and may be manually recorded. For audit-ready documentation, users typically integrate readings into external digital logbooks compliant with GLP or ISO/IEC 17025 requirements. When used in regulated settings (e.g., pharmaceutical HVAC qualification), operators document instrument ID, probe serial number, calibration due date, environmental conditions, and raw readings per test point—enabling full traceability under FDA 21 CFR Part 11 when paired with validated electronic record systems. Kanomax provides optional calibration services aligned with ISO/IEC 17025-accredited laboratories.
Applications
- HVAC system balancing and duct traverse surveys per ASHRAE Guideline 12
- Cleanroom ISO class verification via supply/exhaust grille and workbench face velocity mapping
- Industrial exhaust hood performance testing per ANSI/AIHA Z9.5 and EN 14175
- Laboratory fume hood face velocity compliance checks (0.3–0.5 m/s range)
- Indoor air quality (IAQ) baseline studies and thermal comfort evaluations (PMV/PPD modeling inputs)
- Educational demonstrations of fluid dynamics principles and convective heat transfer
FAQ
Does the Model 6006 support data logging or USB output?
No. It is a real-time display-only instrument with no internal memory or communication interface.
Can the probe be calibrated independently of the main unit?
Yes. Each spherical thermal probe is individually calibrated and serialized; replacement probes retain full accuracy without reconfiguration.
Is the device suitable for outdoor wind speed measurement?
It is rated for −20 to +70 °C ambient temperature, but wind turbulence, rain, and solar loading may affect thermal equilibrium and repeatability—indoor or sheltered applications are recommended.
What is the recommended recalibration interval?
Annual calibration is advised for routine QA/QC use; more frequent verification is required in high-use or critical validation environments per ISO/IEC 17025 clause 7.7.
Does it meet FDA or EU GMP requirements for environmental monitoring?
The instrument itself is not certified for GMP, but its metrological performance and traceable calibration support compliance when incorporated into a validated environmental monitoring program.
