Kestrel DROP D1 Temperature Data Logger

Overview

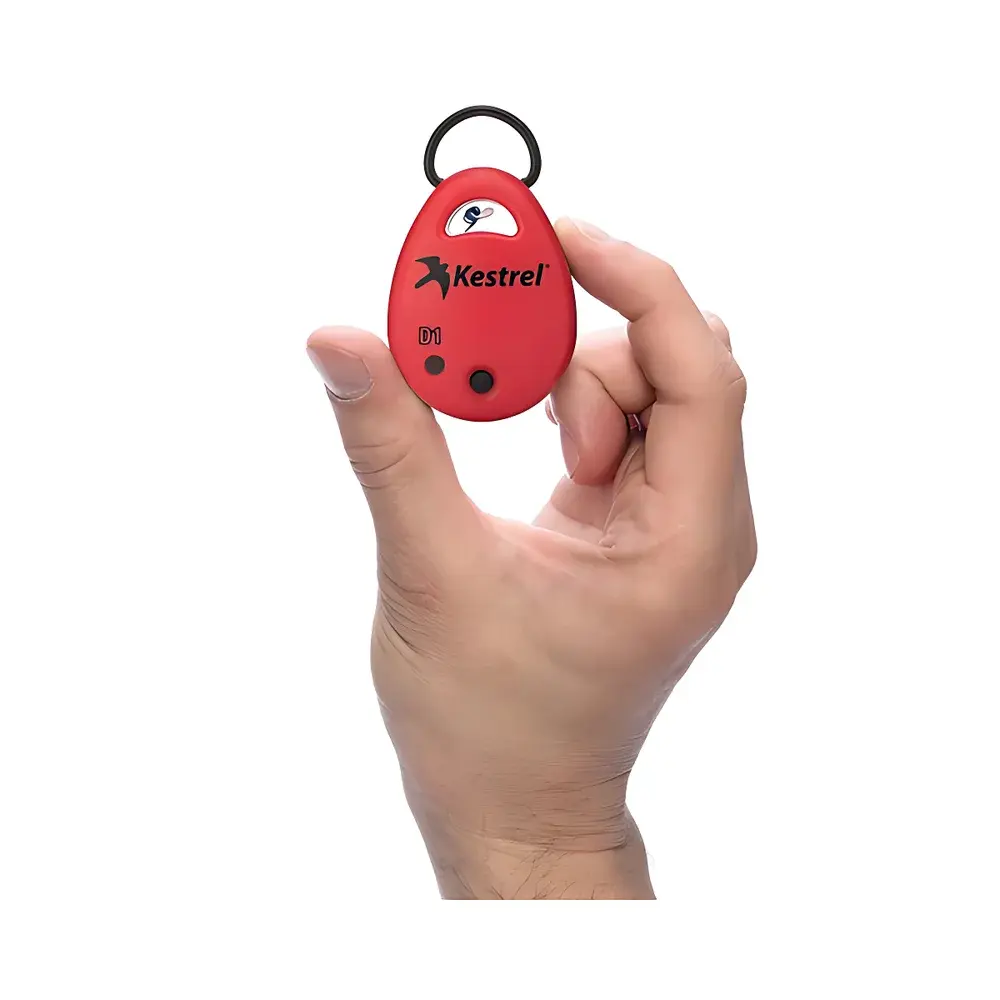

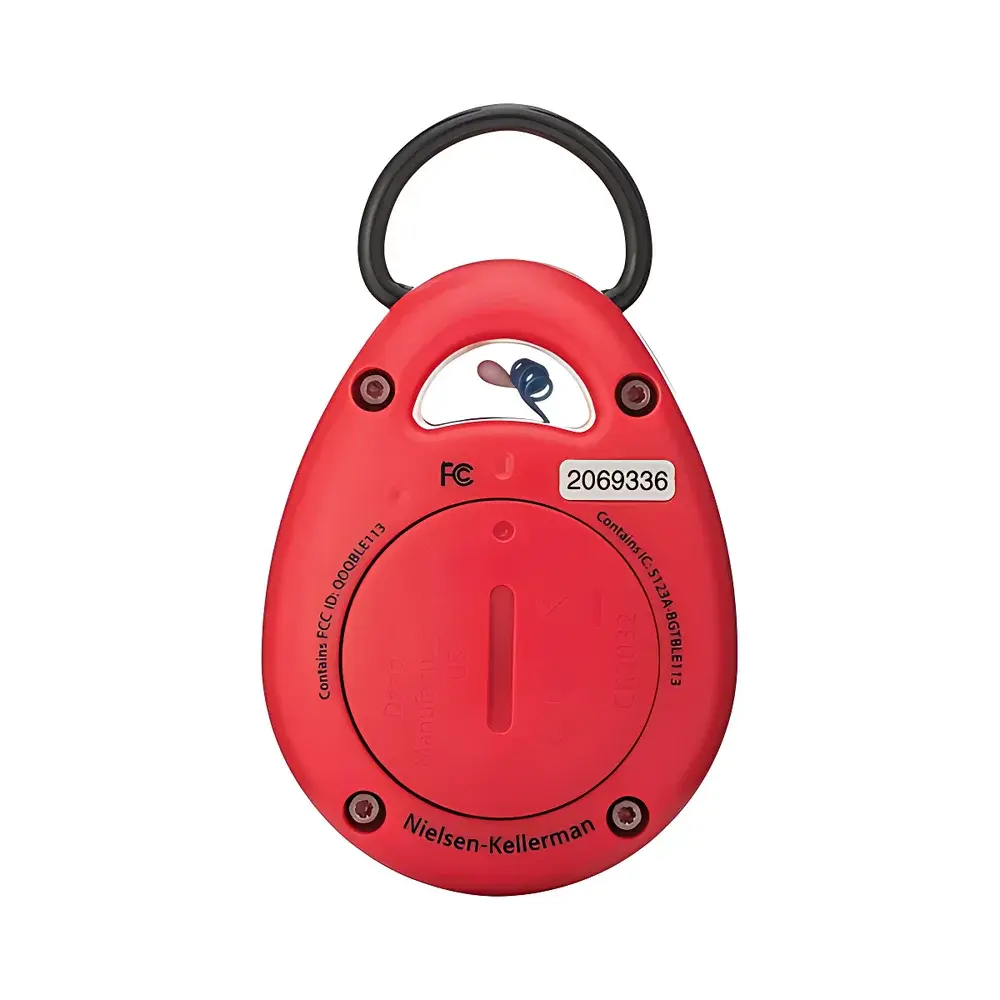

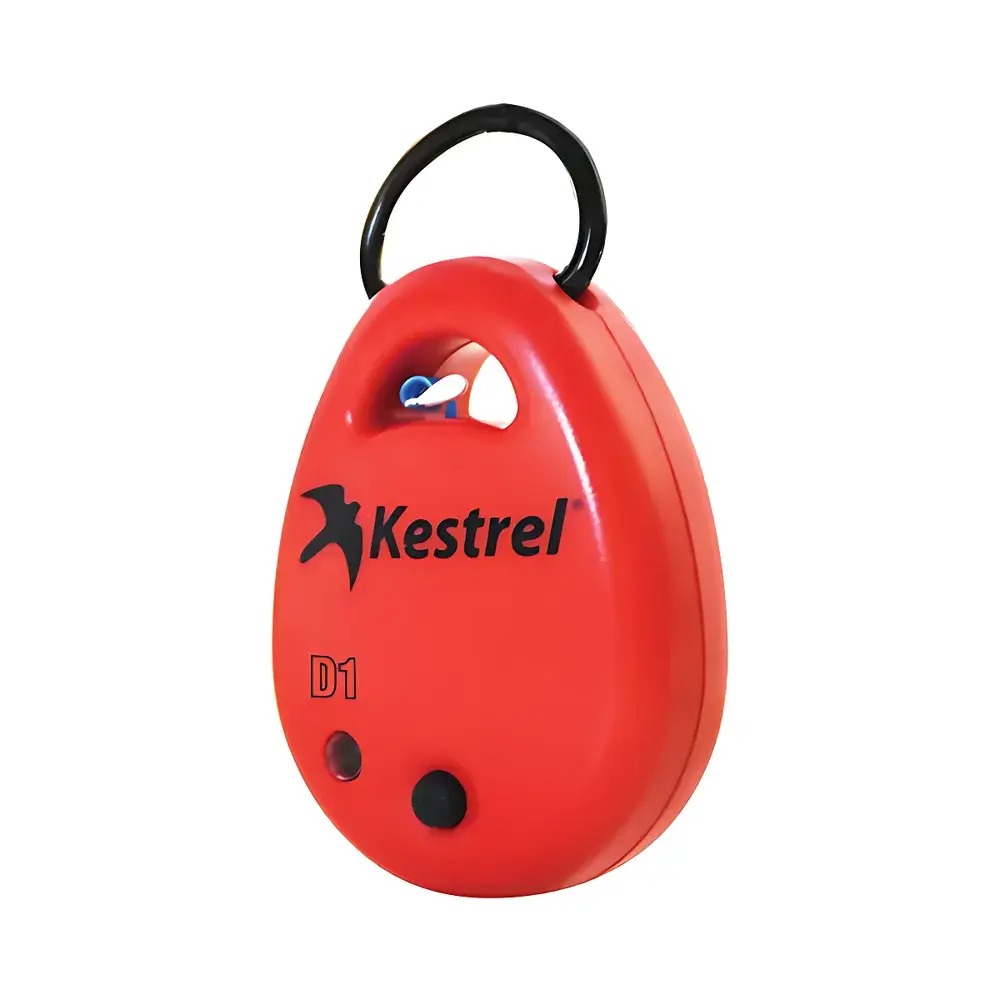

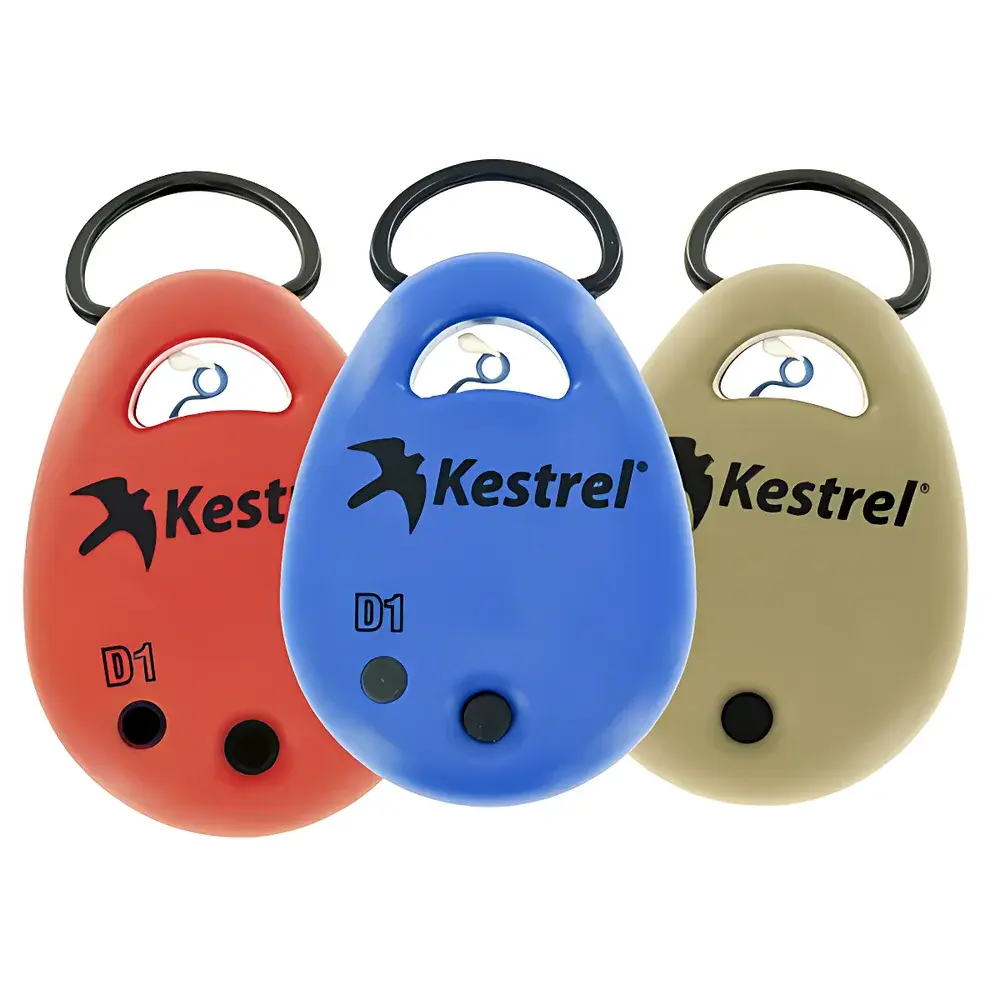

The Kestrel DROP D1 Temperature Data Logger is a compact, ruggedized single-channel environmental monitoring device engineered for high-reliability passive temperature logging in unattended field, industrial, logistics, and laboratory settings. Built on a Bluetooth® Low Energy (BLE) architecture, the DROP D1 employs a thermally isolated external thermistor sensor to deliver rapid thermal response and stable measurement performance across its operational range of –10°C to +55°C. Its measurement accuracy of ±0.5°C is maintained under variable ambient conditions due to mechanical decoupling of the sensing element from the enclosure’s thermal mass—a design feature critical for minimizing lag during transient temperature events. Unlike integrated-sensor loggers, the externally mounted thermistor enables direct contact with target surfaces or media while preserving internal electronics integrity. The device operates autonomously without external power or network infrastructure, relying solely on a replaceable CR2032 battery with an industry-leading typical service life of four months under standard logging intervals (e.g., 1–5 min). Its ultra-compact form factor—measuring just 24 × 46 × 60 mm and weighing 34 g—facilitates discreet mounting in confined spaces, cold-chain packaging, HVAC ducts, incubators, or transport containers.

Key Features

• Ruggedized housing certified to IP67 ingress protection (30-minute submersion at 1 m depth) and MIL-STD-810G shock resistance (1 m drop onto concrete)
• Thermally isolated external thermistor enabling fast response time and minimal self-heating error
• Bluetooth® 4.0+ BLE wireless interface supporting real-time data streaming and configuration within 30 m line-of-sight range
• Configurable logging interval from 2 seconds to 12 hours, with automatic time synchronization upon each BLE connection
• Onboard memory capacity exceeding 13,000 timestamped temperature records, retained during battery replacement
• D-ring mounting hardware included for secure suspension or attachment in dynamic environments
• Firmware-upgradable architecture supporting future enhancements to alarm logic, data export formats, and security protocols

Sample Compatibility & Compliance

The DROP D1 is designed for non-invasive, surface-contact or ambient-air temperature monitoring in applications where physical access is limited or environmental exposure is severe. It complies with RoHS Directive 2011/65/EU for hazardous substance restriction and meets FCC Part 15 Subpart B and Industry Canada RSS-247 regulatory requirements for intentional radiators. While not certified for medical device use per IEC 60601-1 or pharmaceutical validation under USP , its documented accuracy, thermal stability, and audit-ready data export capabilities support adherence to GLP-aligned workflows in quality assurance, warehouse qualification (IQ/OQ), and cold chain verification. The device does not require calibration traceability to NIST or other national metrology institutes out-of-the-box; however, its ±0.5°C specification is verifiable using secondary reference standards compliant with ISO/IEC 17025-accredited laboratories.

Software & Data Management

Data acquisition and configuration are managed exclusively through the free Kestrel LiNK mobile application, available for iOS (v6.0+, iPhone 4s or newer) and Android (v4.3+, Bluetooth Smart®–enabled devices). The app supports concurrent pairing with up to eight DROP units per mobile device, enabling multi-point monitoring without gateway hardware. Each session displays live min/max/avg values, scrollable time-series graphs, and granular metadata (timestamp, battery level, signal strength). Users may define custom high/low threshold alerts that trigger visual notifications upon breach—though no local audible or haptic alert is generated on the logger itself. Export options include CSV and PDF reports, with timestamps automatically aligned to the host device’s system clock upon connection. All data transfers occur over encrypted BLE channels; however, the current firmware version does not implement end-to-end encryption or user authentication, and therefore does not satisfy FDA 21 CFR Part 11 requirements for electronic records and signatures without supplementary procedural controls.

Applications

• Cold chain validation and monitoring for pharmaceutical, vaccine, and biologics distribution
• Warehouse and storage facility temperature mapping during seasonal commissioning or requalification
• Transport container logging for air freight, refrigerated trucks, and intermodal shipping containers
• Environmental chamber and incubator performance verification in academic and industrial labs
• Construction site ambient condition logging for concrete curing, adhesive application, or coating inspection
• Food service and retail refrigeration compliance tracking per FDA Food Code Appendix J guidelines

FAQ

What is the maximum recommended logging interval for long-term deployment?
For optimal battery longevity in continuous operation, intervals of 1–5 minutes are recommended. Intervals shorter than 10 seconds significantly reduce service life and are intended only for short-duration diagnostic use.
Can the DROP D1 be used underwater?
No—the IP67 rating permits temporary immersion at 1 m depth for up to 30 minutes, but it is not rated for sustained submersion or pressure cycling. The external thermistor cable is not waterproof beyond the sealed gland entry point.
Is time-stamping traceable to UTC or GPS?
No—the internal real-time clock synchronizes only to the host mobile device’s system clock upon BLE connection. It lacks GPS, NTP, or radio-controlled time sources.
Does the device support external sensor inputs or analog outputs?
No—the DROP D1 is strictly a single-channel temperature logger with no expansion interfaces, analog outputs, or support for third-party sensors.
How is data integrity ensured during wireless transmission?
All BLE packets include CRC-16 checksums, and the Kestrel LiNK app performs automatic retransmission of corrupted or missing records during download sessions. No forward error correction or packet sequencing is implemented at the firmware level.
