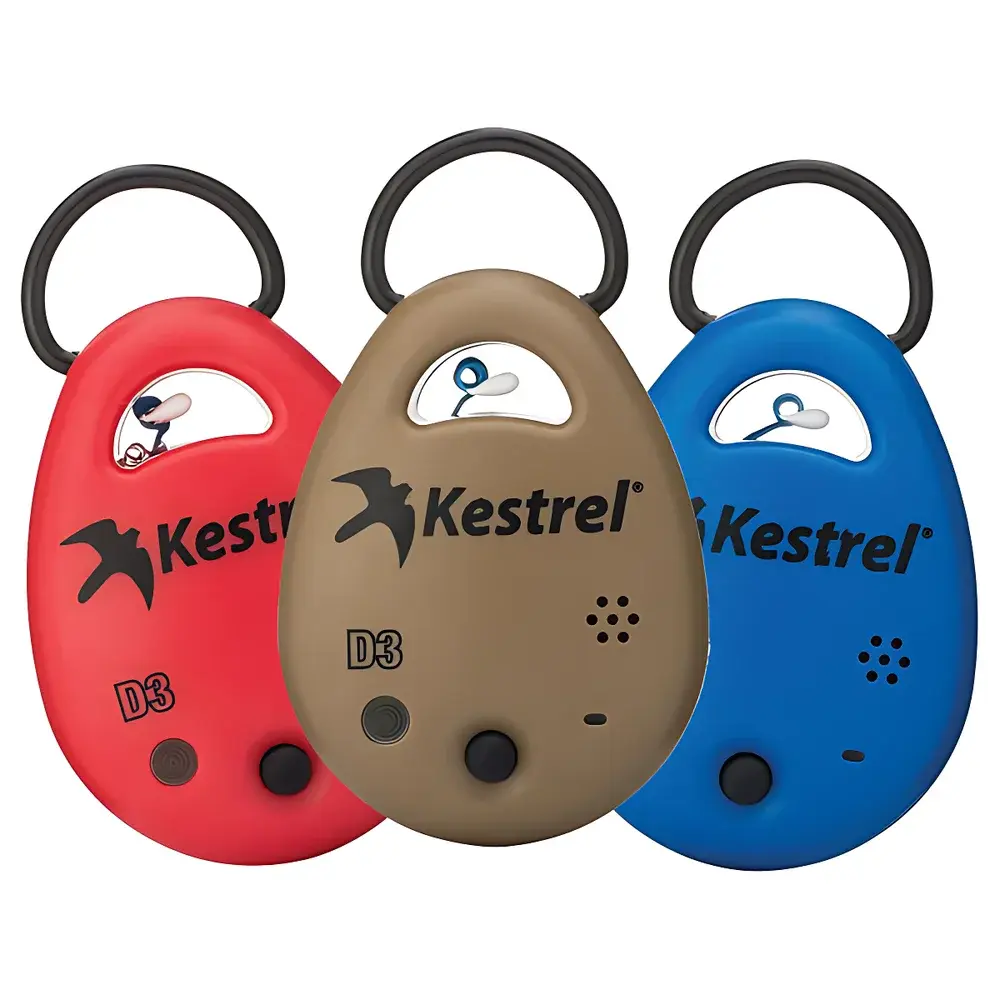

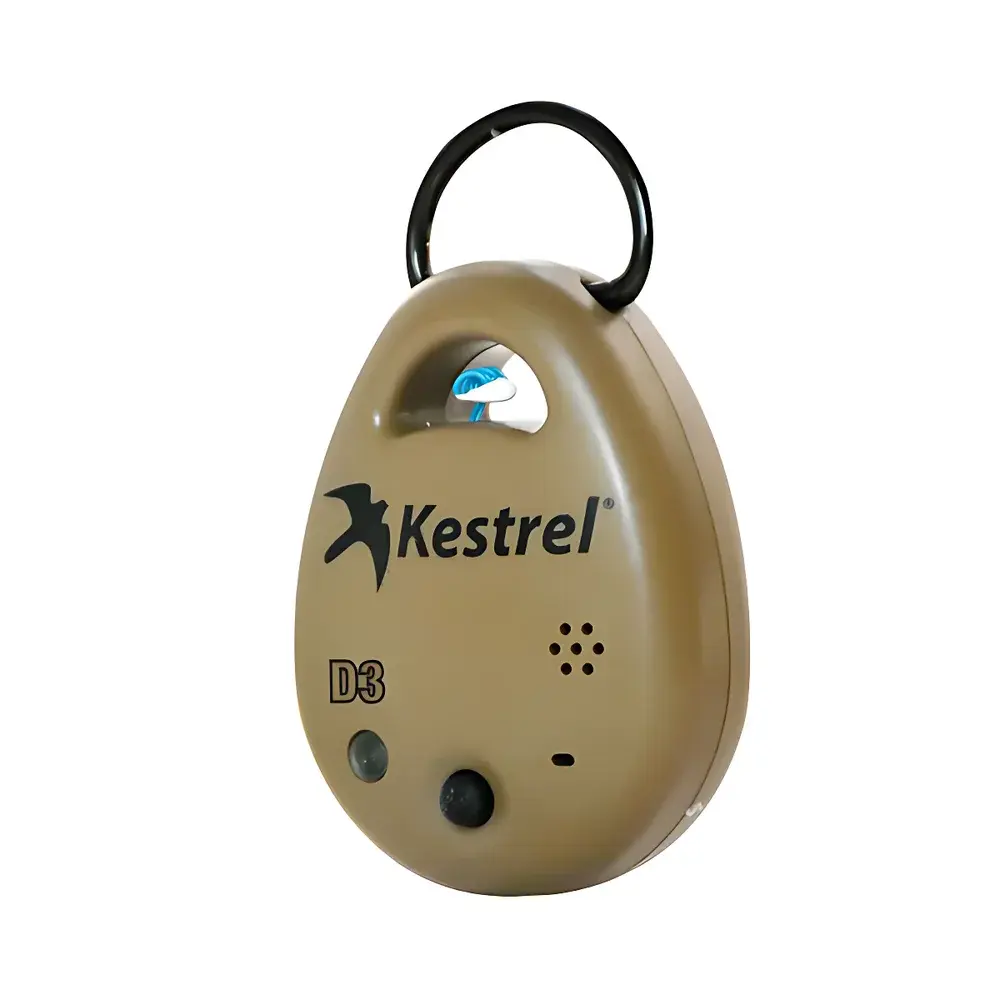

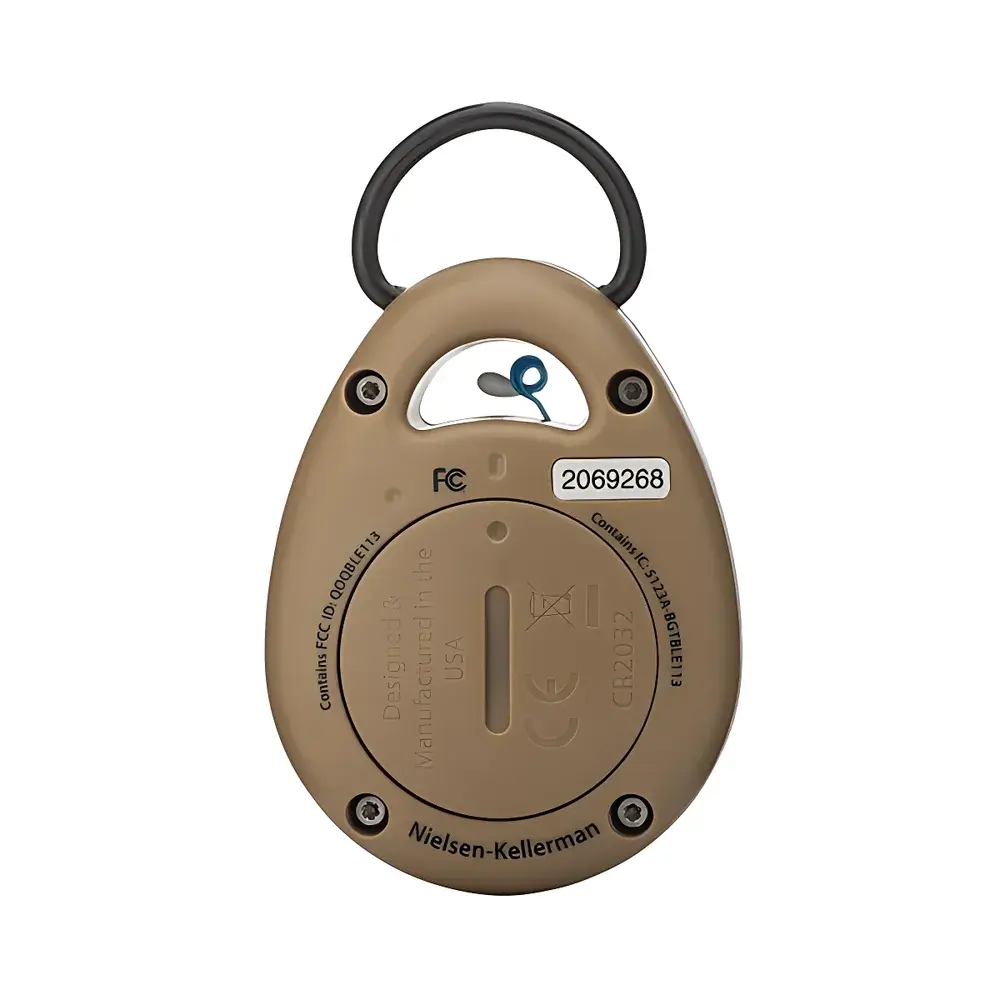

Kestrel DROP D3 Temperature, Humidity & Barometric Pressure Data Logger

Overview

The Kestrel DROP D3 is a compact, rugged, and wireless environmental data logger engineered for high-fidelity, long-term monitoring of ambient temperature, relative humidity, and barometric pressure across diverse operational environments. Built upon Kestrel’s legacy of precision meteorological instrumentation, the DROP D3 employs NIST-traceable digital sensors calibrated in controlled climatic chambers to ensure metrological integrity under real-world conditions. Its measurement architecture integrates a capacitive polymer humidity sensor, a platinum RTD (Pt1000) temperature element, and a piezoresistive absolute pressure transducer—each selected for stability, low hysteresis, and minimal thermal drift. Unlike basic loggers relying on single-point calibration, the DROP D3 applies multi-point temperature-compensated algorithms to correct cross-sensitivity between parameters (e.g., RH error induced by ambient temperature gradients), delivering traceable accuracy compliant with ISO/IEC 17025-aligned laboratory practices. Designed for unattended deployment, it operates autonomously for up to three months on a single CR2032 coin cell—ideal for validation of cold chain integrity, HVAC performance verification, cleanroom environmental qualification, and outdoor microclimate studies.

Key Features

• Ruggedized housing certified to IP67 (dust-tight and submersible to 1 m for 30 min) and MIL-STD-810G (shock, vibration, and thermal cycling)
• True multi-parameter logging: simultaneous acquisition of air temperature, relative humidity, dew point, heat index, barometric pressure, density altitude, and pressure trend
• Bluetooth® 4.0 Smart (BLE) connectivity enabling secure, low-power wireless communication with iOS and Android devices at up to 30 m line-of-sight range
• Configurable logging intervals from 2 seconds to 12 hours; supports burst-mode sampling for transient event capture
• On-device memory stores up to 16,384 timestamped records with automatic time synchronization via connected mobile device (NTP-assisted)
• D-ring mounting hardware included for wall, rack, duct, or suspended installation without external brackets or adhesives
• Real-time visualization and threshold-based alerting via the free Kestrel LiNK app—including min/max/avg statistics, scrolling time-series graphs, and export-ready CSV logs

Sample Compatibility & Compliance

The DROP D3 is optimized for ambient air monitoring in non-corrosive, non-explosive atmospheres. It is not intended for immersion in liquids, exposure to aggressive solvents (e.g., acetone, chlorinated hydrocarbons), or continuous operation in condensing humidity above 95 % RH. Its sensor design excludes moving parts or exposed hygroscopic materials, minimizing drift during extended deployments in variable environments. The device meets key regulatory and quality framework requirements for environmental monitoring in regulated industries: its firmware supports audit-trail-capable configuration changes (date/time-stamped), and logged data exports include full metadata (sensor ID, firmware version, calibration date). While not inherently 21 CFR Part 11-compliant out-of-the-box, the Kestrel LiNK software architecture allows integration with validated third-party electronic lab notebook (ELN) or LIMS systems that implement required electronic signature and record retention controls. It is routinely deployed in facilities operating under ISO 14644 (cleanrooms), USP (analytical instrument qualification), and GxP-aligned environmental monitoring programs.

Software & Data Management

Kestrel LiNK is a purpose-built, platform-native application (iOS v6+, Android 4.3+) that serves as both a real-time dashboard and a configuration interface. Each mobile device can concurrently pair with up to eight DROP D3 units, enabling coordinated multi-zone monitoring without gateway hardware. The app displays live metrics with color-coded status indicators, overlays historical trends using scalable time axes (1 hr to 30 days), and permits user-defined alarm thresholds with push notifications. All data—including raw sensor values, derived indices (e.g., heat index), and pressure differentials—is exportable in UTF-8 CSV format with ISO 8601 timestamps. No cloud storage is mandatory; all data resides locally on the user’s device unless explicitly shared via email or integrated file-sharing services. Firmware updates are delivered over-the-air and validated cryptographically to ensure integrity and traceability—critical for maintaining instrument qualification status during lifecycle management.

Applications

• Pharmaceutical & biotech: Cold chain validation for vaccine transport, warehouse temperature mapping, stability chamber monitoring
• Healthcare: Operating room environmental compliance, medical device storage condition verification, HVAC system commissioning
• Manufacturing: Process environment control in electronics assembly, paint curing ovens, composite layup areas
• Facilities & infrastructure: Data center hot/cold aisle profiling, museum artifact preservation climate logging, building envelope leakage testing
• Agriculture & food safety: Grain silo moisture tracking, refrigerated transport auditing, greenhouse microclimate optimization
• Research & education: Field ecology studies, atmospheric science education labs, student-led environmental impact assessments

FAQ

What is the battery life under typical logging conditions?
With a default 1-minute logging interval and daily Bluetooth sync, battery life exceeds 90 days. At 2-second sampling, runtime reduces to approximately 7–10 days.
Can DROP D3 be used in explosive or hazardous locations?
No. It is not intrinsically safe (IS)-rated and lacks ATEX/IECEx certification. Deployment in Class I, Division 1 or Zone 0/1 environments is prohibited.
Is calibration documentation provided with each unit?
Yes. Each DROP D3 ships with a NIST-traceable calibration certificate listing as-found/as-left values at three temperature/humidity setpoints, valid for 12 months from shipment.
Does the device support external sensor inputs or analog outputs?
No. The DROP D3 is a self-contained, fixed-sensor logger. It does not feature expansion ports, analog voltage outputs, or 4–20 mA interfaces.
How is time synchronization handled when no mobile device is nearby?
The internal RTC maintains time within ±2 seconds per day drift. Time is corrected only during Bluetooth connection—no GPS or network time protocol (NTP) is embedded.
