KJ GROUP KSL-1800X-S 1.7L High-Temperature Box Furnace

Overview

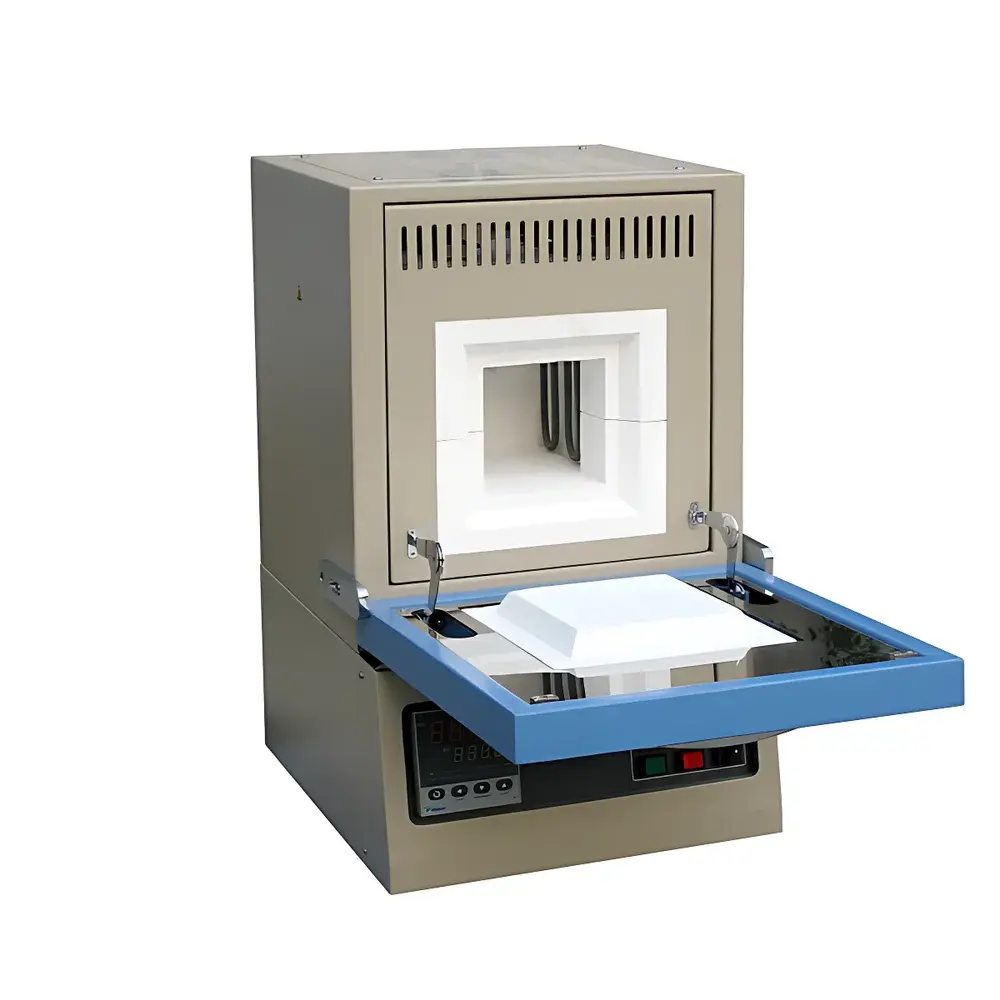

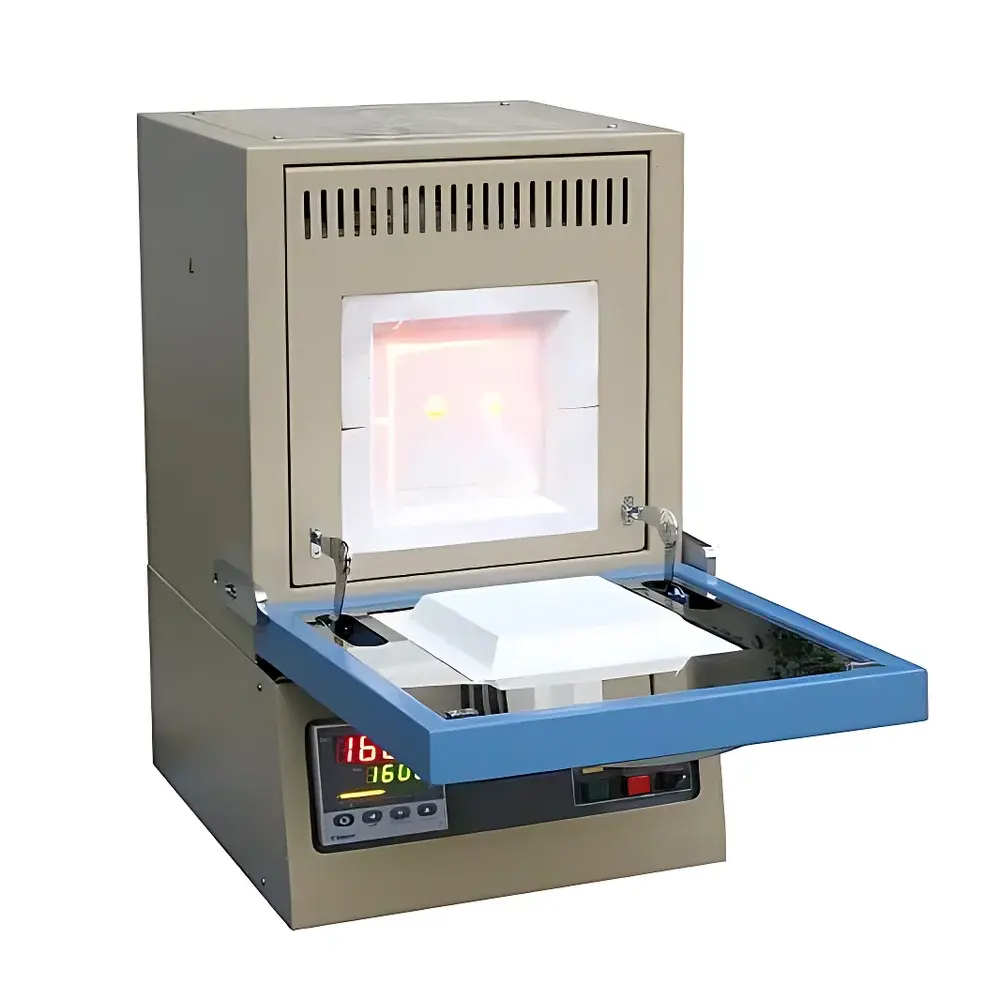

The KJ GROUP KSL-1800X-S is a compact, high-temperature box furnace engineered for precision thermal processing in research laboratories and small-scale materials development environments. Designed around a robust MoSi₂ (molybdenum disilicide) heating architecture—specifically Kanthal Super-1900-grade resistance elements—the furnace achieves stable operation up to 1800°C for short-duration treatments (≤2 hours), with rated continuous service at 1750°C. Its 1.7-liter internal chamber (120 × 120 × 120 mm) is lined with polycrystalline alumina fiber insulation, offering low thermal mass, rapid thermal response, and exceptional energy efficiency compared to traditional brick-lined muffle furnaces. The downward-opening door configuration enhances ergonomic sample handling and facilitates controlled atmosphere integration via standard gas inlet/outlet ports—enabling operation under ambient air, purified oxygen, nitrogen, argon, or other inert gases. All structural and thermal design parameters comply with IEC 61000-6-3 (EMC) and IEC 61000-6-2 (immunity) requirements, and the unit carries full CE marking for conformity with EU Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU.

Key Features

• Double-walled stainless steel housing with forced-air cooling interlayer, maintaining external surface temperature below 60°C during operation at 1750°C.
• High-purity polycrystalline alumina fiber furnace lining—resistant to thermal shock, low in outgassing, and chemically inert up to 1800°C.
• PID-based temperature controller with programmable 30-segment ramp-soak profiles, supporting complex thermal cycles including hold, dwell, and cooling-rate modulation.
• B-type dual platinum-rhodium thermocouple (PtRh30/PtRh6) embedded in the hot zone for high-accuracy, long-term stability, and traceable calibration per ISO/IEC 17025 guidelines.
• Integrated gas porting system (standard 6 mm compression fittings) compatible with mass flow controllers and pressure regulators for precise atmosphere control.
• Front-panel safety interlock prevents door opening above 100°C; over-temperature cutoff (OTC) circuit triggers automatic power shutdown at 1850°C.

Sample Compatibility & Compliance

The KSL-1800X-S accommodates crucibles and substrates made from high-purity alumina (Al₂O₃), zirconia (ZrO₂), silicon carbide (SiC), and graphite—subject to compatibility with process atmosphere and thermal cycling profile. It is routinely deployed in ASTM C1171 (refractory testing), ISO 5659-2 (fire toxicity analysis), and USP (thermal sterilization validation) workflows. While not vacuum-rated, its sealed chamber design supports positive-pressure inert gas purging to achieve O₂ levels <10 ppm when paired with certified gas purification systems. The furnace meets GLP documentation requirements through optional RS485 Modbus RTU interface (available upon request), enabling audit-ready data logging aligned with FDA 21 CFR Part 11 principles when integrated with compliant SCADA platforms.

Software & Data Management

The built-in controller supports real-time temperature monitoring and manual setpoint adjustment without external software. For advanced data acquisition, the optional KJ-LINK communication module (RS485-to-USB) enables bidirectional communication with third-party LabVIEW, MATLAB, or Python-based automation frameworks. Logged temperature profiles—including time-stamped ramp rates, soak durations, and deviation alerts—are exportable as CSV files. Firmware updates are delivered via secure USB stick protocol, ensuring traceability and version control per ISO/IEC 17025 Clause 5.9. No cloud connectivity or proprietary SaaS platform is implemented—data sovereignty and network isolation are preserved by default.

Applications

• Sintering of advanced ceramics (e.g., YSZ, Si₃N₄, AlN) and ultra-high-temperature composites.
• Heat treatment of refractory metals (Mo, W, Nb) and intermetallic alloys under controlled atmospheres.
• Thermal gravimetric analysis (TGA) pre-conditioning and ashing protocols requiring >1600°C stability.
• Crystal growth support (e.g., flux method seed annealing, solid-state reaction synthesis).
• Calibration reference source for high-temperature pyrometers and blackbody cavity validation.
• Materials aging studies under accelerated thermal stress per MIL-STD-883 Method 1008.

FAQ

What is the recommended maximum heating and cooling rate to ensure furnace longevity?
For optimal element life and thermal insulation integrity, maintain heating and cooling rates at or below 10°C/min across the full temperature range.
Can this furnace be used under vacuum conditions?
No—it lacks vacuum-tight seals and is not rated for negative pressure; use only at atmospheric or positively pressurized inert/oxygen atmospheres.
Is corrosion resistance available for sulfur- or sodium-containing process gases?
Yes—upon prior specification, the alumina fiber lining can be pre-coated with yttria-stabilized zirconia (YSZ) barrier layer to mitigate alkali and acidic vapor attack.
Does the furnace include calibration documentation?
A factory-as-tested temperature uniformity report (measured at 1000°C, 1400°C, and 1750°C using NIST-traceable thermocouples) is supplied with each unit.
Are replacement heating elements and thermocouples available as spare parts?
Yes—Kanthal Super-1900 rods and B-type dual-element thermocouples are stocked globally and shipped with OEM mechanical alignment fixtures.
