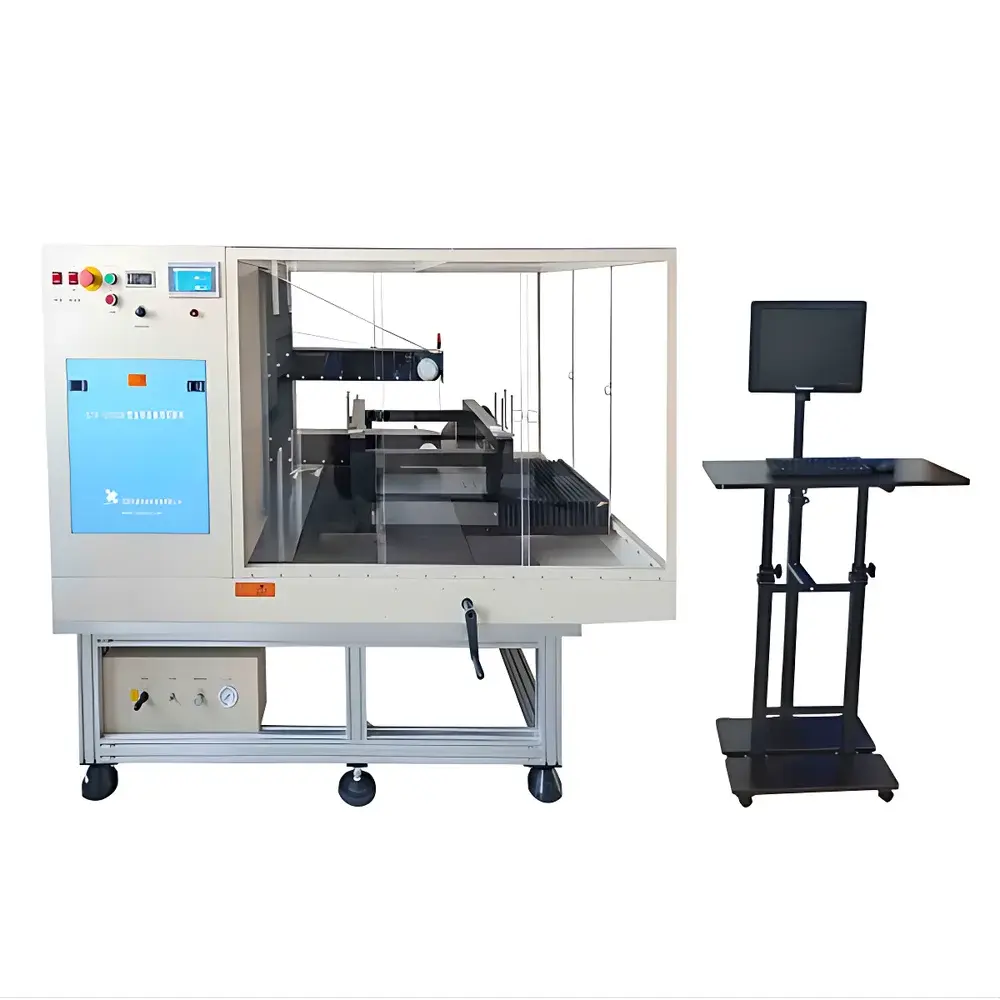

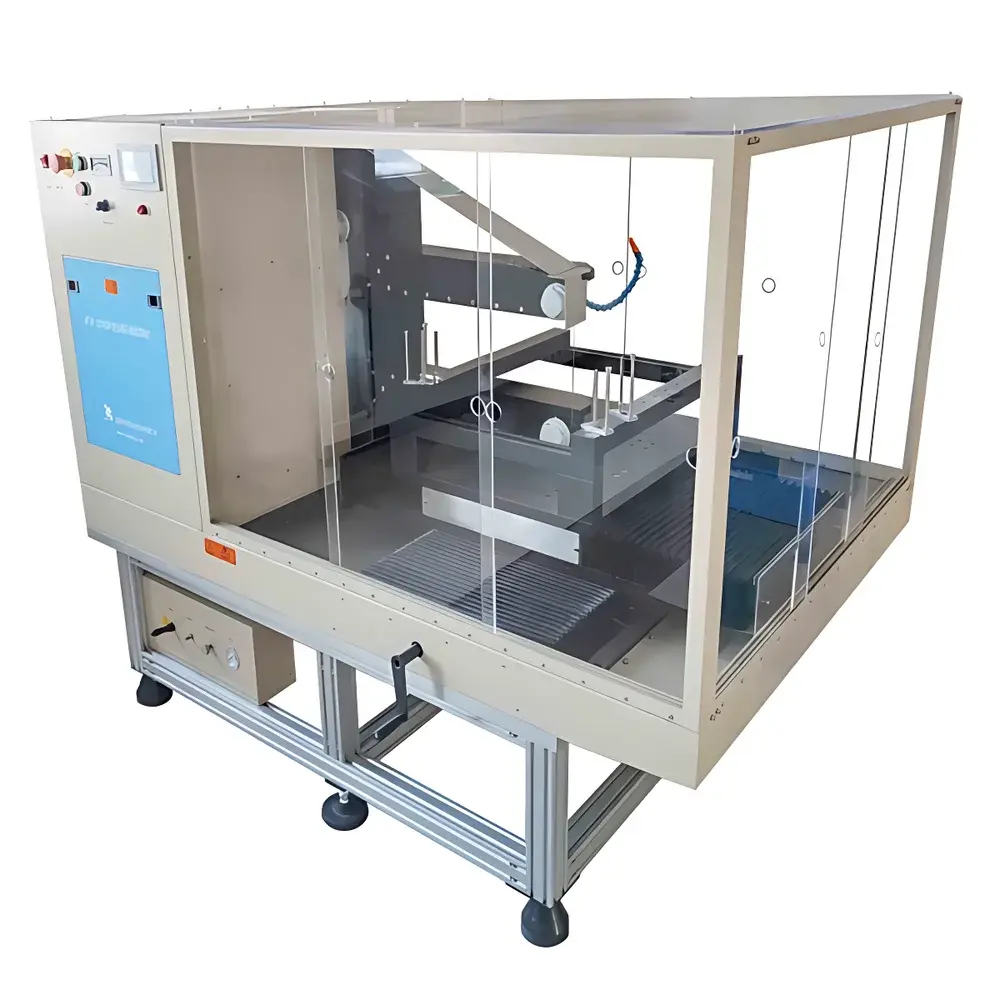

KJ GROUP STX-200QX Diamond Wire Curvilinear Cutting Machine

Overview

The KJ GROUP STX-200QX Diamond Wire Curvilinear Cutting Machine is an industrial-grade precision sample preparation system engineered for non-linear, contour-based sectioning of brittle and high-hardness materials. Unlike conventional straight-line diamond wire saws, the STX-200QX employs a computer-controlled XY translation stage coupled with real-time synchronized diamond wire trajectory modulation—enabling true 2D curvilinear cutting paths defined via CAD-like vector input. Its core principle relies on controlled abrasive wear mechanics: a continuously moving diamond-impregnated wire (typically 0.1–0.35 mm diameter) engages the workpiece under regulated tension and feed velocity, removing material through micro-fracture and attrition rather than plastic deformation. This mechanism ensures minimal thermal stress, negligible kerf loss (< 0.3 mm typical), and exceptional edge integrity—critical for downstream characterization techniques including SEM, XRD, TEM lamella preparation, mechanical testing (e.g., ASTM C1161 flexural strength), and optical microscopy. Designed for laboratory and R&D environments, the system supports both prototyping and reproducible batch processing of high-value specimens where geometry fidelity and subsurface damage control are non-negotiable.

Key Features

• Vector-driven curvilinear path generation: Import DXF/SVG files or draw freehand shapes directly in the embedded GUI; supports closed-loop polygons, Bézier curves, ellipses, airfoil profiles, and asymmetric geometries.
• Pneumatically actuated wire tensioning system: Maintains consistent 5–15 N tension across full wire length, minimizing vibration-induced deviation and ensuring uniform cut quality regardless of stroke length.
• High-resolution motion control: Dual-axis stepper motor drive with 0.01 mm repeatability and programmable feed rates (0.06–6 mm/min) optimized for crack-sensitive materials such as sapphire wafers or bioceramic implants.
• Modular workholding platform: 500 × 600 mm granite base with T-slots and vacuum-compatible clamping fixtures; accommodates custom jigs for irregularly shaped geological samples or orthopedic bone-implant composites.
• Integrated wire management: Automatic spooling interface compatible with standard 200–500 m diamond wire reels; optional STX-2500 electric wire threading unit available for rapid setup and reduced operator exposure.
• Enclosed safety architecture: Interlocked transparent polycarbonate shielding, emergency stop circuitry compliant with IEC 60204-1, and dust extraction port (Ø75 mm) for integration with central lab filtration systems.

Sample Compatibility & Compliance

The STX-200QX is validated for precision sectioning of materials with Vickers hardness up to ~25 GPa—including technical ceramics (Al₂O₃, ZrO₂, SiC), single crystals (Si, Ge, GaAs, CsI), infrared optical substrates (ZnS, ZnSe, CaF₂), geological specimens (granite, basalt, meteorites), metallic alloys (Ti-6Al-4V, Inconel 718), carbon-fiber laminates, and hydrated biological composites (decalcified bone, resin-embedded vascular grafts). It meets structural requirements for ISO/IEC 17025-accredited laboratories performing sample prep per ASTM E3, ASTM E1245, ISO 14489, and USP (for pharmaceutical ceramic tablet analysis). All motion control firmware logs timestamped operational parameters (tension, speed, position) to support GLP/GMP audit trails when paired with optional data export modules.

Software & Data Management

The proprietary KJ-CutStudio v3.2 software provides offline path planning, real-time axis monitoring, and parametric recipe storage. Users define cutting sequences using layer-based toolpath assignment (e.g., rough cut at 8 m/s → finish pass at 2.5 m/s), with automatic kerf compensation and lead-in/lead-out arc generation. Export formats include CSV (position/time/voltage), PNG (cut preview overlays), and XML (machine-readable job definitions). Audit-ready operation logs are stored locally on encrypted SD card and support periodic backup to network drives. The system does not require internet connectivity during operation and complies with FDA 21 CFR Part 11 when configured with user authentication and electronic signature modules.

Applications

• Materials science: Fabrication of tensile bars (ASTM E8/E21), flexure test coupons (ASTM C1161), and TEM lift-out pre-slices from bulk thermoelectrics (Bi₂Te₃, PbTe).
• Geosciences: Production of polished thin sections (30 µm) from igneous/metamorphic rocks and ore-bearing veins for petrographic analysis and EPMA quantification.
• Medical device R&D: Sectioning of dental implants with surrounding osseointegrated tissue, coronary stents within calcified arterial segments, and osteochondral grafts preserving cartilage-bone interface integrity.
• Optoelectronics: Kerf-free slicing of IR lens blanks (Ge, Si) and laser crystal boules (Nd:YAG, Ti:Sapphire) prior to polishing and coating.
• Nuclear materials: Subcritical sectioning of uranium dioxide pellets and zirconium alloy cladding tubes under inert atmosphere glovebox integration (optional).

FAQ

What types of diamond wire are compatible with the STX-200QX?
Standard electroplated or resin-bonded diamond wires with diameters between 0.12 mm and 0.35 mm and grit sizes ranging from 20 µm to 80 µm are supported. Wire selection must be matched to material hardness and required surface finish per manufacturer guidelines.
Can the machine perform plunge cuts or only traverse cuts?
The STX-200QX executes exclusively traverse (sawing) motion along user-defined XY paths. Plunge cutting requires vertical Z-axis actuation, which is not part of this model’s mechanical architecture.
Is vacuum chucking or coolant delivery integrated?
A vacuum port (M12 thread) is provided on the worktable for third-party vacuum chucks. Coolant delivery is manual via external nozzle; no built-in recirculating system is included, though drip-feed adapters can be retrofitted.
Does the system support multi-layer cutting stacks?
Yes—up to five 10 mm-thick plates can be stacked and cut simultaneously using spacer shims, provided total height remains ≤100 mm and lateral rigidity is maintained via side clamping.
What maintenance intervals are recommended for pneumatic tensioning components?
Air filter regulators should be drained weekly; pneumatic cylinder seals inspected annually; and tension calibration verified quarterly using a certified load cell per KJ GROUP Service Bulletin SB-STX-200QX-07.
