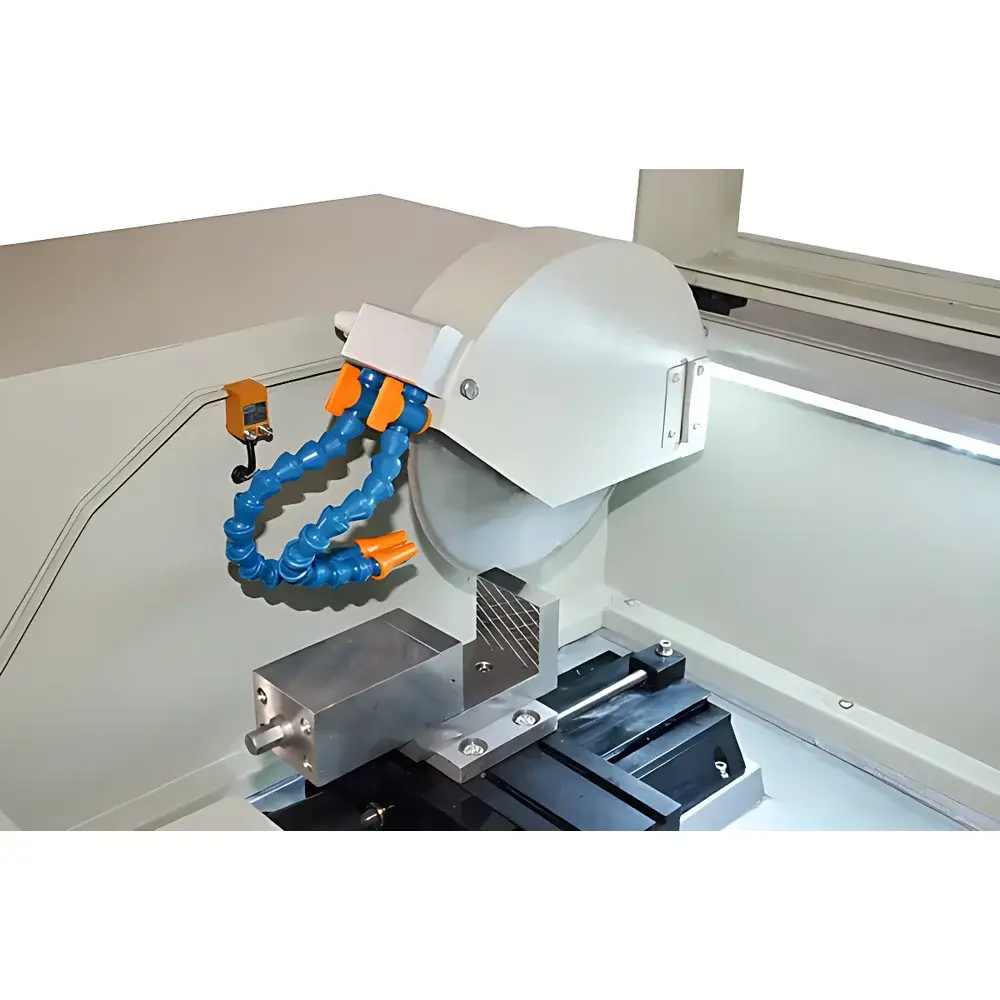

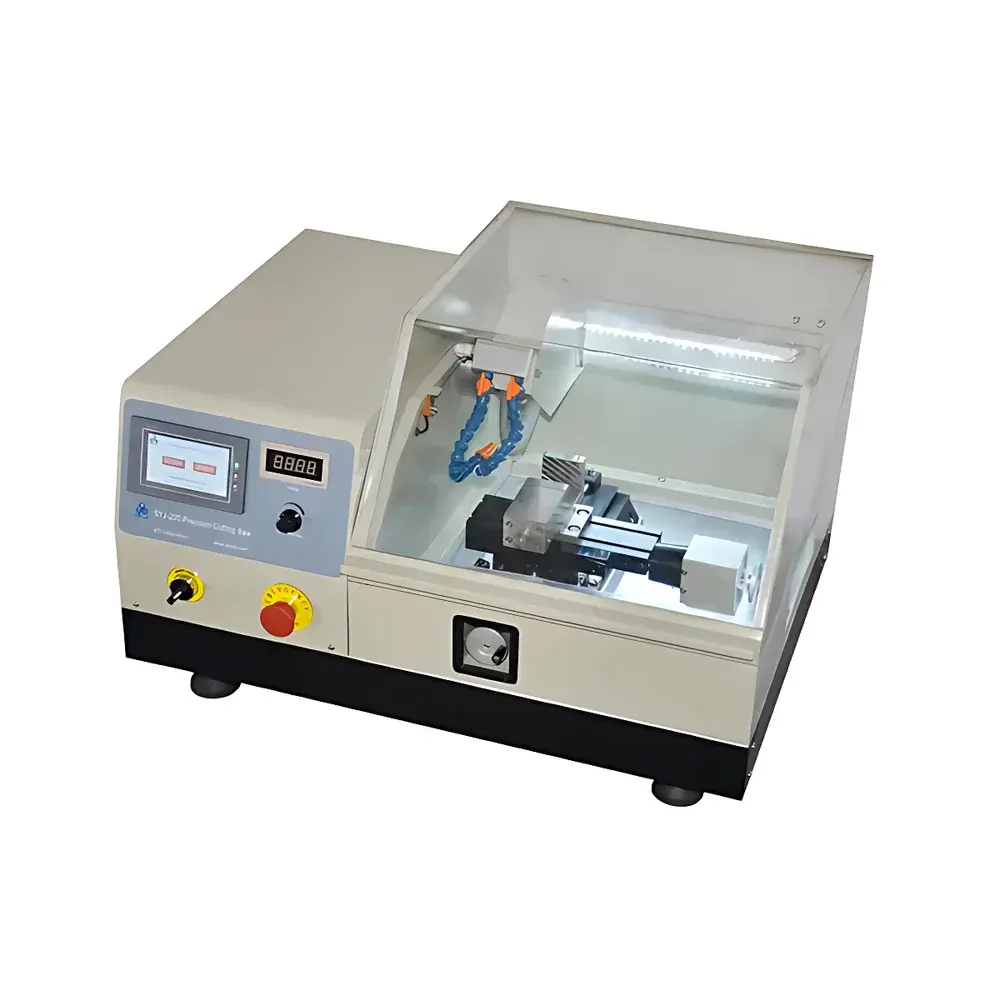

KJ GROUP SYJ-200 Automated Precision Cutting Machine

Overview

The KJ GROUP SYJ-200 Automated Precision Cutting Machine is a compact, CE-certified laboratory-grade precision saw engineered for reproducible cross-sectional sample preparation across diverse material classes. It operates on the principle of controlled abrasive cutting under continuous coolant flow—employing diamond-impregnated or silicon carbide blades rotating at variable speeds to achieve clean, low-damage sectioning without thermal distortion or microstructural alteration. Unlike manual or semi-automated saws, the SYJ-200 integrates closed-loop stepper motor positioning (X/Y), programmable spindle speed modulation, and real-time parameter monitoring via an industrial-grade touchscreen HMI. Its design prioritizes operator safety, dimensional stability, and compatibility with downstream analytical workflows—including metallography, SEM/TEM specimen preparation, XRD sample mounting, and failure analysis of structural components. The machine is routinely deployed in QC laboratories, materials R&D centers, and academic metallurgy/ceramics departments where consistent slice thickness (±5 µm repeatability under optimized conditions), minimal kerf loss, and edge integrity are critical.

Key Features

• PLC-based automation with pre-programmable cutting cycles—enabling repeatable step-and-cut, plunge-cut, or oscillating feed profiles
• Wide-range spindle speed control (300–3500 rpm) matched to material hardness and blade type, ensuring optimal chip removal rate and surface finish
• High-torque stepper motors driving both X- and Y-axes with optical position feedback, supporting sub-millimeter positioning accuracy and smooth motion profile execution
• Integrated recirculating cooling system (JXZ-25Y optional upgrade available) with corrosion-resistant pump and filter—compatible with deionized water, aqueous polymer coolants, or pH-stabilized formulations to prevent rust on lead screws and guide rails
• Full-color 7-inch TFT touchscreen HMI with intuitive icon-based navigation, real-time status indicators (coolant level, motor load, limit switch status), and password-protected parameter locking for SOP compliance
• CE-compliant safety architecture: dual-channel emergency stop circuit, automatic spindle halt upon limit switch activation, splash-proof transparent acrylic guard with interlocked door sensor, and IP54-rated electrical enclosure

Sample Compatibility & Compliance

The SYJ-200 accommodates specimens up to 105 mm in Y-direction travel and 80 mm in X-direction displacement, with effective cutting depth limited to 50 mm when using standard Ø200 mm blades. It supports rigid and semi-rigid materials including ferrous/non-ferrous metals (e.g., stainless steel fasteners, Ti-6Al-4V orthopedic implants), brittle ceramics (Al₂O₃, SiC, ZrO₂), geological aggregates (granite, basalt core samples), sintered composites, reinforced polymers, and optical glasses. All cutting fixtures—including custom-machined vise jaws, resin-embedded holders, and ceramic support blocks—are designed to minimize vibration-induced chipping and ensure orthogonal alignment relative to the blade plane. The system complies with EN ISO 12100:2010 (risk assessment methodology), EN 61000-6-2/6-4 (EMC), and incorporates mechanical safeguards aligned with ISO 13857 (safety distances). While not FDA-registered, its construction and documentation support GLP-aligned lab practices, including audit-ready maintenance logs and calibration traceability for motion axes.

Software & Data Management

The SYJ-200 utilizes embedded firmware—not PC-dependent software—eliminating OS compatibility constraints and cybersecurity exposure. All operational parameters (speed, feed rate, dwell time, cycle count) are stored in non-volatile memory with timestamped change history accessible via the HMI. Optional RS-485 Modbus RTU interface enables integration into centralized lab equipment monitoring systems (e.g., LabVantage, Thermo Fisher SampleManager) for automated job logging and preventive maintenance scheduling. No proprietary drivers or cloud connectivity are required; configuration backups can be exported via USB flash drive in CSV format for version-controlled SOP archiving. Audit trail functionality includes user ID tagging (via configurable login), parameter modification timestamps, and error event codes—supporting 21 CFR Part 11 readiness when paired with institutional electronic signature policies.

Applications

• Preparation of metallographic mounts from engine valve stems, turbine blades, or biomedical alloy joint prostheses
• Sectioning of geological thin sections and polished rock slabs for petrographic microscopy
• Cutting ceramic substrates and MLCC (multilayer ceramic capacitor) wafers prior to cross-section SEM inspection
• Isolation of representative coupons from composite laminates (CFRP, GFRP) for tensile or fatigue testing per ASTM D3039/D3410
• Dimensional trimming of optical crystals (e.g., quartz, sapphire) and semiconductor ingots prior to lapping/polishing
• Controlled segmentation of concrete cores for chloride penetration or carbonation depth profiling (ASTM C876/C1202)

FAQ

What types of coolant are compatible with the SYJ-200’s recirculating system?
Deionized water, purified water, or commercially formulated water-soluble metalworking fluids with pH 7–9 and corrosion inhibitors are recommended. Avoid chlorinated or acidic coolants to prevent degradation of aluminum housing and stainless steel components.
Can the SYJ-200 perform angled cuts or be retrofitted with a tilt stage?
No—the base configuration supports only orthogonal (90°) cuts. Custom tilt fixtures are not offered by KJ GROUP; users requiring bevel cuts must employ post-cut machining or select alternative multi-axis platforms.
Is routine calibration required for positional accuracy?
The stepper motor system does not require periodic recalibration under normal use. However, biannual verification of X/Y axis repeatability (using gauge blocks and dial indicator) is advised per ISO/IEC 17025 internal quality procedures.
How often should the recirculating pump filter be cleaned?
Inspect and rinse the inline filter weekly if operating >4 hours/day; replace every 6 months or after 500 cutting hours—whichever occurs first—to maintain flow rate consistency and prevent cavitation.
Does the SYJ-200 meet ISO 17025 accreditation requirements for testing labs?
Yes—the device supports method validation through documented uncertainty budgets (e.g., kerf width variation, positional deviation), traceable maintenance records, and environmental condition logging, fulfilling Clause 6.4 and Annex A.3 of ISO/IEC 17025:2017.
