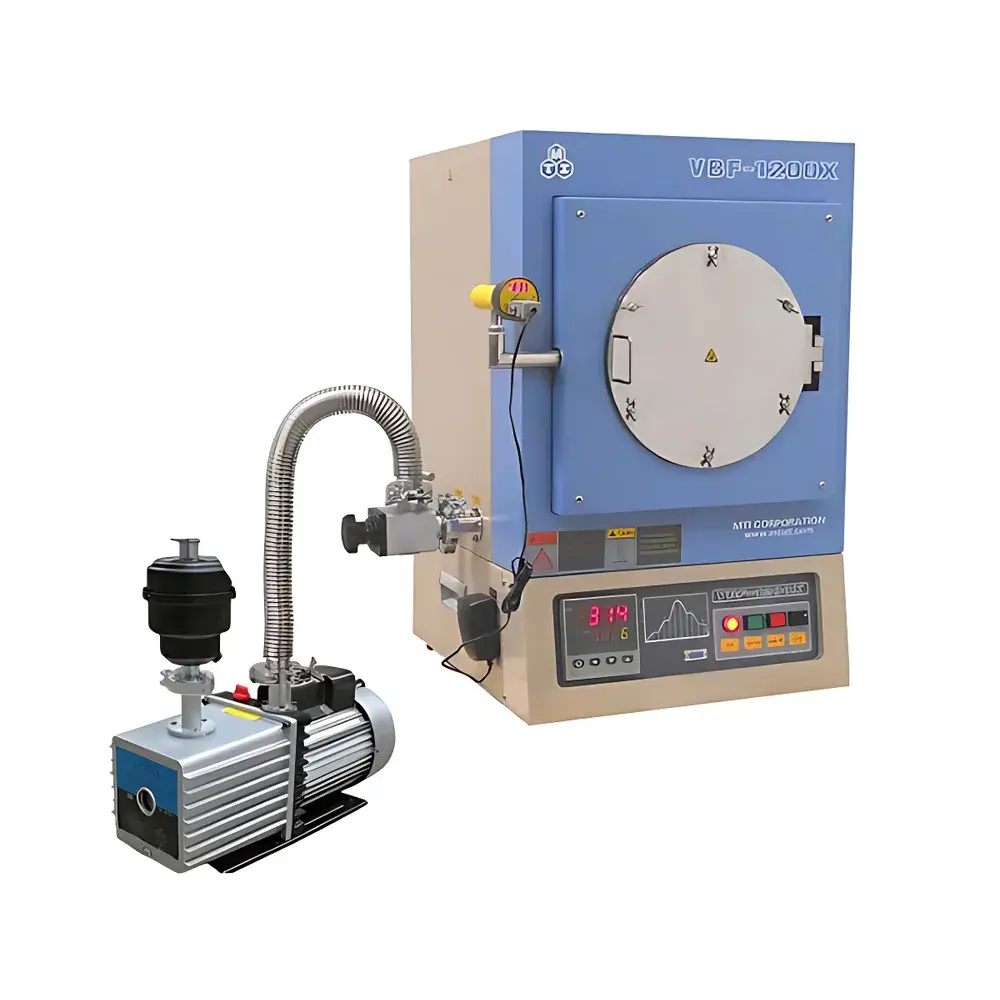

KJ GROUP VBF-1200X-H8 High-Vacuum Box-Type Furnace

Overview

The KJ GROUP VBF-1200X-H8 is a compact, high-vacuum box-type furnace engineered for precise thermal processing of substrates up to 6 inches (152 mm) in diameter under controlled vacuum or reactive/inert gas environments. Designed around a fused quartz tubular chamber, the system integrates robust thermal architecture with vacuum integrity and programmable thermal profiling—enabling repeatable heat treatments such as annealing, sintering, oxidation, reduction, and thin-film precursor decomposition. Its operational envelope spans ambient to 1200 °C, with continuous service rated at ≤1000 °C to ensure long-term stability of heating elements and insulation. The furnace employs resistive heating via Ni–Cr–Al alloy wire wound uniformly around the external surface of the quartz tube, delivering uniform radial heat distribution and minimizing thermal gradients across the central work zone. Unlike conventional muffle furnaces, the VBF-1200X-H8 features an actively water-cooled dual-silicone O-ring sealing flange, enabling stable vacuum maintenance during high-temperature operation and mitigating outgassing-induced pressure drift.

Key Features

• Quartz reaction chamber (Ø200 mm × 340 mm) offering high optical transparency, low thermal mass, and chemical inertness to halogens, oxygen, and common reducing agents.
• Water-cooled stainless-steel front flange with dual compression silicone gaskets—integrated with dedicated Ø12 mm inlet/outlet ports compatible with standard recirculating chillers.
• Removable high-purity alumina fiber–filled quartz end cap (“vacuum door plug”) that serves both as thermal barrier and vacuum seal enhancer; mandatory installation above 300 °C to protect elastomeric seals from thermal degradation.
• 30-segment programmable digital temperature controller supporting ramp/soak profiles, real-time deviation monitoring, and configurable alarm thresholds for over-temperature or cooling failure events.
• Modular vacuum compatibility: achieves base pressures of 10⁻² torr with dual-stage rotary vane pumps; extends to 10⁻⁵ torr when paired with optional turbomolecular pumping systems.
• CE-certified electrical architecture compliant with EN 61000-6-3 (EMI emission) and EN 61000-6-2 (immunity), ensuring safe integration into shared laboratory infrastructure.

Sample Compatibility & Compliance

The VBF-1200X-H8 accommodates flat wafers, crucibles, ceramic substrates, and powder compacts up to 6″ in diameter. Its quartz chamber supports direct observation of sample color change, phase transition, or glow emission during heating—critical for process development in semiconductor, battery cathode, and catalyst synthesis workflows. All internal surfaces are free of metallic contamination sources, making it suitable for ultra-clean applications requiring low metallic impurity carryover. The system meets general-purpose laboratory safety standards per IEC 61010-1 and is CE-marked for use in EU-based research facilities. While not inherently GLP/GMP-qualified, its programmable controller logs timestamped setpoints and actual temperatures (via optional RS485/USB interface), supporting audit-ready data capture when integrated with validated software environments.

Software & Data Management

The furnace operates natively via its embedded 30-stage controller, but optional high-level control is available through KJ GROUP’s Windows-based furnace management software. This application enables remote parameter configuration, real-time temperature graphing, profile import/export (CSV/Excel), and automatic CSV log generation with millisecond-resolution timestamps. When used with an optional digital vacuum gauge (e.g., Pirani/cold cathode hybrid), pressure vs. temperature correlation data can be synchronized and exported for kinetic analysis. All software modules comply with FDA 21 CFR Part 11 requirements for electronic records when deployed with user authentication, audit trail logging, and electronic signature support—facilitating regulatory submissions in materials R&D labs serving pharmaceutical or medical device sectors.

Applications

• Low-pressure annealing of Si, GaAs, and 2D materials (graphene, MoS₂) to induce defect healing or dopant activation.
• Sintering of solid-state electrolyte pellets (e.g., LLZO, LATP) under argon or forming gas to suppress lithium volatilization.
• Controlled oxidation of metal foils (Cu, Ni) to fabricate reproducible oxide layers for catalytic testing.
• Thermal decomposition of metal–organic precursors (e.g., Cu(acac)₂, Fe(CO)₅) for CVD-compatible nanoparticle synthesis.
• Pre-conditioning of reference standards prior to XRD or TGA calibration under inert purge.
• Accelerated aging studies of encapsulation materials under combined thermal–vacuum stress.

FAQ

What vacuum level can be achieved without optional high-vacuum components?
With only the standard dual-stage mechanical pump installed, the system reaches ≤10 mTorr within 30 minutes when the quartz end cap is in place, and ≤100 mTorr without it.
Is the quartz tube replaceable, and what is its expected lifetime at 1100 °C?
Yes—the quartz tube is a field-replaceable consumable. Under continuous cycling between room temperature and 1100 °C with proper ramp rates (≤10 °C/min), typical service life exceeds 12 months in clean inert atmospheres.
Can the furnace be operated under positive pressure with reactive gases?
It is rated for internal pressures up to 1.2 atm absolute; however, gas introduction must be balanced with active vacuum pumping to maintain flow-through conditions and prevent backstreaming into the pump.
Does the system include over-temperature protection independent of the main controller?
Yes—a redundant bimetallic thermal cutoff switch interrupts power at 1250 °C, providing hardware-level fail-safe protection.
Are custom thermocouple configurations supported for multi-point temperature mapping?
The furnace includes one standard K-type port; additional ports can be added to the quartz tube upon request, subject to structural integrity validation and quartz wall thickness specifications.
