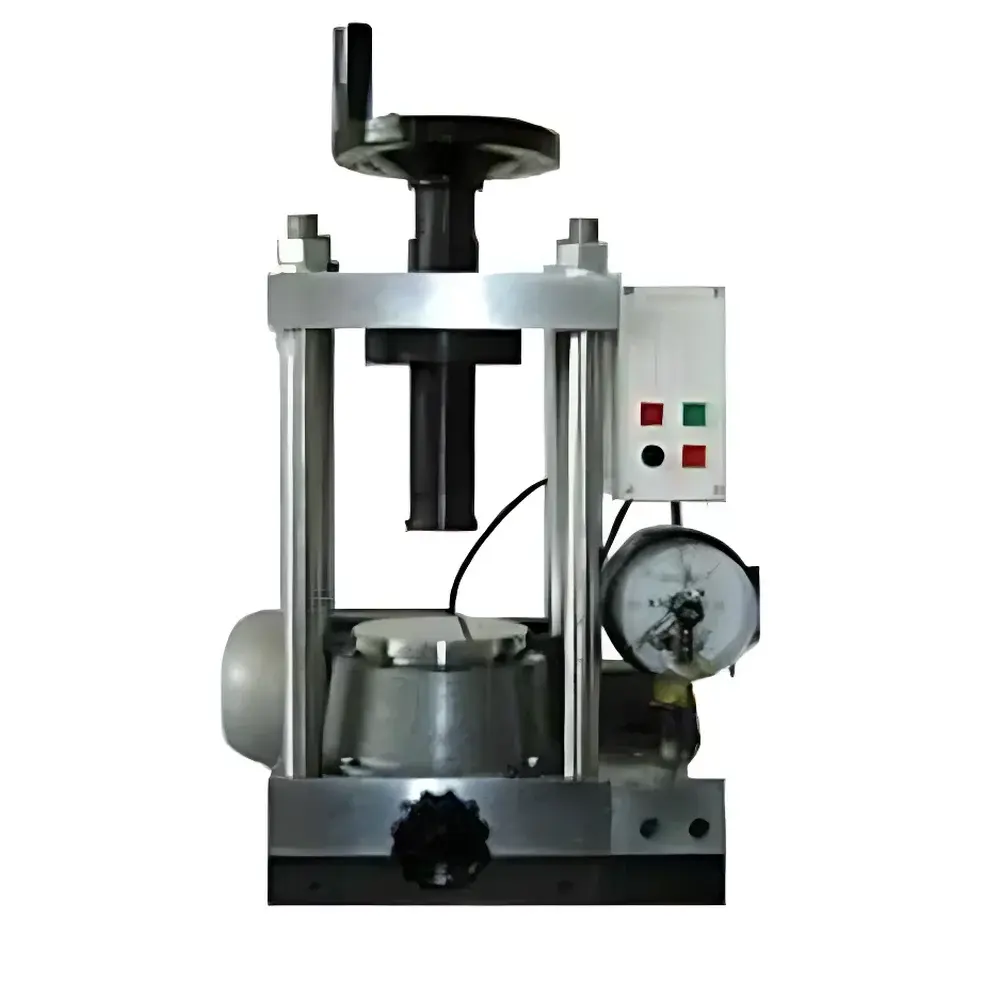

KJ GROUP YLJ-40TA Electric Hydraulic Pellet Press

Overview

The KJ GROUP YLJ-40TA Electric Hydraulic Pellet Press is a semi-automatic laboratory-scale hydraulic press engineered for reproducible, high-force compaction of powdered and granular samples into geometrically defined pellets, discs, cylinders, or custom-shaped specimens. It operates on the principle of controlled hydraulic force transmission—where an electrically driven pump generates pressure in a sealed oil circuit, actuating a precision-machined piston to apply uniaxial compressive load across a die cavity. This enables consistent densification under defined pressure–time profiles, critical for preparing homogeneous, binder-free specimens required in X-ray fluorescence (XRF), Fourier-transform infrared (FTIR), and wavelength-dispersive X-ray spectroscopy (WDXRF) sample analysis. Designed for routine use in academic research labs, materials science departments, and quality control environments, the YLJ-40TA delivers stable pressure hold without manual intervention, eliminating operator-induced variability while maintaining mechanical integrity over repeated cycles.

Key Features

• Electrically actuated hydraulic system with continuous pressure ramping and programmable hold duration—no manual pumping required.
• High-pressure stability: ≤1 MPa drift over 5 minutes at maximum rated pressure (34 MPa), ensuring minimal relaxation during consolidation.
• Low-noise operation (<65 dB(A)) and leak-resistant hydraulic seal architecture, minimizing maintenance frequency and downtime.
• Compact footprint (440 × 360 × 620 mm) with vertical orientation and open-front working chamber (140 × 140 × 200 mm), facilitating rapid mold insertion and ejection.
• Robust cast-iron frame and hardened steel platen (Ø100 mm) with precision-ground piston (Ø125 mm) and 40 mm maximum stroke, supporting both standard and deep-die configurations.
• Optional hinged top-and-bottom safety guard for enhanced operator protection during loading/unloading—compliant with ISO 13857 clearance requirements for low-risk mechanical hazards.

Sample Compatibility & Compliance

The YLJ-40TA accommodates a broad range of inorganic and organic powders—including metal oxides, ceramic precursors, battery cathode/anode materials, geological standards, and pharmaceutical excipients—provided they exhibit sufficient flowability and green strength post-compaction. Compatible with standard ANSI/ISO 7758-compliant die sets (e.g., 13 mm, 25 mm, 32 mm diameter), as well as custom tooling for irregular geometries. While not certified to CE or UL standards out-of-the-box, its electrical subsystem conforms to IEC 61000-6-3 (EMC emission limits) and IEC 61000-6-2 (immunity). When integrated into GLP/GMP workflows, it supports audit-ready documentation when paired with external pressure logging devices compliant with FDA 21 CFR Part 11 (electronic records and signatures).

Software & Data Management

The YLJ-40TA operates via a dedicated front-panel digital pressure gauge with real-time analog display and tactile push-button controls—no embedded software or PC interface is included. However, its analog pressure output signal (0–10 V DC or 4–20 mA) is compatible with third-party data acquisition systems (e.g., National Instruments DAQ, LabVIEW, or MATLAB-based controllers) for time-stamped pressure profiling, cycle logging, and statistical process monitoring. Users may implement traceable calibration logs per ISO/IEC 17025:2017 Clause 6.5.2, with annual verification recommended using NIST-traceable deadweight testers.

Applications

• Preparation of pressed pellets for quantitative elemental analysis by XRF and XRD—reducing particle size effects and matrix heterogeneity.
• Densification of solid-state electrolyte powders for lithium-ion battery R&D, enabling controlled porosity and interfacial contact assessment.
• Compaction of reference materials for calibration validation in environmental and geochemical laboratories.
• Routine production of IR-transparent KBr pellets for qualitative and quantitative FTIR spectroscopy.
• Development of sintering feedstocks where green density directly correlates with final microstructural homogeneity.

FAQ

What is the maximum achievable green density for alumina powder using the YLJ-40TA?
Green density depends on powder characteristics (e.g., specific surface area, particle size distribution, moisture content) and dwell time—not solely on press capacity. At 30 MPa and 2-minute hold, typical green densities range from 55–62% of theoretical for α-Al₂O₃ (d₅₀ ≈ 0.5 µm), assuming optimal lubrication and die wall friction management.
Can the YLJ-40TA be used with evacuated or inert-gas-purged dies?
Yes—the open-top chamber design allows integration of vacuum-assisted or glovebox-compatible die holders. Users must supply external vacuum lines or purge manifolds; no built-in gas handling is provided.
Is pressure calibration traceable to national standards?
The unit ships with factory calibration against master gauges traceable to CNAS-accredited metrology labs. Full recalibration requires external service using deadweight testers meeting ISO 376 Class 0.1 accuracy requirements.
What maintenance intervals are recommended for hydraulic oil and seals?
Hydraulic oil (ISO VG 46 anti-wear mineral oil) should be replaced every 1,500 operating hours or biannually, whichever occurs first. O-ring inspection is advised quarterly; replacement kits are available under KJ GROUP part number YLJ-SEAL-KIT-40TA.
Does the press support programmable multi-step pressure profiles?
No—pressure ramping and holding are manually initiated and terminated via front-panel controls. For automated sequences, integration with external PLCs or DAQ systems is required.
