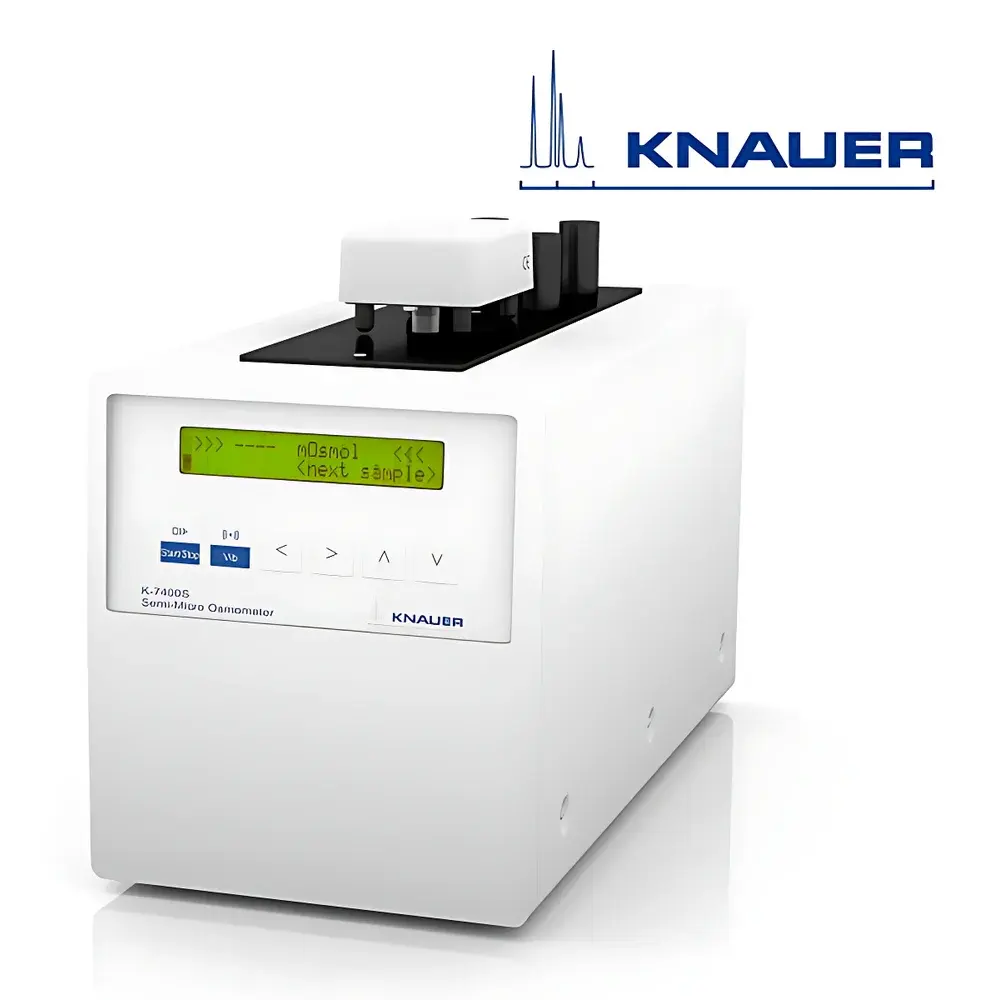

KNAUER K-7400S Cryoscopic Osmometer

Overview

The KNAUER K-7400S Cryoscopic Osmometer is a precision-engineered analytical instrument designed for the accurate determination of osmolality in aqueous solutions through measurement of freezing point depression (ΔT_f). Based on the colligative property that solute concentration linearly correlates with the magnitude of freezing point lowering, the K-7400S applies cryoscopy—a well-established, first-principle physical method widely accepted in pharmaceutical quality control, biologics formulation, and clinical laboratory workflows. Unlike vapor pressure or membrane-based osmometry, cryoscopy offers superior accuracy, minimal sample volume requirements (typically 50–100 µL), and insensitivity to non-ionic or volatile solutes—making it the reference method for regulatory submissions under European Pharmacopoeia Chapter 2.2.35 and aligned with USP and ISO 17511 traceability frameworks. The instrument employs a high-stability thermistor probe embedded in a precisely temperature-controlled sample chamber, coupled with a Peltier cooling module capable of rapid, reproducible thermal cycling between +25 °C and –12 °C.

Key Features

• Automated cryoscopic measurement cycle: sample aspiration, supercooling induction, nucleation detection, ice crystal growth monitoring, and ΔT_f calculation—all executed without user intervention.
• Integrated microprocessor with real-time thermal curve acquisition at 10 Hz sampling rate, enabling precise identification of the true freezing plateau.
• Peltier-based cooling system ensures maintenance-free operation, stable thermal gradients, and no reliance on external refrigerants or liquid nitrogen.
• Calibration verification via dual-point standardization using certified reference solutions (e.g., 0 mOsm/kg and 1000 mOsm/kg NaCl standards), with automatic drift compensation across ambient temperature fluctuations.
• Robust stainless-steel sample chamber with optimized thermal mass and low thermal inertia for consistent inter-run reproducibility (CV ≤ 0.5% at 300 mOsm/kg).
• Compliance-ready firmware architecture supporting electronic signatures, user access levels (operator/administrator), and full audit trail generation per FDA 21 CFR Part 11 requirements when used with EuroOsmo 7400 software.

Sample Compatibility & Compliance

The K-7400S accepts a broad range of aqueous biological and pharmaceutical matrices, including parenteral drug products (IV fluids, monoclonal antibody formulations), dialysates, urine, serum, cell culture media, and ophthalmic solutions. It accommodates viscous or particulate-containing samples up to 10 cP without clogging, thanks to its wide-bore capillary handling and self-cleaning rinse protocol. All measurements adhere to European Pharmacopoeia monograph 2.2.35 (01/2012), which defines acceptance criteria for osmolality testing in medicinal products. Instrument qualification documentation—including IQ/OQ/PQ templates, metrological traceability statements to NIST/PTB standards, and GMP-relevant validation support files—is provided by KNAUER upon request. The system meets GLP-compliant data integrity requirements when operated with enabled audit trail and electronic record retention.

Software & Data Management

EuroOsmo 7400 is the dedicated Windows-based control and analysis software for the K-7400S. It provides full remote instrument control, real-time visualization of thermograms, automated pass/fail evaluation against configurable specification limits, and batch-wise reporting. Each measurement session stores raw temperature-time data, processed osmolality values, calibration history, operator ID, timestamp, and environmental conditions. Data export options include CSV (for LIMS integration), PDF (for regulated documentation), and TXT (for legacy system compatibility). The software implements role-based access control, electronic signature capture for critical actions (e.g., calibration, report approval), and immutable audit logs compliant with 21 CFR Part 11 Annex 11 and EU GMP Annex 11. All data files are SHA-256 hashed and time-stamped to ensure forensic integrity during regulatory inspections.

Applications

• Final product release testing of injectables, vaccines, and biosimilars per ICH Q5C stability guidelines.
• Formulation development of protein therapeutics where osmolality directly impacts aggregation propensity and viscosity.
• In-process control during ultrafiltration/diafiltration steps in downstream bioprocessing.
• Quality assurance of contact lens solutions, irrigation fluids, and contrast media.
• Clinical research applications requiring high-precision osmolality assessment in metabolic studies or renal function evaluation.
• Method transfer and cross-site harmonization in multi-CMO supply chains due to instrument-to-instrument consistency verified under ISO/IEC 17025-accredited calibration protocols.

FAQ

What sample volume is required for a single measurement?
Typically 50–100 µL of clear, particle-free aqueous solution. Viscous or turbid samples may require up to 150 µL for reliable nucleation detection.
Does the K-7400S require routine maintenance beyond cleaning?
No consumables or replaceable parts are needed during normal operation. Weekly chamber cleaning with deionized water and monthly verification with reference standards constitute the recommended maintenance schedule.
Can the instrument be integrated into a laboratory information management system (LIMS)?
Yes—via EuroOsmo 7400’s configurable CSV export and optional OPC UA or HL7 interface modules for direct LIMS or MES connectivity.
Is training and application support available from KNAUER?
KNAUER provides on-site or virtual installation qualification, operator training, and method-specific application consulting through its global network of certified service engineers and pharmaceutical application specialists.
How is traceability to national metrology institutes ensured?
Each K-7400S ships with a factory calibration certificate traceable to PTB (Physikalisch-Technische Bundesanstalt, Germany), with optional UKAS-accredited calibration services available upon request.
