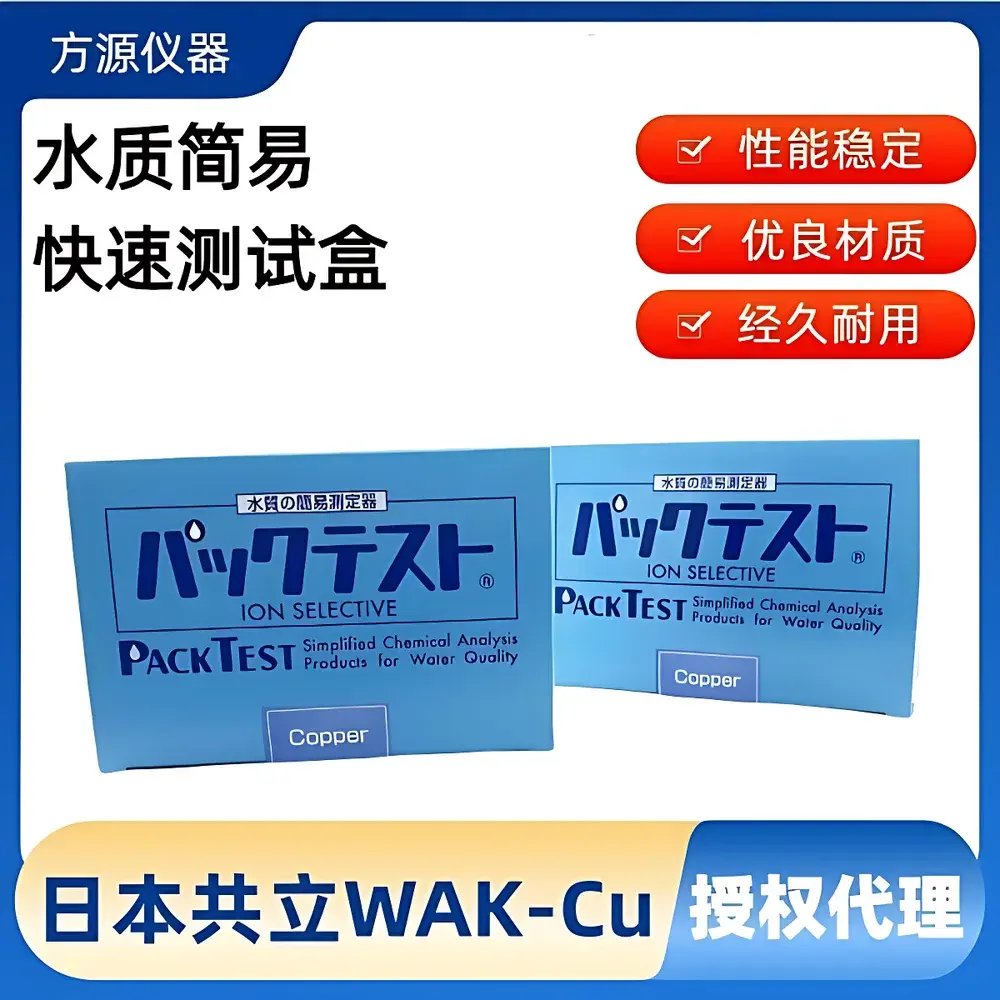

Kyoritsu WAK-Cu Copper Test Kit for Wastewater and Industrial Water Quality Analysis
| Brand | Kyoritsu |
|---|---|
| Origin | Japan |
| Product Type | Imported Portable Reagent Test Kit |
| Model | WAK-Cu |
| Detection Principle | Colorimetric Dip-and-Read Paper Strip Method |
| Target Analyte | Copper (Cu²⁺) |
| Measurement Range | 0.5–10 mg/L (as Cu) |
| Reaction Time | 1 minute |
| Tests per Kit | 50 |
| Accuracy | ±0.2 mg/L at low end |
| Compliance | Designed for field-deployable screening in accordance with ISO 8692 (water quality — test for toxicity to freshwater algae), ASTM D1688 (copper in water by colorimetric methods), and EPA Method 9040C (screening for metals using solid-phase reagents) |
Overview
The Kyoritsu WAK-Cu Copper Test Kit is a portable, rapid-response analytical tool engineered for on-site quantification of dissolved copper (Cu²⁺) in wastewater, industrial effluents, cooling water, and process streams. Based on a validated colorimetric dip-and-read principle, the kit employs pre-coated paper strips impregnated with a selective chromogenic reagent—typically a modified bathocuproine or diethyldithiocarbamate derivative—that forms a stable colored complex with cupric ions under acidic conditions. The resulting hue intensity, directly proportional to copper concentration, is visually compared against a calibrated printed color scale under standardized lighting (D65 daylight equivalent). This method delivers trace-level detection without requiring power, calibration curves, or laboratory instrumentation—making it ideal for routine compliance checks, leak detection, pretreatment verification, and operator-level monitoring in resource-constrained environments.
Key Features
- Pre-calibrated, single-use paper strips eliminate pipetting, dilution, or reagent preparation errors
- Stable shelf life of ≥24 months when stored unopened at 2–30 °C; no refrigeration required
- Robust interference resistance: minimal cross-reactivity with common cations (Zn²⁺, Ni²⁺, Fe²⁺/Fe³⁺) below 50 mg/L and anions (Cl⁻, SO₄²⁻, NO₃⁻) at typical environmental concentrations
- Integrated reaction timing marker on strip packaging ensures consistent 60-second development window
- Color scale printed directly on each vial lid for immediate visual interpretation—no external chart needed
- CE-marked and manufactured under ISO 9001-certified quality system; lot-specific certificate of analysis included
Sample Compatibility & Compliance
The WAK-Cu kit is validated for use with clarified or filtered samples having pH 4.5–8.5 and turbidity <50 NTU. It performs reliably in municipal wastewater influent/effluent, electroplating rinse waters, mining leachates, boiler feedwater, and semiconductor ultrapure water loop bypass streams. While not intended for regulatory reporting under GLP or ISO/IEC 17025, the method satisfies Tier 1 screening requirements per ISO 5667-3 (water sampling — guidance on preservation and handling), EPA SW-846 Method 9040C (field screening of metals), and EU Water Framework Directive Annex V Annex II monitoring protocols. For confirmatory analysis, positive results ≥2 mg/L should be verified via ICP-OES or AAS per ISO 11885 or ASTM D1688.
Software & Data Management
As a non-instrumental, analog colorimetric system, the WAK-Cu kit does not interface with digital software or data acquisition platforms. However, its design supports full traceability within regulated workflows: each kit includes a unique batch number, expiration date, and QC-tested reference strip. Users may log results manually in LIMS-compliant formats (e.g., Excel templates aligned with 21 CFR Part 11 audit trail requirements) or integrate readings into paperless QA/QC logs via barcode-scanned kit identifiers. Kyoritsu provides downloadable PDF-based record templates compliant with ISO 17025 documentation standards for method validation and personnel training records.
Applications
- Routine surveillance of copper discharge limits in industrial permits (e.g., NPDES, IPPC)
- Verification of chelant dosing efficacy in wastewater treatment plants
- Monitoring copper leaching from antifouling coatings in marine infrastructure
- Field assessment of corrosion inhibitor performance in closed-loop cooling systems
- Screening for copper contamination in reclaimed water used for irrigation or industrial reuse
- Emergency response testing following equipment failure or accidental spill events
FAQ
What is the lower detection limit of the WAK-Cu kit?
The visual endpoint corresponds to 0.5 mg/L Cu²⁺; concentrations below this threshold appear indistinguishable from the blank strip.
Can the kit be used for seawater or high-salinity samples?
Yes—tested up to 35 g/L total dissolved solids (TDS); however, samples with >100 mg/L suspended solids should be centrifuged or filtered (0.45 µm) prior to testing.
How does temperature affect result accuracy?
Optimal performance occurs between 15–30 °C; deviations outside this range require compensatory reading adjustments per the included temperature correction table.
Is the WAK-Cu kit suitable for drinking water compliance testing?
No—it exceeds WHO and EPA MCLs (2 mg/L) and lacks the precision required for potable water certification; use only for industrial and environmental screening.
Are there documented interferences from cyanide or EDTA?
Yes: free cyanide (>0.1 mg/L) and strong chelators (e.g., >1 mg/L EDTA) suppress color development; acidify sample to pH ≤2 and boil for 2 minutes to hydrolyze complexes before testing.
