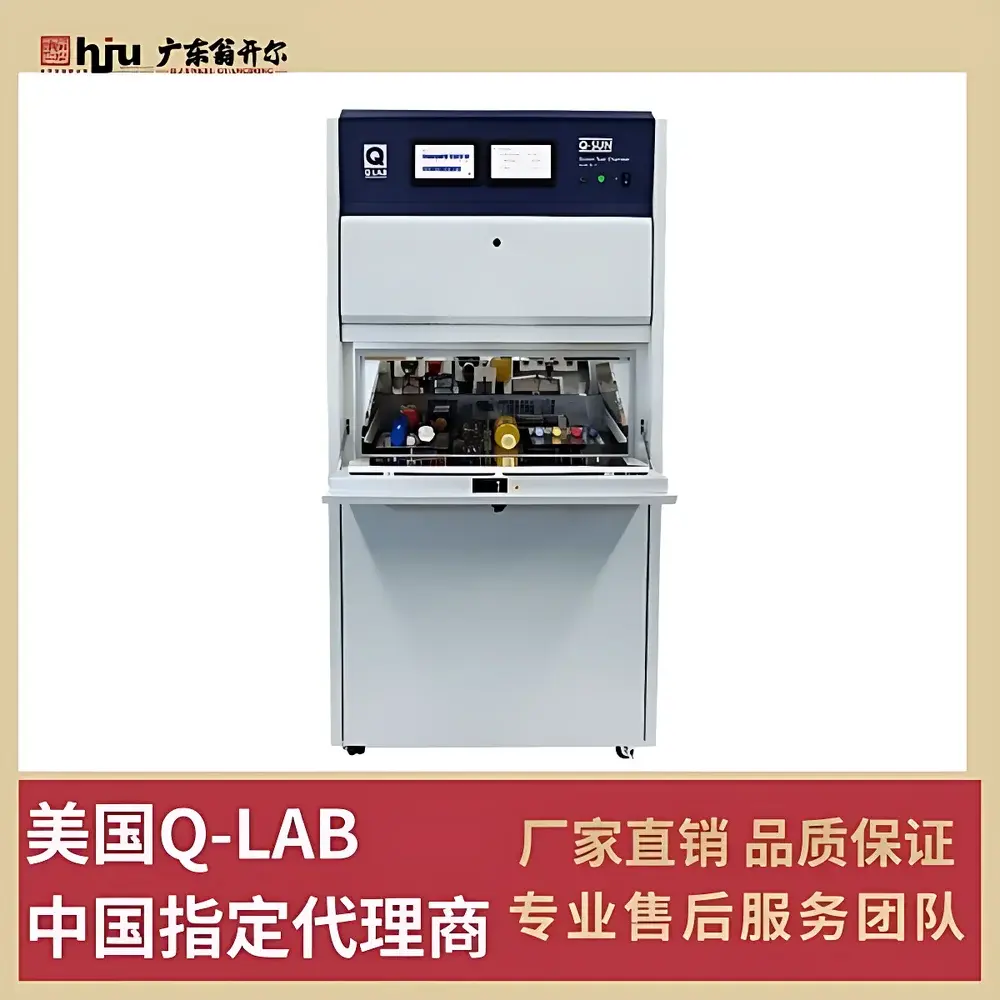

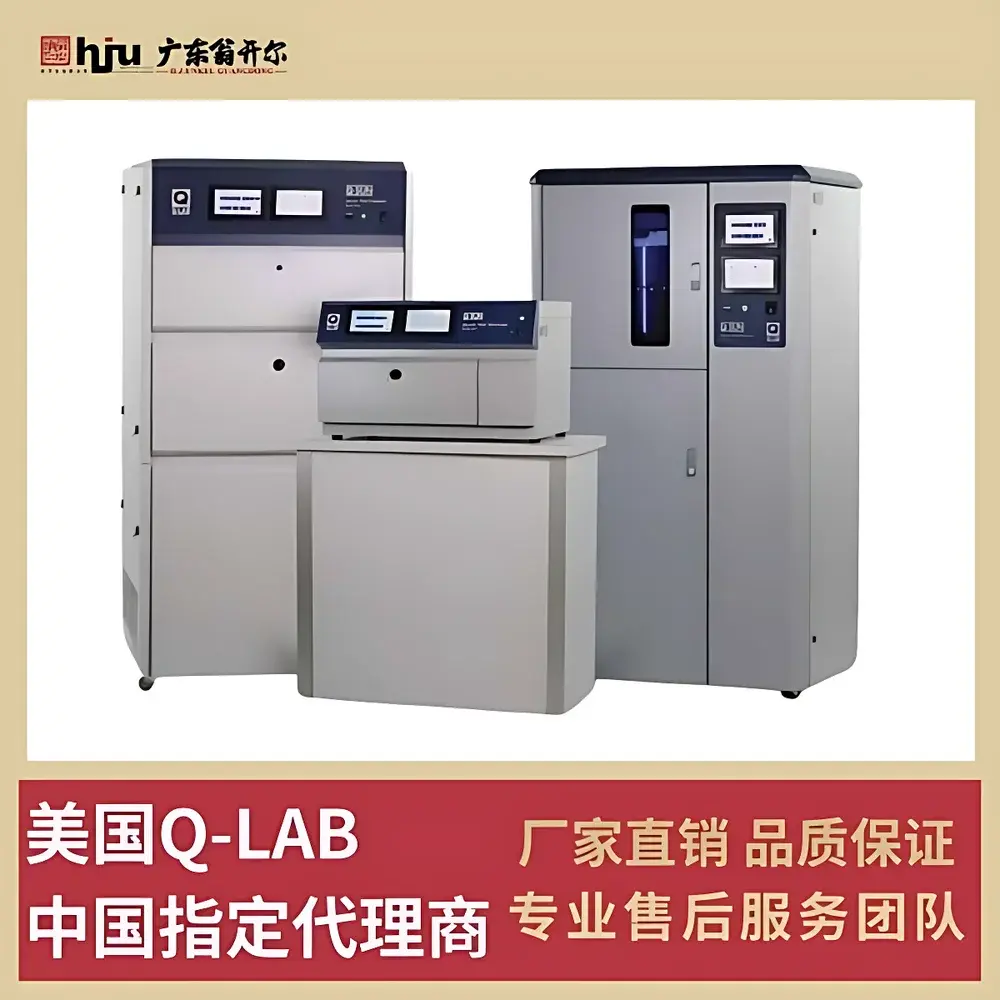

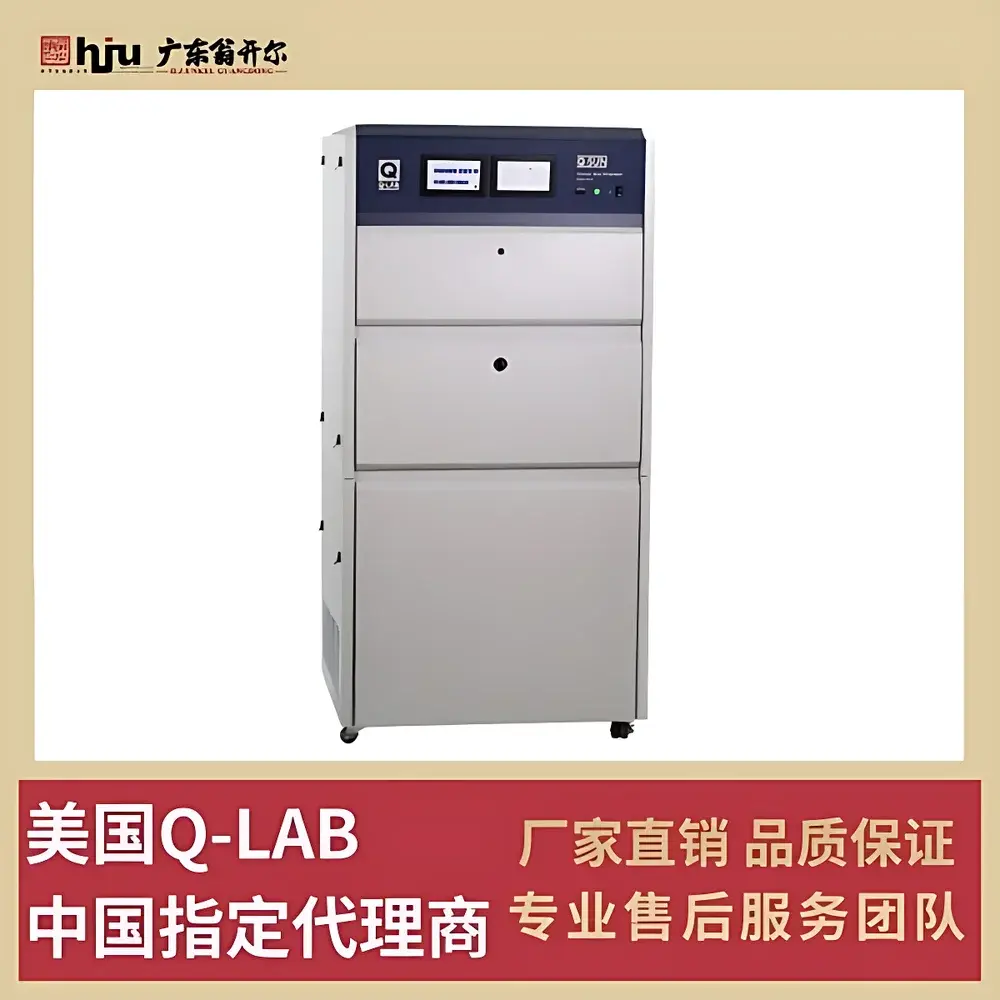

Q-LAB Q-SUN XE-3 Xenon Arc Weathering Test Chamber

Overview

The Q-LAB Q-SUN XE-3 Xenon Arc Weathering Test Chamber is an engineered solution for accelerated weathering simulation under controlled laboratory conditions. It employs air-cooled xenon arc lamps to replicate the full solar spectrum (295–800 nm), enabling precise emulation of natural sunlight exposure—including direct sunlight, daylight through window glass, and filtered UV-rich spectra. Unlike water-cooled systems, the XE-3’s air-cooled lamp architecture reduces operational complexity, lowers maintenance overhead, and improves long-term system stability. Each unit integrates three independently operated 1800 W xenon lamps, delivering uniform irradiance across a large exposure area. The chamber operates on the principle of controlled photodegradation: radiant energy, temperature (measured via black panel or black standard thermometers), relative humidity, and optional wetting cycles collectively accelerate material degradation mechanisms—such as polymer chain scission, pigment fading, coating chalking, and substrate embrittlement—in days or weeks rather than months or years outdoors.

Key Features

• Air-cooled 1800 W xenon arc lamp system with 1500-hour rated lifetime per lamp; three lamps per unit ensure redundancy and irradiance consistency.
• Sliding sample tray (451 mm × 718 mm) accommodates flat, curved, or three-dimensional specimens; supports up to 55 standard 51 mm × 102 mm test coupons.
• SOLAR EYE irradiance control system continuously monitors and adjusts spectral output at user-selectable wavelengths: 340 nm, 420 nm, or TUV (300–400 nm), ensuring traceable, repeatable exposure dosimetry.
• Standard relative humidity (RH) control (10–95% RH) with real-time monitoring of black panel temperature (42–120 °C range), chamber air temperature, and RH—fully integrated into the controller interface.
• Optional dual-spray functionality—the only commercially available xenon chamber offering two independent fluid delivery paths—enables sequential or simultaneous application of deionized water and secondary test solutions (e.g., acid rain simulants per SAE J2527, detergent formulations per ISO 11341).
• Back-spray option compliant with SAE J2412 and ASTM D7869 for rear-side wetting of automotive trim and multi-layer composites.
• Refrigerated cooling option (XE-3-HC / XE-3-HSC) extends operational low-temperature capability to 31 °C at 50% RH, critical for thermal-sensitive materials including pharmaceutical packaging, cosmetics, and medical device polymers.
• Non-degrading optical filters—including Daylight, Window Glass, and Extended UV configurations—with stable transmission profiles over service life; Window-IR filter replacement recommended per manufacturer schedule.

Sample Compatibility & Compliance

The Q-SUN XE-3 accommodates diverse specimen geometries—from rigid panels and flexible films to molded automotive components and textile swatches—without requiring custom fixtures. Its modular mounting system supports industry-standard holders (e.g., ASTM G151-compliant specimen racks, ISO 4892-2 sample clips). The chamber meets essential regulatory and methodological requirements for accelerated aging validation, including ASTM G155, ISO 4892-2, SAE J2527, SAE J2412, AATCC TM16, and GB/T 16422.2. When configured with optional Ethernet connectivity and audit-trail-enabled software, it supports GLP/GMP-aligned workflows, including 21 CFR Part 11-compliant electronic records and signature management. All models are CE-marked and comply with IEC 61000-6-3 (EMC) and IEC 61000-6-2 (immunity) standards.

Software & Data Management

The embedded controller features a multilingual (English, French, Spanish, Italian, German) touchscreen interface with built-in self-diagnostic routines, scheduled maintenance alerts, and configurable safety shutdown protocols. Standard Ethernet port enables remote monitoring, firmware updates, and integration into centralized lab management systems. Optional “Virtual Strip Chart” PC software provides real-time data logging of irradiance, black panel temperature, chamber RH, and cycle phase status. Logged datasets export natively to CSV or Excel formats and support automated email transmission to Q-LAB technical support for root-cause analysis. Data integrity safeguards include timestamped event logs, user-access controls, and tamper-evident file hashing—critical for quality assurance documentation in regulated industries.

Applications

• Automotive OEMs and Tier-1 suppliers validating exterior trim, paint systems, headlamp lenses, and interior soft-touch materials per SAE J2527 and GMW14124.
• Coatings manufacturers assessing gloss retention, color shift (ΔE), and adhesion loss in architectural and industrial coatings under ISO 11341 and ASTM D4587.
• Textile and apparel labs evaluating colorfastness to light and perspiration (AATCC TM16, ISO 105-B02).
• Medical device and pharmaceutical packaging developers verifying UV-induced barrier property degradation and leachables profile stability.
• Plastics compounders qualifying stabilizer package efficacy in polyolefins, PVC, and engineering resins exposed to tropical or desert climatic profiles.
• Government and third-party testing laboratories performing accredited weathering services per ISO/IEC 17025 requirements.

FAQ

What lamp types are compatible with the Q-SUN XE-3?
Only Q-LAB-certified air-cooled 1800 W xenon arc lamps are approved for use. Substitution with non-OEM lamps voids calibration validity and warranty coverage.

Is deionized or purified water mandatory for operation?
Yes. Humidity generation, spray, and back-spray functions require water with conductivity ≤1 µS/cm to prevent mineral deposition on optics, sensors, and nozzles.

How often must optical filters be replaced?
Daylight and Window Glass filters require no scheduled replacement. Window-IR filters degrade spectrally and must be replaced every 1,200–1,500 lamp hours per Q-LAB Technical Bulletin LX-5060.

Can the XE-3 meet ASTM G155 Cycle 1A without modification?
Yes. The standard XE-3-H configuration satisfies all irradiance, temperature, and humidity setpoints defined in ASTM G155-22 Annex A1 for Cycle 1A (full-spectrum daylight + dark + humidity).

Does the dual-spray option support programmable sequencing between fluids?
Yes. The dual-spray module permits independent timing, duration, and pressure control for each fluid path, enabling synchronized or staggered application aligned with specific test protocols such as ISO 11341 Acid Rain Simulation.
