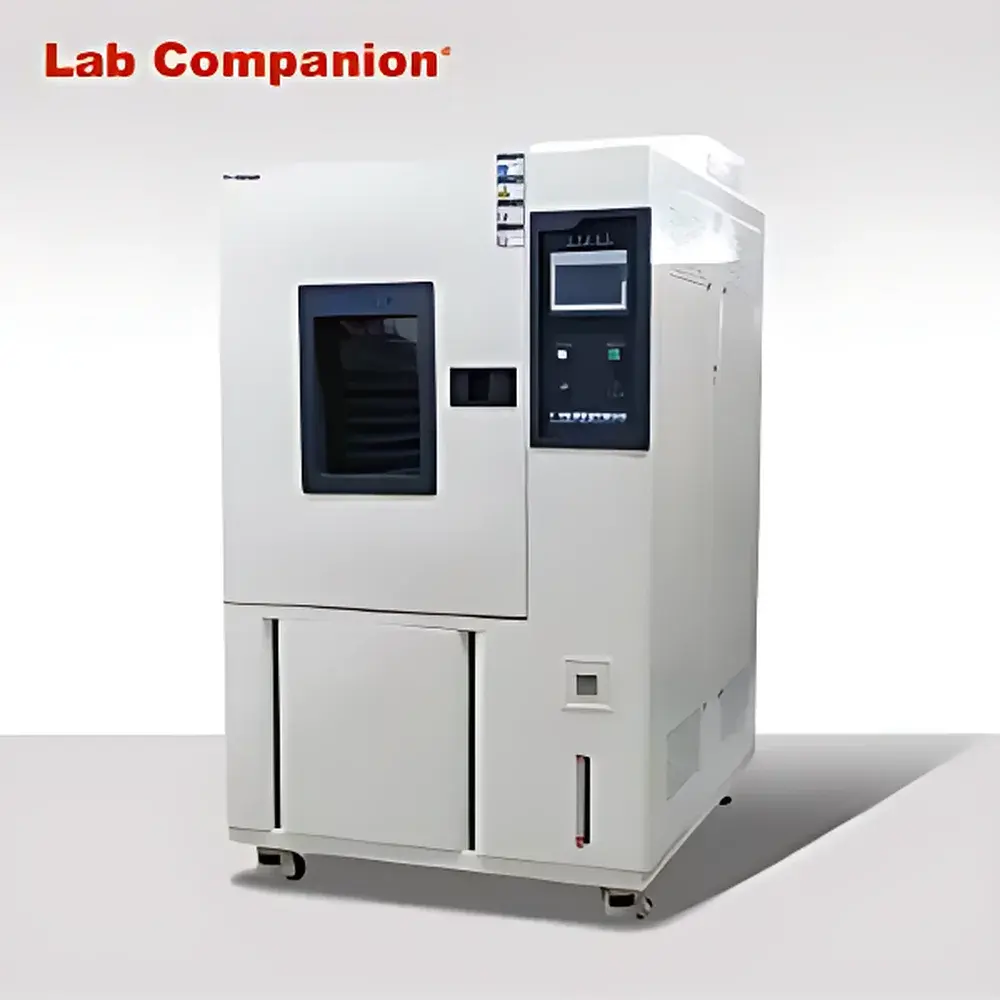

LabCompanion HC-1000 Environmental Test Chamber for Temperature Cycling

Overview

The LabCompanion HC-1000 Environmental Test Chamber is an industrial-grade temperature cycling system engineered for rigorous evaluation of material and component performance under dynamically alternating thermal stress conditions. Based on forced-air convection and dual-stage cascade refrigeration architecture, the chamber delivers precise, repeatable control across a wide operational range—from –70 °C to +150 °C—enabling simulation of real-world environmental extremes encountered during storage, transportation, and operational life cycles. Its 1 m³ internal workspace (1000 × 1000 × 1000 mm) accommodates full-size electronic enclosures, automotive ECUs, aerospace subassemblies, and large-scale PCB modules. The system adheres to fundamental thermodynamic stability principles: uniform airflow distribution ensures ≤±2 °C spatial uniformity per IEC 60068-3-5; dynamic response is validated via standardized ramp-rate profiling (1.0–1.2 °C/min under no-load conditions); and thermal inertia management minimizes overshoot during transition phases. Designed for continuous-duty laboratory and production-line validation, the HC-1000 meets essential requirements for reliability engineering, accelerated life testing (ALT), and HALT/HASS protocol execution.

Key Features

• Robust dual-stage cascade refrigeration system with imported hermetic compressors and eco-friendly R404A/R23 refrigerant blend for stable low-temperature operation down to –70 °C
• High-efficiency axial fan array with adjustable speed control ensures laminar airflow and minimizes thermal gradients across the test volume
• Triple-layer insulated chamber walls (polyurethane foam + vacuum panel + aluminum foil barrier) reduce heat transfer and improve energy efficiency
• Microprocessor-based PID controller with 0.1 °C resolution, programmable multi-segment profiles (up to 99 cycles, 999 steps), and real-time deviation tracking
• Integrated safety architecture including independent mechanical over-temperature cut-off, pressure switch monitoring, three-phase power fault detection, and automatic shutdown with event logging
• Stainless steel (SUS304) interior chamber with rounded corners and removable drip trays for corrosion resistance and ease of cleaning
• Front-access observation window with double-glazed, anti-fog heated glass and integrated LED illumination for non-intrusive visual inspection

Sample Compatibility & Compliance

The HC-1000 supports heterogeneous sample configurations—including sealed housings, unpackaged circuit boards, polymer components, battery packs, and optoelectronic modules—without compromising thermal fidelity. Sample loading does not require modification of chamber airflow or recalibration; thermal mass effects are mitigated by adaptive PID tuning and pre-conditioning algorithms. Regulatory alignment includes full traceability to GB/T 2423.1 (cold testing), GB/T 2423.2 (dry heat), GB/T 10589 (low-temperature test chambers), and international equivalents IEC 60068-2-1 (Test A) and IEC 60068-2-2 (Test B). Documentation packages support ISO/IEC 17025-compliant calibration verification, and optional IQ/OQ protocols are available for GMP-regulated environments requiring FDA 21 CFR Part 11–compliant audit trails.

Software & Data Management

Equipped with LabCompanion’s TC-Link™ software suite (Windows-based, USB/Ethernet interface), the HC-1000 enables remote configuration, real-time parameter visualization, and automated report generation in PDF/CSV formats. Data acquisition records temperature setpoints, actual chamber readings, compressor status, alarm events, and cycle completion timestamps at user-defined intervals (1 s to 60 min). All logs include digital signatures, time stamps with NTP synchronization, and tamper-evident file hashing. For integration into enterprise quality systems, the chamber supports Modbus TCP and OPC UA protocols—facilitating direct linkage with LIMS, MES, and PLM platforms. Optional cloud-enabled telemetry allows secure offsite monitoring via TLS 1.2–encrypted channels.

Applications

• Electronics reliability validation: solder joint fatigue analysis, capacitor derating verification, and connector contact resistance drift under thermal cycling
• Automotive component qualification per AEC-Q200 and ISO 16750-4 for engine control units, sensors, and infotainment modules
• Aerospace avionics screening: thermal shock resistance of flight-critical PCBAs per RTCA DO-160 Section 4.3
• Material science studies: coefficient of thermal expansion (CTE) measurement of composites, adhesives, and encapsulants
• Battery cell and pack evaluation: capacity fade correlation with repeated low/high-temperature exposure per UN 38.3 thermal test criteria
• Pharmaceutical packaging integrity testing: seal strength degradation assessment of blister packs and vial stoppers under cyclic humidity-temperature stress

FAQ

What is the maximum thermal ramp rate achievable with the HC-1000 under loaded conditions?

Under standard load (20 kg stainless steel mass, centered), the typical ramp rate is 0.8–1.0 °C/min between –40 °C and +85 °C. Actual performance depends on sample thermal mass, placement, and chamber door opening frequency.
Does the HC-1000 support humidity control?

No—the HC-1000 is a dry-temperature-only chamber. For combined temperature/humidity testing, refer to the LabCompanion TH-1000 series.
Can the controller store multiple test programs independently?

Yes—up to 20 fully programmable profiles can be saved internally; unlimited profiles may be managed externally via TC-Link™ software.
Is third-party calibration certification included with delivery?

A factory calibration certificate (traceable to NIM, China) is provided. ISO/IEC 17025-accredited field calibration services are available upon request.
What maintenance intervals are recommended for long-term reliability?

Compressor oil and refrigerant levels should be verified annually; air filters require cleaning every 3 months; full preventive maintenance (including sensor recalibration and refrigerant leak check) is advised biannually.
