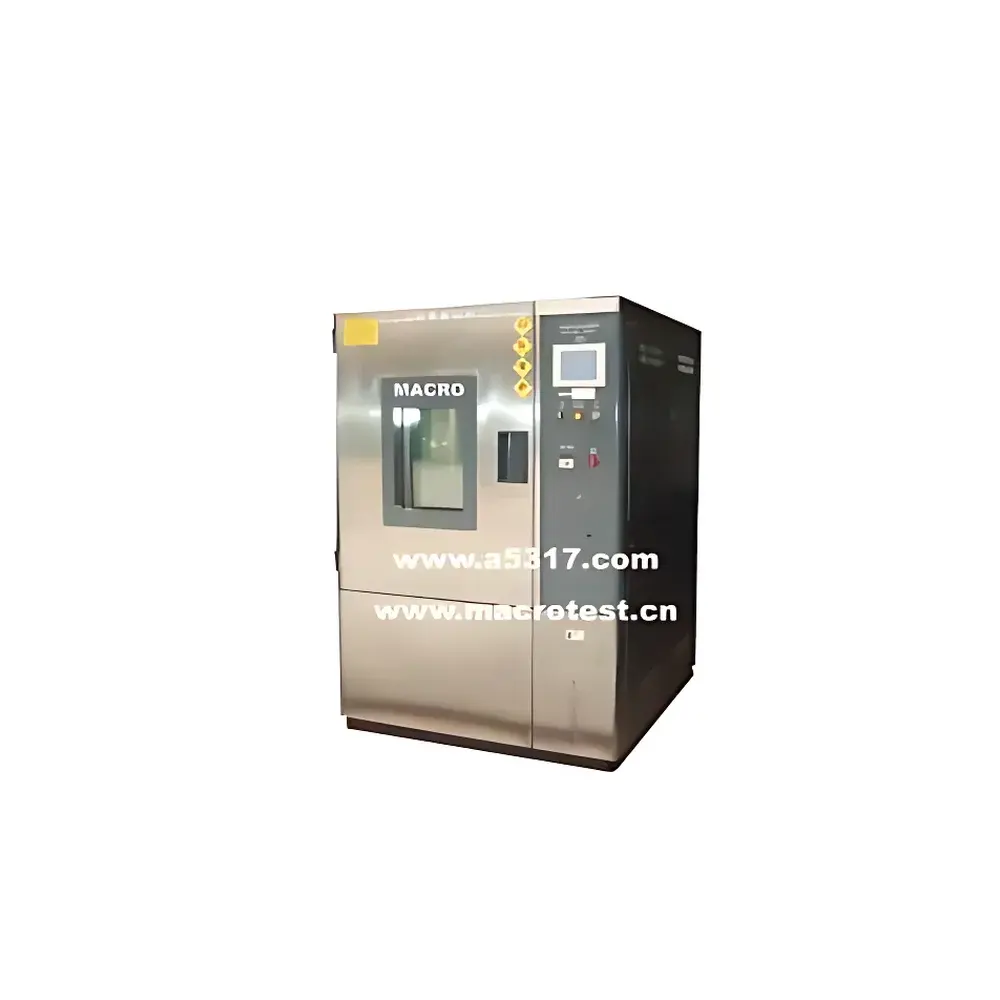

LabCompanion HD-72 High-Low Temperature Environmental Test Chamber

Overview

The LabCompanion HD-72 High-Low Temperature Environmental Test Chamber is an engineered solution for precise, repeatable thermal stress testing across industrial R&D, quality assurance, and reliability validation workflows. Designed in accordance with IEC 60068-2-1 (cold), IEC 60068-2-2 (dry heat), and ISO 16750-4 (automotive environmental conditions), the chamber employs a dual-stage cascade refrigeration architecture to achieve stable operation from −70 °C to +150 °C. Its core thermal management system integrates high-stability Pt100 platinum resistance temperature detectors (RTDs), a low-turbulence axial airflow circuit driven by extended-shaft stainless-steel centrifugal fans, and multi-layer composite insulation (rigid polyurethane foam + mineral rock wool) to minimize thermal bridging and ensure ≤±0.5 °C temperature fluctuation and ≤2 °C spatial uniformity per IEC 60068-3-5. The chamber’s structural integrity derives from dual-walled SUS304 stainless steel construction—inner chamber and outer casing—with electropolished finish and oil-brushed Baosteel cold-rolled steel cladding for corrosion resistance and long-term dimensional stability under cyclic thermal loading.

Key Features

• Dual-stage cascade refrigeration system utilizing imported Tecumseh hermetic compressors for reliable sub-zero performance down to −70 °C without liquid nitrogen dependency
• Microprocessor-based 7-inch capacitive touchscreen controller with real-time data logging, programmable ramp-soak profiles, and password-protected parameter access
• High-fidelity thermal sensing via calibrated Pt100 RTD probes mounted at multiple spatial locations within the working volume
• Optimized air circulation path featuring low-noise, high-efficiency stainless-steel impellers and baffle-guided laminar flow design to eliminate hot/cold spots
• Robust mechanical safety architecture including independent over-temperature cut-off, compressor discharge pressure monitoring, earth-leakage circuit interruption, and fast-acting thermal fuses
• Standard ergonomic integration: dual-pane vacuum-insulated observation window, 50 mm diameter test port with silicone gasket, two height-adjustable 304 stainless steel shelves, internal LED illumination, and locking casters

Sample Compatibility & Compliance

The HD-72 accommodates diverse sample geometries and mass loads through eight standard internal volume configurations (400×500×400 mm to 1000×1000×1000 mm). It supports non-hygroscopic and low-outgassing samples typical of electronics assemblies, automotive ECUs, aerospace composites, polymer packaging, and passive components. The chamber meets structural and operational requirements of MIL-STD-810H Method 502.7 (low temperature), Method 501.7 (high temperature), and ASTM D3574 (flexible cellular materials). Optional humidity control modules comply with IEC 60068-2-78 for combined temperature/humidity testing. All electrical subsystems conform to CE marking directives (2014/30/EU EMC, 2014/35/EU LVD), and firmware architecture supports audit-ready operation under GLP and GMP environments when paired with external validation documentation.

Software & Data Management

The embedded controller provides native CSV export of time-stamped temperature logs (1-second resolution), profile execution history, alarm event timestamps, and system diagnostic codes. Optional Ethernet or RS485 interfaces enable integration with centralized lab management systems (LIMS) or SCADA platforms using Modbus RTU/TCP protocols. Firmware supports user-defined calibration offset tables per sensor channel and retains configuration integrity during power loss via non-volatile memory. For regulated environments, optional 21 CFR Part 11-compliant software add-ons provide electronic signature capability, role-based access control, and immutable audit trails—including operator ID, parameter changes, and manual overrides—fully traceable to NIST-traceable calibration records.

Applications

• Accelerated life testing of printed circuit boards (PCBs) and semiconductor packages under thermal cycling stress
• Validation of material dimensional stability in automotive trim components per SAE J2412
• Pre-conditioning of lithium-ion battery cells prior to electrochemical characterization
• Thermal shock screening of medical device housings per ISO 11607-1
• Stress screening of optical coatings and precision metrology fixtures
• Qualification testing of avionics enclosures under DO-160 Section 4 thermal conditions

FAQ

What temperature ramp rates are available on the HD-72?

Standard configuration delivers 0.7–1 °C/min; optional high-speed variants support 3 °C/min, 5 °C/min, and 10 °C/min ramp rates via enhanced refrigerant charge and optimized evaporator surface area.
Is the chamber suitable for testing samples with active power dissipation?

Yes—the HD-72’s thermal capacity and airflow design accommodate up to 300 W internal heat load while maintaining specified uniformity and stability; users must specify expected wattage during quotation for proper derating assessment.
Can the controller be validated for use in FDA-regulated laboratories?

The base controller meets IQ/OQ prerequisites; full 21 CFR Part 11 compliance requires installation of the optional validation package, including electronic signature module, audit trail server, and documented URS/FS/DS deliverables.
Does the chamber include factory calibration documentation?

Each unit ships with a NIST-traceable calibration certificate covering all installed Pt100 sensors and controller input/output channels, performed at three points across the operating range (−40 °C, 25 °C, +85 °C).
