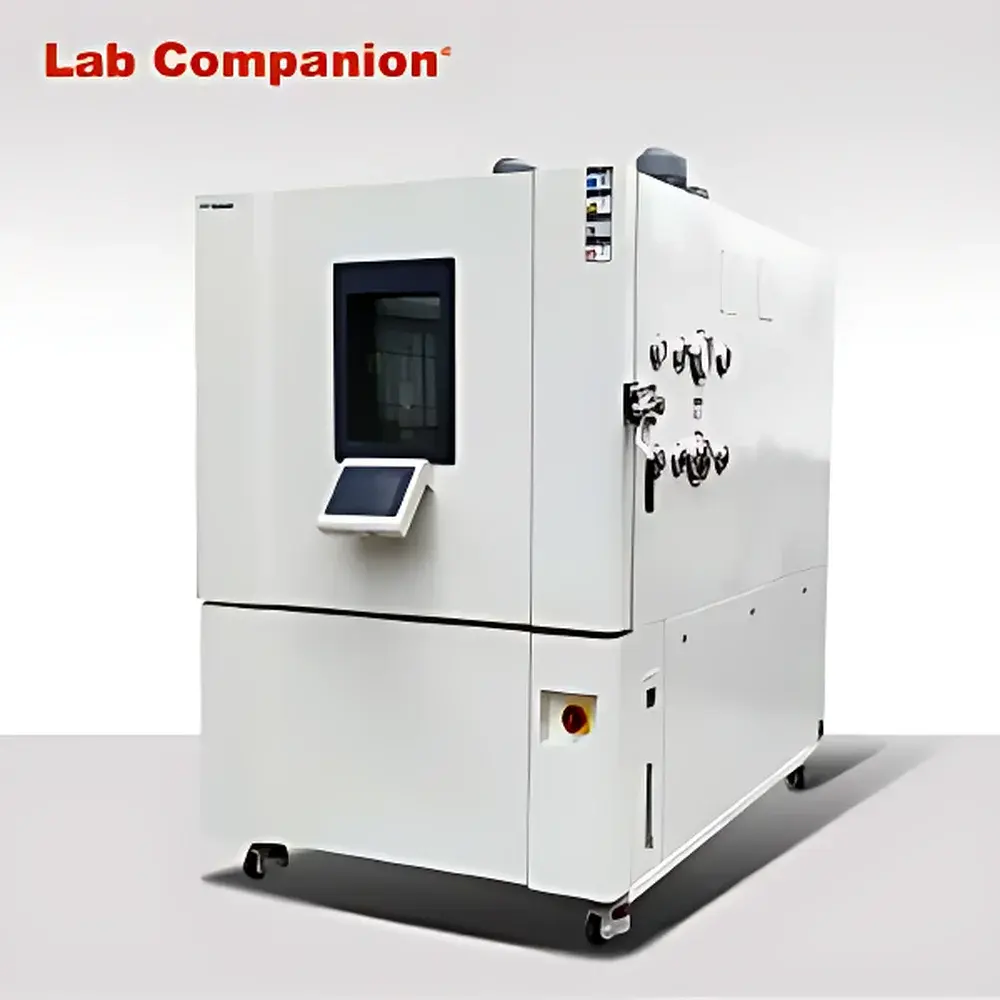

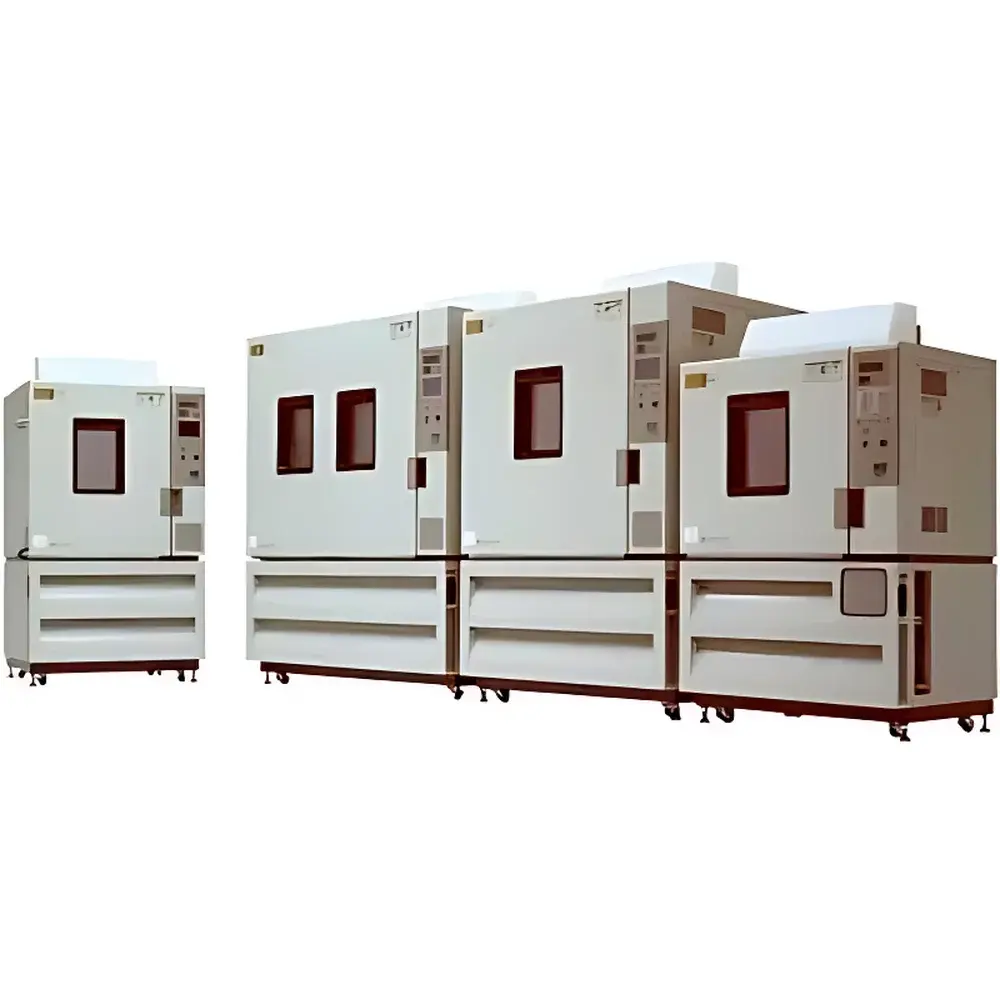

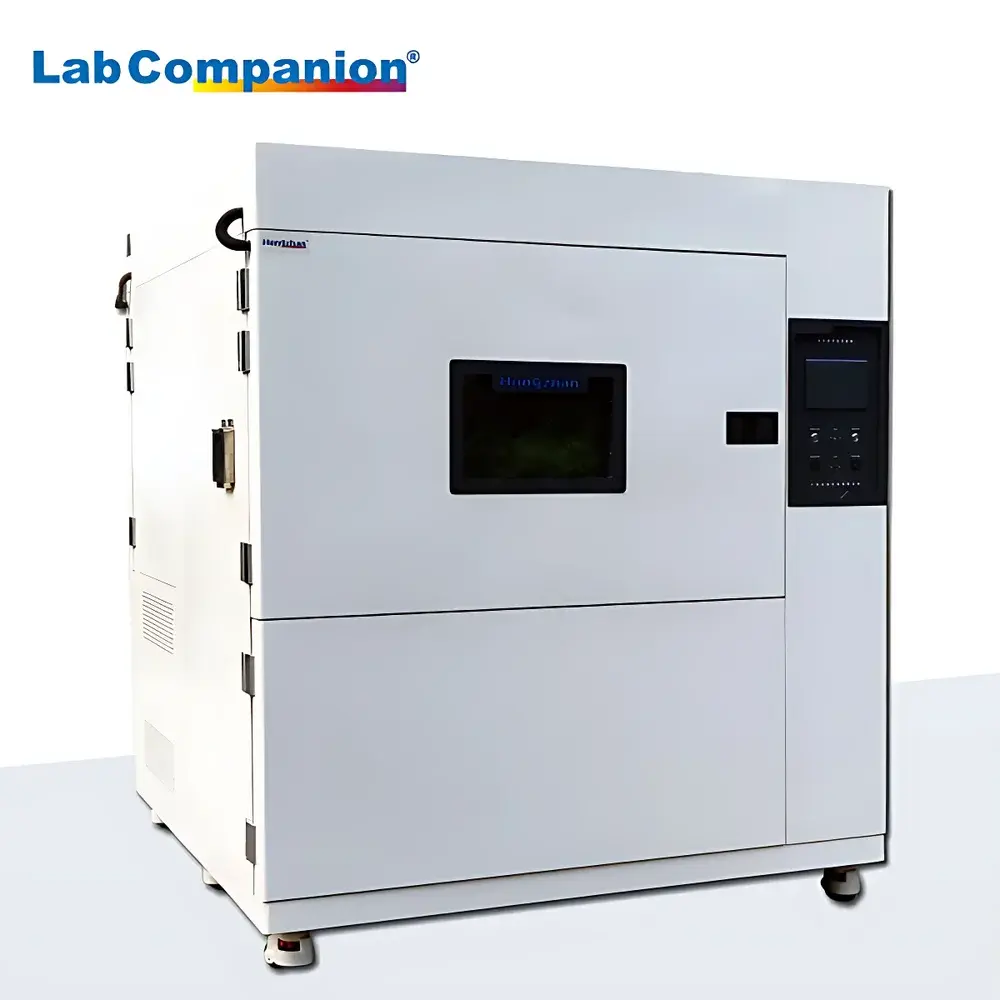

LabCompanion TC-600 Rapid Thermal Cycling Chamber
| Brand | LabCompanion |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | TC-600-7 |
| Temperature Range | -70 °C to +150 °C |
| Temperature Deviation | ±2.0 °C |
| Heating Rates | 5–25 °C/min (linear or non-linear) |
| Cooling Rates | 5–25 °C/min (linear or non-linear) |
| Optional LN₂-assisted cooling | up to 30 °C/min |
| Internal Dimensions (W×H×D) | 600 × 600 × 500 mm |
| Humidity Range | Not applicable (dry-only configuration) |
| Temperature Uniformity | ±0.5 °C (per GB/T 5170.2–2008) |
| Compliance | GB/T 5170.2–2008, IEC 60068-3-5, ASTM D3418 |
Overview
The LabCompanion TC-600 Rapid Thermal Cycling Chamber is an engineered environmental test system designed for precise, repeatable, and accelerated thermal stress profiling of materials, electronic components, automotive modules, and packaging systems. Unlike conventional temperature chambers with fixed ramp rates, the TC-600 integrates a dual-refrigeration architecture—comprising a high-efficiency cascade compressor system and optional liquid nitrogen (LN₂) injection capability—to deliver programmable heating and cooling rates from 5 °C/min up to 30 °C/min (with LN₂ option). Its measurement principle relies on closed-loop PID-controlled thermal energy transfer across a thermally optimized stainless-steel chamber cavity, monitored in real time by calibrated PT100 sensors traceable to NIST standards. The chamber operates exclusively in dry thermal cycling mode (no humidity control), making it ideal for applications requiring strict moisture exclusion—such as solder joint reliability testing, polymer crystallinity studies, and semiconductor burn-in qualification under ISO 16750-4 and AEC-Q200 environmental stress protocols.
Key Features
- Programmable thermal ramp rates: 5, 10, 15, 20, and 25 °C/min (standard); up to 30 °C/min with factory-installed LN₂ auxiliary cooling kit
- Wide operational temperature range: -70 °C to +150 °C, validated per GB/T 5170.2–2008 and IEC 60068-3-5
- High-stability chamber uniformity: ±0.5 °C (measured at 9 locations per standard test grid)
- Temperature deviation controlled within ±2.0 °C across full range (verified at reference load conditions: ambient +25 °C, no sample, recirculated coolant at +25 °C)
- Robust 304 stainless-steel interior (600 × 600 × 500 mm W×H×D) with reinforced insulation and low-thermal-mass chamber walls
- Integrated safety interlocks including over-temperature cutoff, LN₂ pressure monitoring (if equipped), and door-open thermal abort logic
- Front-panel touchscreen HMI with onboard data logging (1 Hz sampling, 16 GB internal storage) and USB export capability
Sample Compatibility & Compliance
The TC-600 accommodates samples up to 30 kg mass and dimensions ≤550 × 550 × 450 mm, with unrestricted airflow via rear-mounted centrifugal circulation fans and optimized baffle geometry. It supports standardized test profiles per MIL-STD-810H Method 503.5 (temperature shock), JEDEC JESD22-A104F (temp cycle), and IPC-9701A (solder interconnect reliability). All thermal performance specifications are verified under no-load, stabilized ambient conditions per GB/T 5170.2–2008—ensuring metrological consistency across laboratories. The system meets electromagnetic compatibility requirements per EN 61326-1 and carries CE marking for EMC and LVD directives. Full calibration documentation—including sensor uncertainty budgets and traceability certificates—is provided with each unit.
Software & Data Management
LabCompanion TC-Link™ PC software (Windows 10/11 compatible) enables full remote operation, profile scripting (including multi-segment ramps, dwell steps, and conditional triggers), and real-time visualization of chamber and reference sensor readings. Data export complies with ASTM E2918 for thermal test reporting, supporting CSV, PDF, and XML formats. Audit trail functionality logs all user actions, parameter changes, and alarm events with timestamps—meeting GLP/GMP documentation requirements under FDA 21 CFR Part 11 when configured with Windows domain authentication and electronic signature modules. Raw sensor data is stored with 0.1 °C resolution and time-stamped to ±100 ms accuracy.
Applications
- Accelerated life testing of PCB assemblies and IC packages under thermal shock conditions
- Crystallization and glass transition behavior analysis of thermoplastics and elastomers
- Validation of thermal interface materials (TIMs) under dynamic load cycling
- Qualification of battery modules per UN 38.3 thermal cycling requirements
- Material coefficient of thermal expansion (CTE) screening using dimensional metrology integration
- Pre-conditioning of optical components prior to laser damage threshold testing
FAQ
What is the standard temperature uniformity specification for the TC-600?
Per GB/T 5170.2–2008, the chamber achieves ±0.5 °C uniformity across the working volume under no-load, steady-state conditions.
Can the TC-600 be upgraded with humidity control after purchase?
No—the TC-series is a dry-only platform; humidity-capable models (TH-series) feature distinct air handling, steam generator, and condensation management subsystems and are not retrofittable.
Is LN₂ consumption data available for the optional rapid-cool configuration?
Yes—typical LN₂ usage is 1.2–1.8 L/min during active 30 °C/min cooldown phases, depending on starting temperature and setpoint delta; full consumption curves are included in the TC-600-7 LN₂ Option Technical Addendum.
Does the system support external trigger inputs for synchronized instrumentation?
Yes—TTL-compatible digital I/O ports (2 input, 2 output) are provided for hardware-level synchronization with oscilloscopes, DAQ systems, or power supplies.
What maintenance intervals are recommended for the cascade refrigeration system?
Compressor oil and filter replacement every 3,000 operating hours; annual validation of refrigerant charge and sensor calibration against certified references.
