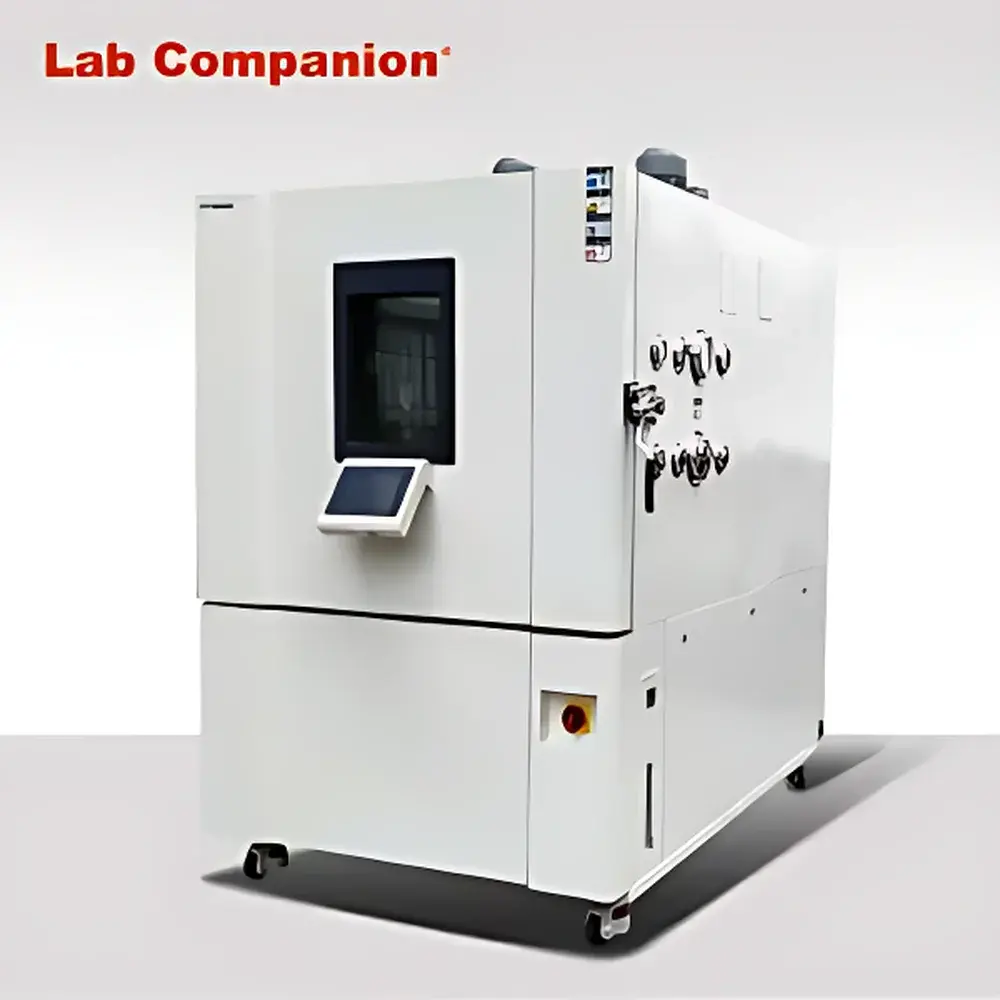

LabCompanion TC Series Programmable Temperature & Humidity Environmental Test Chamber

Overview

The LabCompanion TC Series Programmable Temperature & Humidity Environmental Test Chamber is an engineered solution for precise, repeatable simulation of climatic stress conditions across industrial R&D, quality assurance, and regulatory compliance testing environments. Designed in accordance with ISO 16750-4, IEC 60068-2-1 (cold), IEC 60068-2-2 (dry heat), IEC 60068-2-30 (damp heat, cyclic), and ASTM D4332 standards, the TC chamber employs a dual-loop PID control architecture integrated with fuzzy logic algorithms to govern both thermal and hygrothermal dynamics. Its core operational principle relies on closed-loop feedback regulation of refrigerant flow (via electronic expansion valves), electric heating power modulation, and steam-based humidification—enabling stable, traceable control over temperature and relative humidity (RH) across wide dynamic ranges. The chamber supports programmable multi-step test profiles—including ramp-soak-hold sequences, cycling protocols, and user-defined gradient transitions—making it suitable for accelerated aging, component validation, material stability assessment, and environmental qualification per MIL-STD-810G, JEDEC JESD22-A110, and automotive OEM specifications.

Key Features

• Advanced C100 Control System: Proprietary microprocessor-based controller with bilingual (English/Chinese) touchscreen interface, auto-calibration routines, linear temperature/humidity compensation, and scheduled start/stop functionality.
• Energy-Efficient Cold-End Regulation: Patented control strategy minimizing compressor cycling and reducing overall power consumption without compromising thermal response fidelity.
• High-Fidelity Refrigeration Architecture: Dual-stage cascade refrigeration system utilizing R404A (high-stage) and R23 (low-stage) refrigerants—both compliant with Montreal Protocol Annex A Group II and London Amendment restrictions—enabling reliable operation down to −70 °C.
• Precision Steam Humidification: Integrated electric boiler-type humidifier with PID-controlled water level and steam saturation management, delivering stable RH control from 10% to 98% RH—even at sub-zero temperatures (e.g., 45% RH at 0 °C).
• Rigorous Structural Integrity: Stainless steel inner chamber (SUS304), double-layer insulated door with magnetic seal, and reinforced structural frame ensuring long-term dimensional stability and thermal integrity.
• Comprehensive Safety Framework: 18 independent hardware- and software-monitored protection circuits including high-pressure cut-off, compressor overcurrent/overheat, fan failure, heater overload, phase sequence error, water shortage (humidifier & chiller), and independent chamber overtemperature/undertemperature limits.

Sample Compatibility & Compliance

The TC chamber accommodates a broad spectrum of test specimens—from printed circuit boards (PCBs), automotive ECUs, medical device housings, and polymer composites to lithium-ion battery modules and aerospace avionics enclosures. Its internal volume (800 × 950 × 800 mm) allows for full-size functional testing of mid-tier industrial assemblies. All models are CE-marked and comply with EN 61000-6-2 (immunity) and EN 61000-6-4 (emission) electromagnetic compatibility requirements. Manufacturing processes adhere to ISO 9001:2015 and ISO 14001:2015 certified quality and environmental management systems. Critical components—including Siemens PLCs, Schneider contactors, BITZER compressors, Danfoss expansion valves, and Emerson solenoids—are sourced exclusively from Tier-1 global suppliers to ensure long-term reliability and serviceability.

Software & Data Management

The embedded C100 controller supports real-time data logging at configurable intervals (1–60 seconds), storing up to 10,000 hours of timestamped temperature/RH readings with automatic trend graphing and CSV export capability. Historical fault logs—including timestamps, error codes, and contextual operating parameters—are retained for root-cause analysis and GLP/GMP audit readiness. Optional Ethernet module enables TCP/IP communication for remote monitoring via web browser or integration into centralized facility management platforms (e.g., LabVantage, Siemens Desigo, or custom SCADA). Audit trail functionality meets FDA 21 CFR Part 11 requirements when paired with user-access controls and electronic signature validation (available as optional firmware upgrade).

Applications

• Electronics Reliability Testing: Thermal cycling of semiconductors, solder joint fatigue evaluation, and moisture sensitivity level (MSL) qualification per J-STD-020.
• Automotive Component Validation: Climate stress screening of infotainment systems, ADAS sensors, and EV battery thermal management units under ISO 16750-4.
• Pharmaceutical Stability Studies: ICH Q1A(R2)-compliant storage condition simulation (e.g., 25 °C/60% RH, 30 °C/65% RH) for drug product shelf-life determination.
• Aerospace Materials Qualification: Composite curing cycle verification, sealant performance under thermal shock, and outgassing behavior in controlled humidity environments.
• Research & Development: Controlled environment studies on polymer crystallinity, coating adhesion degradation, and corrosion kinetics of metallic substrates.

FAQ

What is the maximum allowable ambient temperature for continuous operation?
The TC series is rated for uninterrupted operation in ambient conditions up to 38 °C (air-cooled configuration) or with chilled water supply between 5 °C and 35 °C (water-cooled configuration).
Does the chamber support automated calibration verification?
Yes—the C100 controller includes built-in linear correction functions and supports external reference sensor input for periodic verification against NIST-traceable standards.
Can the TC chamber be integrated into a laboratory LIMS or MES system?
Via optional Ethernet module and Modbus TCP protocol support, the chamber exports real-time process variables and alarm status to third-party enterprise systems.
Is remote firmware update capability available?
Firmware updates require local USB interface access; however, diagnostic data and log files can be retrieved remotely for technical support assessment.
What documentation is provided for regulatory submissions?
Each unit ships with Factory Acceptance Test (FAT) report, IQ/OQ protocol templates, CE Declaration of Conformity, refrigerant safety data sheets (SDS), and electrical safety certification records.
