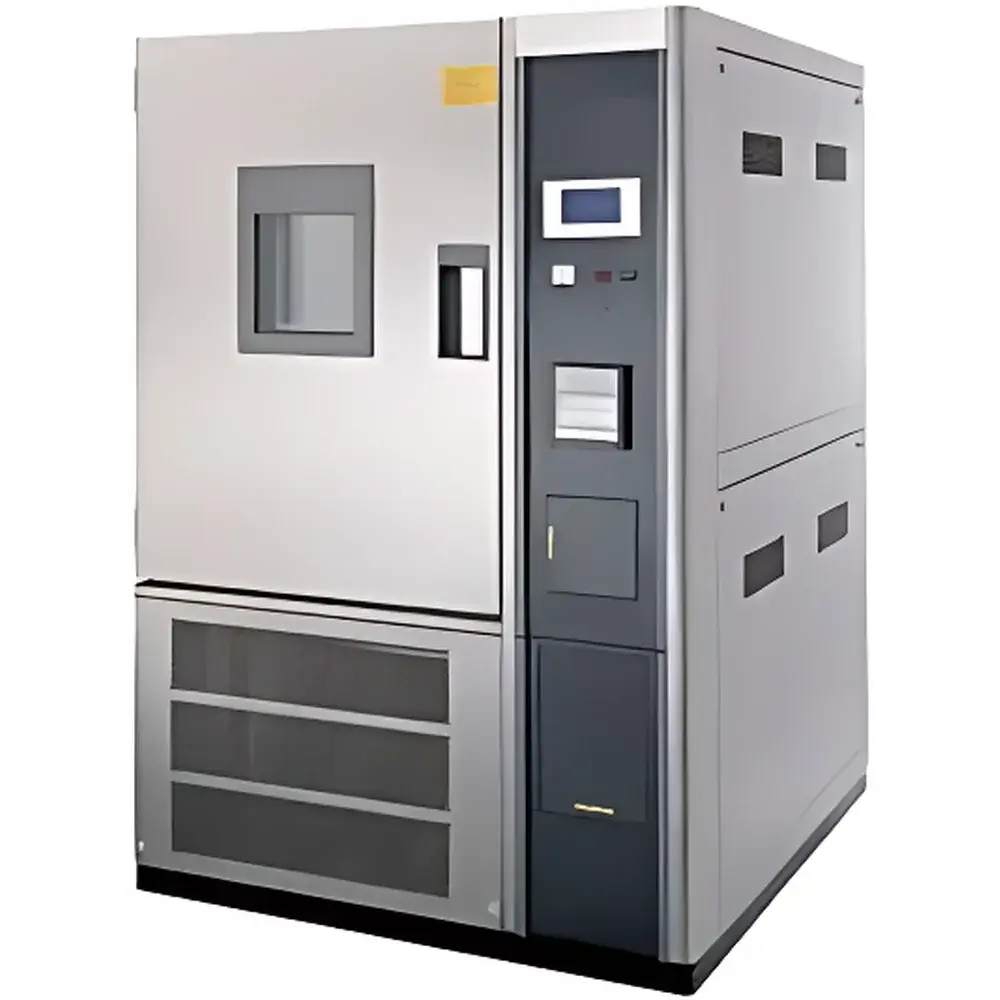

LabCompanion UC-Series UV Aging Test Chamber

Overview

The LabCompanion UC-Series UV Aging Test Chamber is an engineered environmental simulation system designed to accelerate material degradation under controlled ultraviolet (UV) irradiation combined with precise thermal and humidity cycling. It operates on the principle of photochemical degradation—where UV photons (primarily UVA-340 nm and UVB-313 nm spectral bands) induce bond scission, oxidation, and cross-linking in polymers, coatings, textiles, adhesives, and automotive components. Unlike general-purpose climate chambers, the UC-Series integrates calibrated UV lamp arrays (fluorescent or xenon-arc configurable per application), programmable irradiance control, and synchronized temperature/humidity profiles to replicate decades of outdoor exposure in weeks. Its architecture complies with core international testing standards including ASTM G154 (Standard Practice for Operating Fluorescent Ultraviolet (UV) Lamp Apparatus for Exposure of Non-Metallic Materials), ISO 4892-3 (Plastics — Methods of Exposure to Laboratory Light Sources — Part 3: Fluorescent UV Lamps), and SAE J2020 (Automotive Exterior Materials UV Exposure). The chamber is not intended for sterilization or germicidal applications; its purpose is strictly materials durability evaluation under accelerated aging conditions.

Key Features

• Modular UV irradiation system with interchangeable lamp banks (UVA-340, UVB-313, or UVA-351), each traceable to NIST-calibrated reference spectroradiometers
• Microprocessor-based touch-panel controller with 100-segment programmable profile capability, real-time data logging, and USB export functionality
• Dual-sensor thermal regulation: High-stability Pt100 platinum resistance thermometer (±0.15 °C accuracy) coupled with a redundant thermocouple safety cutoff
• Cascade refrigeration option for sub-zero operation down to –70 °C, utilizing environmentally compliant R404A/R23 refrigerant blends and Tecumseh-derived hermetic compressors
• Double-wall construction: Inner chamber of polished SUS304 stainless steel; outer shell of powder-coated cold-rolled steel with oil-finish texture; 120–150 mm insulation layer combining rigid polyurethane foam and mineral rock wool
• Forced-air convection via corrosion-resistant stainless steel centrifugal blower with extended-shaft design, ensuring uniform irradiance distribution (±5% across specimen plane) and thermal homogeneity (≤2 °C deviation)
• Integrated safety architecture: Independent over-temperature limiter, compressor discharge pressure switch, ground-fault circuit interrupter (GFCI), and fast-acting thermal fuses

Sample Compatibility & Compliance

The UC-Series accommodates flat-panel specimens up to 1000 mm × 1000 mm × 50 mm (W×H×D), mounted on two adjustable stainless steel shelves with 25 mm vertical spacing increments. Specimen holders are non-reflective and UV-stable. The chamber supports standardized sample racks per ASTM D7869 and ISO 11341. All electrical components meet IEC 61000-6-3 (EMC emission) and IEC 61000-6-2 (immunity) requirements. The control firmware implements audit-trail-capable event logging aligned with GLP principles—recording operator ID, parameter changes, alarm triggers, and runtime deviations. While not FDA 21 CFR Part 11–certified out-of-the-box, the system’s data export format (CSV/Excel-compatible) enables integration into validated LIMS or ELN environments under user-defined SOPs.

Software & Data Management

The embedded controller provides local configuration, real-time graphing of chamber temperature, irradiance intensity (mW/cm²), and relative humidity (if humidity option installed). Data is stored internally for up to 30 days at 1-minute intervals and exportable via USB flash drive in timestamped .csv format. Optional Ethernet or RS485 interface enables remote monitoring and SCADA-level integration using Modbus RTU protocol. No cloud connectivity or proprietary software installation is required. All calibration coefficients (e.g., UV sensor drift compensation, PID tuning constants) are accessible only via authenticated service mode—preventing unauthorized modification during routine operation.

Applications

• Automotive: Accelerated weathering of exterior trim, headlamp lenses, sealants, and paint systems per GMW14124, Ford CETP 00.00-L-467, and VW TL 226
• Coatings & Inks: Evaluation of gloss retention, chalking, color shift (ΔE*), and adhesion loss in architectural and industrial coatings
• Photovoltaics: UV-induced encapsulant discoloration and backsheet delamination screening per IEC 61215-2 MQT05
• Packaging: Degradation assessment of UV-barrier films, printed labels, and biodegradable polymers under ISO 16062
• Aerospace: Qualification of composite matrix resins and radome materials exposed to stratospheric UV flux profiles

FAQ

What UV spectral bands are supported?
The standard configuration uses UVA-340 fluorescent lamps (peak at 340 nm), replicating terrestrial sunlight below 400 nm. UVB-313 and UVA-351 options are available upon request.
Is humidity control integrated?
Humidity capability is optional and requires separate humidification and dehumidification modules. Base UV-only models do not include RH control.
Can the chamber be validated per IQ/OQ protocols?
Yes—LabCompanion provides factory-assembled validation documentation packages (IQ/OQ templates, sensor calibration certificates, and installation checklists) compatible with ISO/IEC 17025-accredited laboratories.
What maintenance intervals are recommended?
UV lamps require replacement every 1,600–2,000 operational hours; air filters every 3 months; and refrigeration oil analysis annually for cascade systems.
Does the controller support multi-step ramp-soak profiles?
Yes—the touch-panel interface supports up to 100 program segments with independent ramp rates, dwell times, and UV on/off sequencing.
