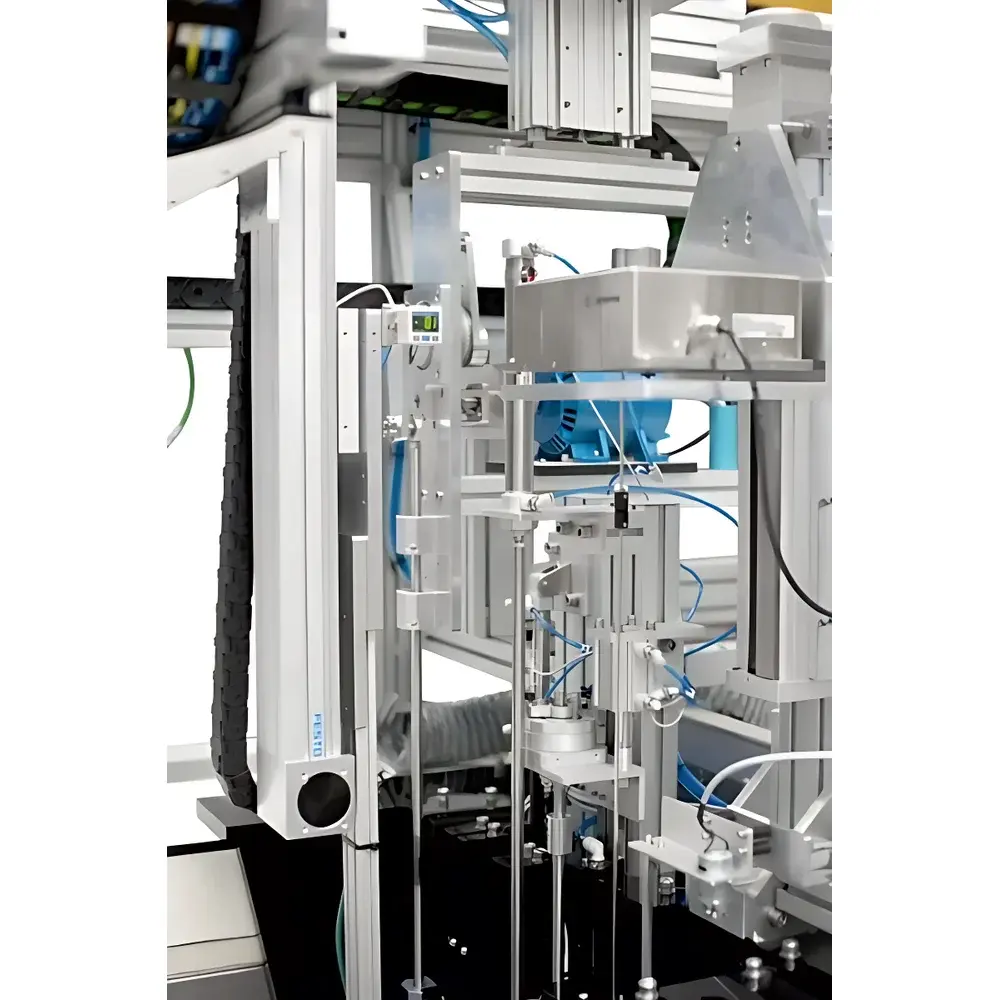

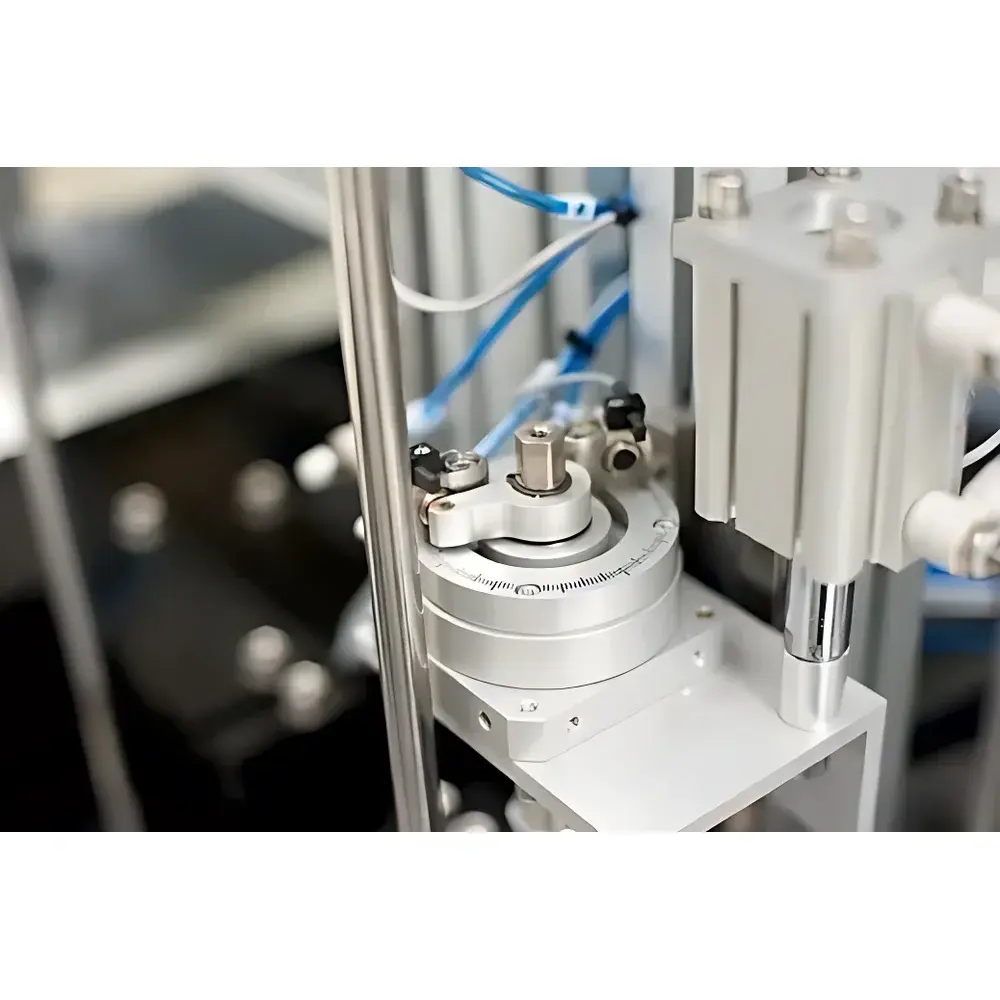

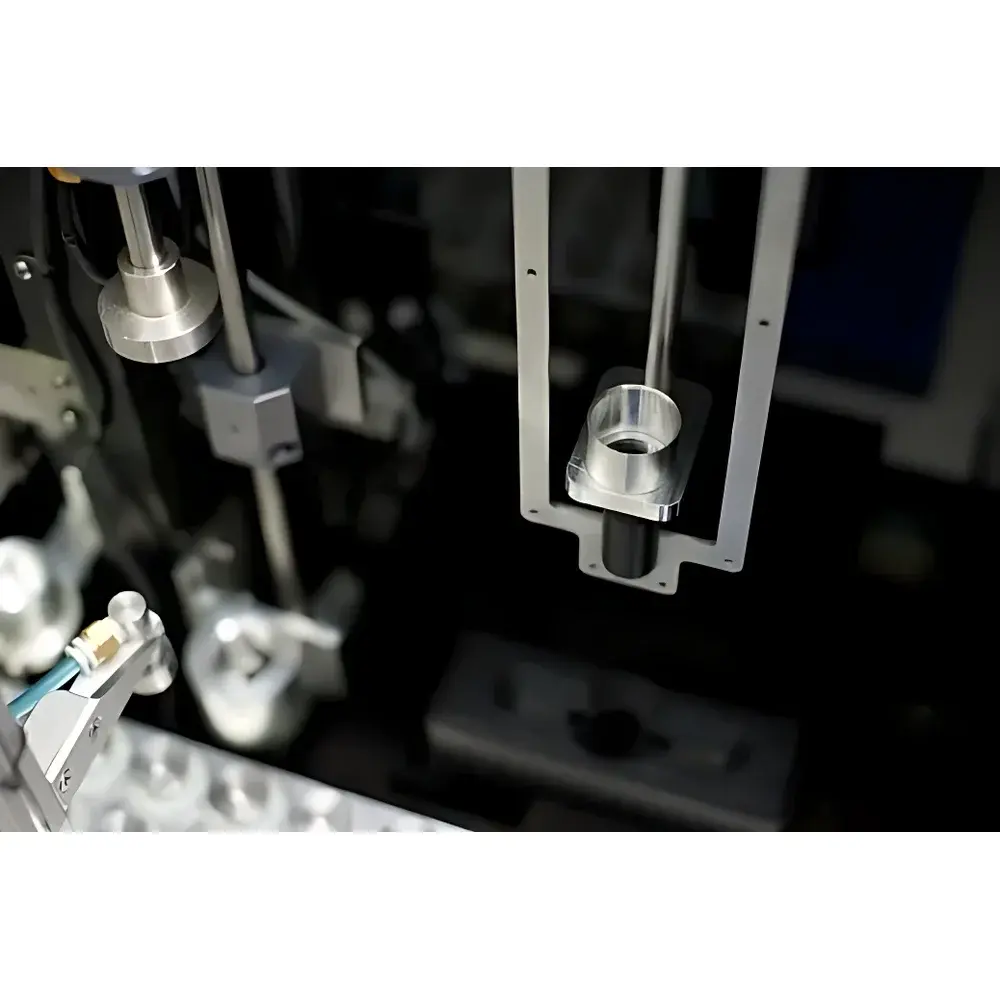

Labman Cryo-Mill & Precision Weighing Workstation

Overview

The Labman Cryo-Mill & Precision Weighing Workstation is an integrated, fully automated sample preparation system engineered for cryogenic mechanical comminution and gravimetric dispensing under controlled low-temperature conditions. Operating at a stabilized −60 °C environment, the system employs cryo-resistant stainless-steel grinding media (ball mills) within sealed vials to fracture temperature-sensitive or thermolabile samples—including biological tissues, polymers, pharmaceutical actives, and brittle materials—without thermal degradation or phase transition artifacts. Following milling, the system automatically punctures vial caps, applies calibrated vibrational energy to fluidize and discharge powdered material through precision-drilled apertures, and delivers discrete aliquots into 1.4 mL output tubes. Each dispensed mass is measured in real time using a high-resolution analytical balance (0.1 mg readability) compliant with ISO/IEC 17025 traceability requirements, with all mass data timestamped, logged, and exported to secure laboratory information management systems (LIMS).

Key Features

• Cryogenic operation at −60 °C maintained via closed-loop refrigerated chamber with redundant temperature monitoring and alarm logging
• Automated ball-milling with programmable frequency, duration, and pause intervals; compatible with 2–10 mm stainless-steel grinding balls and standard 2 mL cryovials
• Robust puncture-and-dispense mechanism utilizing servo-controlled needle arrays and piezoelectric vibration actuators for consistent powder flow control
• Gravimetric dispensing accuracy of ±2 mg (RSD < 1.2% across 96-input batches), validated per ASTM E2656 for automated solid dosing systems
• High-throughput capability: up to 96 input vials processed in ≤20 hours, yielding up to 576 precisely weighed 1.4 mL aliquots
• Fully configurable process logic via Labman’s proprietary AutoScript™ control interface, supporting conditional branching, manual override points, and parameter mapping per sample type
• Modular architecture enabling integration with upstream (e.g., cryo-storage robotics) and downstream (e.g., LC-MS autosamplers, dissolution testers) instrumentation

Sample Compatibility & Compliance

The workstation accommodates a broad range of sample matrices—including frozen tissue sections, lyophilized proteins, crystalline APIs, elastomers, and environmental particulates—provided they exhibit sufficient brittleness at −60 °C. Vial compatibility includes ANSI/SLAS-compliant 2 mL skirted cryovials (external dimensions 12.5 × 46 mm) and custom-designed grinding vials with reinforced base geometry. All wetted components are constructed from 316L stainless steel and PTFE-lined seals, ensuring chemical inertness and compliance with USP for extractables profiling. The system meets IEC 61000-6-2 (EMC immunity) and IEC 61000-6-4 (EMC emissions) standards. Full 21 CFR Part 11 compliance is supported via optional audit trail module, electronic signatures, and role-based access control (RBAC) with password complexity enforcement and session timeout.

Software & Data Management

Control and data acquisition are managed through Labman ControlSuite™ v5.3—a Windows-based application built on .NET Framework 6.0 with SQLite backend and optional SQL Server integration. The software provides full GxP-aligned functionality: electronic batch records (EBRs), user-defined SOP templates, version-controlled method storage, and automated report generation (PDF/CSV/XLSX). All weighing events are captured with metadata including balance serial number, calibration status, ambient humidity/temperature, operator ID, and timestamp (ISO 8601 format). Raw data files are digitally signed and stored with SHA-256 hash integrity verification. Audit trails are immutable, searchable by event type, user, or time window, and exportable in CSV for regulatory submission.

Applications

• Pre-analytical processing of biobanked tissue specimens for genomic, proteomic, and metabolomic workflows
• Homogenization and precise dosing of potent drug substances prior to formulation screening or stability studies
• Preparation of certified reference materials (CRMs) requiring sub-milligram mass uniformity across hundreds of units
• Cryo-milling of polymer composites for particle size distribution analysis (PSD) by laser diffraction or SEM
• Automated sample splitting for inter-laboratory proficiency testing (PT) programs under ISO/IEC 17043
• Environmental matrix spiking—e.g., soil or sediment—where thermal artifact minimization is critical for volatile organic compound (VOC) preservation

FAQ

What is the minimum sample mass that can be reliably dispensed and weighed?
The system achieves stable gravimetric control down to 5 mg nominal dispense mass, with statistical validation confirming ±2 mg absolute error at this level.
Can the system handle viscous or sticky samples after cryo-milling?
Samples exhibiting cohesive behavior post-milling (e.g., certain lipids or gums) require pre-screening; optional ultrasonic assist modules are available to enhance powder fluidity.
Is remote monitoring and troubleshooting supported?
Yes—via Labman RemoteLink™, which provides encrypted VNC access, live sensor telemetry dashboard, and predictive maintenance alerts based on motor current profiling and thermal drift analytics.
How is calibration traceability maintained for the balance and temperature sensors?
Balance calibration follows internal auto-calibration routines (per ISO 17025) with external verification using NIST-traceable weights annually; PT100 sensors are certified to ±0.2 °C accuracy with factory calibration certificates provided.
Does the system support GLP or GMP audit readiness out of the box?
Standard configuration includes ALCOA+ data integrity features; full GMP compliance requires optional 21 CFR Part 11 package and documented IQ/OQ/PQ protocols delivered by Labman’s qualified field engineers.
