LabPre Cryo/Mill 6770 Mini Portable Liquid Nitrogen Cryogenic Grinder

Overview

The LabPre Cryo/Mill 6770 Mini is a compact, portable cryogenic grinder engineered for high-fidelity sample preparation under sustained liquid nitrogen temperatures (−196 °C). Unlike ambient or chilled grinding systems, this instrument employs electromagnetic drive technology to deliver controlled, low-heat mechanical impact while maintaining samples in a fully sealed, ultra-low-temperature environment throughout the entire process. Its operational principle relies on embrittling thermally labile and polymeric materials—such as biological tissues, elastomers, resins, and waxes—so that they fracture predictably under impact without plastic deformation or thermal degradation. This enables reproducible particle size reduction while preserving molecular integrity, making it indispensable for downstream analytical techniques including qPCR, LC-MS, ICP-MS, FTIR, and XRD.

Key Features

• True cryogenic operation: Samples remain continuously submerged in liquid nitrogen vapor phase during grinding, eliminating thermal drift and ensuring sub-zero temperature stability from loading to discharge.
• Electromagnetic drive mechanism: Provides precise frequency control (5–15 Hz), minimizing mechanical noise, vibration transmission, and wear compared to motor-driven or pneumatic alternatives.
• Modular grinding chamber system: Supports interchangeable 20 mL standard vials (0.1–5 g capacity) and 3 mL micro-vials (50–500 mg), each with hermetic sealing and cryo-rated O-rings compliant with ISO 8573-1 Class 2 purity standards.

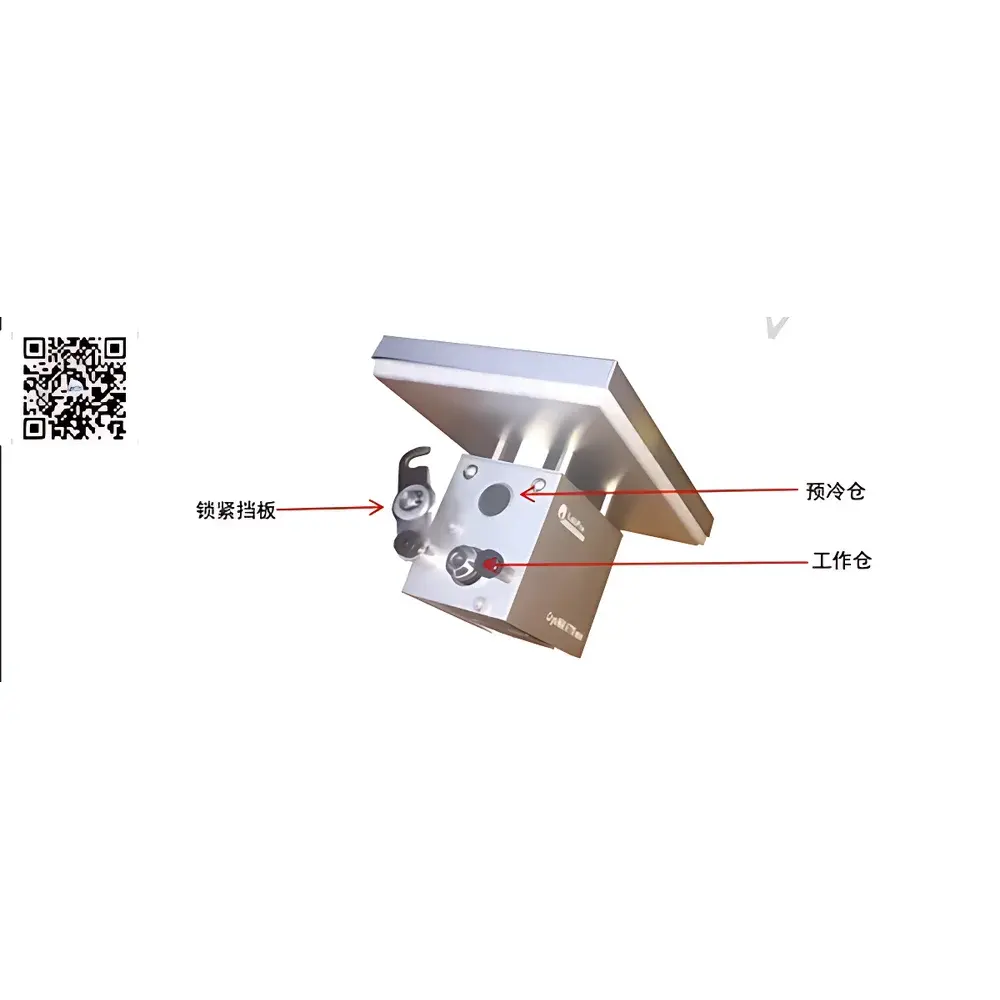

• Integrated precooling station: Single dedicated prechill compartment ensures uniform thermal equilibration of vials prior to grinding, reducing condensation artifacts and improving inter-batch consistency.

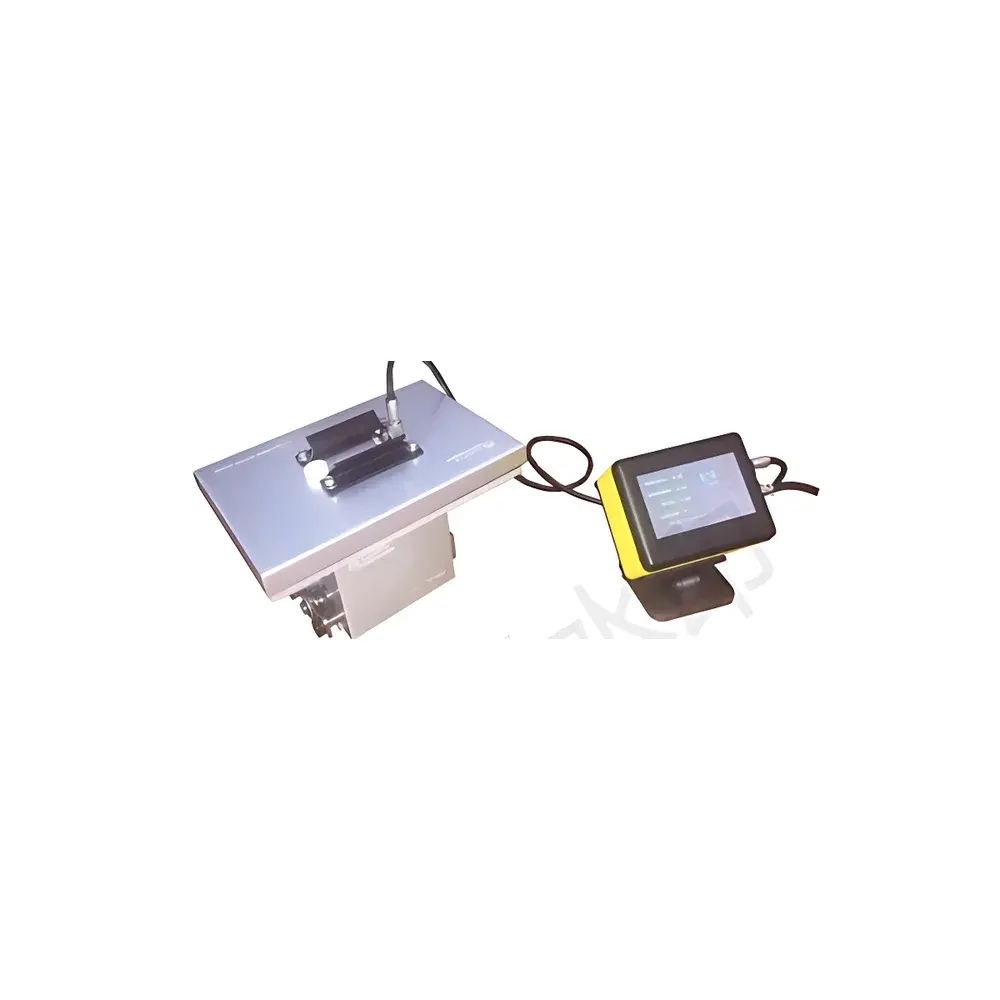

• Intuitive touchscreen interface: Enables full programmability of grinding duration, cycle count, precooling time, and impact frequency; up to 10 user-defined protocols can be saved and recalled with timestamped execution logs.
• Compact footprint & field-deployable design: Total mass of 3 kg and core unit height under 17.5 cm facilitate benchtop use in biosafety cabinets, mobile labs, and remote collection sites—no external cooling infrastructure required.

Sample Compatibility & Compliance

The Cryo/Mill 6770 Mini accommodates heterogeneous, challenging matrices—including bone, dental tissue, keratinous materials (hair, nails), fibrous plant matter, synthetic polymers, rubber compounds, and volatile organic-rich samples (e.g., coal, bitumen, paraffin). All grinding vials are manufactured from cryo-grade stainless steel (AISI 316L) and certified free of detectable heavy metals (<0.1 ppb by ICP-MS). The system meets functional requirements outlined in ASTM D7263-22 (cryogenic milling of geological samples), ISO 13320:2020 (laser diffraction particle sizing sample prep), and USP (environmental monitoring of cleanrooms). When operated with validated SOPs and electronic parameter logging enabled, the instrument supports 21 CFR Part 11–compliant data integrity frameworks for regulated laboratories.

Software & Data Management

The embedded controller records all operational parameters—including real-time frequency modulation, elapsed grinding time, precooling duration, and cycle count—with automatic timestamping and user ID tagging. Optional LabPre CryoLink software (v3.2+) extends functionality with CSV export, trend analysis across batches, and integration into LIMS via HL7 or REST API. Audit trails comply with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate) and support retrospective review during FDA or EMA inspections. No cloud dependency: all data reside locally on encrypted internal flash memory unless explicitly exported.

Applications

• Molecular biology: High-yield, nuclease-inhibited homogenization of frozen animal tissues (liver, brain, spleen), plant organs (roots, seeds), and microbial pellets for RNA/DNA extraction and epigenetic profiling.
• Pharmaceutical QA/QC: Preparation of thermolabile APIs, excipients, and metabolite standards without racemization or decomposition—critical for chiral HPLC and dissolution testing per USP .
• Environmental & forensic analysis: Homogenization of composite matrices (e.g., PVC-coated wiring, leather goods, textile blends) prior to Pb/Cd/Hg quantification by ICP-OES, satisfying RoHS Directive 2011/65/EU compliance protocols.
• Polymer characterization: Generation of representative sub-10 µm particles for GPC calibration, DSC thermal profiling, and SEM-EDS elemental mapping—without shear-induced chain scission.
• Clinical diagnostics: Rapid, contamination-free pulverization of biopsy specimens for MALDI-TOF MS tissue typing and FFPE-compatible proteomic workflows.

FAQ

Does the Cryo/Mill 6770 Mini require continuous liquid nitrogen flow during operation?
No. It uses static liquid nitrogen immersion with passive boil-off management; typical consumption is 200–300 mL per 10-minute run.
Can the instrument be used inside a glovebox or anaerobic chamber?
Yes—the controller is externally mounted and connected via IP65-rated cable; only the core grinding unit requires cryogenic access.
Is cross-contamination between samples prevented?
Yes. Each vial is single-use or rigorously cleaned per ASTM E1847-21 cleaning validation protocol; no shared grinding media or internal surfaces contact multiple samples.
What maintenance is required beyond routine vial cleaning?
Annual calibration of frequency output and touchscreen responsiveness is recommended; electromagnetic actuator has no consumable parts and is rated for >50,000 cycles.
How does it compare to planetary ball mills for cryogenic applications?
Unlike high-energy planetary mills, the Cryo/Mill 6770 Mini avoids localized hot spots and uncontrolled shear heating, delivering superior reproducibility for heat-sensitive analytes (RSD <2.3% for protein recovery across n=12 replicates).
