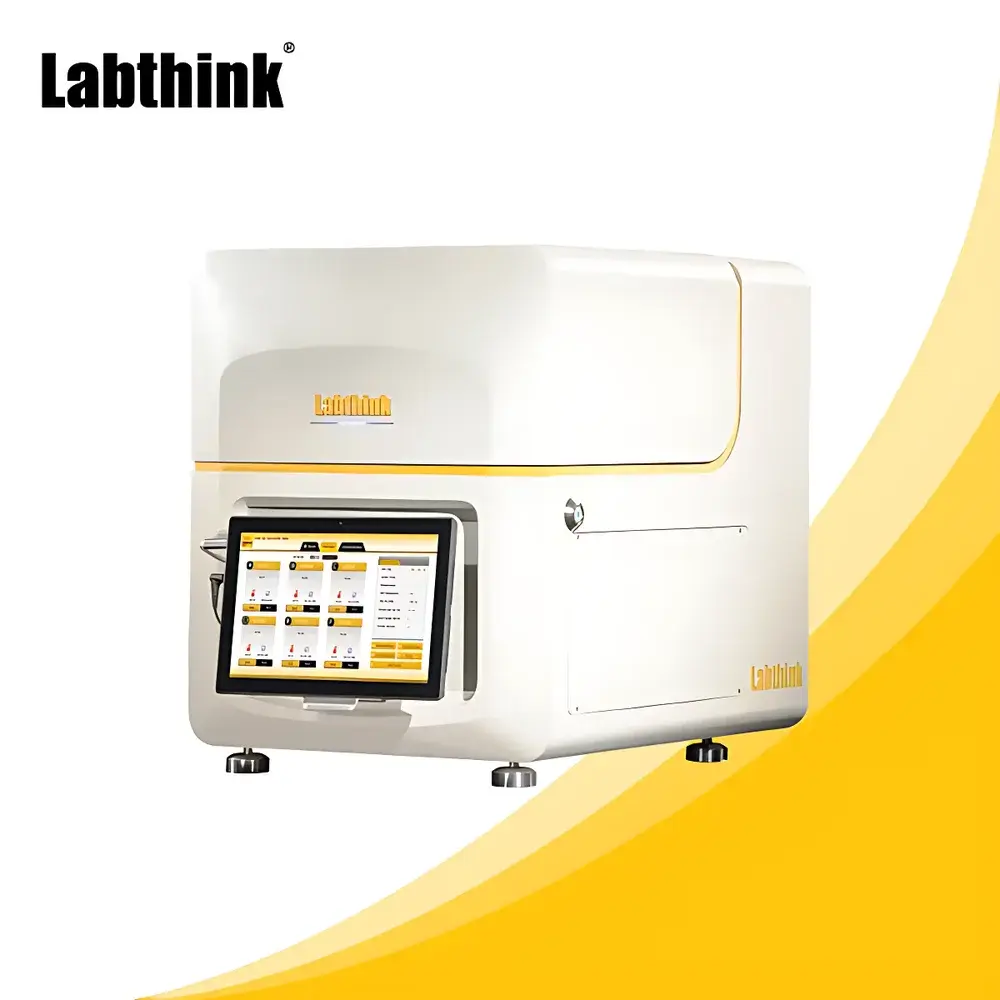

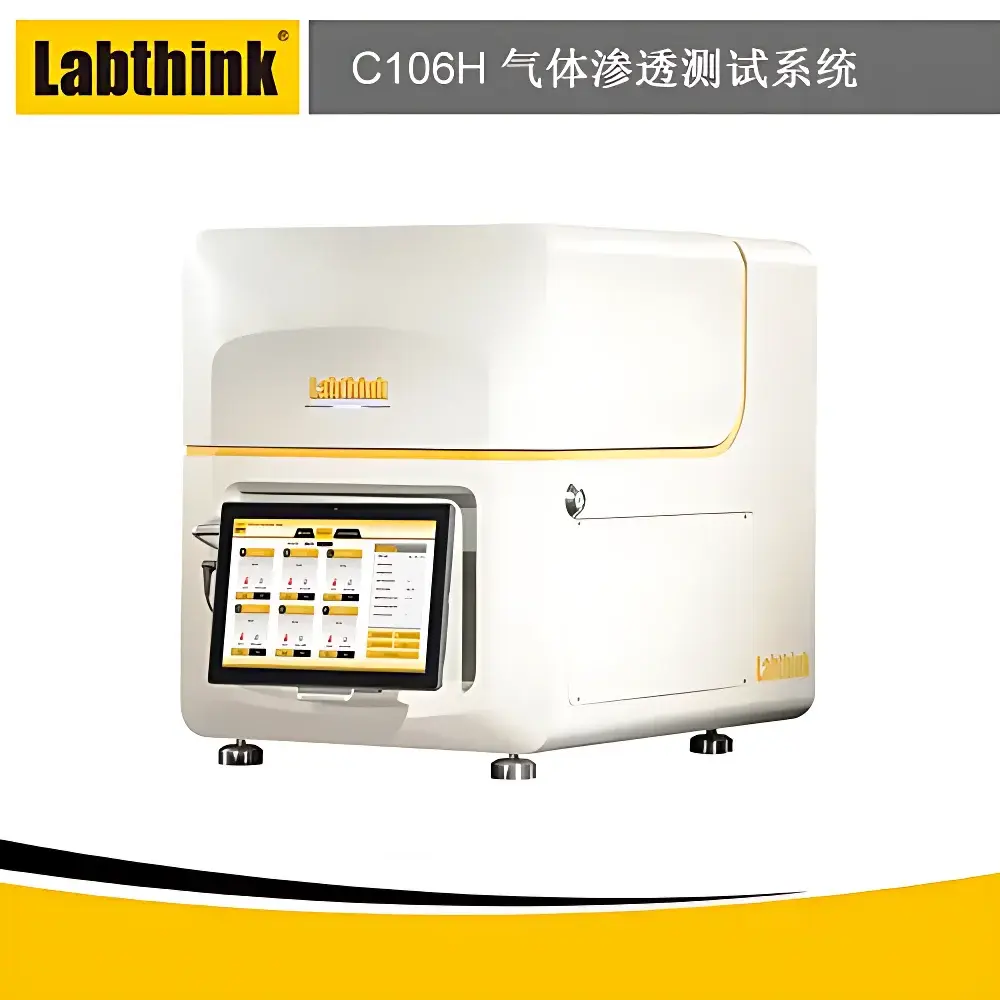

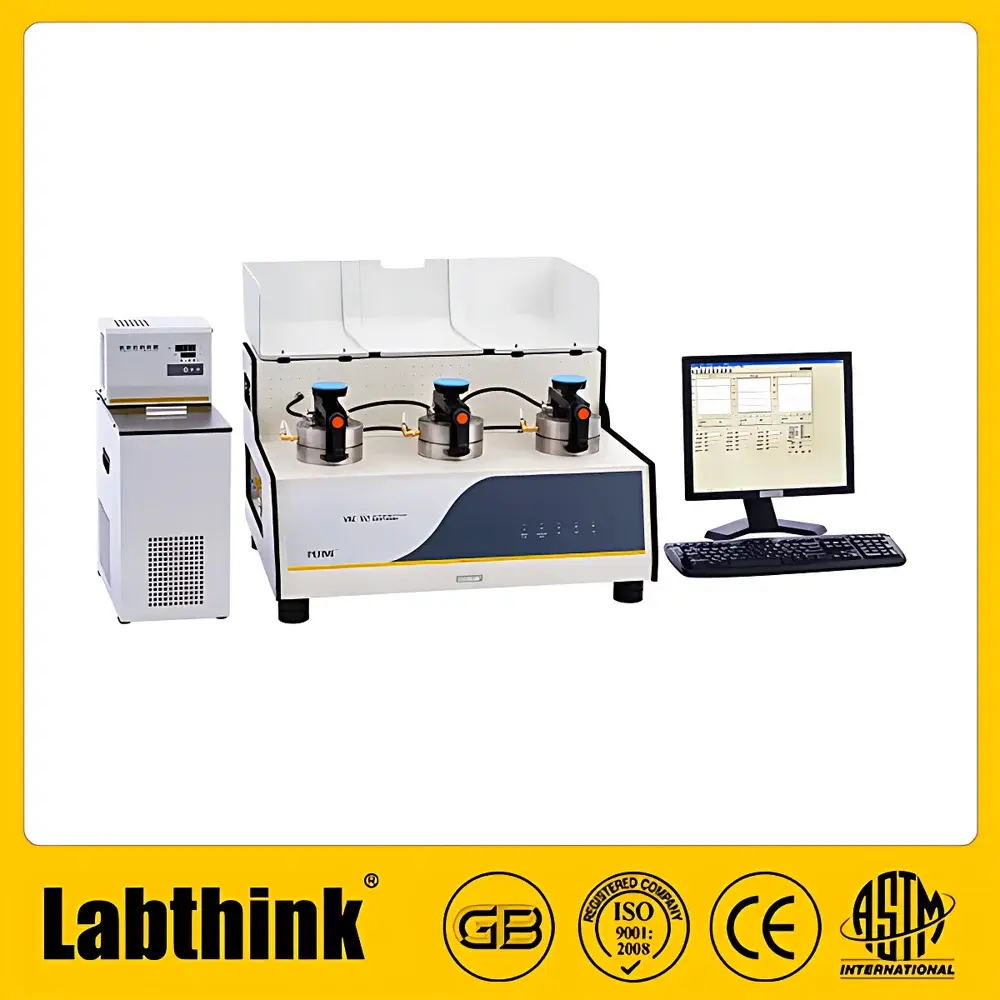

Labthink C106H Gas Permeability Tester for Packaging Films and Warm-Packaging Materials

Overview

The Labthink C106H Gas Permeability Tester is a high-precision differential pressure–based instrument engineered for quantitative determination of gas transmission rates—particularly oxygen (O₂), nitrogen (N₂), and carbon dioxide (CO₂)—through flexible packaging materials. It is specifically validated for applications requiring stringent barrier evaluation, such as warm-packaging systems (e.g., air-activated heat pads), where premature oxidation due to O₂ ingress leads to functional failure. The system operates on the standardized pressure-gradient principle: a conditioned specimen is sealed between two test chambers; the low-pressure side (downstream) is evacuated to ≤10 Pa, while the high-pressure side (upstream) is pressurized with test gas. The resulting transmembrane gas flux is monitored via high-resolution pressure transducers, enabling calculation of oxygen transmission rate (OTR), diffusion coefficient (D), solubility coefficient (S), and permeability coefficient (P = D × S) under controlled temperature and humidity conditions. Its architecture complies with core physical transport theory frameworks used in polymer barrier science and aligns with gravimetric and manometric validation methodologies described in ISO 15105-1 and ASTM D1434.

Key Features

• Multi-chamber parallel testing: Six independent test stations enable simultaneous evaluation of up to six specimens under identical environmental conditions—critical for statistical robustness in QC/QA workflows.
• High-fidelity vacuum subsystem: Dual-stage vacuum pump with 0.01 Pa resolution and ±0.2% full-scale accuracy ensures reliable baseline establishment and minimizes measurement drift during extended tests (e.g., 72-h OTR validation per ASTM D1434).
• Thermally stabilized chamber: PID-controlled heating/cooling system maintains temperature within ±0.15 °C across the 15–50 °C standard range (5–60 °C optional), meeting ISO 2556 requirements for thermal uniformity in permeation testing.
• Modular gas handling: Compatible with O₂, N₂, and CO₂ sources (user-supplied); pressure regulation supports 10–150 kPa test differentials with ±0.2 kPa stability—essential for evaluating high-barrier laminates (e.g., AlOx-coated PET, SiOx-PET, or EVOH-based structures).

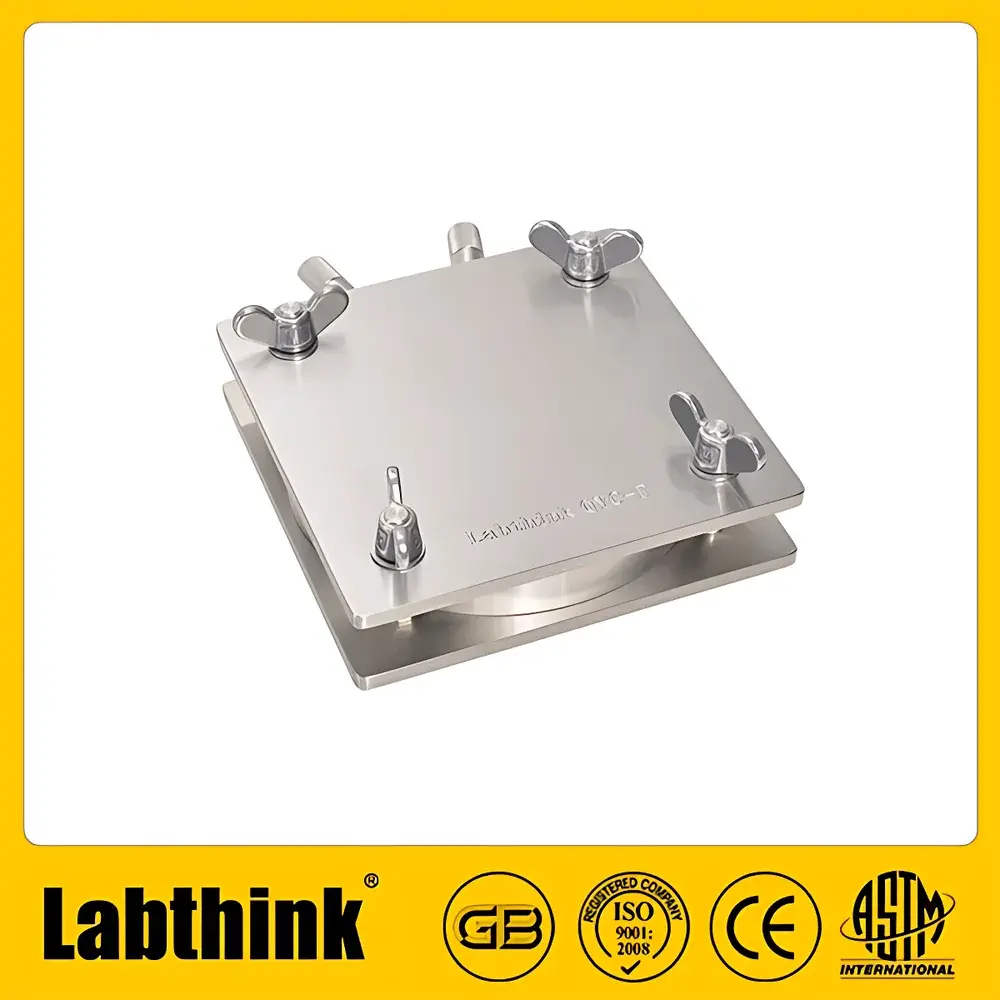

• Standardized sample interface: 38.48 cm² test area (11.2 cm × 11.2 cm clamping zone) accommodates common film formats; maximum thickness tolerance of 3 mm supports multilayer pouches, blister foils, and metallized sheets.

Sample Compatibility & Compliance

The C106H is validated for use with plastic films (LDPE, PP, PET), coextruded structures, aluminum foil composites, vacuum-metallized substrates, and high-barrier coatings. It meets regulatory expectations for packaging qualification under FDA 21 CFR Part 11–aligned data integrity protocols when paired with Labthink’s certified software (see Software section). Testing conforms to ISO 15105-1 (plastics—determination of gas transmission rate—part 1: differential pressure method), ISO 2556 (plastics—film and sheeting—determination of gas transmission rate), ASTM D1434 (standard test method for determining gas permeability characteristics), JIS K7126-1 (plastic films—gas permeability test), GB/T 1038-2000 (Chinese national standard for film gas permeability), and YBB 00082003 (Chinese pharmaceutical packaging standard for O₂ barrier performance). For warm-packaging validation, it directly supports risk-based assessment of shelf-life limiting factors linked to oxidative degradation kinetics.

Software & Data Management

The instrument integrates with Labthink’s proprietary PermeationWare™ v3.x software, compliant with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available). All test parameters—including temperature setpoint, vacuum decay curves, real-time pressure rise, and calculated OTR values—are timestamped and stored with electronic signature capability. Audit trails record operator actions, method changes, and calibration events—fully traceable for GLP/GMP audits. Raw data exports to CSV or PDF meet FDA 21 CFR Part 11 requirements for electronic records and signatures when deployed with validated user access controls and password-protected administrator functions.

Applications

• Oxygen barrier validation of heat-activated medical and consumer warm packs (e.g., disposable hand warmers, therapeutic wraps) to prevent premature exothermic reaction.
• Comparative evaluation of metallized PET, SiOx-coated OPP, and EVOH-containing laminates for food packaging shelf-life extension.
• Diffusion modeling support: Independent derivation of D, S, and P coefficients enables predictive modeling of gas ingress under varying storage temperatures (Arrhenius analysis).
• Quality conformance testing for pharmaceutical blister packaging per YBB 00082003 and USP (package integrity).
• R&D screening of novel nanocomposite films and bio-based barrier layers for sustainable packaging development.

FAQ

What gases can be tested with the C106H?
O₂, N₂, and CO₂ are fully supported; other gases may be evaluated if compatible with the system’s pressure rating and sensor linearity—consult Labthink Application Engineering for custom gas validation.
Is humidity control standard or optional?
Standard configuration includes ambient humidity operation (0% RH); 5–90% ±2% RH control is available as a factory-installed option with integrated humidification/dehumidification modules.
Can the C106H perform accelerated aging correlation studies?
Yes—by conducting OTR measurements at multiple temperatures (e.g., 23 °C, 38 °C, 45 °C), users can generate Arrhenius plots to extrapolate shelf-life performance under real-world storage conditions.
How is calibration verified?
Instrument calibration is traceable to NIST-certified reference standards; annual verification kits include certified low-permeability reference films (e.g., aluminum foil) and documented uncertainty budgets per ISO/IEC 17025.
Does the system support automated pass/fail reporting against specification limits?
Yes—PermeationWare™ allows user-defined acceptance criteria; test reports auto-flag results exceeding OTR thresholds and generate PDF certificates compliant with ISO 17025 documentation requirements.
