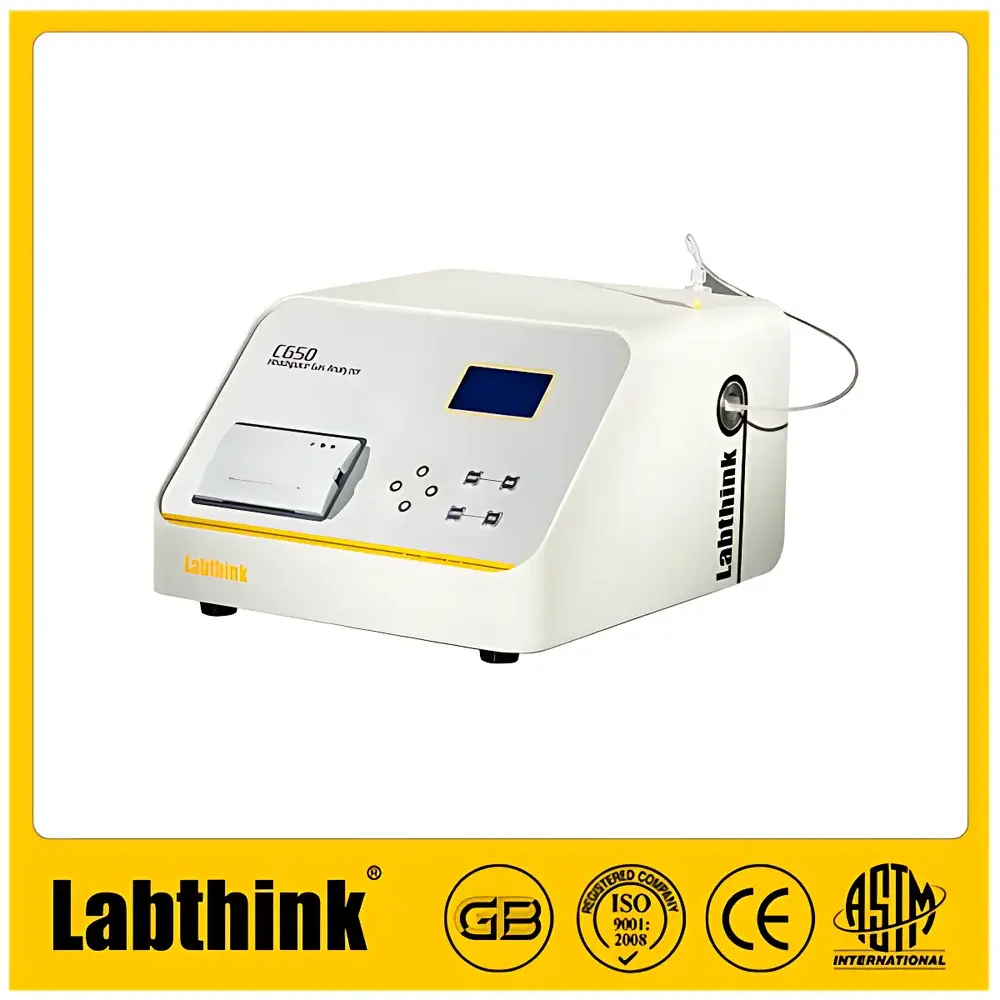

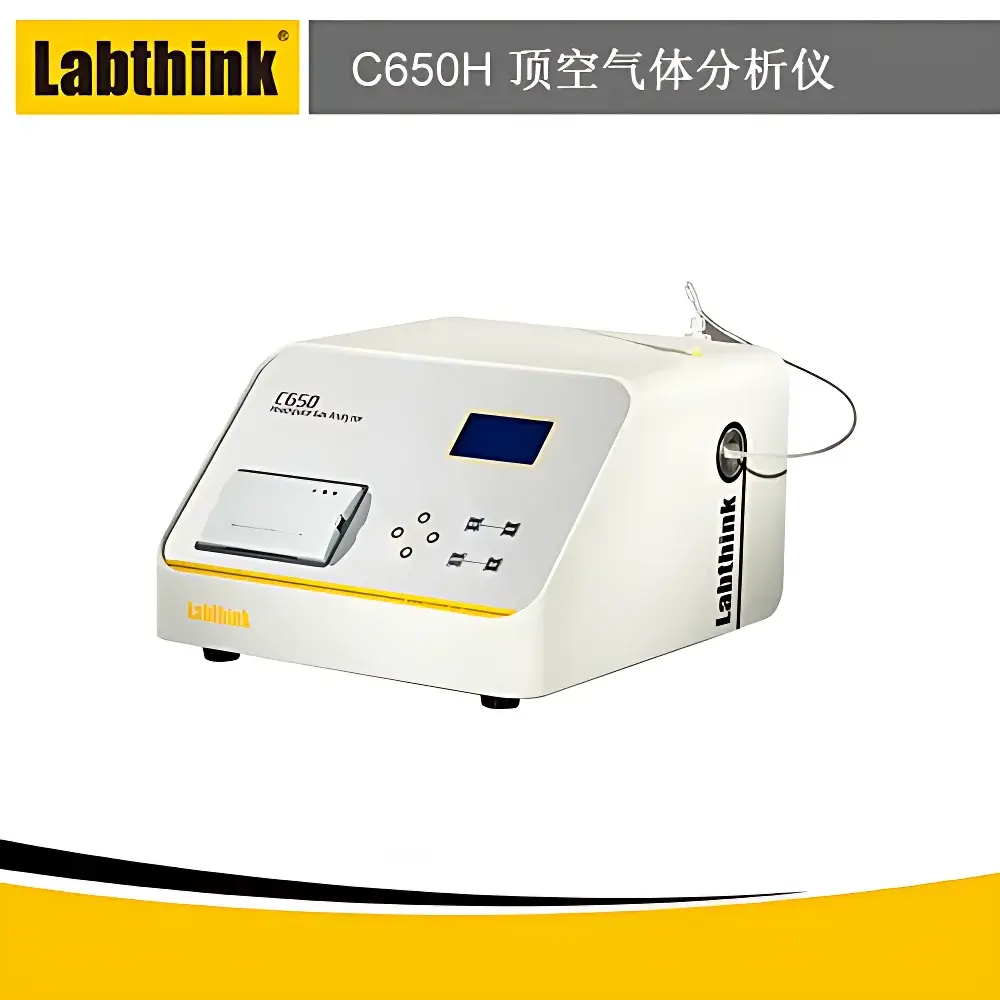

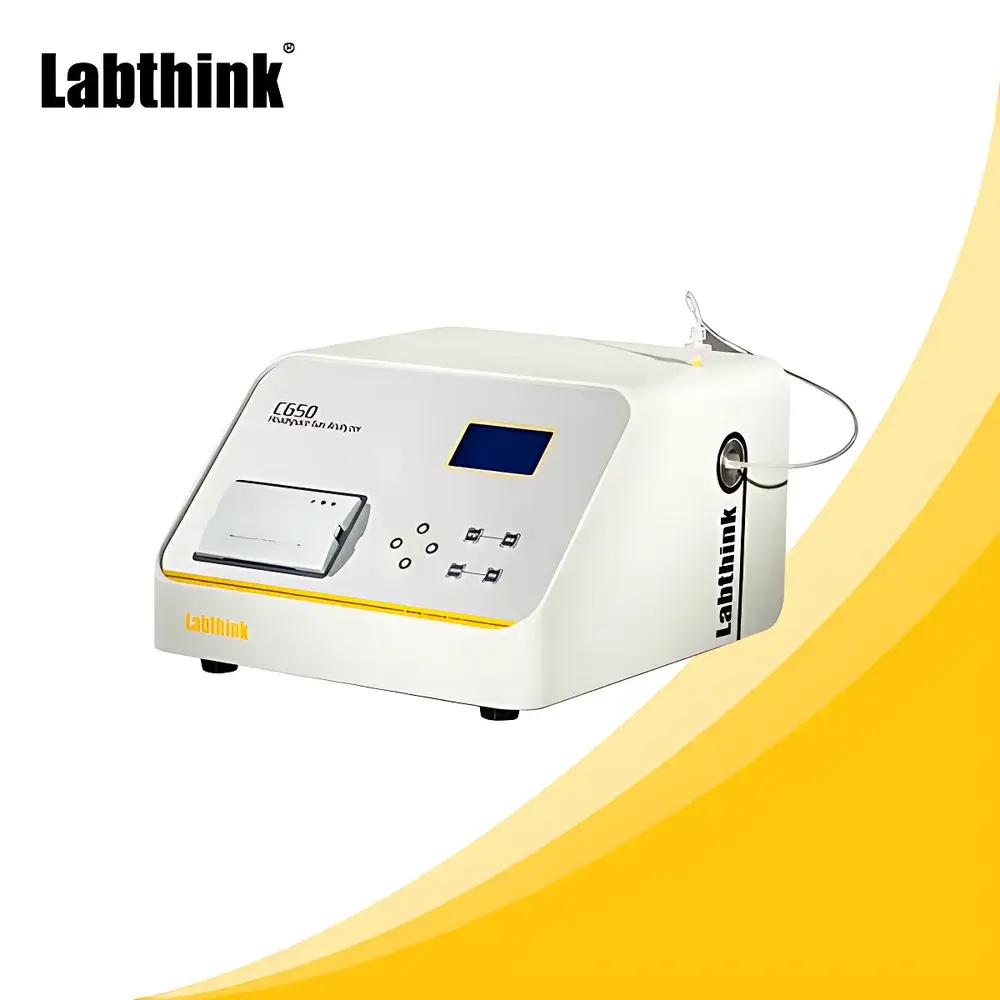

Labthink C650H Benchtop Headspace Oxygen and Carbon Dioxide Analyzer

Overview

The Labthink C650H Benchtop Headspace Oxygen and Carbon Dioxide Analyzer is an engineered solution for quantitative gas composition analysis in sealed packaging headspace environments. It operates on the principle of electrochemical sensing—utilizing a proprietary ceramic oxygen sensor and, optionally, a non-dispersive infrared (NDIR) or thermal conductivity-based CO₂ sensor—to deliver stable, real-time measurement of residual O₂ and CO₂ concentrations within rigid and flexible packaging. Unlike pressure-driven or colorimetric methods, the C650H employs controlled vacuum-assisted gas extraction to draw representative headspace samples directly into the sensor chamber, minimizing diffusion bias and ensuring high reproducibility across diverse package geometries (e.g., pouches, cans, bottles, cartons, and ampoules). Its design targets routine quality control in food, pharmaceutical, and medical device packaging lines where precise headspace composition directly correlates with shelf-life stability, oxidation resistance, and microbial inhibition.

Key Features

• Proprietary long-life ceramic electrochemical O₂ sensor—non-consumable, drift-stabilized, and calibrated for ≤0.2% absolute accuracy across 0.2–21% O₂ range
• Optional CO₂ sensing module compliant with ASTM F2476 for high-concentration CO₂ quantification (2–100% v/v, ±2% absolute accuracy)
• Integrated microprocessor-controlled vacuum sampling system with programmable aspiration volume and dwell time
• Intuitive 4.3-inch LCD interface with bilingual (English/Chinese) menu navigation and real-time waveform display of sensor response
• Onboard data storage (≥10,000 test records) with timestamp, operator ID, and environmental metadata (ambient T/P if external sensors connected)
• RS232 serial interface supporting bidirectional communication with Labthink’s certified software suite for audit-trail-enabled data export (CSV, PDF, XML)
• Compact benchtop footprint (350 × 330 × 200 mm) and lightweight chassis (5.5 kg) enabling deployment in QC labs, warehouse inspection stations, or production-floor line checks
• Thermally insulated sample pathway and humidity-compensated signal processing to mitigate condensation-induced measurement artifacts

Sample Compatibility & Compliance

The C650H accommodates a broad spectrum of primary and secondary packaging formats—including stand-up pouches, aluminum foil laminates, PET/PE trays, metal cans, glass jars, Tetra Pak® cartons, and Type I glass ampoules—via interchangeable sampling accessories (e.g., stainless-steel piercing needles, water-submerged sampling kits, rigid-container adapters). All hardware interfaces conform to ISO 8536-4 (for parenteral packaging integrity) and ASTM F2476 (standard practice for headspace gas analysis in modified atmosphere packaging). The instrument’s firmware architecture supports 21 CFR Part 11-compliant electronic signatures, user-level access control, and immutable audit trails when used with validated software modules—making it suitable for regulated environments governed by FDA, EMA, or PMDA requirements. Routine calibration verification follows USP guidance for residual gas analysis in sterile barrier systems.

Software & Data Management

Labthink’s proprietary HeadSpace Manager™ software (sold separately) provides full lifecycle data governance: method definition, instrument configuration, automated report generation (including statistical summaries per batch), and integration with LIMS via HL7 or ODBC. Each test record embeds raw sensor voltage traces, temperature-compensation logs, and pass/fail flags against user-defined specification limits (e.g., O₂ ≤ 0.5% for coffee pouches). Data encryption, role-based permissions, and electronic signature capture ensure alignment with GLP and GMP documentation standards. Export formats include CSV (for Excel-based SPC), PDF (for QA sign-off), and XML (for ERP ingestion). Firmware updates are delivered via secure HTTPS with cryptographic hash validation.

Applications

• Food industry: Monitoring O₂ ingress in vacuum-sealed meat packs; validating CO₂ flush efficiency in MAP cheese and ready-to-eat salads; verifying inert gas blanket integrity in roasted nut pouches
• Pharmaceuticals: Residual O₂ assessment in blister-packed tablets (per USP ); headspace composition verification for lyophilized vials and pre-filled syringes
• Dairy & infant nutrition: Quantifying O₂ levels in powdered milk cans and tetra-brick packages to prevent lipid oxidation and vitamin degradation
• Beverage sector: Confirming CO₂ retention in carbonated drink cans and PET bottles post-filling; detecting O₂ contamination in nitrogen-flushed juice cartons
• Medical devices: Verifying O₂ exclusion in sterile barrier packaging for implantables and surgical kits under ISO 11607-2

FAQ

What gas species can the C650H measure simultaneously?
The instrument measures O₂ as standard; CO₂ requires optional sensor installation and cannot be measured concurrently with O₂ in a single run due to distinct sampling volume and dwell time requirements.
Is calibration traceable to NIST or other national standards?
Yes—Labthink provides factory calibration certificates traceable to NIST-certified gas standards (O₂ in N₂, CO₂ in air), with annual recalibration recommended per ISO/IEC 17025 guidelines.
Can the C650H analyze headspace from wet or viscous products (e.g., sauces, yogurts)?
Yes, when equipped with the optional underwater sampling kit, which prevents liquid entrainment during headspace aspiration from semi-solid or liquid-filled containers.
Does the system support automated testing sequences for high-throughput labs?
Not natively—the C650H is manually operated per sample—but its RS232 interface enables integration with robotic liquid handlers or PLC-controlled test benches via custom scripting.
How often does the ceramic O₂ sensor require replacement?
Under normal use (≤10 tests/day), the sensor maintains metrological integrity for ≥24 months; performance verification is advised quarterly using certified reference gases.
