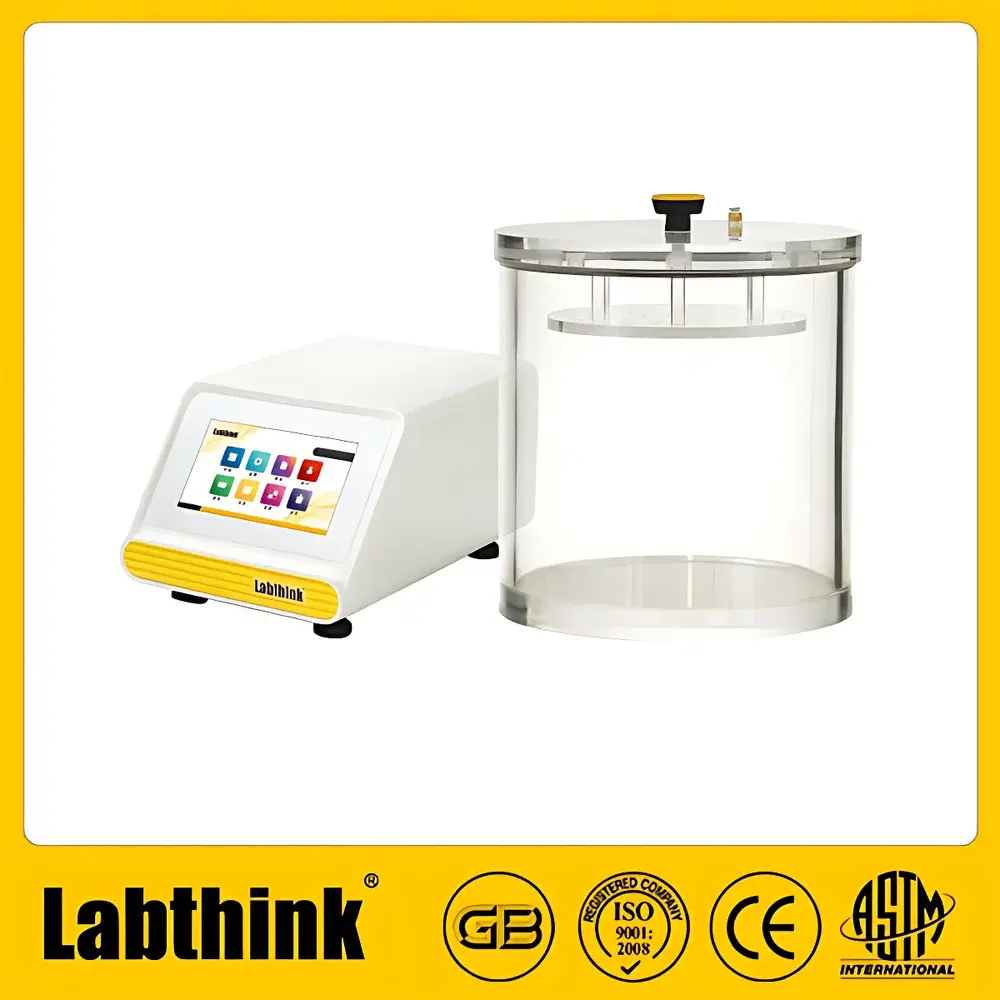

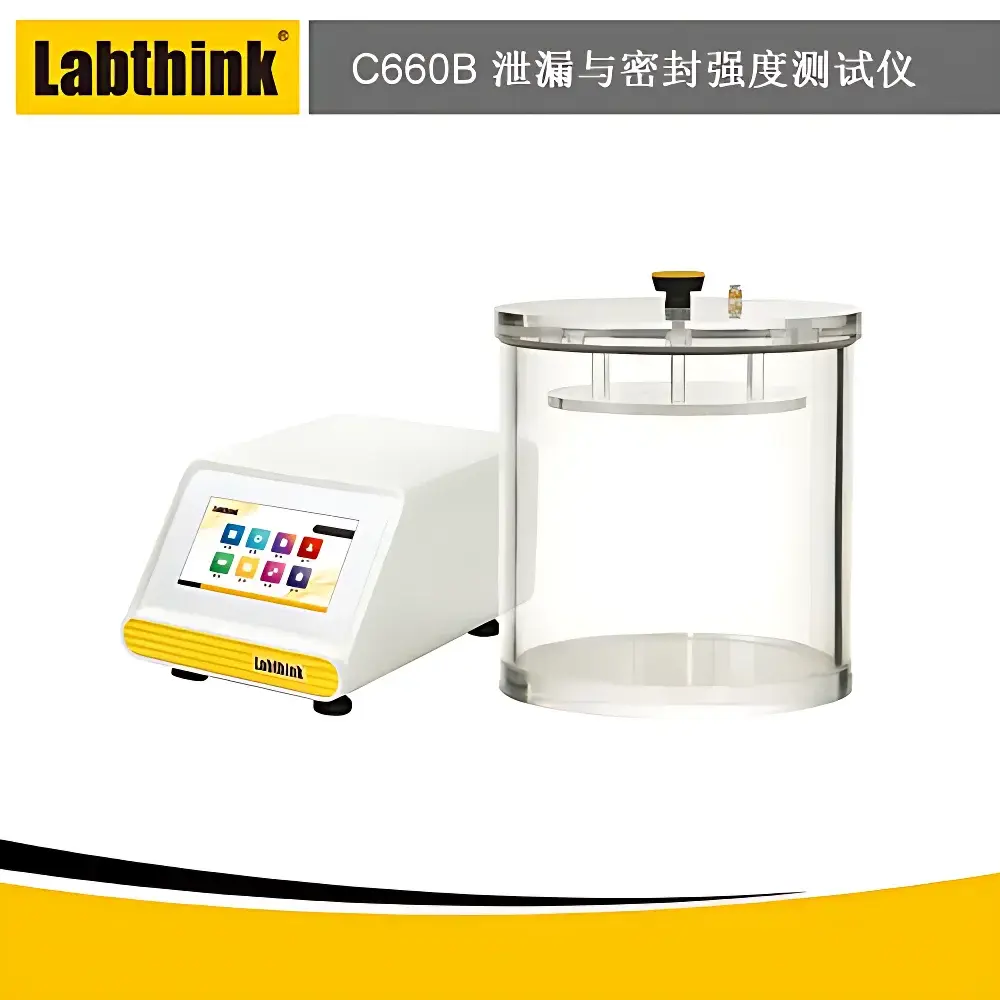

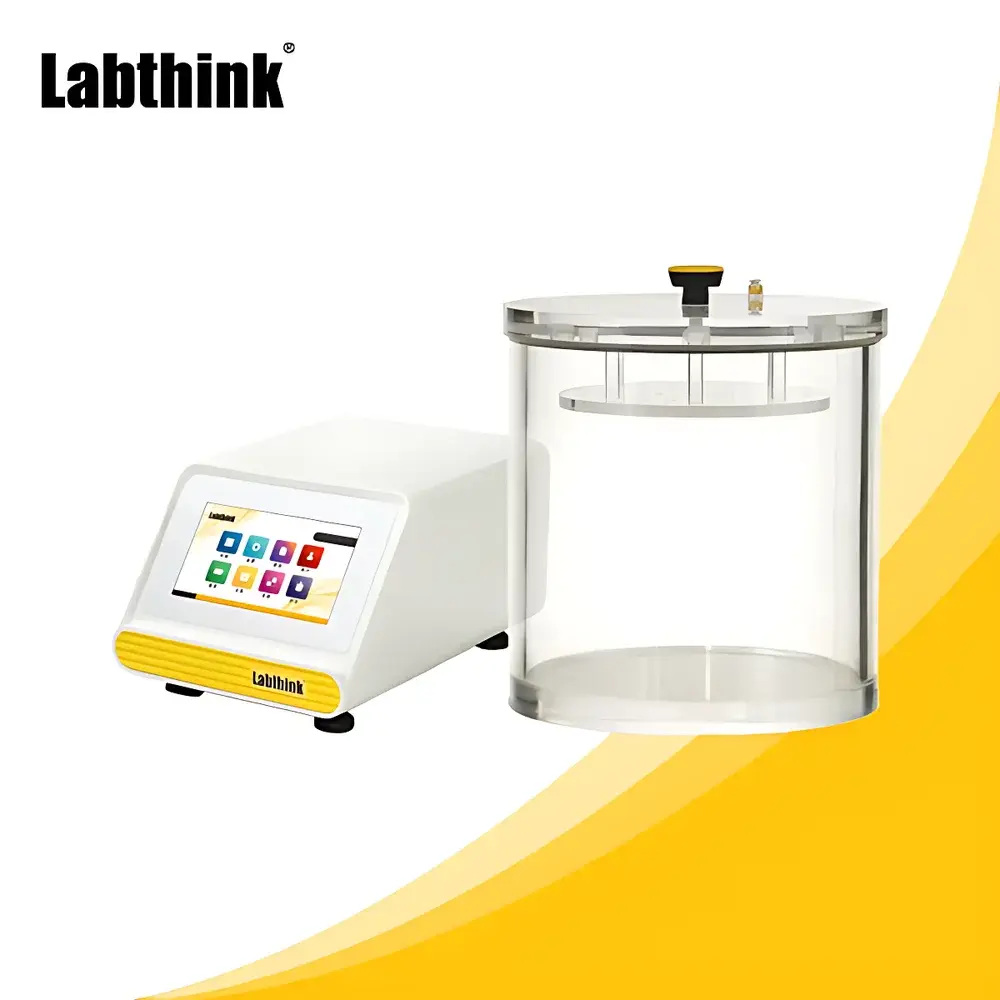

Labthink C660B Vacuum Leak Tester for Package Integrity Testing

Overview

The Labthink C660B Vacuum Leak Tester is an engineered solution for quantitative and qualitative assessment of package integrity across regulated and non-regulated industries. It operates on the differential pressure principle—specifically, the vacuum decay method combined with visual observation under submerged conditions—per ASTM D3078 and GB/T 15171. The instrument evacuates a sealed test chamber containing a water-immersed specimen, inducing a controlled pressure differential across the package wall. Seal failure is detected either by observing bubble emission (indicating gross leaks) or by monitoring dimensional deformation and recovery behavior upon vacuum release (indicating marginal or elastic seal defects). This dual-mode detection capability supports both pass/fail verification and comparative robustness evaluation—critical for stability studies, post-distribution testing (e.g., after drop or compression), and process validation in packaging development.

Key Features

• Multi-mode operation: Standard vacuum hold, multi-step vacuum ramping, and dye-assisted (methylene blue) submersion testing—all programmable with independent control over vacuum level, dwell time, and repressurization rate.
• Precision vacuum control: High-stability vacuum generation with automatic pressure compensation ensures consistent test conditions across repeated cycles; vacuum accuracy maintained at ±0.25% full scale with 0.1 kPa resolution.
• Real-time test monitoring: Integrated graphical display shows vacuum profile curves during pressurization, hold, and recovery phases—enabling immediate identification of anomalies such as slow leak rates or chamber leakage.
• Automated pass/fail classification: Built-in logic evaluates bubble formation timing, quantity, and persistence, then auto-tabulates compliant vs. non-compliant units per batch—reducing operator dependency and inter-test variability.
• Industrial-grade HMI: 7-inch capacitive touchscreen with IP65-rated front panel; bilingual (English/Chinese) interface; configurable unit systems (kPa, psi, mbar); firmware upgradable via USB or remote maintenance port.
• Data integrity architecture: Internal storage for ≥1,200 test records (standard mode); optional DataShield™ data management system enables secure export, audit trail generation, and integration with LIMS or MES platforms per FDA 21 CFR Part 11 requirements.

Sample Compatibility & Compliance

The C660B accommodates rigid and semi-rigid primary packaging formats including glass, plastic, metal, and laminated pouches—spanning vials, syringes, blister cards, IV bags, pen cartridges, and electronic housings. Its modular chamber design supports interchangeable vacuum vessels (Φ270 × 210 mm standard; optional Φ360 × 585 mm and Φ460 × 330 mm configurations), enabling scalability from lab-scale qualification to production-line sampling. All operational parameters—including vacuum ramp profiles, hold durations, and visual inspection criteria—are fully configurable to align with internal SOPs and external regulatory expectations. The system complies with ISO 11607-1 for packaging validation, meets essential requirements of EU Annex 11 for computerized systems, and supports GMP-compliant workflows when equipped with user access controls, electronic signatures, and audit-trail-enabled software options.

Software & Data Management

Test data are timestamped, parameter-logged, and stored locally with metadata (operator ID, sample ID, test date/time, vacuum setpoints, observed outcomes). Optional PC-based software provides advanced reporting (PDF/CSV export), statistical process control (SPC) charting, and trend analysis across batches. When deployed with DataShield™, the C660B integrates into centralized quality data ecosystems—supporting automated backup, role-based access, and version-controlled protocol management. All digital records satisfy ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate) and are compatible with 21 CFR Part 11-compliant electronic record environments when paired with appropriate validation documentation and IT infrastructure controls.

Applications

• Pharmaceutical packaging: Sterility assurance for lyophilized vials, pre-filled syringes, and barrier pouches per USP <1207> guidance.
• Medical device packaging: Validation of peel seals on Tyvek®-based sterile barrier systems per ISO 11607-2.
• Flexible food packaging: Detection of micro-leaks in retort pouches, vacuum-sealed trays, and modified atmosphere packaging (MAP).
• Consumer electronics: Hermeticity screening of moisture-sensitive enclosures and battery casings.
• Automotive components: Functional testing of fluid reservoirs, sensor housings, and connector assemblies prior to assembly line release.
• Regulatory submission support: Generation of repeatable, traceable evidence for FDA, EMA, or NMPA submissions requiring package integrity data.

FAQ

What vacuum levels does the C660B support, and how is accuracy ensured?
The instrument achieves vacuum levels from 0 to −90 kPa (−13 psi) with ±0.25% full-scale accuracy, verified via integrated pressure transducer calibration routines and auto-compensated for ambient temperature drift.
Can the C660B be used for quantitative leak rate measurement?
No—it is designed for qualitative and semi-quantitative integrity assessment per ASTM D3078 methodology; for quantified leak rates (e.g., cc/min), a dedicated helium mass spectrometer or pressure decay analyzer is recommended.
Is compressed air supply included with the system?
No—the C660B requires an externally supplied clean, dry air source at 0.5–0.7 MPa (73–101 psi); users must provide an oil-free compressor meeting ISO 8573-1 Class 2 purity standards.
How does the system meet pharmaceutical data integrity requirements?
With optional GMP-compliant software and DataShield™, it delivers electronic signatures, immutable audit trails, user-level permissions, and 21 CFR Part 11–ready data export—fully aligned with PIC/S and WHO GMP Annex 11 expectations.
Are custom chamber sizes available?
Yes—non-standard vacuum chambers can be fabricated to customer specifications, including larger diameters, extended heights, or specialized mounting fixtures for irregularly shaped samples.
