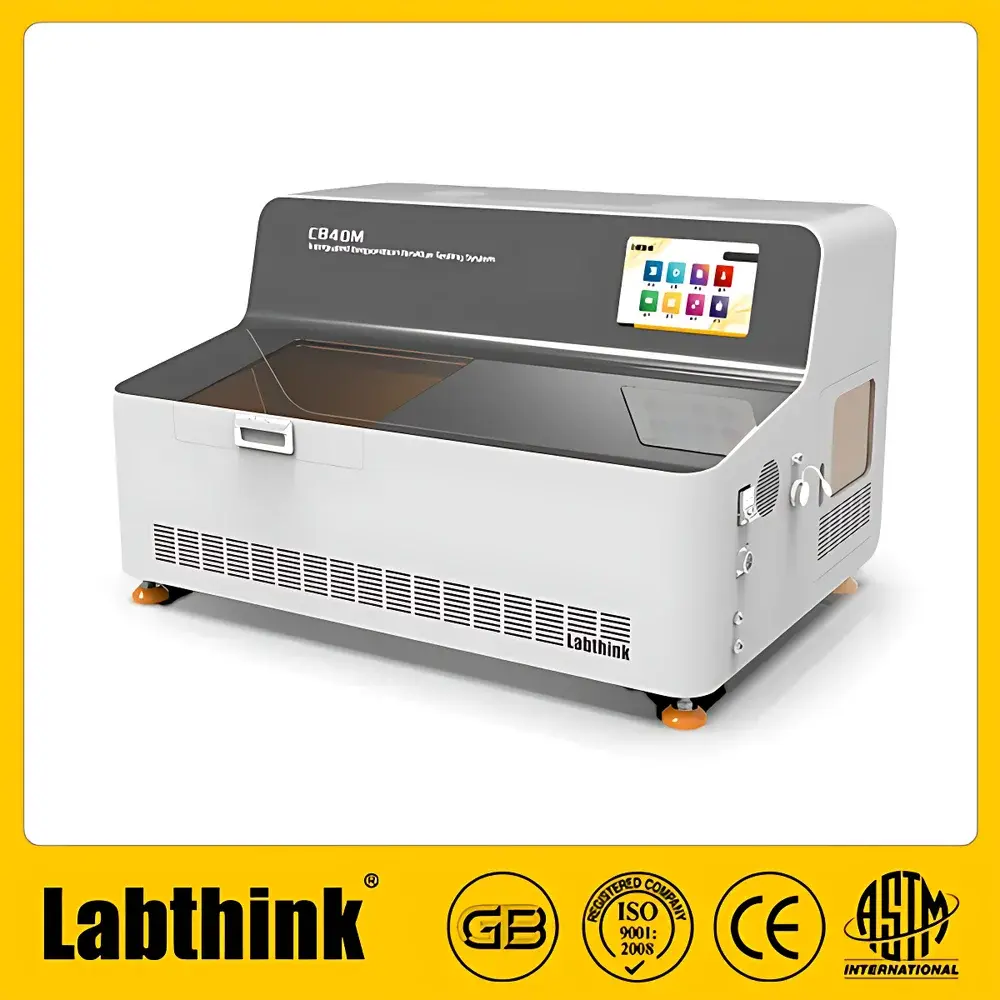

Labthink C840M Integrated Evaporative Residue & Total Migration Tester for Food Contact Materials

Overview

The Labthink C840M Integrated Evaporative Residue & Total Migration Tester is an automated gravimetric analytical system engineered for regulatory-compliant assessment of non-volatile residue and total migration from food contact materials (FCMs), pharmaceutical packaging components, and chemical reagents. It operates on the principle of controlled solvent evaporation followed by precise mass determination—fully aligned with standardized weight-loss methodology defined in ISO 1135-4:2015 (plastics), ISO 1135-5:2015 (elastomers), EN 1186-3, and GB 31604.8–2016. The instrument automates the complete sequence: immersion extraction (user-prepared), solvent transfer, water-bath evaporation, forced-air drying, active cooling to ambient temperature, and high-precision weighing—all without manual intervention. Its dual-chamber architecture physically isolates thermal processes from the weighing environment, eliminating thermal drift and humidity interference on the balance—critical for achieving sub-milligram repeatability under GxP conditions.

Key Features

• 12-position fully automated test station with robotic manipulator replicating human handling precision—enabling sequential cup transport between evaporation, cooling, and weighing zones.
• Dual independent chambers: sealed evaporation chamber with leak-proof water bath (auto-fill/drain + level sensing) and isolated weighing chamber with active liquid-cooling system to stabilize samples at ambient temperature prior to measurement.
• High-stability touch-screen electronic balance (0.1 mg standard; optional 0.01 mg resolution), traceable via internal calibration, modular design for rapid metrological verification or replacement.
• Integrated nitrogen purge and decentralized electrical control architecture for safe handling of volatile or hazardous solvents (e.g., ethanol, isooctane, acetic acid).
• Reagent recovery module with condensate collection and reflux capability—reducing solvent consumption and minimizing VOC emissions per ISO 14001-aligned lab practices.
• 10.1-inch medical-grade capacitive touchscreen interface; standalone operation without PC dependency; embedded Ethernet port for remote firmware updates, audit log export, and centralized fleet management.
• Real-time acoustic-optical alerts triggered by sensor network (temperature, liquid level, door status, gas pressure, balance stability)—enhancing operational safety and protocol adherence.

Sample Compatibility & Compliance

The C840M supports standardized extraction protocols across three major regulatory domains: food contact materials (per GB 31604 series, EN 1186, FDA 21 CFR §170–189), pharmaceutical packaging (YBB standards, USP , ISO 8536-4:2019), and analytical reagent purity (ISO 6353-1:1982, GB/T 9740). Compatible substrates include polyolefins (PE, PP), polystyrene, PVC, melamine-formaldehyde resins, expanded polystyrene, plant-fiber molded trays, laminated films, blister foils, rubber stoppers, and silicone-coated closures. All test cups are inert borosilicate glass (100 mL volume), certified for low extractables. System validation documentation supports IQ/OQ/PQ execution per ASTM E2500 and EU Annex 15 requirements.

Software & Data Management

The embedded software platform complies with 21 CFR Part 11 and EU Annex 11 for electronic records and signatures. It features role-based user access control (administrator, analyst, reviewer), configurable permission sets per function (method editing, result approval, audit log viewing), and tamper-evident electronic signatures with time-stamped biometric or token-based authentication. All raw data—including balance readings, temperature logs, gas flow events, and operator actions—are stored with immutable timestamps and checksum integrity verification. Audit trails are exportable in CSV/PDF format and support GLP/GMP audit readiness. Optional GMP-compliant computer system package includes validated Windows OS, backup server integration, and periodic data archiving per ALCOA+ principles.

Applications

• Purified Water Testing: Quantification of non-volatile residue in pharmacopeial purified water (USP , EP 2.2.46) using specified evaporation volumes and drying conditions.
• Pharmaceutical Packaging: Extraction testing of primary packaging (e.g., HDPE bottles, aluminum blisters, butyl rubber stoppers) with simulants such as 50% ethanol, heptane, or 0.02 N HCl per YBB00342002–2015.
• Food Contact Materials: Total migration assessment per GB 31604.8–2016 using food simulants (e.g., 3% acetic acid, 10% ethanol, olive oil) at regulated time/temperature profiles.
• Chemical Reagents: Evaporative residue determination for ACS-grade solvents, acids, and bases per ISO 759:1981 and ISO 6353-1:1982—supporting quality control in synthesis and analytical labs.

FAQ

What regulatory standards does the C840M directly support?
The system implements test workflows aligned with ISO 1135-4/5, EN 1186-3, GB 31604.8–2016, YBB00342002–2015, USP , and ISO 8536-4:2019—including preconfigured method templates and report formats.
Can the C840M operate without a connected PC?
Yes—the integrated 10.1″ touchscreen enables full method setup, run execution, real-time monitoring, and local data review without external computing hardware.
Is balance calibration traceable to national standards?
The internal calibration routine uses NIST-traceable reference masses; optional external calibration with certified weights (e.g., 50 g Class E2) satisfies ISO/IEC 17025 laboratory accreditation requirements.
How is data integrity ensured during long-duration tests?
All sensor inputs and balance outputs are timestamped at ≤1-second intervals; power-fail recovery preserves state and resumes interrupted runs without data loss.
What maintenance is required for the water bath and cooling system?
The water bath employs deionized water with auto-level detection; the liquid-cooling loop uses sealed refrigerant—both require only quarterly visual inspection and annual preventive maintenance per Labthink Service Manual.
