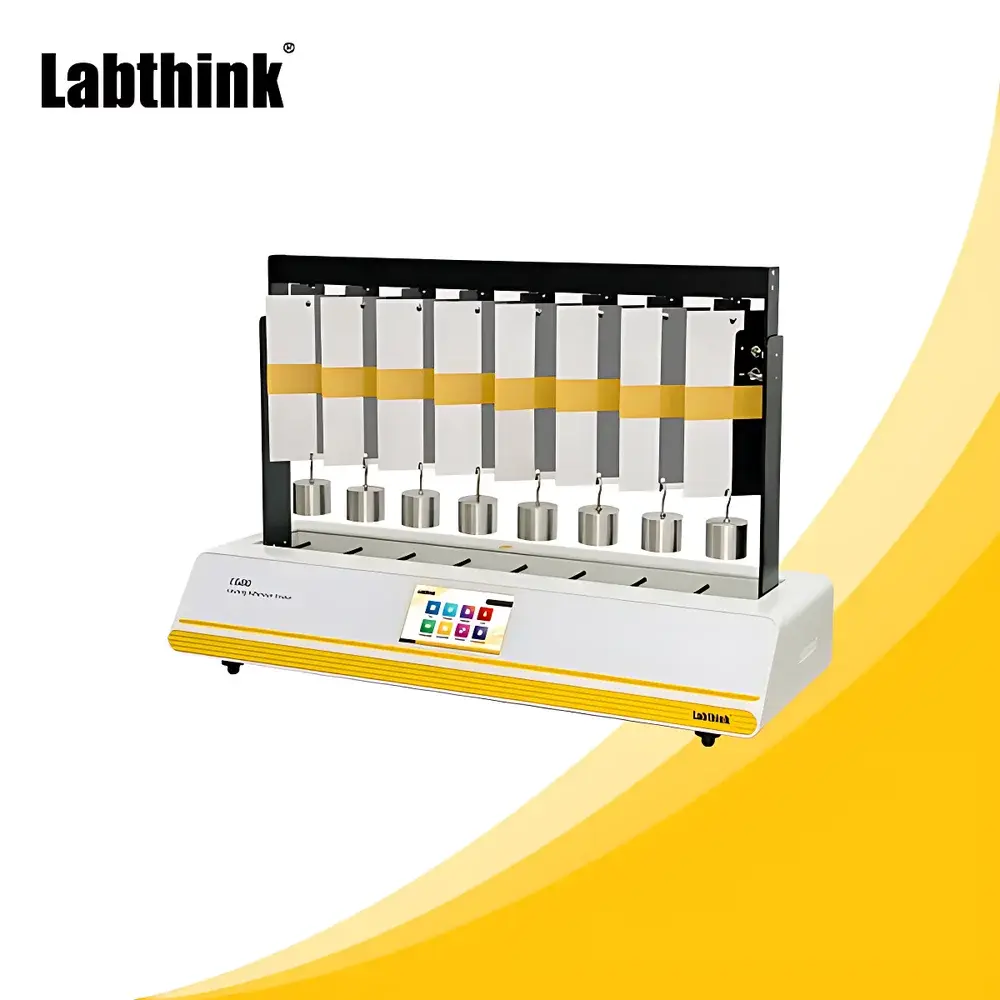

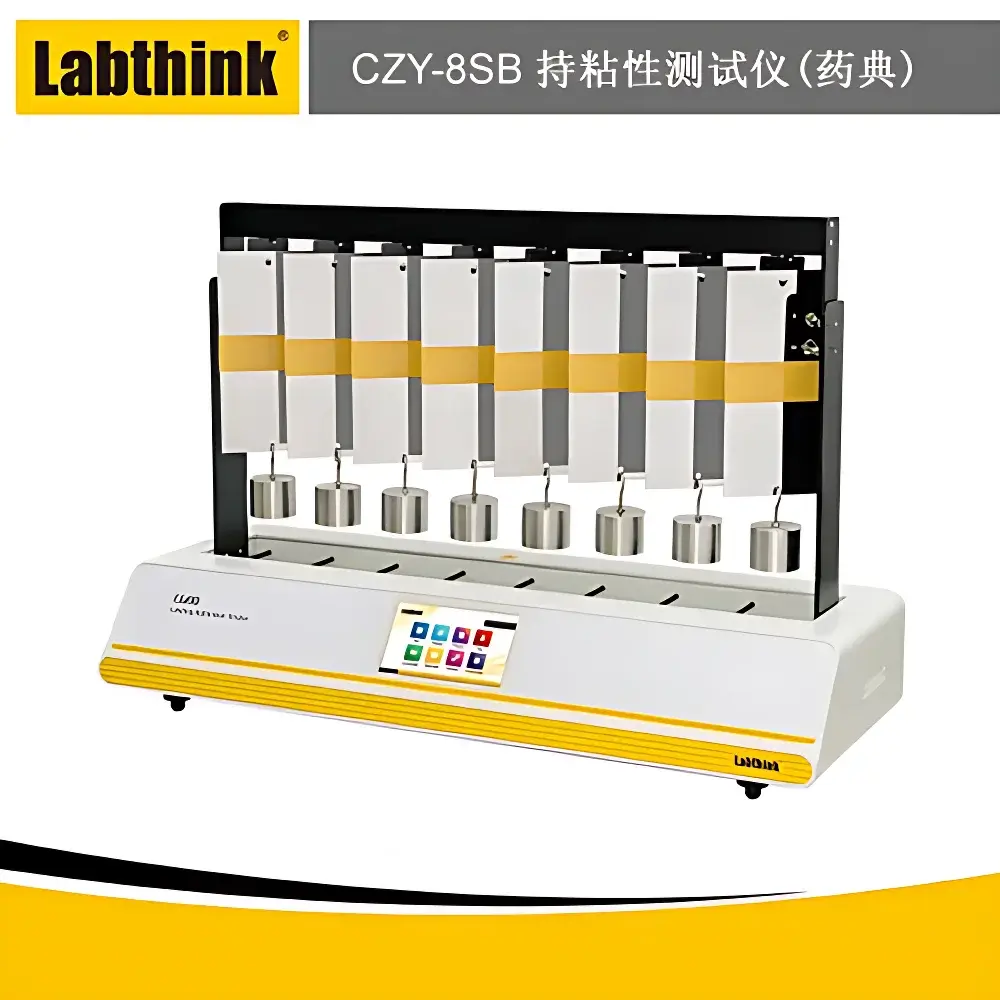

Labthink CZY-8SB Pharmacopoeia Compliant Tack and Holding Power Tester (8-Station Vertical Adhesion Tester)

Overview

The Labthink CZY-8SB Pharmacopoeia Compliant Tack and Holding Power Tester is an 8-station vertical adhesion testing system engineered for precise, reproducible measurement of holding power (also termed “tack retention”) of pressure-sensitive adhesive (PSA) products—particularly transdermal patches, medicated plasters, wound dressings, and topical gel sheets. It operates on the fundamental principle of gravitational shear stress application: a standardized test specimen is affixed to a vertically oriented stainless-steel test plate (Pharmacopoeia-compliant Plate C), loaded with a calibrated 1000 g mass, and monitored for either displacement over time or total detachment duration under constant load. This method directly reflects real-world performance under sustained mechanical stress, aligning with the physical mechanism of adhesive failure in clinical and pharmaceutical use. The instrument complies with the static shear adhesion test methodology defined in the Chinese Pharmacopoeia (2015 Edition), Chapter 0952 “Adhesive Strength Tests”, and is functionally compatible with ISO 29862:2017 (adhesives — determination of holding power under constant load) and ASTM D3654/D3654M (standard test method for shear adhesion of pressure-sensitive tape). Its modular architecture supports future integration into regulated environments requiring audit trails and electronic records.

Key Features

• Eight independent, parallel test stations enable high-throughput batch evaluation—critical for QC labs processing multiple patch formulations or stability batches per day.
• Dual-mode measurement capability: time-to-failure mode (recording full detachment time) and displacement-at-time mode (measuring creep displacement after predefined durations such as 10 min, 30 min, or 24 h).
• Industrial-grade capacitive touchscreen interface with intuitive icon-driven navigation, supporting both English and Chinese language layers without firmware reflash.
• Onboard environmental monitoring: integrated digital temperature and humidity sensors log ambient conditions synchronously with each test; data displayed as real-time curves and embedded in result files.
• Automatic statistical analysis: computes and reports maximum, minimum, mean, and logarithmic-reduced values across all eight stations per test run—eliminating manual post-processing errors.
• Configurable timing resolution down to 0.1 second, with total range extending to 9999 hours—suitable for accelerated aging studies and long-term stability assessments.
• Robust mechanical design featuring precision-machined aluminum alloy frame, corrosion-resistant stainless-steel test plates, and vibration-damped base to minimize external interference.

Sample Compatibility & Compliance

The CZY-8SB accommodates standard pharmacopoeial specimens (e.g., 25 mm × 25 mm or 25 mm × 12.5 mm cut from finished patches) applied to Plate C (125 mm × 125 mm × 1.7 mm, AISI 304 stainless steel, Ra ≤ 0.8 µm surface finish). All hardware—including the 2000 g ± 50 g standard roller (per CP 2015, Appendix IX Q) and 1000 g ± 10 g loading mass—is dimensionally and gravimetrically certified traceable to national metrological standards. The system meets essential requirements for GMP-aligned laboratories: optional DataShield™ software provides ALCOA+ compliant data integrity (attributable, legible, contemporaneous, original, accurate), including electronic signatures, role-based access control (three-tier user permissions), and immutable audit trails. When equipped with the optional GMP Computer System Validation (CSV) package, it satisfies FDA 21 CFR Part 11 and EU Annex 11 expectations for electronic records and signatures.

Software & Data Management

Embedded firmware stores up to 1200 complete test records locally, each containing raw displacement/time points, environmental metadata, operator ID, and timestamped pass/fail flags. Data export is supported via USB 2.0 interface in CSV or XML format—compatible with LIMS, ELN, and ERP systems. Optional Labthink DataShield™ central management platform enables remote configuration, centralized report generation, trend analysis across instruments, and automated backup to network drives or cloud repositories. All software modules undergo periodic cybersecurity validation and support TLS 1.2 encrypted communications. Firmware updates are delivered over-the-air (OTA) with version-controlled checksum verification.

Applications

• Quality control release testing of transdermal drug delivery systems per Chinese Pharmacopoeia and ICH Q5E guidelines.
• Formulation development screening for PSA polymer selection, tackifier ratios, and crosslinker optimization.
• Stability study support: evaluating holding power degradation under ICH Q1A(R2) recommended storage conditions (e.g., 40 °C/75% RH).
• Comparative benchmarking against competitor products or reference standards during supplier qualification.
• Regulatory submission dossier preparation—providing instrument qualification documentation (IQ/OQ/PQ templates available upon request).

FAQ

Does the CZY-8SB comply with USP & European Pharmacopoeia requirements?
While primarily aligned with the Chinese Pharmacopoeia (2015), its test geometry, loading protocol, and material specifications are functionally equivalent to Ph. Eur. 2.9.38 and USP General Chapter <1207> for “Container Closure Integrity Testing” related adhesive validation—though direct citation requires method verification per lab SOP.

Can temperature and humidity be actively controlled during testing?
Standard configuration monitors ambient conditions only. Optional HoldTemp™ active climate module (custom order) delivers ±0.5 °C temperature stability at 23 °C or 38 °C and ±3% RH control—validated per ISO 17025 calibration protocols.

Is third-party calibration certification available?
Yes. Labthink offers NIST-traceable calibration certificates for load cells, timers, and environmental sensors, issued by CNAS-accredited laboratories (certificate #CNAS LXXXXX).

What is the expected service life and maintenance interval?
Designed for >10 years continuous operation in regulated labs. Recommended preventive maintenance every 12 months includes roller surface inspection, load cell verification, and touchscreen calibration—documented in included Maintenance Logbook.
