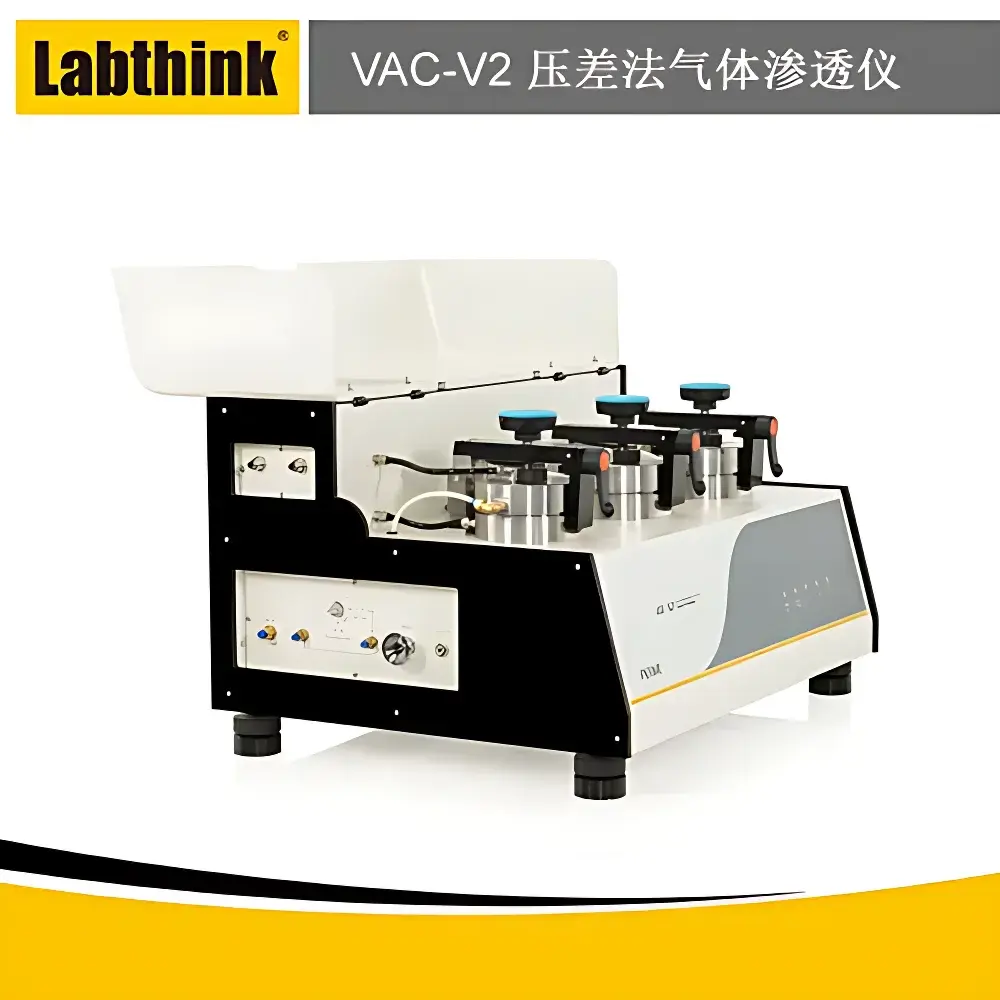

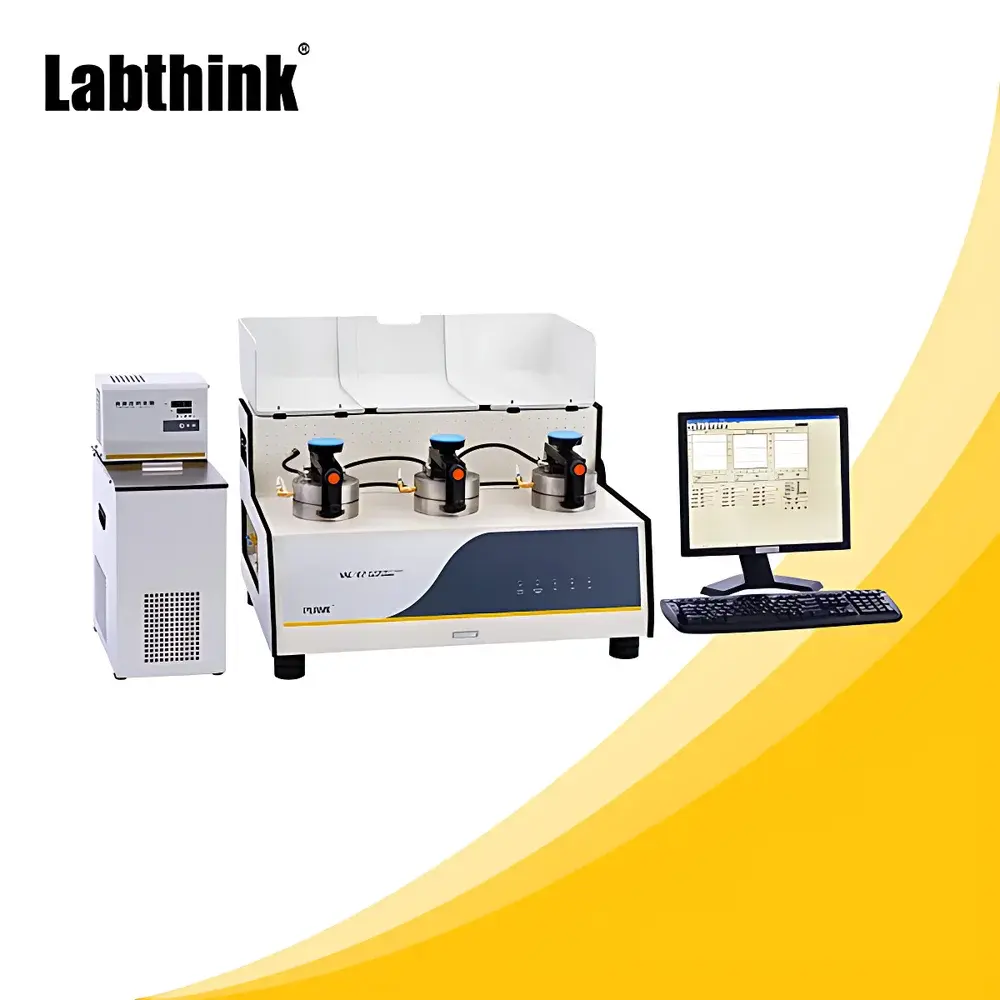

Labthink VAC-V2 Differential Pressure Gas Permeability Analyzer for Five-Layer Co-Extruded IV Bags Films

Overview

The Labthink VAC-V2 Differential Pressure Gas Permeability Analyzer is an engineered solution for precise, traceable, and standards-compliant measurement of gas transmission rates (GTR), permeability coefficients (P), diffusion coefficients (D), and solubility coefficients (S) in polymeric and laminated barrier materials. Designed specifically for regulatory-critical applications in pharmaceutical packaging—especially five-layer co-extruded films used in intravenous (IV) fluid bags—the instrument implements the gravimetrically referenced differential pressure method per ASTM D1434, ISO 15105-1, ISO 2556, JIS K7126-1, and YBB 00082003. Its core architecture relies on controlled vacuum generation, high-stability pressure differentials across the test specimen, and real-time low-pressure cavity transduction to quantify molecular gas flux under defined thermodynamic conditions. Unlike sensor-based or coulometric systems, the VAC-V2 delivers absolute permeability data without calibration drift, making it suitable for method validation, stability-indicating studies, and long-term shelf-life modeling of sterile barrier systems.

Key Features

• Triple independent test chambers enable concurrent, statistically independent determinations of GTR, D, and S—eliminating inter-chamber cross-talk and accelerating throughput for comparative studies.
• High-resolution vacuum control (0.1 Pa resolution; <20 Pa base pressure) ensures accurate low-flux measurements critical for ultra-high-barrier IV film qualification.
• Precision temperature regulation (5–95 °C, ±0.1 °C) and optional humidity control (2–98.5%RH, ±1%RH) support accelerated aging protocols and moisture-coupled permeation modeling per ICH Q1A(R3).
• Dual-mode process logic—proportional control and fuzzy inference—adapts dynamically to transient permeation kinetics, improving convergence stability for heterogeneous or time-lag-dominant samples.
• Expandable test range (up to ≥500,000 cm³/m²·24h·0.1MPa) accommodates both ultra-low-permeability medical films and high-permeability biodegradable substrates without hardware modification.
• Integrated safety architecture supports modified configurations for testing flammable (e.g., propane, hydrogen) and explosive gas mixtures under controlled inert purge protocols—compliant with NFPA 56 and ATEX Zone 2 guidelines when retrofitted.
• Automated calibration using certified reference membranes (traceable to NIST SRM equivalents) ensures inter-laboratory data equivalence and audit readiness for FDA 21 CFR Part 11 and EU Annex 11 environments.

Sample Compatibility & Compliance

The VAC-V2 accepts rigid and flexible planar specimens up to Φ97 mm, including five-layer co-extruded polyolefin IV bag films, AlOx- or SiOx-coated PET, PVDC-containing laminates, metallized CPP/PE structures, and fluoropolymer-reinforced composites. It is validated for use with pharmaceutical primary packaging per USP , EP 3.2.1, and ISO 11607-1. All test methods align with global regulatory expectations for barrier validation: data integrity is enforced via electronic audit trails, user-level access controls, and immutable raw-data archiving within Lystem™. The system meets GLP and GMP documentation requirements—including full metadata capture (operator ID, environmental logs, calibration history, instrument firmware version)—and supports 21 CFR Part 11-compliant digital signatures when deployed with validated software configuration.

Software & Data Management

Controlled via Labthink’s Lystem™ v3.0 platform, the VAC-V2 provides full lifecycle data governance—from parameter definition and test scheduling to statistical analysis and report generation. Raw pressure-time curves are stored in HDF5 format with embedded metadata (ISO/IEC 17025-compliant). Permeability calculations follow Fickian first-order diffusion models with automatic lag-time correction and non-linear regression fitting. Export options include CSV, PDF (with embedded digital signatures), and XML for integration into LIMS (e.g., Thermo Fisher SampleManager, LabWare LIMS). The RS232 interface enables bidirectional communication with environmental monitoring systems for synchronized climate logging, while optional OPC UA connectivity supports Industry 4.0 manufacturing execution system (MES) integration.

Applications

• Pharmaceutical packaging: Quantification of nitrogen permeation in multi-layer IV bag films to ensure sterility maintenance over 24–36 months.
• Regulatory submission support: Generation of GTR vs. temperature/relative humidity master curves for FDA BLA and EMA MAA dossiers.
• Material development: Comparative screening of nanocomposite additives (e.g., layered silicates, graphene oxide) on nitrogen barrier enhancement.
• Aerospace polymer qualification: Helium permeation testing of inflatable habitat membranes per NASA STD-6002.
• Sustainable packaging R&D: Oxygen transmission rate (OTR) profiling of starch-based biodegradable films under composting-relevant RH gradients.
• Medical device packaging: Validation of Tyvek®/foil pouches against ISO 11607-2 seal integrity failure modes induced by gas ingress.
• Coating performance: Diffusion coefficient mapping of silicone- or acrylic-based barrier coatings on paperboard for aseptic cartons.

FAQ

Does the VAC-V2 comply with FDA 21 CFR Part 11 for electronic records and signatures?
Yes—when configured with Lystem™ v3.0 in validated mode, the system enforces role-based access, audit-trail retention (>10 years), and digitally signed reports meeting Part 11 technical and procedural requirements.
Can the instrument measure nitrogen permeation specifically for IV bag film qualification?
Yes—nitrogen is a standard test gas; the system includes pre-configured N₂ test templates aligned with YBB 00082003 and USP for IV container barrier verification.
Is humidity control built-in or optional?
Humidity generation is optional and requires separate purchase of the Labthink RH-01 humidity module; however, dry (0%RH) and saturated (100%RH) conditions are achievable without it.
What sample preparation tools are included?
Standard configuration includes a precision circular cutter (Φ97 mm), vacuum grease, quantitative filter paper, and a certified vacuum pump (imported); sample conditioning trays and desiccators are available as accessories.
How is system accuracy verified between calibrations?
Users perform daily verification using Labthink-certified reference membranes (e.g., N₂-permeable polyethylene standard), with deviation limits set at ±3% of certified value per ISO/IEC 17025.
