Labthink VAC-V2 Differential Pressure Gas Permeability Tester

Overview

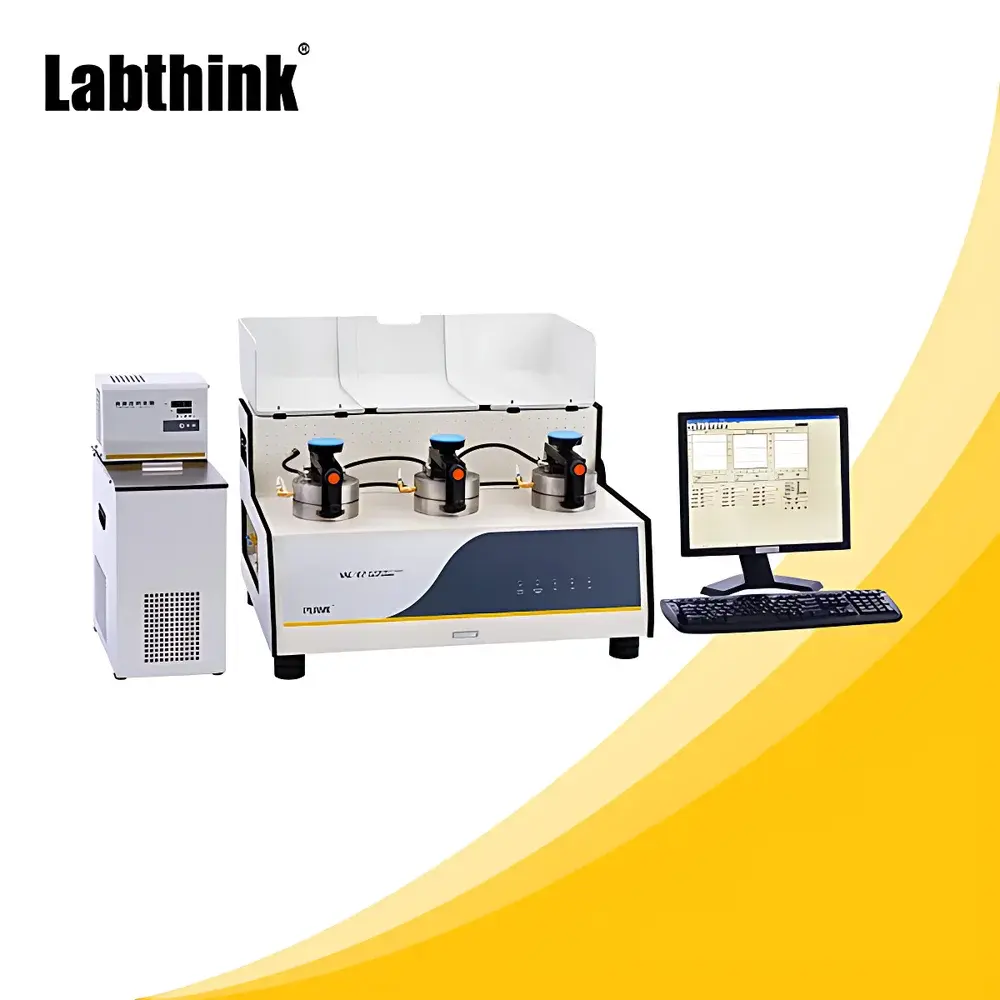

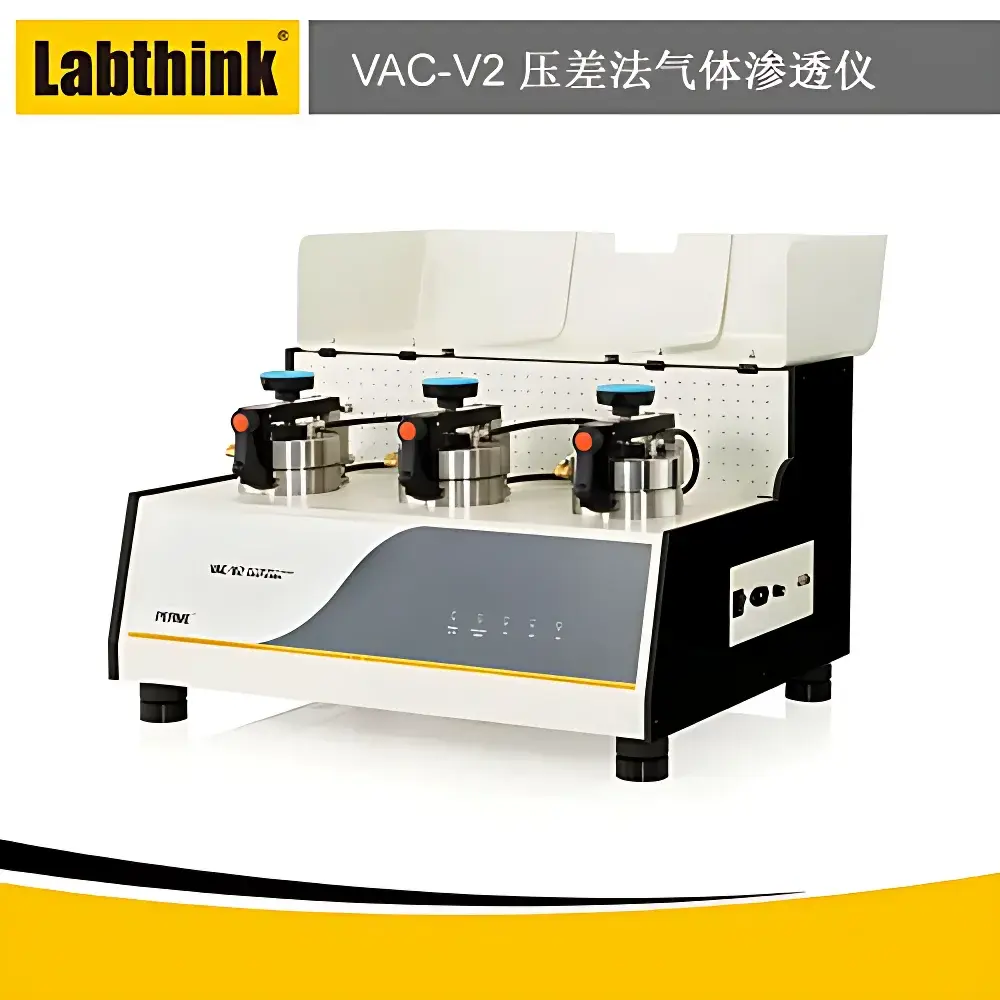

The Labthink VAC-V2 Differential Pressure Gas Permeability Tester is an engineered solution for precise, reproducible measurement of gas transmission rates (GTR) through packaging materials under controlled thermal and humid conditions. It operates on the manometric differential pressure principle—defined in ISO 15105-1 and ASTM D1434—where a stable pressure gradient is established across a sealed specimen, and the time-dependent pressure rise in the low-pressure chamber is quantified to derive permeability coefficients. This method enables direct determination of oxygen, nitrogen, and carbon dioxide transmission rates (OTR, NTR, CTR), as well as derived parameters including diffusion coefficient (D), solubility coefficient (S), and permeability coefficient (P = D × S). The instrument is widely deployed in R&D laboratories, quality control departments, and regulatory compliance units within pharmaceutical, food, personal care (e.g., toothpaste tube laminates), and industrial packaging sectors where barrier integrity directly impacts shelf life, product stability, and regulatory conformance.

Key Features

• Triple independent test chambers enable concurrent evaluation of three specimens—identical or dissimilar—without cross-contamination or data coupling.
• High-stability temperature control (±0.1 °C) from 5 °C to 95 °C supports accelerated aging studies and low-temperature barrier validation per ICH Q1A(R3) and USP <671>.
• Dual-mode test logic: programmable proportional control and fuzzy logic algorithms ensure robust endpoint detection across wide permeability ranges—from ultra-high-barrier AlOx-coated films to highly permeable elastomeric tubes.
• Expandable measurement range (up to 500,000 cm³/m²·24h·0.1 MPa) accommodates both rigid packaging substrates and flexible composite tubes used in oral care applications.
• Integrated vacuum system with ≤20 Pa base pressure and 0.1 Pa resolution ensures accurate low-flux measurements compliant with ISO 2556 Annex B.
• Modular humidity integration path: optional humidity generator enables dynamic RH control (2–98.5% RH, ±1% RH accuracy) for hygroscopic material testing aligned with ASTM F1249 and ISO 15106-3.
• Full computer automation with Lystem™ Laboratory Data Management System support—enabling audit-trail-enabled reporting, electronic signatures, and 21 CFR Part 11-compliant data archiving.

Sample Compatibility & Compliance

The VAC-V2 accepts flat, non-porous, and semi-crystalline sheet materials—including aluminum foil-laminated plastic films, EVOH-based coextrusions, metallized PET, PE/PP laminates, and multilayer extruded tubes used in toothpaste packaging. Specimens must be circular (Φ97 mm) with uniform thickness and free of pinholes or delamination. The system complies with global regulatory frameworks governing packaging performance: ISO 15105-1 (plastic film permeability), GB/T 1038-2000 (Chinese national standard for gas transmission), YBB00082003 (Chinese pharmaceutical packaging monograph), and JIS K7126-1 (Japanese industrial standard for gas permeability). For GMP-regulated environments, the instrument supports IQ/OQ documentation packages and integrates with validated laboratory information management systems (LIMS).

Software & Data Management

Controlled via Labthink’s proprietary PermeationTest™ software, the VAC-V2 delivers full traceability across the test lifecycle. Each test record includes timestamped environmental logs (T/RH), real-time pressure curves, raw sensor outputs, and calculated coefficients with uncertainty propagation. Data export formats include CSV, PDF, and XML for seamless ingestion into enterprise quality systems. The Lystem™ cloud platform allows centralized calibration tracking, multi-site result comparison, and automated generation of GLP-compliant test reports—including instrument ID, operator ID, standard membrane verification logs, and revision-controlled SOP references. All electronic records adhere to ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).

Applications

• Quantification of O₂ transmission through collapsible aluminum-plastic laminate tubes used in fluoride-containing toothpaste formulations.
• Comparative barrier assessment of HDPE vs. PP-based squeeze tubes under accelerated storage conditions (40 °C/75% RH).
• Diffusion modeling of CO₂ permeation through blister lidding foils for effervescent tablet packaging.
• Validation of sterilization-induced barrier degradation in Tyvek®-based medical device pouches.
• Regulatory submission support for FDA 510(k) and EU MDR technical files requiring quantitative permeability evidence.
• Supplier qualification testing per ASTM D3985 (oxygen) and ASTM F2622 (mixed gases) protocols.

FAQ

What gases can be tested with the VAC-V2?
O₂, N₂, CO₂, and other non-corrosive, non-reactive gases may be used; toxic or flammable gases require factory-modified safety interlocks and gas-handling accessories.
Is humidity control built-in or optional?
Relative humidity control is optional and requires the separately ordered humidity generator module; baseline operation supports only dry-gas and saturated-water-vapor conditions.
Can the VAC-V2 validate packaging per USP <671>?
Yes—the instrument meets the apparatus requirements for permeability testing specified in USP <671>, provided temperature and humidity conditions are maintained within defined tolerances and calibrated reference standards are applied.
How is calibration performed?
Certified standard membranes (e.g., NIST-traceable polyester films) are used for daily verification; full system calibration includes vacuum sensor, pressure transducer, and temperature probe validation per ISO/IEC 17025 guidelines.
Does the system support 21 CFR Part 11 compliance?
When operated with Lystem™ v3.2+ and configured with role-based access control, electronic signatures, and immutable audit trails, the system satisfies core technical requirements for Part 11 compliance in regulated pharmaceutical and medical device labs.
