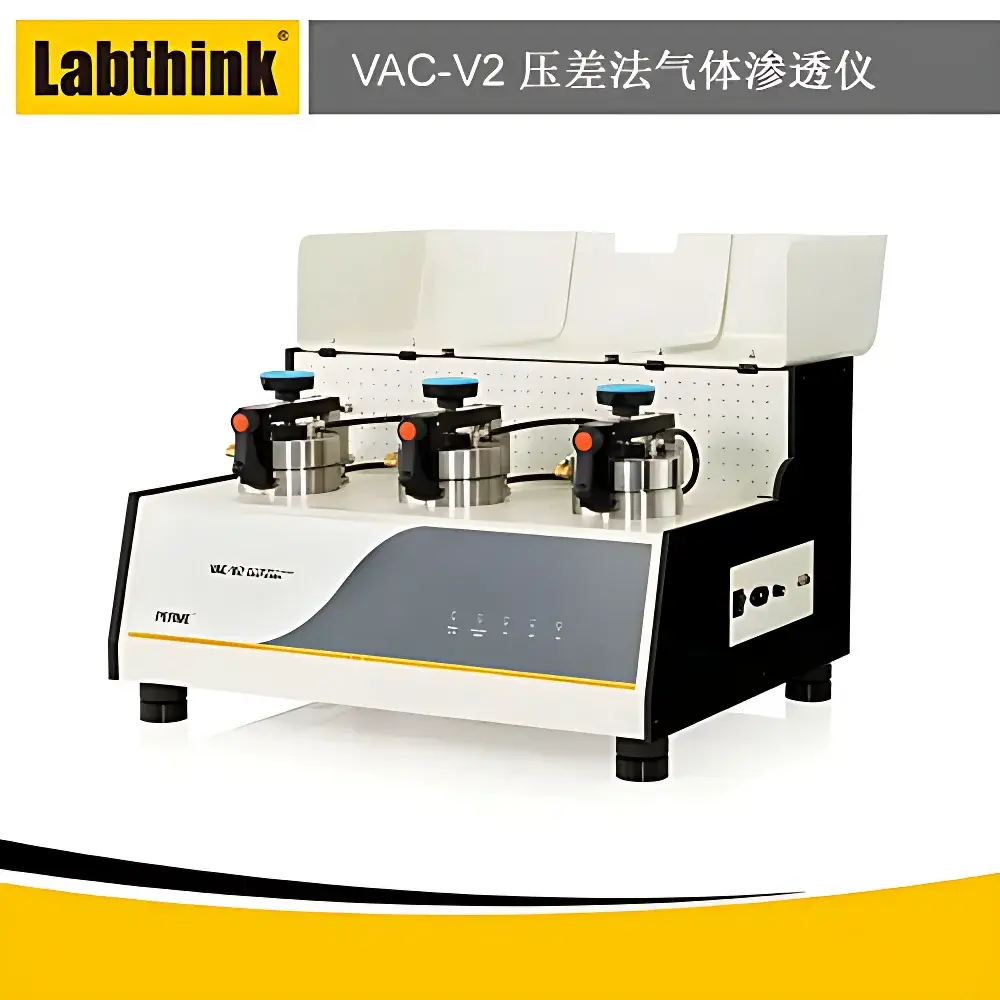

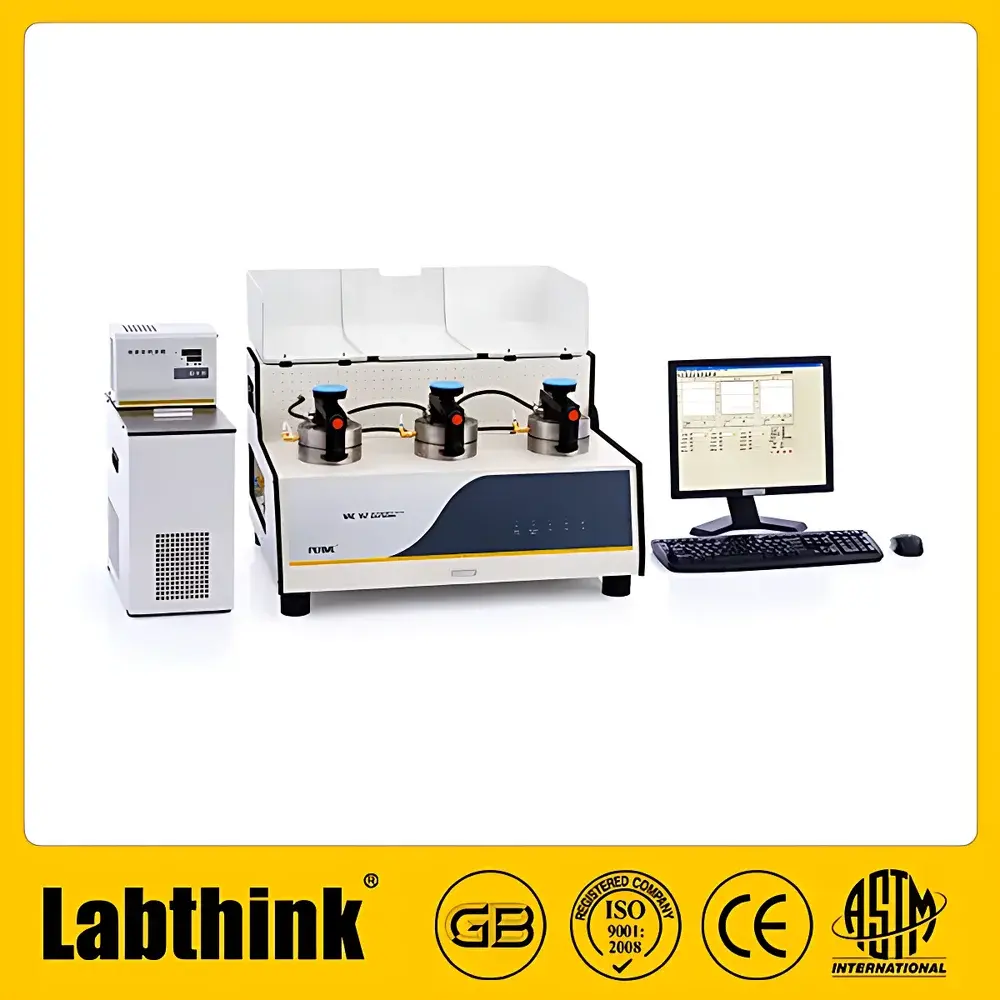

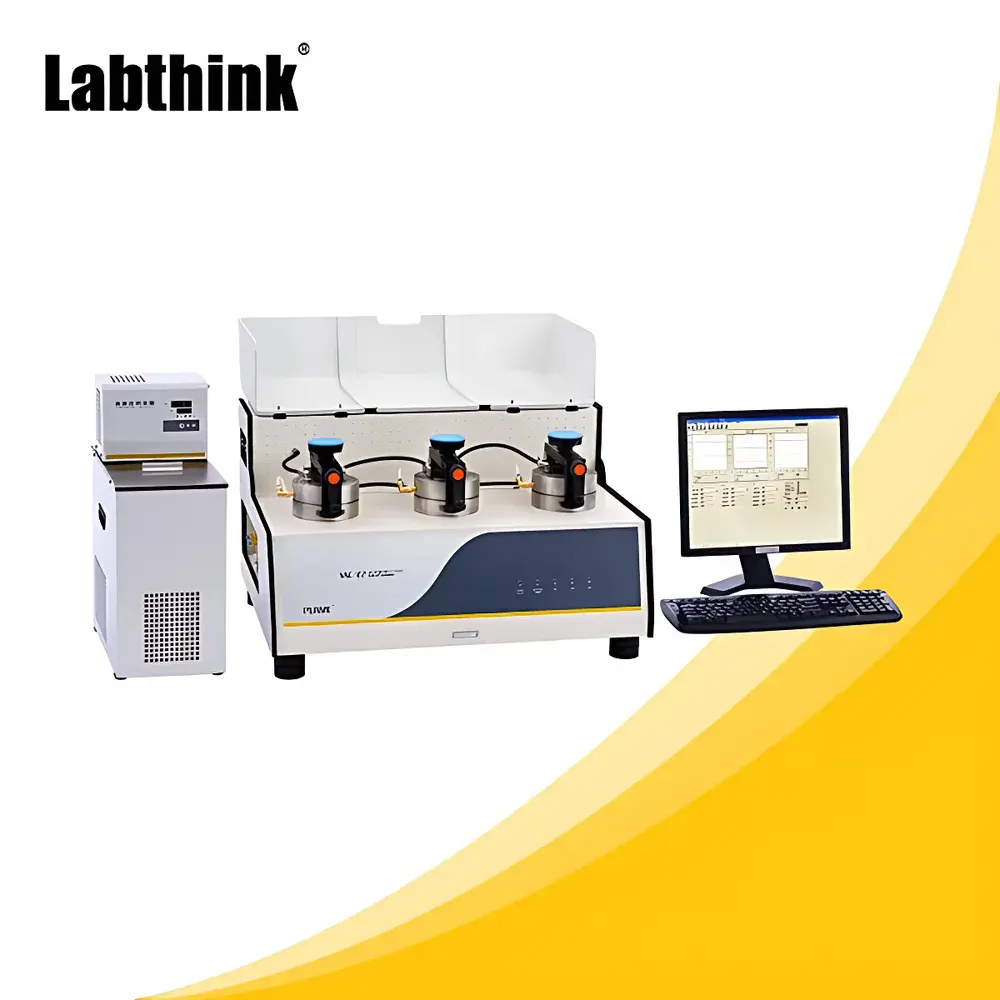

Labthink VAC-V2-PERME Differential Pressure Gas Permeability Analyzer

Overview

The Labthink VAC-V2-PERME Differential Pressure Gas Permeability Analyzer is an engineered precision instrument designed for quantitative determination of gas transmission rates through polymeric and laminated barrier materials under controlled thermal and hygric conditions. It operates on the manometric differential pressure principle—also known as the pressure-rise method—in accordance with internationally recognized standards including ASTM D1434, ISO 15105-1, ISO 2556, and Chinese national standard GB/T 1038. In this method, a conditioned specimen is sealed between two isolated chambers: a high-pressure upstream cavity and a low-pressure downstream cavity evacuated to sub-20 Pa vacuum. A regulated partial pressure gradient is established across the film, driving gas molecules from the high-pressure side to the low-pressure side via solution-diffusion-permeation mechanisms. Real-time monitoring of pressure rise in the downstream chamber enables calculation of gas permeability (P), diffusion coefficient (D), and solubility coefficient (S), where P = D × S. This tri-parameter output provides fundamental insight into both kinetic and thermodynamic aspects of gas transport—critical for evaluating material performance in food packaging, pharmaceutical blister lidding, medical device pouches, and high-barrier battery encapsulation.

Key Features

• Triple independent test stations enable concurrent evaluation of three specimens—identical or dissimilar—under identical environmental conditions, improving throughput and statistical robustness.
• High-resolution vacuum control (0.1 Pa resolution) and stable sub-20 Pa base vacuum ensure measurement integrity for ultra-low permeability materials such as PVDC-coated films, SiO_x-metallized PET, and AlO_x barrier layers.
• Precision temperature regulation (±0.1°C) across 5–95°C supports Arrhenius-based activation energy analysis and accelerated aging simulations for shelf-life prediction.
• Optional humidity control (2–98.5%RH, ±1%RH accuracy) allows investigation of moisture-induced plasticization effects on gas barrier performance—a key factor for hydrophilic polymers like EVOH and PVA-coated substrates.
• Dual algorithm modes—proportional control and fuzzy logic—optimize system response during transient phases, minimizing overshoot and stabilizing measurements faster than conventional PID approaches.
• Modular design permits retrofitting for toxic or flammable gases (e.g., H₂S, CH₄) with certified explosion-proof components and gas-tight secondary containment—subject to risk assessment and local regulatory approval.
• Integrated Lystem™ software enables automated calibration using certified reference films traceable to NIST-equivalent standards, ensuring inter-laboratory comparability and audit readiness.

Sample Compatibility & Compliance

The VAC-V2-PERME accommodates rigid and flexible planar specimens up to Φ97 mm diameter and 38.48 cm² effective test area—including monolayer plastics (LDPE, PP), coextrusions, metallized foils, oxide-coated films, paperboard laminates, and pharmaceutical-grade cold-forming aluminum. Its mechanical clamping architecture ensures uniform sealing force without edge deformation, critical for maintaining laminar flow assumptions in Fickian diffusion modeling. The system meets functional requirements for GLP-compliant environments: full electronic audit trail, user-access-level permissions, digital signature support, and 21 CFR Part 11–ready data archiving when deployed with validated Lystem™ server infrastructure. All firmware and software updates are version-controlled and documented per ISO/IEC 17025 Clause 5.9.

Software & Data Management

Lystem™ v4.0 is the native platform for instrument control, real-time visualization, and post-processing. It delivers time-resolved pressure curves, automatic baseline correction, non-linear curve fitting for early-stage permeation kinetics, and Arrhenius plot generation. Raw data files (.lsd) are encrypted and immutable; export formats include CSV, PDF reports with embedded metadata (operator ID, timestamp, calibration certificate ID), and XML for LIMS integration. Multi-user role assignment (Administrator, Technician, Reviewer) enforces separation of duties. Historical datasets can be queried by material type, test condition, or QC batch number—facilitating trend analysis across production lots or supplier qualification programs.

Applications

• Quantifying O₂ transmission rate (OTR) of modified atmosphere packaging (MAP) films used in fresh-cut produce and meat trays.
• Evaluating CO₂ permeability of carbonated beverage bottle preforms and thermoformed trays to prevent flavor scalping and package bulging.
• Validating water vapor and oxygen barrier synergy in PVA-coated paper cups and biodegradable food containers.
• Supporting formulation development of barrier coatings by correlating coating thickness, crosslink density, and permeability reduction ratios.
• Conducting stability-indicating tests per ICH Q5C for lyophilized drug product packaging under accelerated humidity/temperature stress.
• Generating diffusion coefficients for predictive modeling of gas ingress in lithium-ion battery pouch cells.

FAQ

What gases can be tested with the VAC-V2-PERME?
Standard configurations support O₂, N₂, and CO₂. Other gases—including He, H₂, CH₄, and SO₂—require hardware modifications and safety validation prior to use.
Is humidity control built-in or optional?
Humidity generation is an optional add-on module. The base system operates at 0%RH or 100%RH only; intermediate RH levels require the dedicated humidity generator accessory.
Can the instrument comply with FDA 21 CFR Part 11 requirements?
Yes—when operated with Lystem™ server edition under validated configuration, including electronic signatures, audit trail logging, and secure user authentication.
How is calibration verified?
Certified reference films with NIST-traceable OTR values are supplied annually; system verification includes zero-gas blank runs and slope-linearity checks across the full dynamic range.
What sample preparation protocols are recommended?
Specimens must be preconditioned per ASTM D618 at specified T/RH for ≥48 h; surface contaminants should be removed with lint-free isopropanol wipes; no mechanical stretching or thermal annealing is permitted post-conditioning.
