LAC KE Fast-Firing Box Furnace

Overview

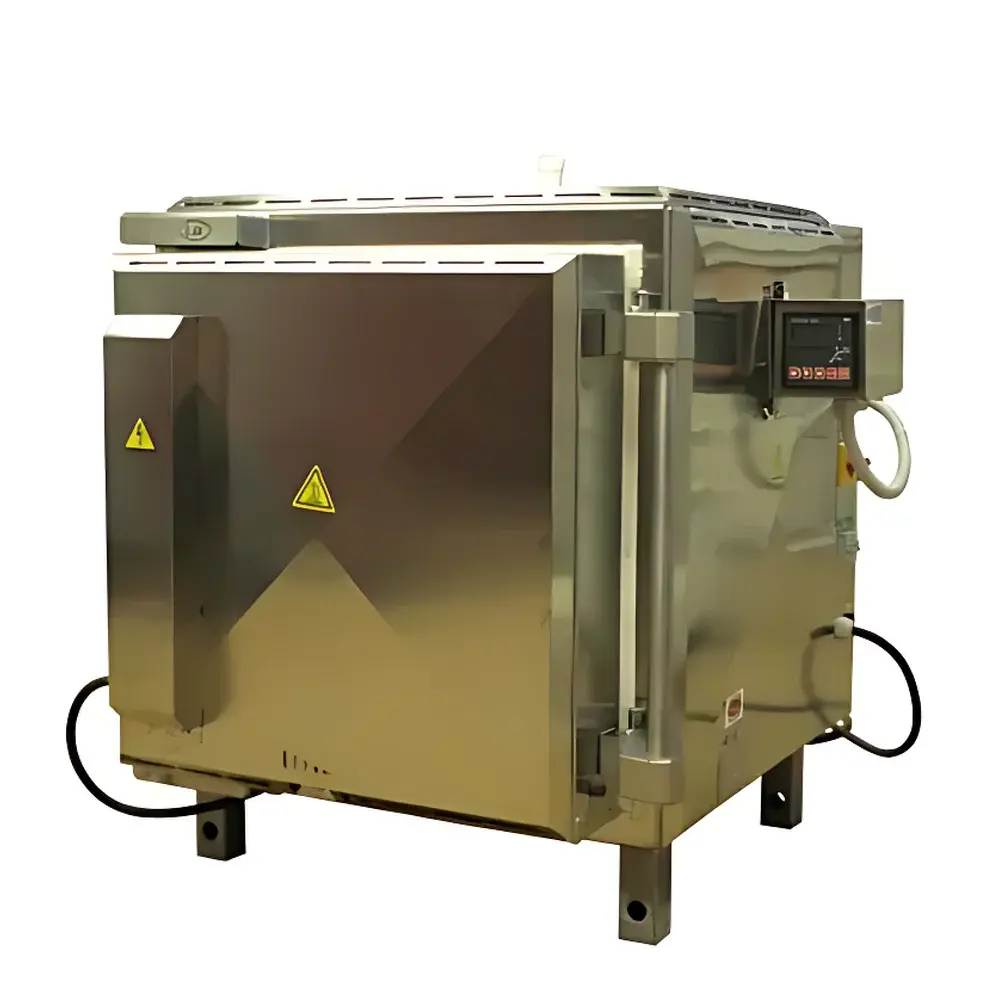

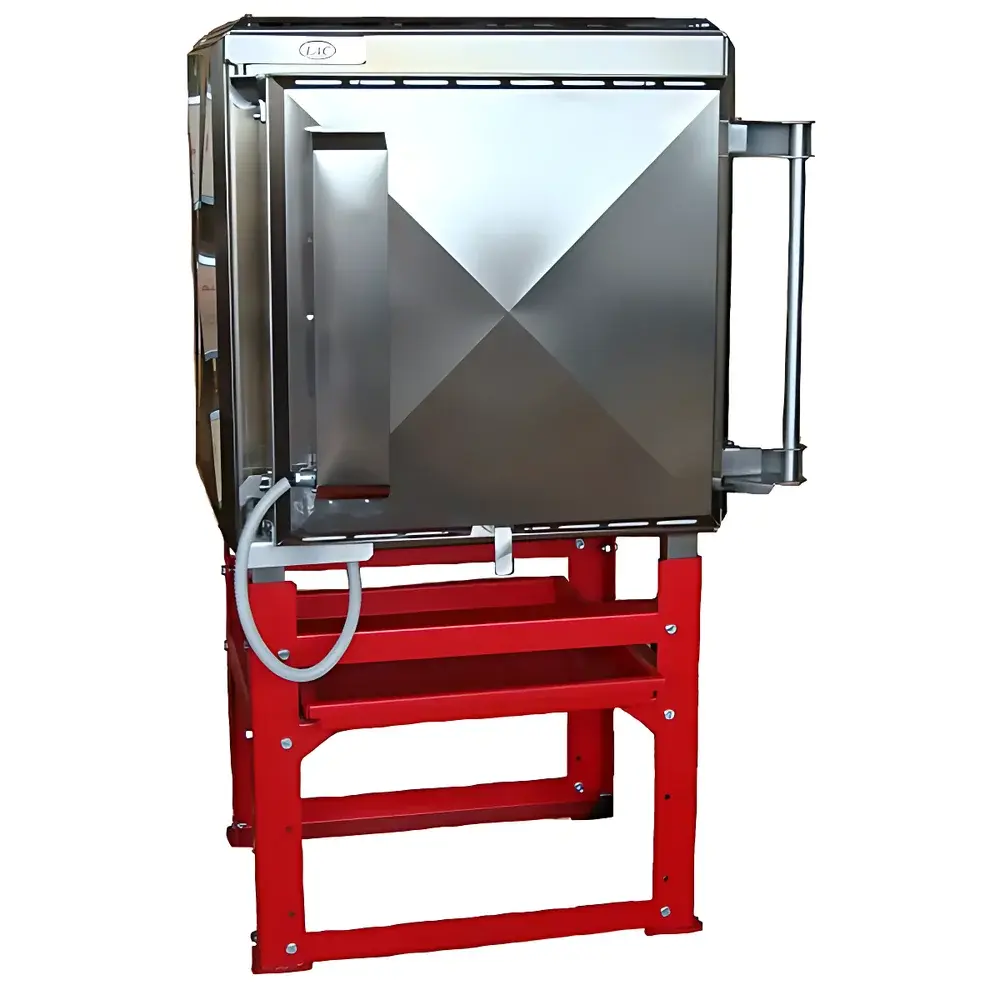

The LAC KE Fast-Firing Box Furnace is a precision-engineered, high-temperature laboratory furnace designed for controlled thermal processing of advanced ceramics, refractory materials, and functional oxides. Built upon the principles of uniform radiant heat transfer and minimal thermal inertia, the KE series employs a five-sided resistive heating configuration—distributed across top, bottom, front, back, and floor elements—to ensure exceptional spatial temperature homogeneity within the 500 × 500 × 500 mm chamber. Its maximum operating temperature of 1280 °C is sustained with ±1 °C stability over time, enabled by a closed-loop control architecture integrating a stainless steel-sheathed Type SS thermocouple, a solid-state non-contact relay, and the HT40AL programmable PID controller. The furnace’s structural integrity derives from a fully welded austenitic stainless steel (AISI 304) outer shell, ventilated for passive cooling and equipped with a left-hinged, clamp-latched door featuring a certified safety interlock switch—de-energizing all heating circuits upon door opening per EN 61000-6-2 and IEC 61000-6-4 requirements.

Key Features

• Five-sided NiCr resistance wire heating system for optimal thermal uniformity and rapid heat-up (reaches 1280 °C in ≤125 minutes)
• High-density ceramic fiber insulation (low thermal conductivity, <0.12 W/m·K at 1000 °C) minimizing standby losses and enabling energy-efficient operation
• HT40AL digital controller with 16-segment programmable ramp-soak profiles, real-time data logging, and user-accessible calibration offset adjustment
• Robust solid-state relay ensuring silent, zero-arcing switching with >10⁷ operational cycles and immunity to electromagnetic interference
• Full stainless steel construction (AISI 304) with electropolished interior surfaces for corrosion resistance and ease of cleaning
• Manually adjustable ventilation flap with calibrated scale for precise atmosphere management during oxidation or controlled cooling phases

Sample Compatibility & Compliance

The KE furnace accommodates standard ceramic crucibles (alumina, cordierite, silicon carbide), platinum-rhodium boats, and inert sample holders up to 150 mm in height. Its chamber geometry and uniform heating profile support ISO 5660-1 cone calorimetry pre-conditioning, ASTM C20 sintering density protocols, and USP heavy metal residue ashing procedures. All electrical components comply with CE marking directives (2014/35/EU Low Voltage Directive and 2014/30/EU EMC Directive). The HT40AL controller supports audit-trail-enabled operation when paired with optional RS-485 Modbus RTU communication, facilitating integration into GLP/GMP environments requiring 21 CFR Part 11–compliant data integrity.

Software & Data Management

While the base HT40AL operates as a standalone controller, optional RS-232 or RS-485 interfaces enable bidirectional communication with PC-based monitoring platforms (e.g., LabVIEW, MATLAB, or custom SCADA systems). The graphic temperature recorder (optional) provides continuous analog chart recording with ±0.5 °C traceability against NIST-traceable references. Firmware updates and parameter backups are supported via USB memory stick. All logged temperature/time datasets include timestamped metadata (operator ID, program name, cycle number), satisfying raw data retention requirements under ISO/IEC 17025:2017 clause 7.5.2.

Applications

• Sintering of technical ceramics (Al₂O₃, ZrO₂, SiC) under air or inert gas atmospheres
• Calcination of catalyst precursors and battery cathode materials (e.g., LiCoO₂, NMC)
• Thermal gravimetric analysis (TGA) sample pre-treatment and residue ashing per ASTM E1131
• Heat treatment of dental porcelain and bioceramic implants per ISO 6872
• Quality assurance firing of architectural tiles and sanitaryware per EN 14411
• Research-scale pyrolysis and carbonization of polymer-derived ceramics

FAQ

What is the recommended maintenance interval for the KE furnace?
LAC recommends quarterly inspection of door gasket integrity, thermocouple calibration verification (using a reference thermometer traceable to national standards), and visual assessment of heating element continuity. Annual replacement of ceramic fiber insulation is advised after 2,000 cumulative hours above 1000 °C.
Can the KE furnace be operated under reducing or inert atmospheres?
Yes—when fitted with an optional gas inlet port and sealed door gasket kit, the furnace supports continuous N₂, Ar, or forming gas (5% H₂/95% N₂) purging. Maximum safe flow rate: 1.5 L/min at 1 bar gauge pressure.
Is the HT40AL controller compliant with FDA 21 CFR Part 11?
The base unit is not inherently Part 11–compliant; however, when connected via RS-485 to validated third-party software with electronic signature, audit trail, and role-based access controls, full compliance can be achieved per organizational SOPs.
What is the expected service life of the heating elements?
Under normal use (≤1200 °C, <5 cycles/week), NiCr A1 alloy elements typically exceed 8,000 operating hours before resistance drift exceeds ±5%. Replacement elements are field-swappable without disassembling the insulation lining.
Does the furnace include over-temperature protection independent of the main controller?
Yes—a redundant mechanical limit switch (set at 1300 °C) interrupts power independently of the HT40AL and cannot be overridden by software, fulfilling EN 60519-2 functional safety requirements for industrial heating equipment.
