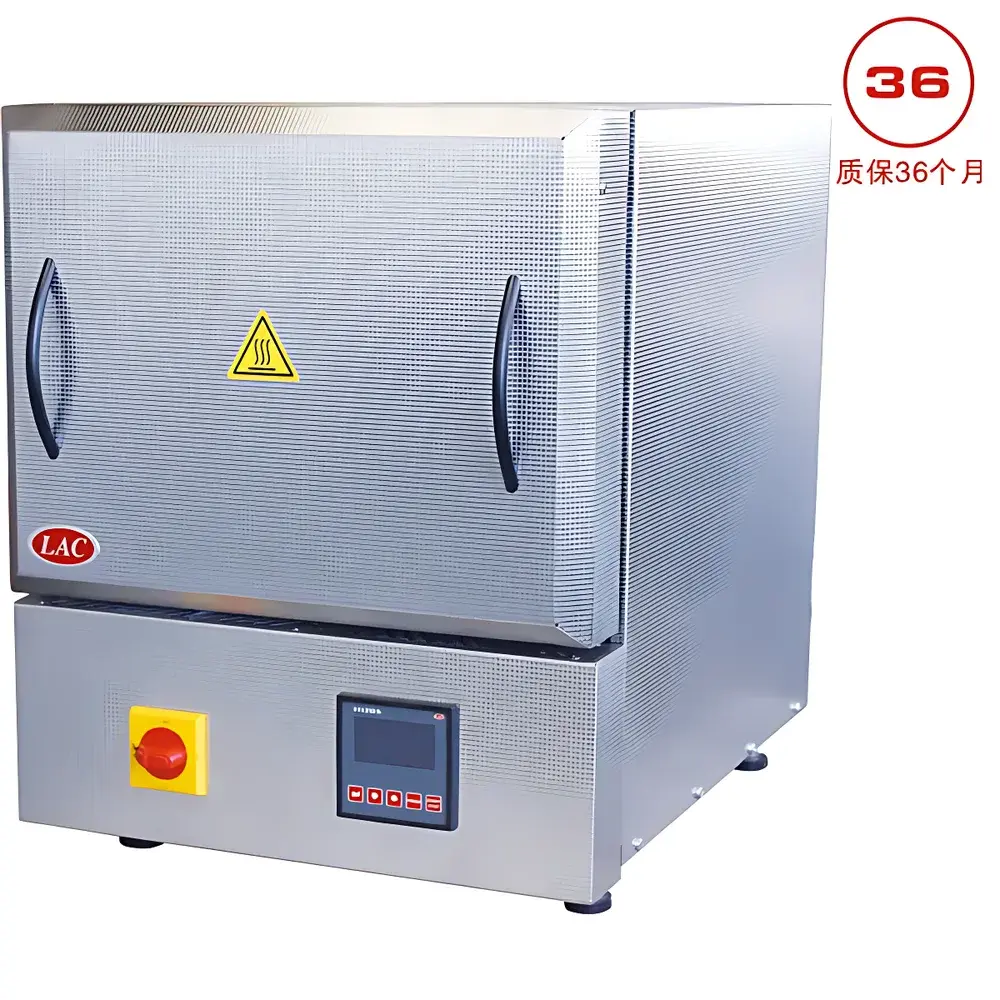

LAC LHS03/15 High-Density Silicon Carbide Rod Laboratory Muffle Furnace

Overview

The LAC LHS03/15 is a high-performance benchtop muffle furnace engineered for precise, repeatable thermal processing in research laboratories and quality control environments. Designed around a dense array of silicon carbide (SiC) heating rods, it delivers rapid, uniform heating up to 1500 °C while maintaining exceptional thermal stability and long-term operational reliability. Unlike molybdenum disilicide (MoSi₂)-heated furnaces (e.g., LAC VP series), the SiC rod configuration offers superior thermal shock resistance—critical during frequent ramp-hold-cool cycles—and significantly lower total cost of ownership due to extended element lifetime and reduced maintenance frequency. The furnace operates on resistive Joule heating principles, with heat generated directly within the SiC rods and transferred via radiation and convection into the insulated chamber. Its compact footprint (440 × 565 × 600 mm internal volume) and lightweight construction make it ideal for space-constrained labs requiring high-temperature capability without industrial-scale infrastructure.

Key Features

• High-density silicon carbide rod heating system enabling stable operation up to 1500 °C with excellent thermal uniformity across the chamber
• Precision temperature control with ±1 °C accuracy over the full operating range, achieved via Type B thermocouple feedback and PID-regulated solid-state relays
• Rapid thermal response: reaches 1400 °C in ≤40 minutes under standard load conditions, minimizing cycle time for routine sintering, ashing, and calcination protocols
• HT205 digital controller featuring 30 user-defined programs (15 steps each), real-time data logging, and native LAN connectivity for networked lab integration
• Integrated safety architecture including door-interlock circuitry, over-temperature cutoff, forced-air cabinet cooling, and manual top-hinged door with ergonomic handle
• Benchtop form factor with optional floor-standing support; modular design facilitates installation in ISO-classified cleanrooms or GLP-compliant analytical suites

Sample Compatibility & Compliance

The LHS03/15 accommodates a broad range of inert and semi-reactive sample types—including ceramic powders, metal oxides, geological specimens, pharmaceutical excipients, and catalytic substrates—within its alumina-fiber-insulated chamber. Its SiC heating elements remain chemically stable in air up to 1500 °C and exhibit minimal volatilization, ensuring low background contamination during ash content analysis (ASTM D3174, ISO 1171) or loss-on-ignition (LOI) testing. The furnace complies with IEC 61000-6-3 (EMC emissions) and IEC 61000-6-2 (immunity), and its controller firmware supports audit-trail-capable operation when paired with HTMonit software—meeting foundational requirements for 21 CFR Part 11–aligned data integrity in regulated QC/QA workflows. Optional inert gas inlet ports enable controlled-atmosphere processing per ASTM F1921 (for sintering) or ISO 8501-1 (for thermal pretreatment of coated substrates).

Software & Data Management

The HT205 controller provides embedded Ethernet (LAN) connectivity, allowing remote monitoring and parameter adjustment via standard web browsers or third-party SCADA platforms. Optional HTMonit software suite enables full-cycle data acquisition—including temperature vs. time profiles, step transitions, and alarm event logs—with timestamped CSV export and configurable retention policies. When deployed with RS232 or EIA-485 serial interfaces (available as accessories), the furnace integrates seamlessly into LIMS or MES environments supporting Modbus RTU/ASCII protocols. All logged data includes metadata such as operator ID, program name, start/stop timestamps, and calibration status—supporting traceability requirements under ISO/IEC 17025 and FDA GLP guidelines.

Applications

• Thermal gravimetric analysis (TGA) sample preparation and pre-oxidation conditioning
• Ash content determination in coal, biomass, foodstuffs, and polymers per AOAC 942.05 and ISO 2165
• Sintering of advanced ceramics (Al₂O₃, ZrO₂, SiC), ferrites, and battery cathode materials (e.g., NMC, LFP)
• Heat treatment of metallurgical samples for microstructural stabilization prior to SEM/EDS analysis
• Calibration of thermocouples and reference materials at fixed points up to 1300 °C (e.g., Ag, Au, Co-C)
• Residue ignition in environmental soil testing (EPA Method 9081) and wastewater sludge characterization

FAQ

What atmosphere options are supported?
The standard LHS03/15 operates in ambient air; optional inert gas inlets (N₂, Ar) allow purging or dynamic flow-through operation for oxygen-sensitive processes.
Is the furnace suitable for vacuum applications?
No—this model is not rated for vacuum service. It is designed exclusively for atmospheric or positive-pressure inert gas environments.
Can the HT205 controller be validated for GxP use?
Yes—when configured with HTMonit and appropriate access controls, electronic signatures, and audit trail settings, it meets core ALCOA+ data integrity criteria for regulated laboratories.
What maintenance is required for the SiC heating rods?
No routine replacement is needed; SiC rods typically exceed 2000 hours of cumulative operation at 1400 °C. Visual inspection every 500 hours is recommended to verify structural integrity and electrical continuity.
Does the furnace include calibration documentation?
Factory calibration certificate (as-found/as-left) is provided with each unit; optional UKAS-accredited calibration services are available upon request.
