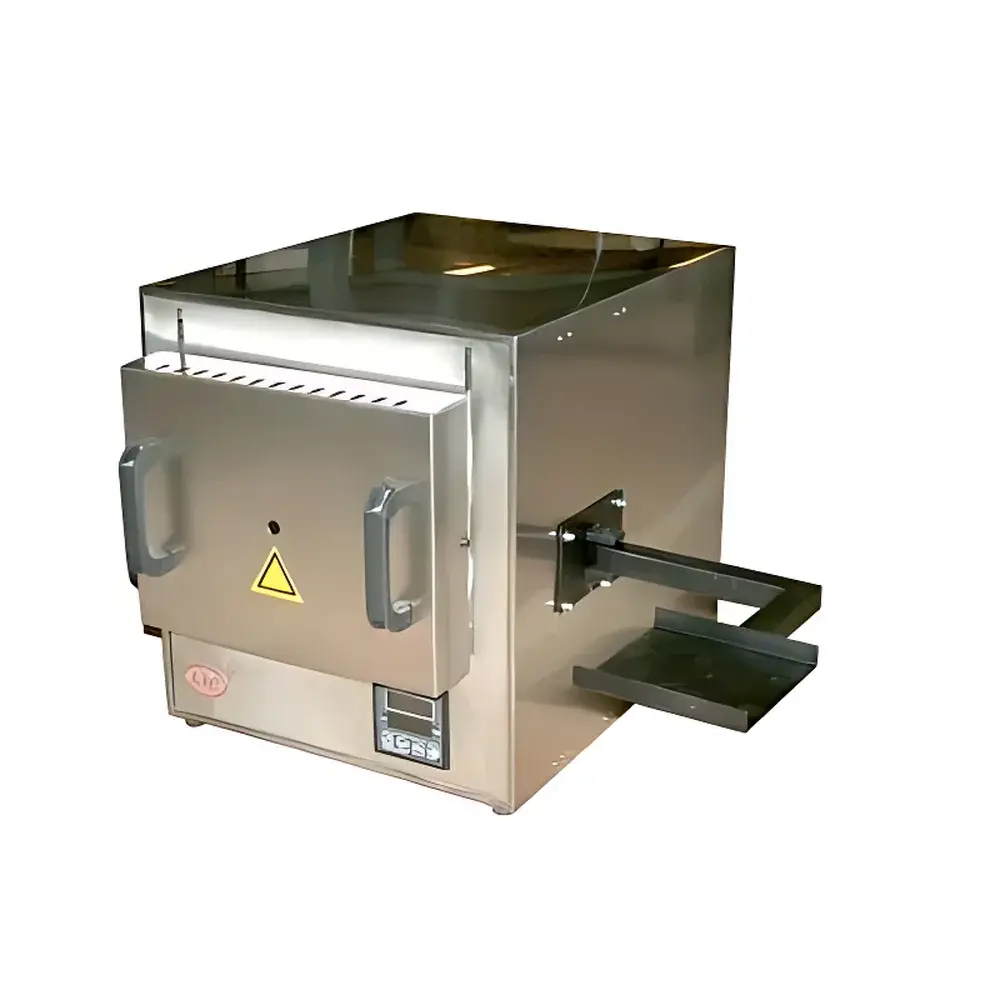

LAC LMH Series Laboratory Muffle Furnace

Overview

The LAC LMH Series laboratory muffle furnace is a precision-engineered box-type resistive heating system designed for controlled high-temperature thermal processing in research, quality control, and materials testing laboratories. Operating on the principle of radiant and conductive heat transfer within a fully insulated, sealed muffle chamber, the LMH isolates samples from direct contact with heating elements—preventing contamination from aggressive volatiles, corrosive fumes, or particulate byproducts generated during ashing, calcination, sintering, or heat-treatment protocols. Its robust construction, thermally stable cavity geometry, and calibrated Type S thermocouple ensure reproducible thermal profiles up to 1200 °C, meeting foundational requirements for ASTM E1142, ISO 8573-1 (for clean process environments), and GLP-compliant thermal validation workflows.

Key Features

• Frameless stainless steel housing (AISI 304) with seamless welded joints and electropolished finish—resistant to oxidation, thermal cycling fatigue, and chemical exposure in routine lab use.
• Double-layer insulation system: primary muffle lining of high-purity alumina fiber modules (≥1400 °C service temperature), backed by dense mineral wool board—achieving surface temperatures <45 °C at ambient conditions and minimizing standby power loss.
• Top-mounted resistance wire winding (NiCr 80/20 alloy) ensures uniform radial heat distribution; no hot spots or cold zones across the working volume (validated per IEC 60584-2 temperature uniformity mapping).

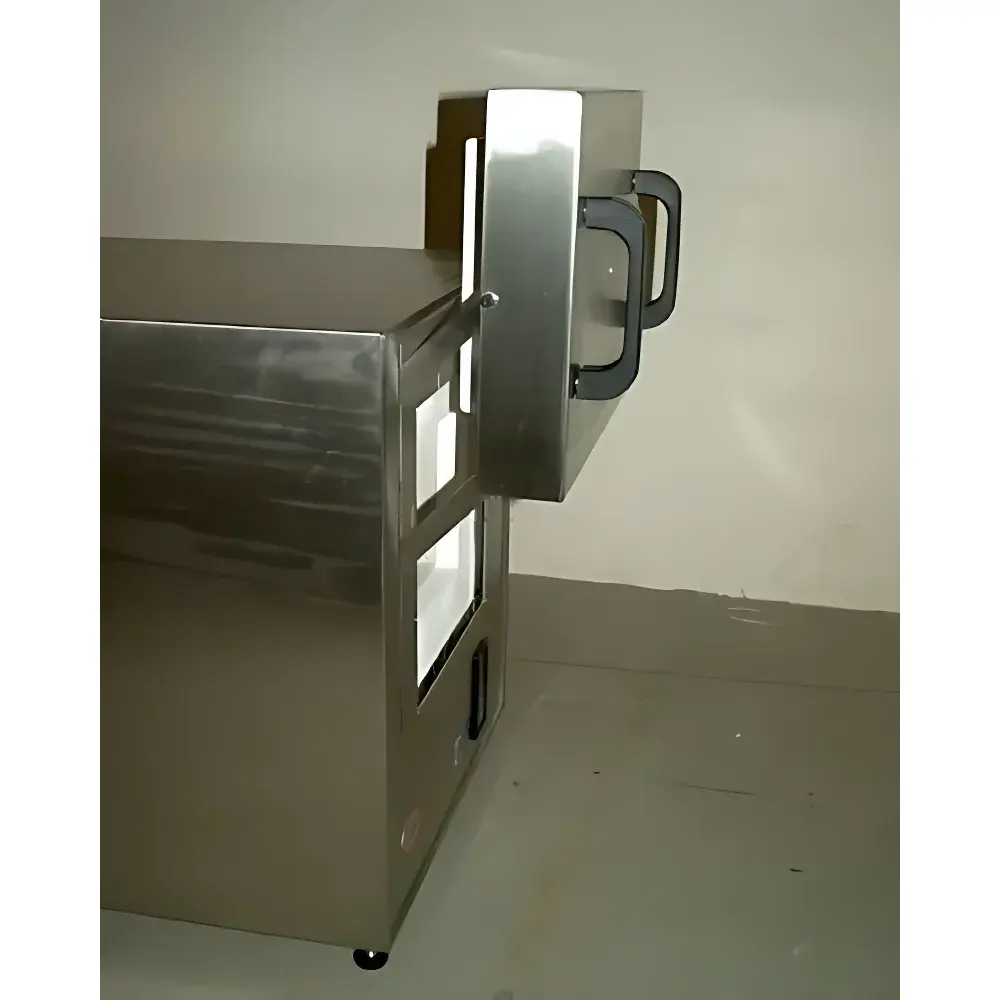

• Spring-assisted upward-opening door with integrated safety limit switch—automatically de-energizes heating circuit upon door actuation, complying with EN 61000-6-4 functional safety requirements.
• HT 40AL digital controller with dual-ramp/dual-soak programming, ±0.5 °C setpoint repeatability, and solid-state relay (SSR) output—eliminating mechanical contactor noise and electromagnetic interference (EMI) in sensitive instrumentation environments.

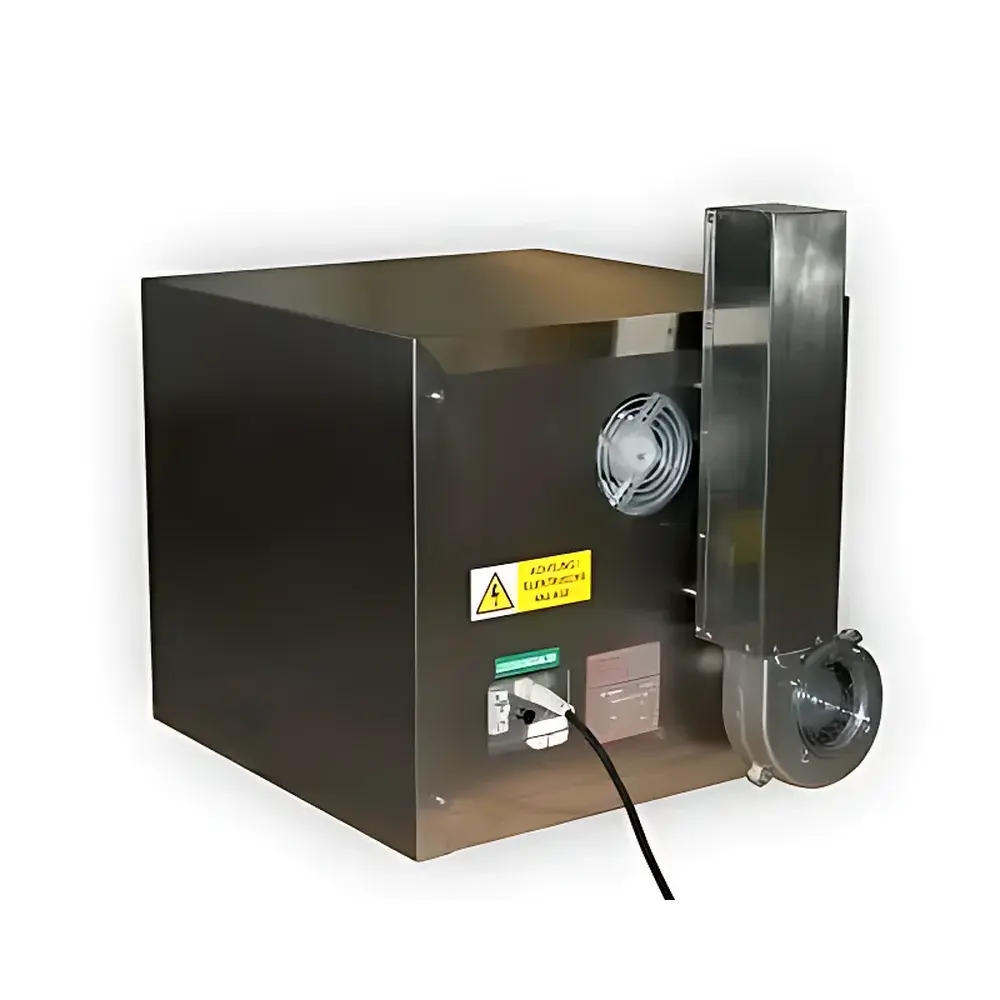

• Integrated axial cooling fan maintains electronics compartment temperature below 50 °C under continuous operation, extending controller lifespan and ensuring long-term calibration stability.

Sample Compatibility & Compliance

The LMH series accommodates crucibles, ceramic boats, quartz trays, and metal sample holders up to 255 mm wide × 165 mm high × 255 mm deep. Its inert muffle environment supports ash content analysis (AOAC 923.03), loss-on-ignition (LOI) testing (ASTM D7348), cement clinker phase studies (ASTM C114), and pre-treatment of catalysts prior to BET surface area measurement. All units are CE-marked and conform to IEC 61010-1:2010 for electrical safety in laboratory equipment. Optional accessories—including R232/485 interface, exhaust fan integration, and protective atmosphere gas inlet (N₂, Ar, forming gas)—enable adaptation to ISO 17025-accredited thermal validation protocols and FDA 21 CFR Part 11–compliant data logging when paired with certified monitoring software.

Software & Data Management

While the standard HT 40AL controller provides local setpoint management and cycle execution, optional INDUSTRY-series controllers offer extended programmability (up to 32 segments), real-time temperature graphing, and RS232/RS485 Modbus RTU communication. When connected to validated third-party software (e.g., LabVIEW-compatible drivers or LAC’s proprietary TempLog Suite), users can generate audit-trail-enabled reports compliant with GLP and GMP documentation standards—including timestamped ramp/soak events, thermocouple drift logs, and deviation alerts. Calibration certificates traceable to NIST or EUROMET standards are available upon request for metrological verification of the Type S sensor and controller loop.

Applications

• Ashing of organic matrices (food, pharmaceuticals, environmental filters) per EPA Method 3050B and ISO 11885.
• Calcination of metal oxides, battery cathode precursors, and ceramic powders under controlled air or inert atmospheres.
• Thermal gravimetric pre-conditioning prior to DSC/TGA analysis.
• Heat treatment of metallurgical specimens for microstructure stabilization (e.g., annealing, stress-relieving).
• Residue determination in polymer additives, lubricants, and petrochemical feedstocks (ASTM D482, ISO 629).
• Pre-firing of refractory test coupons and dimensional stability assessment of advanced ceramics.

FAQ

What is the maximum recommended continuous operating temperature?
The LMH series is rated for continuous operation at 1200 °C; however, sustained use above 1150 °C may reduce thermocouple longevity and insulation service life—consult the LAC Technical Manual for derating curves.
Can the furnace be used under reducing or inert atmospheres?
Yes—when equipped with the optional protective atmosphere supply kit (including gas inlet port, pressure regulator, and flowmeter), the LMH supports N₂, Ar, H₂/N₂ mixtures, and vacuum-compatible configurations (with external pump interface).
Is the HT 40AL controller compliant with 21 CFR Part 11?
No—the base HT 40AL lacks electronic signature, audit trail, and user access controls. Full Part 11 compliance requires the INDUSTRY controller + validated software package and documented system qualification (IQ/OQ/PQ).
How often should the Type S thermocouple be recalibrated?
Annual calibration is recommended for GLP labs; more frequent verification (e.g., quarterly) is advised if used daily in regulated environments or after thermal shock events.
Does the furnace include overtemperature protection?
Yes—a redundant independent overtemperature cutoff (OTC) circuit interrupts power if internal temperature exceeds 1250 °C, regardless of controller status—meeting EN 60519-2 safety requirements for industrial heating equipment.
