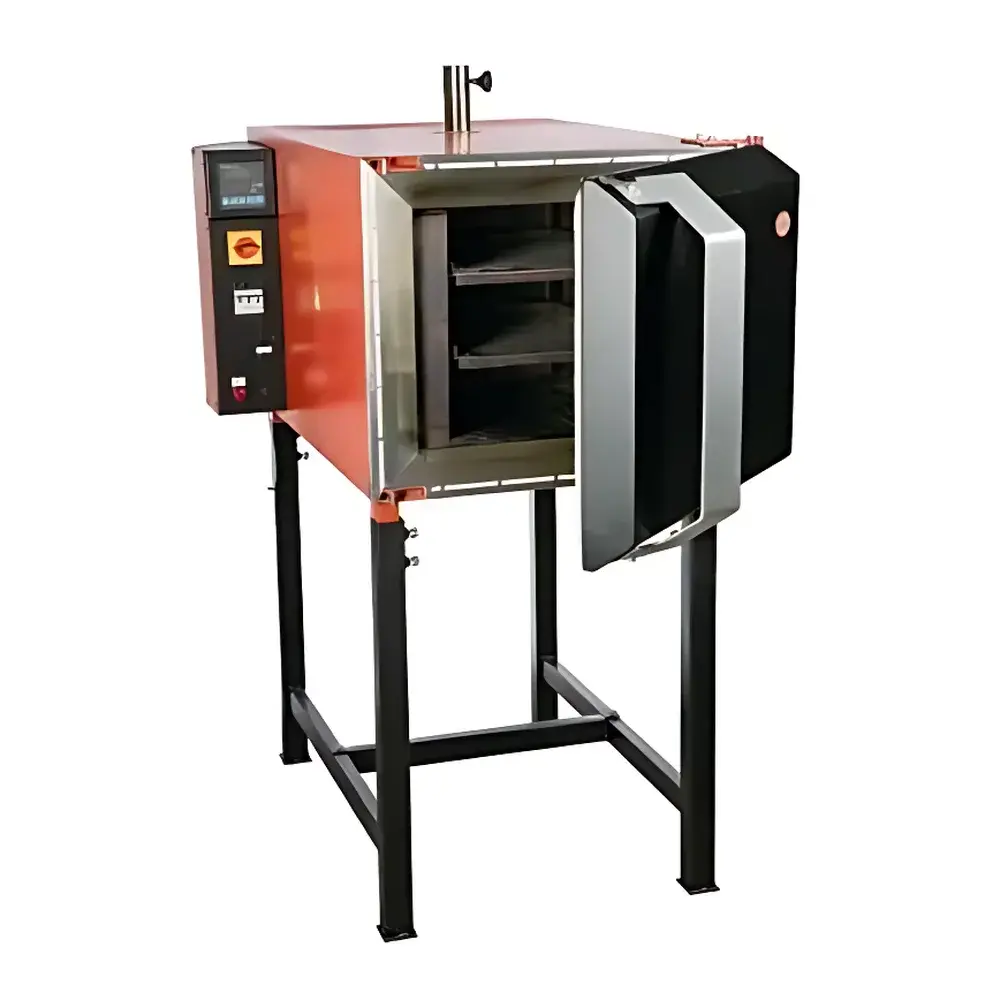

LAC PP Series Forced-Circulation Atmosphere Box Furnace

Overview

The LAC PP Series Forced-Circulation Atmosphere Box Furnace is an industrial-grade thermal processing system engineered for precise, repeatable heat treatment under controlled ambient conditions. Utilizing horizontal forced convection—driven by a rear-mounted, high-efficiency fan—the furnace ensures uniform temperature distribution across the entire working chamber, conforming to DIN 17052-1 requirements for industrial furnace uniformity. Unlike natural-convection ovens, the PP series actively circulates heated air parallel to the chamber floor, minimizing thermal stratification and reducing dwell-time variability during tempering, preheating, stress-relieving, and annealing operations. Its stainless steel muffle provides exceptional resistance to oxidation and mechanical wear at elevated temperatures up to 850 °C, while high-density ceramic fiber insulation minimizes standby heat loss and improves thermal ramp dynamics. Designed for integration into production and R&D environments—including mold preheating lines, glass tempering workflows, and thin-film coating preparation—the PP furnace operates as a standalone unit or as part of a larger process train requiring atmosphere stability and reproducible thermal profiles.

Key Features

• Stainless steel muffle construction ensuring long service life, high corrosion resistance, and dimensional stability under repeated thermal cycling
• Horizontal forced-air circulation system compliant with DIN 17052-1, delivering ±2 °C temperature uniformity across the full 300 × 200 × 350 mm working volume
• PID-based programmable controller (INDUSTRY series) with real-time clock functionality, supporting up to 30 independent thermal programs—each configurable with up to 15 time-temperature steps
• Integrated safety architecture: door-mounted emergency cut-off switch, dual mechanical safety clamps, overtemperature protection, and solid-state semiconductor relay for contactless switching
• Energy-efficient design featuring low-thermal-conductivity refractory insulation, resulting in reduced operational power demand and improved thermal response characteristics
• Rear-mounted electrical cabinet with accessible terminal blocks, standardized K-type thermocouple input, and modular wiring layout for simplified maintenance and calibration

Sample Compatibility & Compliance

The PP furnace accommodates a broad range of sample geometries and material classes—including metallic tooling inserts, ceramic substrates, composite preforms, and glass blanks—without compromising thermal homogeneity. Its semi-gastight chamber design (optional) supports inert or reducing atmospheres when paired with external gas supply systems (e.g., N₂, Ar, or forming gas). The furnace meets essential regulatory benchmarks for laboratory and light-industrial use: compliance with DIN 17052-1 for temperature uniformity verification, adherence to IEC 61000-6-2/6-4 for electromagnetic compatibility, and conformity with CE marking requirements for machinery safety (2006/42/EC). While not certified for GMP or FDA 21 CFR Part 11 out-of-the-box, its programmable controller supports audit-trail-capable data logging when integrated with optional RS232/RS485 interfaces and validated third-party software.

Software & Data Management

The embedded INDUSTRY controller provides local program storage, execution scheduling, and real-time monitoring via a backlit LCD interface. All thermal profiles are retained in non-volatile memory and can be initiated automatically on preset dates and times using the internal real-time clock. Optional accessories expand data handling capabilities: an RS232 or RS485 serial interface enables bidirectional communication with host PCs for remote parameter adjustment, live temperature plotting, and automated report generation. When coupled with compliant SCADA or LIMS platforms, the system supports electronic record retention aligned with GLP principles. An optional graphic temperature recorder delivers analog trace output suitable for quality assurance documentation in regulated manufacturing settings.

Applications

• Tool and die preheating prior to casting or forging—ensuring uniform thermal expansion and minimizing residual stress
• Tempering of hardened steels and alloy components to achieve target hardness-toughness balance
• Stress-relief annealing of welded assemblies and machined structural parts
• Preheating of molds in low-pressure resin transfer molding (RTM) and composite layup processes
• Controlled cooling and annealing of optical glass substrates prior to coating deposition
• Outgassing and binder burnout in ceramic green-body sintering preparation

FAQ

What atmosphere types can the PP furnace accommodate?
The standard configuration operates in ambient air; however, with optional semi-gastight sealing and external gas inlet ports, it supports nitrogen, argon, hydrogen-nitrogen mixtures, or vacuum-assisted purging—subject to user-supplied gas regulation and flow control hardware.
Is the furnace suitable for continuous operation at 850 °C?
Yes—the muffle, heating elements, and insulation system are rated for continuous duty at maximum temperature; however, prolonged operation near upper limits may reduce element lifespan and requires periodic inspection per manufacturer maintenance guidelines.
Can multiple PP furnaces be synchronized for batch process control?
Via optional RS485 Modbus RTU interface, up to 32 units can be daisy-chained and coordinated through a central supervisory system for time-aligned thermal cycles and centralized data aggregation.
Does the controller support password-protected parameter modification?
Yes—the INDUSTRY controller includes multi-level access control (operator, technician, administrator), enabling role-based restriction of setpoint changes, program editing, and system configuration.
What calibration documentation is supplied with the furnace?
Each unit ships with a factory-assembled calibration certificate traceable to national standards (Czech Metrology Institute), including as-delivered temperature uniformity mapping at 200 °C, 500 °C, and 800 °C, along with thermocouple linearity verification data.
