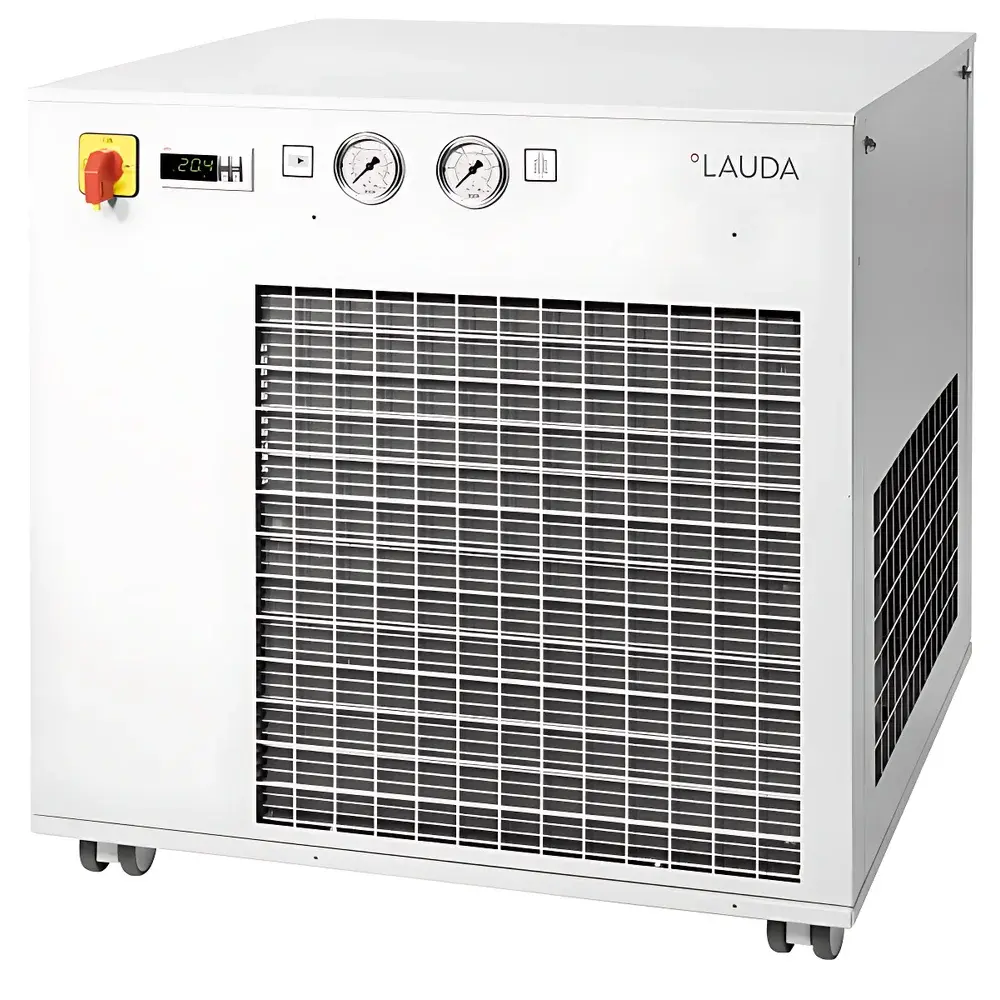

LAUDA Ultracool UC4 External-Circulation Chiller with Refrigeration & Heating Capability

Overview

The LAUDA Ultracool UC4 is a high-performance, dual-mode external-circulation chiller engineered for precise temperature control in demanding laboratory and pilot-scale applications. Operating on the thermodynamic principle of vapor-compression refrigeration combined with electric resistance heating, the UC4 delivers stable thermal management across a wide operating range (−5 °C to +35 °C) with exceptional stability of ±0.5 K under steady-state conditions. Designed for integration into complex analytical or synthesis systems—including spectrometers, calorimeters, reactors, and laser cooling loops—the UC4 features a 500 L reservoir capacity and robust external circulation capability, enabling reliable heat exchange over extended tubing runs. Its compliance with the EU Ecodesign Directive 2009/125/EC reflects an energy-optimized architecture that reduces power consumption by up to 50% compared to legacy chillers, without compromising thermal fidelity or system responsiveness.

Key Features

• Reciprocating compressor paired with low-noise, flat-characteristic centrifugal pump—ensuring consistent flow rate and minimal pressure fluctuation during dynamic load changes
• Integrated pressure regulation via internal bypass valve, protecting the refrigeration loop from overpressure and vacuum conditions
• Epoxy-coated stainless steel enclosure for long-term resistance to chemical exposure and ambient corrosion in controlled laboratory or industrial environments
• Factory-installed freeze protection system preventing ice formation in heat exchangers during low-temperature operation
• R134a refrigerant with low-pressure-drop circuit design—enabling continuous operation at ambient temperatures up to +50 °C
• Modular communication interface supporting remote monitoring and control via optional Ethernet-connected server or dedicated handheld controller

Sample Compatibility & Compliance

The UC4 is compatible with aqueous solutions, water-glycol mixtures, silicone oils, and other non-aggressive heat-transfer fluids commonly used in laboratory circulation systems. Its fluid-handling components—including pump housing, valves, and internal piping—are constructed from chemically resistant materials suitable for prolonged contact with standard coolant media. The unit meets CE marking requirements and conforms to EN 61000-6-2 (immunity) and EN 61000-6-4 (emissions). As a Class B refrigeration device under the EU Ecodesign Directive, it incorporates energy-efficient motor controls, optimized condenser airflow, and intelligent compressor staging logic. While not inherently 21 CFR Part 11–compliant, its optional Ethernet module supports audit-trail-capable SCADA integration when deployed within validated GxP environments under appropriate IT infrastructure controls.

Software & Data Management

The UC4 operates via an embedded microcontroller-based control system with a high-contrast LCD interface offering real-time display of setpoint, actual bath temperature, pump status, and compressor duty cycle. Optional network connectivity enables integration into LabView, MATLAB, or third-party LIMS platforms via Modbus TCP or ASCII protocol. Remote access allows for parameter adjustment, alarm acknowledgment, and event logging—though native data storage is limited to onboard error history (last 100 events). For GLP/GMP-aligned workflows, users may configure external PLCs or supervisory systems to capture timestamped temperature traces, pump run hours, and fault codes—supporting traceability requirements in quality-controlled research or process development labs.

Applications

• Stabilization of high-power lasers and optical benches requiring vibration-damped, low-drift thermal control
• Cooling of HPLC columns, GC detectors, and mass spectrometer ion sources where sub-degree stability directly impacts retention time reproducibility
• Temperature conditioning of jacketed glass reactors and pilot-scale bioreactors during exothermic or endothermic synthesis
• Support of differential scanning calorimetry (DSC) and thermogravimetric analysis (TGA) instrumentation requiring rapid ramp-and-hold thermal profiles
• Environmental simulation testing of electronic components and materials under controlled thermal cycling protocols

FAQ

What is the maximum allowable ambient temperature for continuous operation?
The UC4 is rated for uninterrupted service at ambient temperatures up to +50 °C, enabled by its low-pressure-drop R134a circuit and optimized condenser airflow design.
Can the UC4 be used with silicone oil or other non-aqueous heat-transfer fluids?
Yes—provided the fluid is chemically compatible with stainless steel, EPDM seals, and copper-nickel heat exchanger surfaces. Viscosity must remain below 50 cSt at minimum operating temperature to ensure adequate pump performance.
Is the UC4 suitable for outdoor installation?
No—this model is intended for indoor use only. It lacks IP-rated enclosures, UV-resistant coatings, or weatherproof electrical ingress protection required for unsheltered deployment.
Does the UC4 support programmable temperature ramps?
The base controller supports fixed-setpoint operation only. Ramp functionality requires external programmable logic controllers (PLCs) or software-driven interfaces such as LabView with analog output modules.
How is calibration traceability maintained?
LAUDA provides factory calibration certificates (traceable to DKD/DAkkS standards) upon request. Users are responsible for periodic verification using NIST-traceable reference thermometers and documented SOPs per ISO/IEC 17025 requirements.
