LaVision LS Leak Sensor for Pharmaceutical Vial Head-Space Integrity Testing

Overview

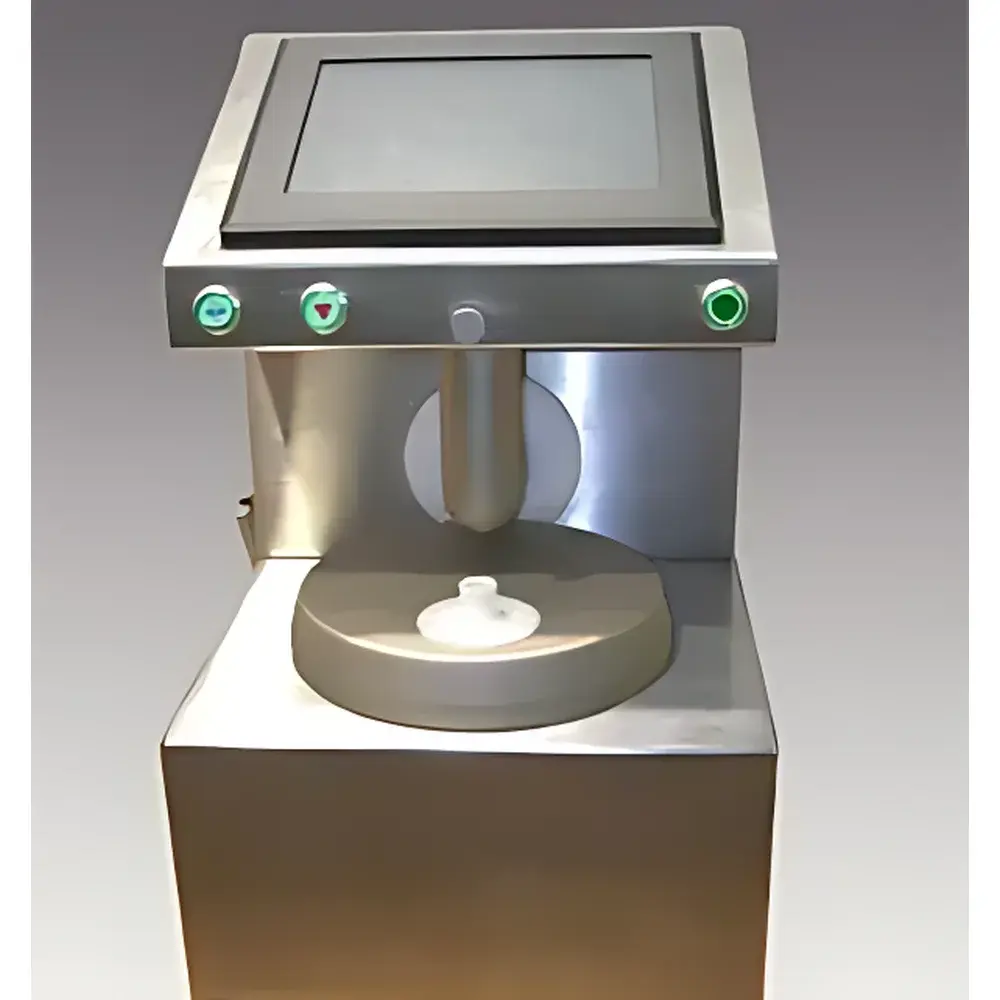

The LaVision LS Leak Sensor is a non-invasive, laser-based head-space analysis system engineered for real-time, in-line container closure integrity testing (CCIT) of low-pressure pharmaceutical vials—particularly lyophilized (freeze-dried) drug products. Unlike conventional pressure decay or tracer gas methods, the LS sensor employs tunable diode laser absorption spectroscopy (TDLAS) to quantify both total head-space pressure and water vapor partial pressure simultaneously within sealed glass vials during high-speed production. This dual-parameter measurement enables detection of micro-leaks as small as 10⁻⁶ mbar·L/s with high specificity, without requiring vacuum chamber evacuation, purge gas, or destructive sampling. The system operates at ambient temperature and integrates directly into rotary fill-finish lines or stoppering isolators, delivering quantitative, GMP-aligned data traceable to SI units.

Key Features

• Non-contact, non-destructive TDLAS measurement—no vial piercing, no helium dependency, no sample preparation
• Simultaneous quantification of total pressure and water vapor partial pressure in sub-second acquisition cycles
• High-throughput capability: validated for continuous monitoring at up to 600 vials per minute on standard production lines
• Robust optical architecture with fiber-coupled laser source and integrated reference cell for drift-free calibration stability
• Designed for integration with PLC-controlled manufacturing execution systems (MES) via EtherCAT or OPC UA protocols
• Compliant with IEC 62304 (medical device software lifecycle) and supports FDA 21 CFR Part 11 electronic record/electronic signature requirements when paired with validated software modules

Sample Compatibility & Compliance

The LS sensor is optimized for 2R–20R borosilicate glass vials containing lyophilized formulations under low head-space pressure (typically 50–300 mbar absolute). It accommodates standard crimped elastomeric stoppers and aluminum overseals without modification. The system meets the performance criteria outlined in ASTM F2338-22 (Standard Test Method for Nondestructive Detection of Leaks in Packages by Vacuum Decay), ISO 11607-2 (Packaging for terminally sterilized medical devices), and USP “Package Integrity Evaluation – Sterile Products.” All measurement algorithms are validated per ICH Q2(R2) guidelines for analytical procedure verification, including specificity, linearity, accuracy, precision, and robustness across vial geometry, stopper composition, and residual moisture content.

Software & Data Management

LaVision’s LS Control Suite provides a validated Windows-based interface supporting method definition, real-time dashboard visualization, batch-level statistical process control (SPC), and automated report generation in PDF/A-1b and CSV formats. Audit trails capture all user actions, parameter changes, and calibration events with time-stamped, immutable records. Raw spectral data (absorption line profiles, baseline correction logs, signal-to-noise ratios) are stored in HDF5 format for retrospective reprocessing. The software supports configurable alarm thresholds (e.g., water vapor > 15 mbar indicates compromised stopper seal), automatic flagging of outliers, and seamless export to LIMS or SAP QM modules via ODBC or RESTful API.

Applications

• Final container integrity verification post-stoppering and before labeling in aseptic fill-finish suites
• In-process monitoring during lyophilization cycle validation to detect stopper migration or seal failure under thermal stress
• Stability study support: periodic head-space analysis of retained samples without opening vials
• Root cause investigation of sterility failures linked to micro-leakage pathways in stopper-crimp interfaces
• Qualification of new stopper formulations or crimping parameters through comparative CCIT datasets
• Regulatory submission support: generation of scientifically defensible, instrument-generated evidence for FDA, EMA, or PMDA review

FAQ

Does the LS sensor require helium or other tracer gases?

No. It relies solely on intrinsic water vapor as an endogenous tracer; no external gas introduction is necessary.
Can it detect leaks in vials with nitrogen or argon head-space?

Yes—the TDLAS wavelength selection targets H₂O absorption lines independent of carrier gas composition.
Is system qualification included with installation?

LaVision provides IQ/OQ documentation templates aligned with Annex 11 and GAMP 5; PQ must be executed by the end user using site-specific vial lots and process conditions.
What maintenance is required?

Annual optical alignment verification and laser wavelength calibration using NIST-traceable reference cells; no consumables or routine sensor replacement.
How is data integrity ensured during power interruption?

The embedded controller features non-volatile memory with battery-backed real-time clock and cyclic redundancy check (CRC)-protected data logging.
