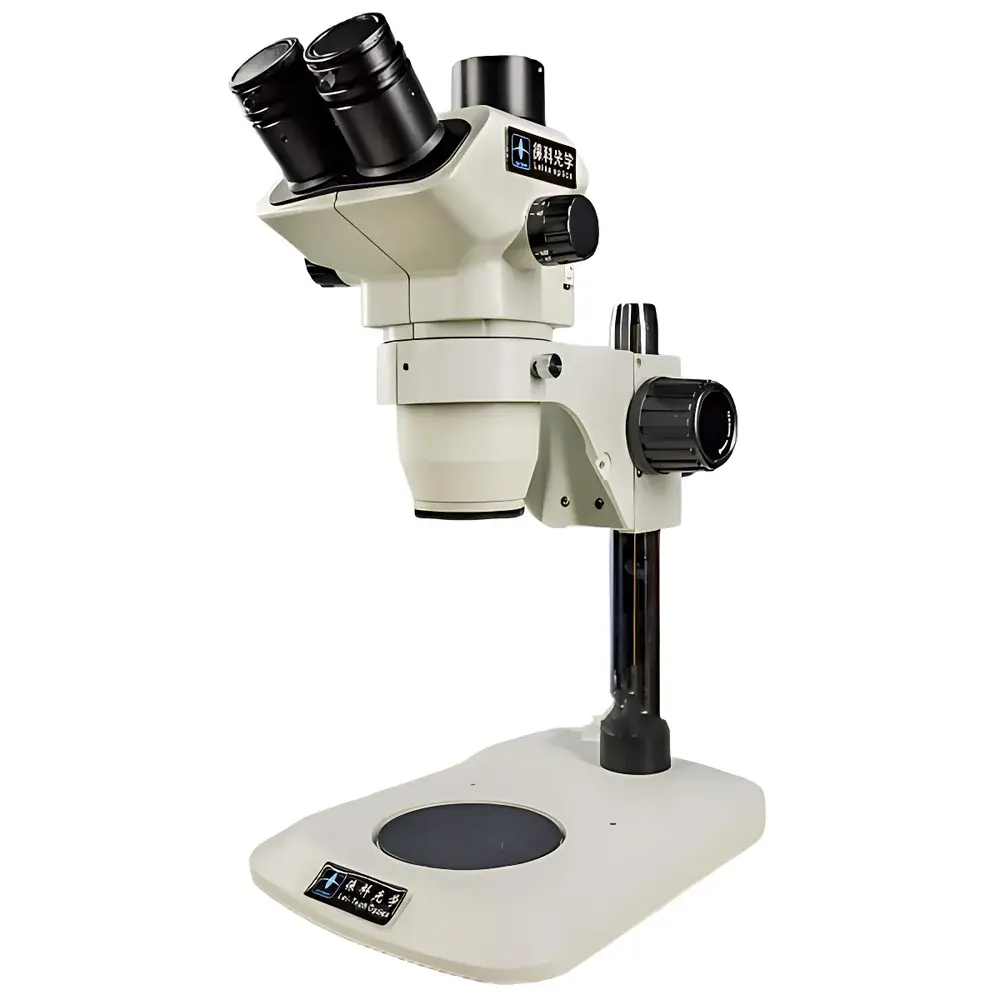

Lei-Tech LK-45 & LK-71 Advanced Stereo Microscopes

Overview

The Lei-Tech LK-45 and LK-71 are high-performance stereo microscopes engineered for demanding visual inspection, dissection, quality control, and documentation tasks in life sciences, electronics manufacturing, materials science, and academic research laboratories. Based on the Greenough optical design principle—featuring dual independent objective pathways—the instruments deliver true stereoscopic depth perception with natural parallax, enabling precise spatial orientation during manipulation or analysis. Unlike compound microscopes optimized for thin-sectioned specimens, these systems operate at low magnification (0.67×–4.5×) with extended working distance (110 mm), facilitating hands-on interaction with bulky, three-dimensional samples such as circuit boards, biological tissues, botanical specimens, or precision mechanical components. The continuous zoom optics provide seamless magnification transitions without image shift or focus drift, while the flat-field corrected optical path ensures consistent resolution and brightness across the entire field of view—even at peripheral zones—critical for quantitative imaging and measurement workflows.

Key Features

• True stereo Greenough optical architecture with matched dual-objective paths for accurate depth perception and minimal distortion
• 6.7:1 continuous zoom system delivering stable, parfocal magnification from 0.67× to 4.5× (with 10× eyepieces)
• 110 mm working distance—optimized for tool clearance, probe integration, and ergonomic sample handling
• Integrated long-life LED ring illumination with independent top/bottom switching; uniform brightness across all magnifications, no heat emission, and >50,000-hour rated lifetime
• Trinocular observation tube (45° inclination) supporting simultaneous visual observation and digital imaging via C-mount adapter (optional)
• Ergonomic design: adjustable interpupillary distance (52–76 mm), diopter-compensated widefield plan eyepieces (PL10×/22 mm), and bilateral coaxial focus controls with tension adjustment
• Precision linear-guide vertical focusing mechanism with fine-positioning capability and repeatable Z-axis stability
• Modular base compatibility (e.g., ST70A1 auxiliary stage) for customized sample positioning and motorized stage integration

Sample Compatibility & Compliance

The LK-45 and LK-71 accommodate a broad spectrum of opaque, translucent, and semi-reflective specimens—including printed circuit assemblies, solder joints, polymer composites, insect morphology, plant anatomy, forensic evidence, coinage, textile fibers, and surgical tissue preparations. Their open optical configuration supports optional add-ons such as polarizing filters, reticle eyepieces, calibrated stage micrometers, and external fiber-optic illuminators for specialized contrast enhancement. While not certified for clinical diagnostics under IEC 62304 or FDA 510(k), the systems conform to general laboratory equipment safety standards (IEC 61010-1) and are routinely deployed in GLP-compliant environments where instrument qualification (IQ/OQ/PQ) is performed per internal SOPs. Documentation packages include optical calibration certificates traceable to NIM (National Institute of Metrology, China), and firmware logs support audit-ready data integrity when paired with compliant imaging software.

Software & Data Management

When interfaced with standard USB 3.0 or HDMI-compatible digital cameras (e.g., Lei-Tech DC500 series), the microscopes integrate seamlessly with third-party imaging platforms such as Ocular Image Pro, Stream Motion, or open-source tools like Fiji/ImageJ. Measurement functions—including length, angle, area, and particle count—are validated against NIST-traceable stage rulers and support export in TIFF, PNG, and CSV formats. Optional software bundles include timestamped acquisition logging, multi-layer annotation, batch image naming rules, and report generation templates aligned with ISO/IEC 17025 documentation requirements. All digital outputs retain EXIF metadata (magnification, illumination mode, date/time), enabling full traceability in regulated QC/QA settings.

Applications

• Electronics manufacturing: SMT component placement verification, solder joint inspection (IPC-A-610), PCB defect mapping, and wire bonding assessment
• Biomedical research: Small-animal dissection, embryology staging, histological grossing, and microsurgical training
• Materials characterization: Fracture surface analysis, coating thickness estimation, fiber morphology evaluation, and corrosion pattern documentation
• Forensic science: Toolmark comparison, gunshot residue distribution, document examination, and trace evidence recovery
• Education & training: Undergraduate microscopy labs, vocational technical programs, and industrial apprenticeship curricula requiring durable, serviceable instrumentation

FAQ

What is the difference between the LK-45 and LK-71 models?
Both share identical optical specifications and mechanical architecture; the LK-71 includes an upgraded trinocular tube with enhanced light-splitting efficiency for higher-resolution imaging applications, while the LK-45 is optimized for routine visual inspection with cost-effective configuration.
Can these microscopes be used with fluorescence or polarized light?
Yes—optional filter cubes (e.g., FITC/TRITC sets) and polarizer/analyzer kits are available as accessories; however, native fluorescence excitation requires external lamp housings (e.g., mercury or LED-based), as the standard LED ring provides only white-light illumination.
Is software included for image measurement and reporting?
Basic capture utilities are provided free-of-charge; advanced metrology and compliance-reporting modules are licensed separately and validated for use in ISO 13485 or GMP-aligned environments.
What warranty and service support is offered internationally?
Lei-Tech provides a 24-month limited warranty covering parts and labor; global service network includes regional technical hubs in Germany, Singapore, and Mexico, with remote diagnostics and on-site engineer dispatch available under extended service agreements.
Are replacement objectives or auxiliary lenses available?
Yes—0.5× and 2.0× auxiliary objectives extend total magnification range to 0.34×–9.0×; telecentric adapters and long-working-distance objectives (e.g., 200 mm WD) are also supported upon request.
