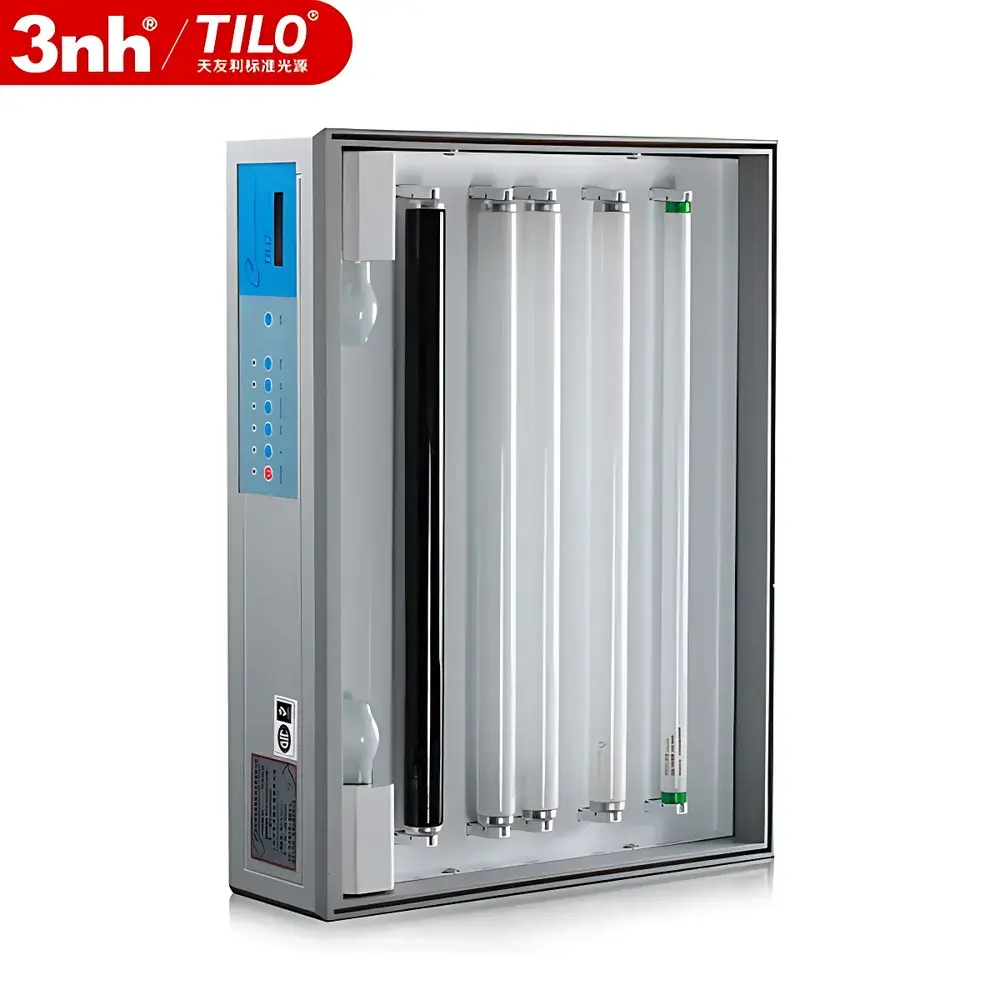

TILO M60 American Standard Color Matching Cabinet

Overview

The TILO M60 American Standard Color Matching Cabinet is an engineered optical evaluation system designed to replicate standardized illumination conditions essential for accurate color assessment in industrial quality control, textile manufacturing, paint formulation, plastics processing, and graphic arts. Built upon the ASTM D1729, ISO 3664:2009, and ANSI IT8.7/2–2018 specifications for viewing environment, the M60 implements a precisely calibrated multi-source lighting architecture to support metamerism analysis, color consistency verification, and spectral match validation under controlled photometric conditions. Unlike basic light booths relying on unregulated lamp aging or inconsistent CCT/CRF performance, the M60 integrates factory-aligned spectral power distribution (SPD) profiles for each source—ensuring traceable compliance with U.S. industry-standard illuminants including D65 (daylight simulator), TL84 (cool white fluorescent, retail lighting), CWF (cool white fluorescent, general office), U30 (warm white fluorescent), A (incandescent/tungsten), and UV (ultraviolet fluorescence excitation). Its solid-state electronic ballast design eliminates warm-up delays and flicker, enabling immediate visual evaluation without photoreceptor adaptation lag—a critical requirement in high-throughput QC labs operating under GLP or ISO/IEC 17025-accredited workflows.

Key Features

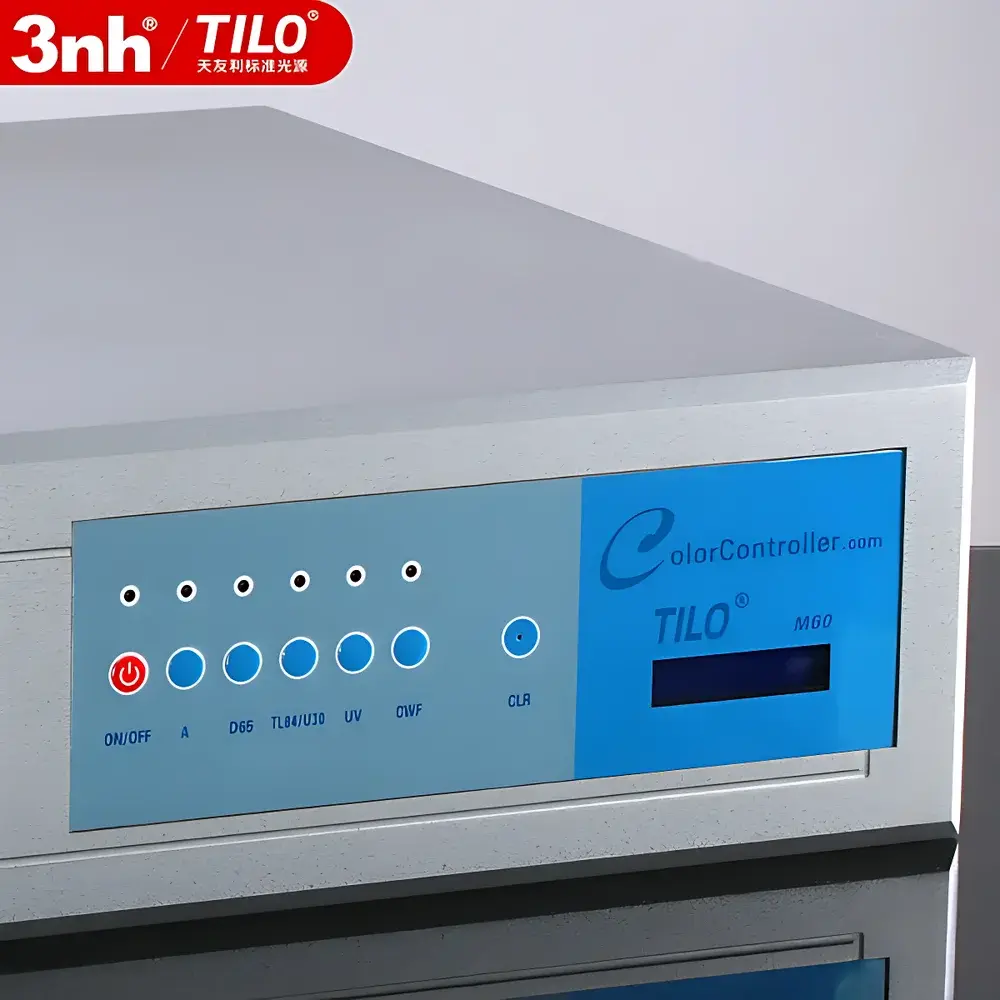

• Real-time source monitoring: LED display shows cumulative operational hours, source name, and switch-cycle count for each lamp—enabling predictive maintenance and audit-ready usage logging.
• Programmable automatic source sequencing: Supports timed or manual switching between all six installed illuminants; includes synchronized dual-source mode for simultaneous comparison (e.g., D65 + TL84) to detect metamerism.
• Flicker-free instant-on operation: No preheating required; stable photometric output achieved within <100 ms of activation—critical for reducing operator fatigue during extended evaluation sessions.
• Thermally passive design: Low-power electronic ballasts generate negligible heat; no forced-air cooling required—preserving sample integrity and minimizing ambient thermal drift in climate-controlled viewing rooms.
• U.S. II-type compliant lamp configuration: Equipped with original-specification lamps meeting IESNA LM-9 and CIE S 012/E-2004 spectral fidelity criteria for American-standard color matching environments.
• ISO 9001:2015 certified manufacturing process: All units undergo individual photometric calibration and spectral verification prior to shipment; calibration certificates available upon request.

Sample Compatibility & Compliance

The M60 accommodates standard-sized physical samples up to 300 mm × 300 mm placed on its matte-black, non-reflective work surface (L* ≈ 5.2 per CIE LAB). Its interior geometry conforms to ISO 3664:2009 requirements for viewing booth geometry, including 20° ± 5° viewing angle, 75% minimum diffuse reflectance ceiling, and 60% ± 10% wall reflectance. The cabinet meets ASTM D1729 Class I criteria for color-matching applications requiring “high confidence” visual evaluation. Lamp spectral outputs are validated against NIST-traceable reference spectroradiometers, ensuring repeatability across instruments and laboratories. For regulated industries—including FDA-regulated medical device packaging or automotive OEM supply chains—the M60 supports documentation packages aligned with 21 CFR Part 11 audit trails when integrated with TILO’s optional LabView-compatible data logger.

Software & Data Management

While the M60 operates as a standalone hardware platform, its embedded microcontroller enables RS-232/USB interface connectivity for integration into centralized lab management systems. Optional TILO ColorLink™ software (v3.2+) provides remote lamp life tracking, automated compliance reporting (including ISO 3664 pass/fail status per session), and export of timestamped source-switch logs in CSV or XML format. All firmware updates are digitally signed and version-locked to prevent unauthorized modification—supporting internal IT security policies and external GxP audits. Audit trail records include user ID, timestamp, source selection event, duration, and system health flags—fully compliant with ALCOA+ principles for data integrity.

Applications

• Textile and apparel: Shade sorting, batch-to-batch color approval, and dye lot validation under retail-relevant TL84 and CWF lighting.
• Packaging printing: Spot color verification on flexographic and offset substrates under D65 and U30 to simulate shelf lighting conditions.
• Automotive interiors: Trim component matching under A (interior incandescent) and D65 (daylight) to assess gloss/color interaction effects.
• Plastics compounding: Fluorescent additive evaluation using UV + D65 dual-source mode to quantify brightness gain and hue shift.
• Quality assurance labs: First-article inspection, incoming material release, and supplier dispute resolution with documented illuminant-specific pass/fail decisions.

FAQ

Does the M60 comply with ASTM D1729 and ISO 3664:2009?
Yes—the M60 is configured and calibrated to meet Class I requirements of ASTM D1729 and the viewing condition specifications of ISO 3664:2009, including illuminant spectral power distribution, uniformity, and geometry.
Can lamp aging be tracked and reported for quality audits?
Yes—each light source displays real-time operational hours and switch cycles on the front panel; optional software exports full usage history with ISO 8601 timestamps.
Is UV source output stable and measurable per ISO 105-B02?
Yes—the included UV lamp maintains peak irradiance at 365 nm ±5 nm with ≤10% variation over 1,000 hours; spectral output reports available upon request.
What is the warranty and service support coverage?
TILO provides 24-month limited warranty covering parts and labor; ISO 9001-certified service centers in Shanghai, Guangzhou, and Chengdu offer on-site calibration and lamp replacement with NIST-traceable verification.
Are replacement lamps supplied with spectral certification?
Yes—all TILO-branded replacement lamps ship with individual spectral power distribution reports and batch-level CIE chromaticity coordinates (x,y) measured per CIE 15:2018.
