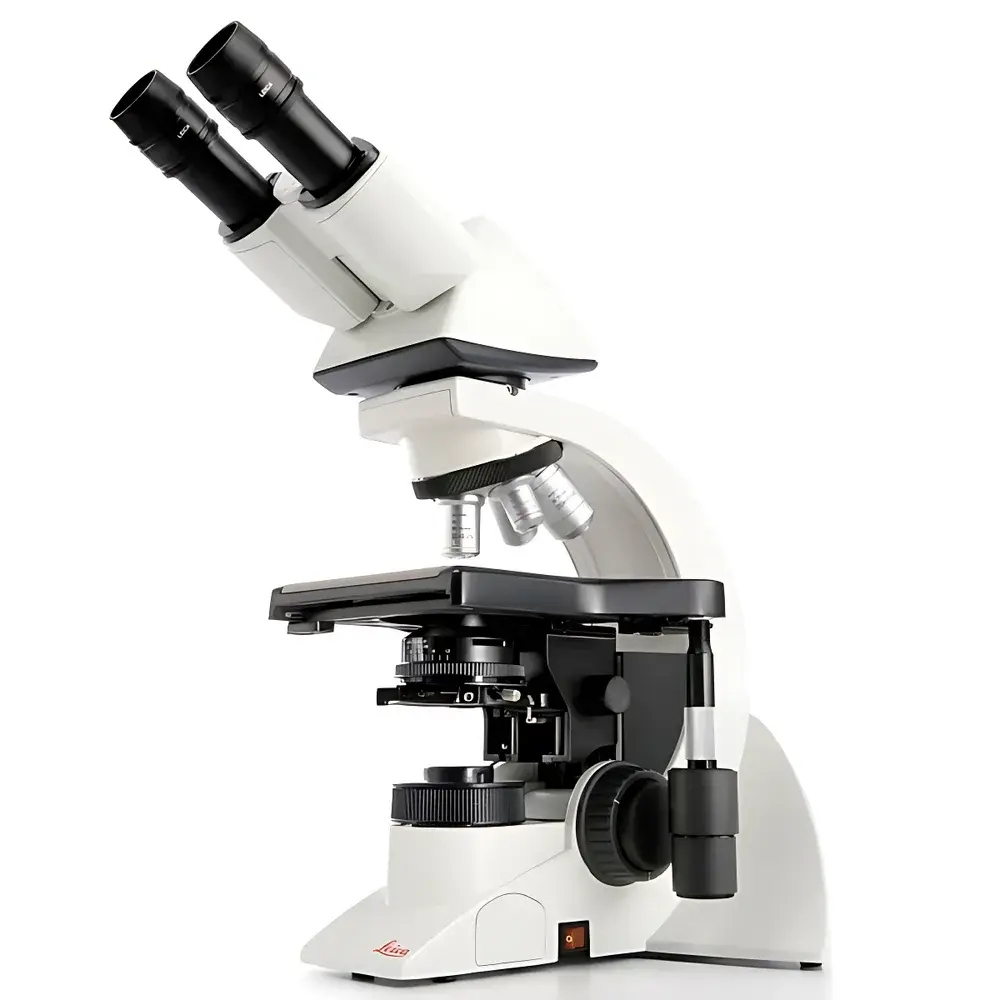

Leica DM1000 LED Biological Microscope

Overview

The Leica DM1000 LED is a high-performance upright biological microscope engineered for routine and advanced life science applications in academic laboratories, clinical pathology departments, and in vitro diagnostic (IVD) settings. It operates on the principle of transmitted brightfield illumination with optional contrast enhancement modules—including phase contrast, darkfield, and polarized light—enabling high-fidelity visualization of unstained and stained biological specimens. Its optical architecture follows Leica Microsystems’ legacy of precision finite-conjugate optics, optimized for consistent resolution, color fidelity, and depth-of-field control across magnifications from 40× to 1000×. The integrated white LED illumination system delivers stable 6,200 K correlated color temperature with >90 CRI, closely approximating natural daylight—critical for accurate morphological assessment in hematology, cytology, and histopathology workflows. Unlike traditional halogen or tungsten-halogen sources, the LED module eliminates thermal drift during extended observation sessions and requires no periodic lamp replacement, supporting uninterrupted GLP-compliant documentation and long-term operational consistency.

Key Features

• Long-life white LED illumination (≥100,000 hours nominal lifetime; ~50 years at 6 h/day operation)
• Low-power consumption (≤5 W), compatible with uninterruptible power supplies and mobile lab configurations
• Ergonomic focus knob with ±30 mm vertical adjustment—customizable for users of varying stature and seated/standing positions
• Modular optical train supporting multiple contrast techniques: brightfield, phase contrast (Ph1–Ph4), darkfield (dry and oil immersion), and polarization
• RMS-threaded objective mount (160 mm tube length), with optional infinity-corrected adapter kits for expanded compatibility
• Color-coded condenser turret (Abbe, swing-out top lens, and phase contrast sliders) for rapid technique switching and reduced procedural errors
• NMPA-registered medical device (Registration No. 100538430 C), compliant with ISO 13485:2016 quality management requirements for IVD use

Sample Compatibility & Compliance

The DM1000 LED accommodates standard glass microscopy slides (76 × 26 mm), Petri dishes (up to 100 mm diameter), and multi-well plates (6–96-well formats) via optional stage adapters. Its mechanical stage supports precise X–Y translation (76 × 50 mm travel) with vernier-scale readout, enabling systematic scanning of tissue sections and blood smears. The system meets essential regulatory benchmarks for clinical microscopy: it is CE-marked per MDD 93/42/EEC, FDA 510(k) cleared for diagnostic microscopy (K192911), and conforms to ISO 8578:2017 (microscope performance testing) and ISO 10993-5 (biocompatibility of stage components). For laboratories operating under CLIA, CAP, or ISO/IEC 17025 frameworks, the instrument’s stable illumination output and repeatable mechanical alignment support documented traceability and inter-operator reproducibility.

Software & Data Management

While the DM1000 LED is a standalone optical platform without built-in digital imaging, it integrates seamlessly with Leica Application Suite (LAS) X via optional USB or HDMI camera interfaces (e.g., Leica DMC2900, DFC450). LAS X v3.7+ provides FDA 21 CFR Part 11–compliant audit trails, electronic signatures, and secure image annotation—enabling full compliance in regulated environments. Metadata embedding (objective magnification, illumination intensity, exposure time, user ID) ensures ALCOA+ data integrity. Export formats include TIFF (uncompressed), JPEG2000 (lossless compression), and DICOM-SR for PACS integration in hospital pathology networks.

Applications

• Clinical cytology: cervical smear screening (Bethesda System), fine-needle aspiration (FNA) interpretation
• Hematology: peripheral blood film analysis, reticulocyte counting, malaria parasite identification
• Pathology: frozen section evaluation, immunohistochemistry (IHC) slide review, tumor grading
• Academic research: live-cell observation (non-invasive brightfield), mitotic index quantification, microbial morphology studies
• In vitro diagnostics: CLIA-waived assays requiring manual microscopic confirmation (e.g., urinalysis sediment analysis, semen analysis)

FAQ

Is the DM1000 LED suitable for fluorescence applications?
No—this model lacks excitation filter cubes, dichroic mirrors, or high-intensity mercury/xenon lamp compatibility. Fluorescence-capable variants include the Leica DM3000 or DM6 B.
Can third-party objectives be mounted on the DM1000 LED?
Yes, RMS-threaded objectives (160 mm tube length) from Olympus, Nikon, or Zeiss are mechanically compatible; however, chromatic correction and field flatness may vary outside Leica-certified optics.
Does the LED illumination require external cooling or ventilation?
No—the thermally passive design dissipates heat via aluminum housing conduction; no fans or airflow pathways are required, minimizing vibration-induced image blur.
What regulatory documentation is supplied with the instrument?
Each unit ships with EU Declaration of Conformity, FDA 510(k) summary, NMPA registration certificate, ISO 13485 quality system evidence, and calibration verification report per ISO/IEC 17025-accredited provider.
Is service and technical support available globally?
Yes—Leica Microsystems maintains authorized service centers in >60 countries; remote diagnostics and on-site preventive maintenance contracts are available under Leica ServiceCare agreements.
