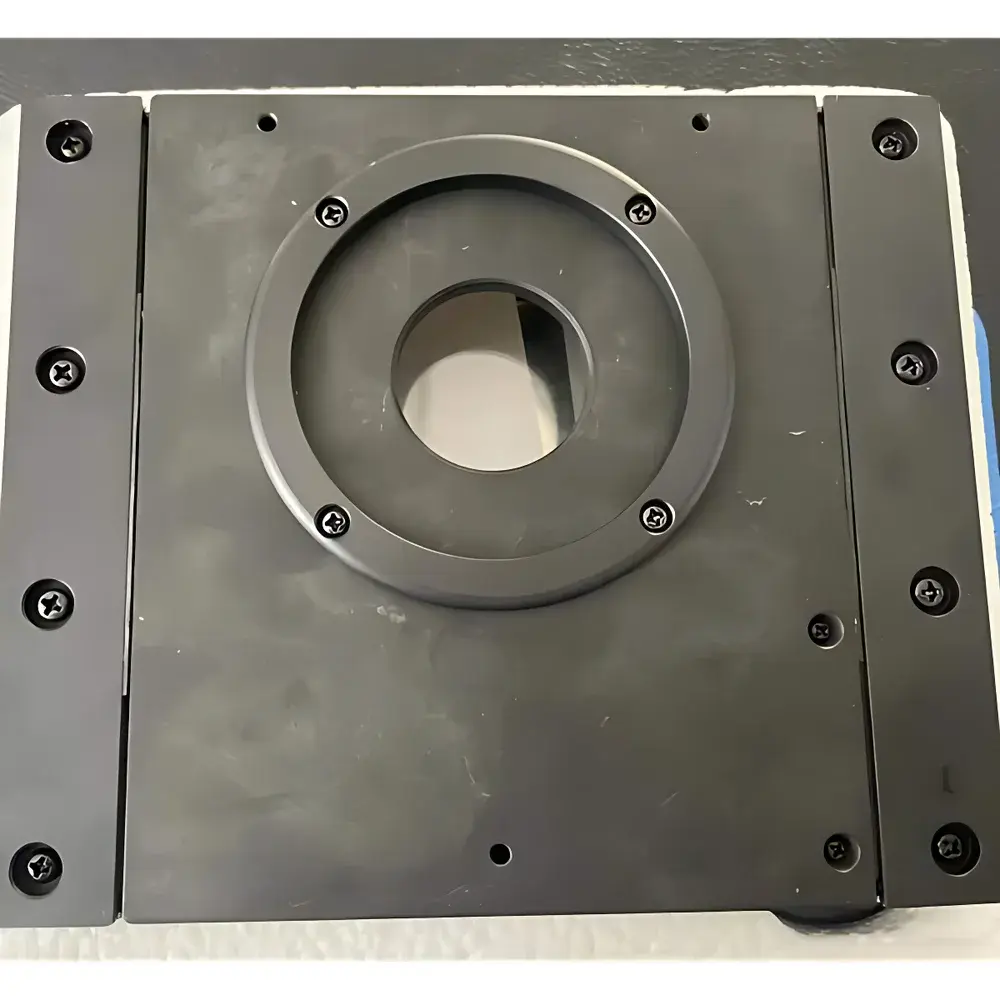

Leica Stereo Microscope Motorized XY Stage

Overview

The Leica Stereo Microscope Motorized XY Stage is a precision-engineered mechanical stage designed exclusively for integration with Leica M-series and Z-series stereo microscopes. Built in Germany to Leica’s stringent optical-mechanical specifications, this motorized translation stage enables high-accuracy, repeatable X-Y positioning of specimens under stereoscopic observation. It operates on the principle of synchronized stepper-motor-driven linear motion with integrated position feedback, ensuring sub-micron repeatability and minimal backlash across its full travel range. The stage is optimized for applications requiring systematic scanning, multi-point imaging, tile-based stitching, and automated inspection workflows—particularly in metallurgical sample documentation, PCB failure analysis, biological dissection mapping, and quality control of micro-assembled components. Its rigid aluminum alloy chassis and low-profile design maintain optical axis alignment and minimize vibration coupling, preserving image stability during live acquisition.

Key Features

• Motorized dual-axis (X and Y) translation with programmable step resolution down to 0.1 µm
• Travel range of 100 mm × 100 mm (standard configuration), expandable via modular rail extensions
• Integrated encoder feedback for closed-loop positional accuracy and real-time coordinate reporting
• Native compatibility with Leica Application Suite (LAS X) and LAS X Live software platforms
• RS-232 and USB 2.0 interfaces for bidirectional communication with microscope control units and external automation systems
• Zero-backlash crossed-roller bearing guidance system for smooth, wear-resistant motion over extended duty cycles
• Quick-release dovetail mount compliant with Leica MZ10F, M205 FA, M205 A, and Z16 stereo microscope stands

Sample Compatibility & Compliance

The stage accommodates standard petri dishes (up to 150 mm diameter), glass slides (76 × 26 mm and 76 × 52 mm), wafer carriers (up to 200 mm), and custom fixtures secured via M4 threaded holes on the stage surface. It supports both transmitted and reflected illumination configurations without obstruction of light paths. From a regulatory standpoint, the stage conforms to IEC 61000-6-2 (immunity) and IEC 61000-6-3 (emission) standards for laboratory equipment. When used within validated Leica microscopy workflows, it supports GLP and GMP documentation requirements—including audit trails, user access logs, and parameter change history—as enabled through LAS X software with 21 CFR Part 11-compliant electronic signature modules.

Software & Data Management

Control and synchronization are fully managed via Leica’s LAS X platform, which provides scripting support (Python-based macro engine) for custom stage sequencing, coordinate-triggered image capture, and multi-location Z-stack acquisition. The stage integrates seamlessly into Leica’s TileScan and MultiFocus modules, enabling automatic mosaic generation across large-area specimens with hardware-synchronized focus tracking. All positional metadata (X, Y, Z, timestamp, user ID) is embedded directly into TIFF and LIF file headers, ensuring traceability in downstream analysis pipelines. Export options include CSV trajectory logs, JSON-formatted coordinate sets, and XML-based experiment definitions compatible with LIMS and ELN systems.

Applications

• Automated documentation of metallographic samples per ASTM E3, ISO 643, and ASTM E112 grain size analysis protocols
• High-fidelity PCB solder joint inspection and defect mapping in accordance with IPC-A-610 and J-STD-001
• Serial sectioning alignment and reconstruction in neuroanatomy and developmental biology studies
• Non-destructive evaluation of composite layup integrity and fiber orientation in aerospace QA environments
• Calibration verification of coordinate measuring machines (CMMs) using certified reference artifacts placed on the stage

FAQ

Is this stage compatible with third-party microscope systems?
No—it is mechanically and electronically engineered for native integration only with Leica stereo microscope models featuring the proprietary M-System or Z-System mounting interface and digital control bus.
Can the stage be operated manually when power is unavailable?
Yes—dual precision micrometer knobs provide manual coarse/fine adjustment independent of motor power, maintaining full mechanical functionality during maintenance or emergency operation.
Does the stage support Z-axis focus synchronization?
Not natively; however, when paired with Leica’s motorized focus drive (e.g., Z-drive module), coordinated XYZ motion is achievable via LAS X scripting or hardware trigger signals.
What is the maximum load capacity at rated accuracy?
1.5 kg uniformly distributed, with positional deviation ≤ ±0.5 µm over full travel at 23 °C ambient temperature and <60% RH.
Is firmware update capability available?
Yes—firmware updates are delivered through Leica’s official Service Portal and applied via LAS X software with authenticated service credentials.
