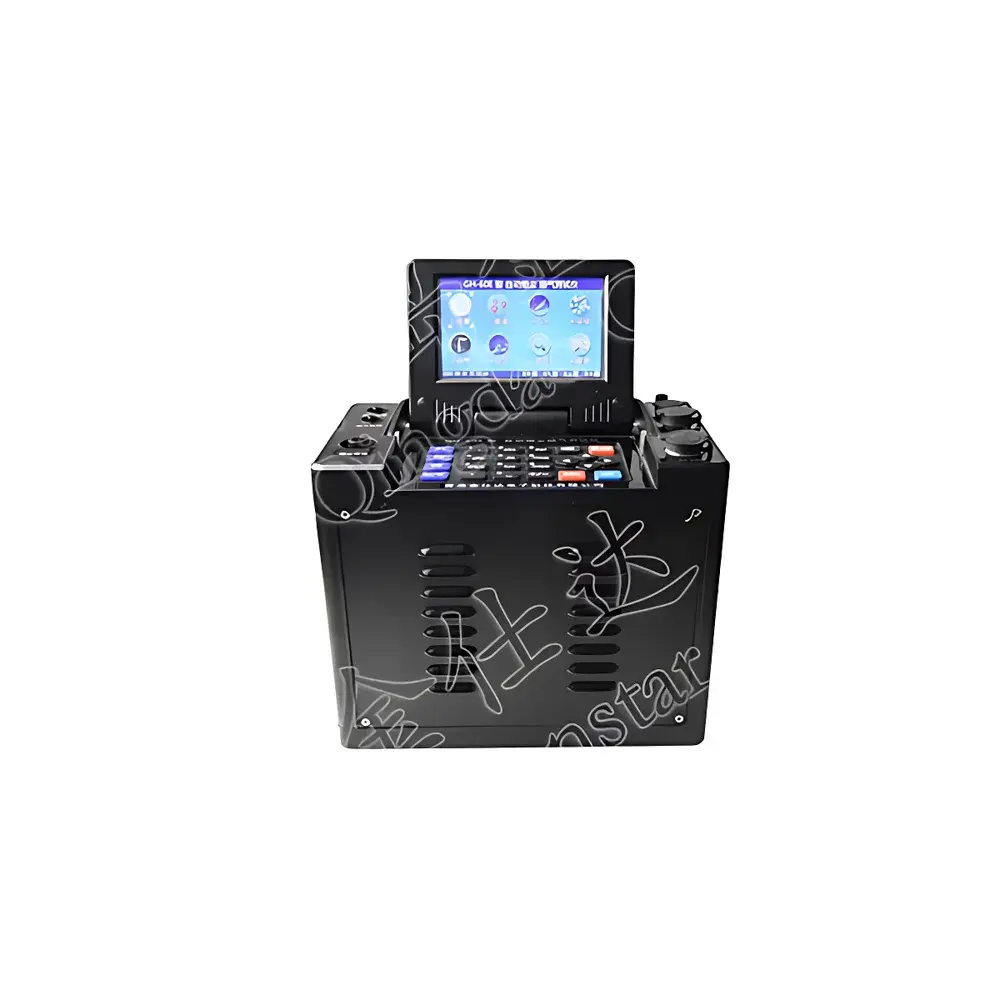

Genetec GH-60E Portable Flue Gas and Particulate Emission Analyzer

Overview

The Genetec GH-60E is a field-deployable, integrated emission monitoring instrument engineered for regulatory-compliant measurement of both particulate matter (PM) and gaseous pollutants from fixed combustion sources. It operates on three core analytical principles: isokinetic sampling via Pitot tube-based velocity profiling, gravimetric determination of particulate mass concentration (per ASTM D6331 and ISO 9096 equivalents), and electrochemical gas sensing using potentiostatic electrolysis for real-time quantification of O₂, SO₂, CO, NO, NO₂, H₂S, and CO₂. The system concurrently acquires flue gas temperature, static/dynamic pressure, moisture content (via optional capacitive probe), and volumetric flow—enabling full stack gas composition and emission rate calculation per EPA Method 5, ISO 12141, and EU EN 13284-1 frameworks. Its compact, battery-powered architecture supports unattended operation up to 4 hours, with robust thermal management for ambient operation between −20 °C and 50 °C.

Key Features

• Simultaneous isokinetic particulate sampling and multi-gas analysis—ensuring spatially and temporally aligned data acquisition from the same flue cross-section.
• Dual-chamber diaphragm sampling pump delivering stable flow across the full 5–80 L/min range, with low power draw (<12 W) and extended runtime on internal Li-ion battery.
• Integrated large-volume filtration chamber with visual inspection window and quick-release filter cartridge—designed for high-moisture, high-dust environments; compatible with quartz fiber filters (e.g., Pallflex Tissuquartz QAT-UP) per HJ 836-2017 and ISO 12141.
• Corrosion-resistant PTFE-lined gas transport lines and stainless-steel composite desiccant dryer—minimizing analyte adsorption and condensate carryover during wet flue gas sampling.
• High-brightness, multi-angle rotating color touchscreen (7-inch, 1024×600) with IP65-rated front panel—supporting glove-compatible touch and tactile key input under field conditions.
• Modular electrochemical sensor modules with embedded signal conditioning—each sensor pre-calibrated at factory; zero/re-span verification only required per HJ 693-2014 and HJ 57-2017 intervals.
• Automatic cross-interference compensation algorithms—for example, CO-induced SO₂ drift correction and NO₂–SO₂ spectral overlap mitigation—validated against certified gas standards.
• Onboard data logging capacity exceeding 1 million records, with timestamped metadata including stack geometry, traverse points, and calibration history.
• Comprehensive fault diagnostics and self-test routines—including pump vacuum integrity check, sensor baseline validation, and moisture trap saturation alert.
• Configurable data export: USB mass storage mode, direct thermal printing (optional), and Bluetooth 5.0 wireless transmission (optional) compliant with IEEE 802.15.1 for secure pairing with lab PCs or cloud gateways.

Sample Compatibility & Compliance

The GH-60E meets or exceeds the technical requirements of major national and international emission monitoring standards, including GB/T 16157-1996 (equivalent to ISO 9096), HJ 836-2017 (low-concentration PM gravimetry), HJ 693-2014 (NOₓ by potentiostatic electrolysis), HJ 57-2017 (SO₂), HJ 973-2018 (CO with H₂ interference suppression), and HJ 397-2007 (field QA/QC protocols). It supports compliance with GLP-aligned data integrity practices: all measurements include audit-trail metadata (operator ID, GPS coordinates if equipped, calibration certificate traceability, and environmental timestamps). Filter handling adheres to ISO/IEC 17025 chain-of-custody guidelines when used in accredited laboratories. The instrument’s mechanical design conforms to IEC 61000-4 electromagnetic immunity standards and IP54 ingress protection rating.

Software & Data Management

The embedded firmware implements a deterministic real-time operating system (RTOS) with dual-CPU redundancy and opto-isolated I/O channels to prevent signal corruption in electrically noisy industrial settings. All raw sensor outputs are digitally filtered (5-point moving average + outlier rejection) prior to concentration calculation. Data files are stored in CSV format with UTF-8 encoding and support Chinese character input for site notes and operator annotations. Software includes built-in stack calculation modules for normalized dry/wet basis concentrations, excess air ratio, and emission rate (kg/h) derivation per GB 13271 and EU Directive 2010/75/EU. Exported datasets include full uncertainty propagation per GUM (JCGM 100:2008) for each reported parameter. Optional PC software provides automated report generation compliant with Chinese MEE Form 1–4 templates and supports 21 CFR Part 11 electronic signature configuration.

Applications

The GH-60E is deployed for routine stack testing in coal-fired and biomass boilers, cement kilns, waste incinerators, glass furnaces, and metal smelting facilities. It supports regulatory inspections under China’s “Blue Sky Defense Campaign”, third-party verification for CDM/CCER projects, and continuous compliance monitoring where permanent CEMS installation is impractical. Field researchers use it for source apportionment studies involving PM₂.₅ speciation (when coupled with offline filter analysis), while occupational hygienists apply it for workplace exposure assessment near ducted exhaust systems. Educational institutions utilize its modular architecture for hands-on training in emission sampling theory, gas sensor physics, and environmental metrology.

FAQ

Does the GH-60E comply with U.S. EPA Method 5 and Method 6 for particulate and SO₂ measurement?
The instrument’s gravimetric particulate module aligns with the sampling methodology of EPA Method 5, though final certification requires on-site validation per 40 CFR Part 60 Appendix A. Its SO₂ sensor has been verified against Method 6 reference analyzers in inter-laboratory trials.
Can the unit perform low-concentration PM measurement per HJ 836-2017?
Yes—the system supports quartz filter weighing protocols, isokinetic flow control within ±5% of target velocity, and includes temperature/pressure compensation algorithms required for sub-20 mg/m³ reporting.
Is remote firmware update supported?
Firmware updates are performed via USB drive using signed binary packages; over-the-air (OTA) updates are not implemented for security and regulatory traceability reasons.
What maintenance intervals are recommended for field operation?
Filter cartridges: replaced per sample; desiccant: every 20 hours of wet-gas sampling; electrochemical sensors: 12-month service life with quarterly zero/span checks per HJ 693-2014.
Does the device support GPS geotagging of sampling locations?
An optional external GNSS receiver (UBLOX M8T) can be connected via RS-232; onboard GPS is not integrated to maintain EMC compliance and battery efficiency.
