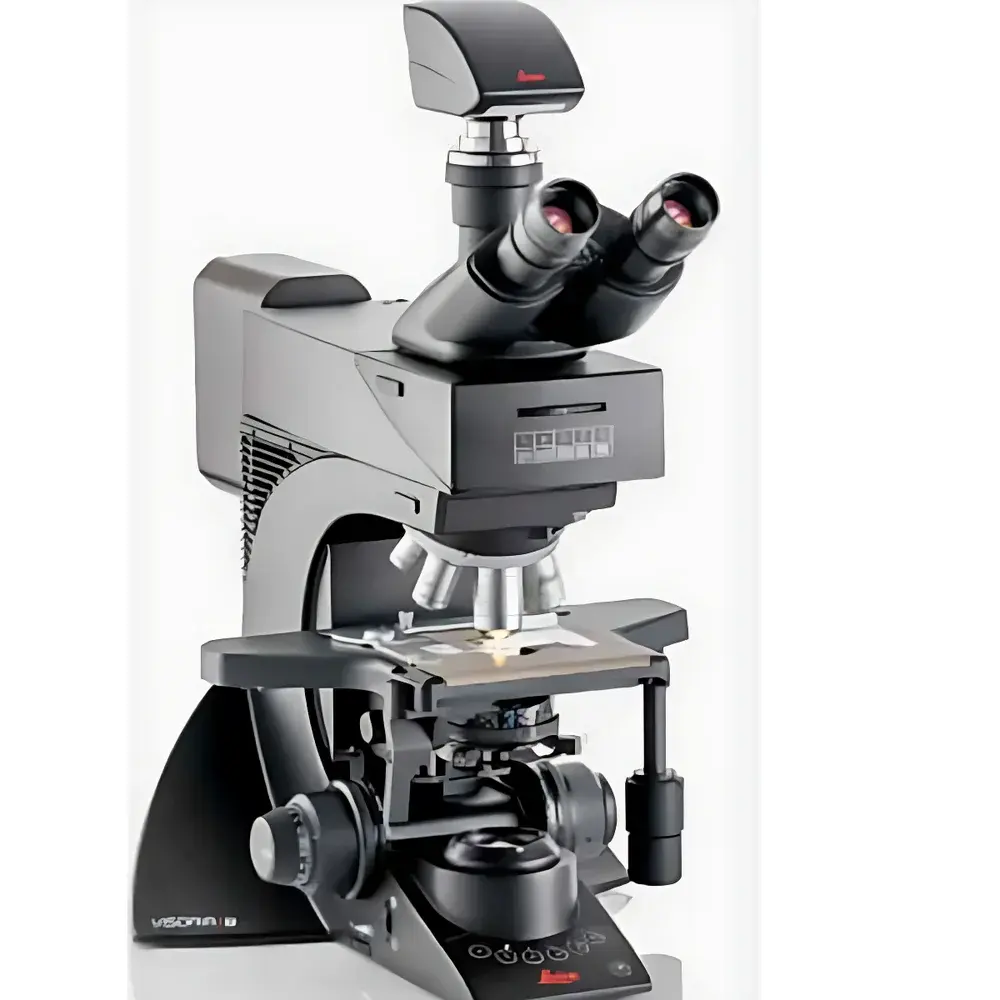

Leica Visoria B Biological Microscope

Overview

The Leica Visoria B Biological Microscope is an entry-level digital upright microscope engineered for routine life science and clinical laboratory applications requiring high operational efficiency, ergonomic sustainability, and reproducible imaging performance. Built on Leica Microsystems’ legacy of optical precision and German manufacturing rigor, the Visoria B employs a fixed-tube, infinity-corrected optical system with high-transmission achromatic objectives and integrated Köhler illumination management. Its core architecture supports five standard contrast modes—brightfield, darkfield, phase contrast, differential interference contrast (DIC), and four-channel fluorescence—enabling subcellular structural visualization across diverse biological specimens without mechanical realignment. Unlike traditional eyepiece-dependent systems, the Visoria B operates in a fully screen-based workflow: real-time imaging is displayed directly on external monitors or tablets via HDMI/USB-C, eliminating ocular strain and enabling collaborative analysis at seated or standing workstations. The system is not designed for confocal or super-resolution modalities but delivers consistent, calibrated image acquisition suitable for histopathology screening, cytology triage, immunohistochemistry (IHC) assessment, and routine microbiological examination.

Key Features

• Ergonomic Workflow Architecture: Symmetrically positioned focus controls, low-positioned stage controls, and adjustable viewing height comply with ISO 9241-5 and EN 614-1 standards to reduce cervical and upper-limb musculoskeletal load during extended use.
• Encoded Illumination Management: Motorized LED illuminator with automatic intensity compensation linked to objective magnification and contrast mode selection—eliminates manual brightness recalibration when switching between 4×, 10×, 20×, and 40× objectives.
• Digital-First Imaging Interface: On-stand image capture button triggers simultaneous saving of raw TIFF/JPEG images with embedded metadata—including objective ID, magnification, illumination mode, exposure time, white balance, and dynamically scaled calibration bar.
• Three-Stage Focus System: Coarse (25 mm travel), medium (5 mm fine range), and fine (0.1 µm step resolution) focusing mechanisms with programmable soft-stop limits to prevent objective–specimen collision.
• Sample Protection Mode: Automatic LED shutdown within 30 seconds after last image acquisition, extending light source lifetime and minimizing phototoxicity in live-cell workflows.
• Color-Coded Aperture Identification: Objective-specific condenser aperture rings with tactile and chromatic differentiation for rapid alignment under brightfield and phase contrast conditions.

Sample Compatibility & Compliance

The Visoria B accommodates standard glass slides (1 × 3 inches), Petri dishes (35–100 mm), multi-well plates (6–96-well), and tissue culture flasks up to 175 cm². Its mechanical stage supports XY translation (76 × 52 mm travel) with optional motorized upgrade for tiled imaging. All optical components meet ISO 8578 (microscope labeling) and DIN EN 61000-6-2/6-3 (electromagnetic compatibility). For regulated environments, the system supports audit-ready documentation per FDA 21 CFR Part 11 through Leica Enersight software, including electronic signatures, immutable metadata logs, and version-controlled protocol templates. It complies with ISO 13485 for in vitro diagnostic (IVD) support functions and adheres to CLSI EP17-A2 guidelines for quantitative microscopy validation in clinical pathology labs.

Software & Data Management

Leica Enersight v3.2 serves as the native imaging platform—deployable on Windows 10/11 or iPadOS 16+. It provides non-destructive image processing pipelines compliant with DICOM Supplement 145 (Microscopy) and supports TIFF, JPEG2000, and OME-TIFF export formats. Core functionalities include flat-field illumination correction (to compensate for vignetting and LED non-uniformity), real-time EDOF (Extended Depth of Field) rendering via Z-stack fusion, XY mosaic stitching (up to 100 tiles), multi-channel fluorescence overlay (up to 4 channels with spectral unmixing presets), and co-registration of brightfield + fluorescence layers. All measurements (area, perimeter, intensity profiles, particle count) are traceable to NIST-traceable stage calibration. Audit trails record user actions, parameter changes, and export events with timestamps and operator IDs—fully compatible with GLP and GMP documentation requirements.

Applications

• Histology & Pathology: Routine H&E, trichrome, and special stain evaluation; tumor grading support via standardized field-of-view consistency and calibrated magnification reporting.
• Cytology & Hematology: Pap smear screening, bone marrow aspirate morphology, peripheral blood film analysis with automated cell boundary enhancement.
• Clinical Microbiology: Gram staining interpretation, fungal hyphae identification, acid-fast bacilli detection using Ziehl–Neelsen contrast optimization.
• Immunohistochemistry (IHC): Semi-quantitative scoring (H-score, Allred) enabled by consistent color deconvolution and dynamic range normalization across batches.
• Immunofluorescence (IF): Multi-marker localization in frozen sections or cultured cells using DAPI/FITC/TRITC/Cy5 channel alignment and bleed-through correction algorithms.
• Plant & Developmental Biology: Root tip mitotic index quantification, stomatal density mapping, and embryo staging via standardized focal plane navigation and annotation tagging.

FAQ

Does the Visoria B support oil immersion objectives?
Yes—compatible with Leica HC PL FLUOTAR 100×/1.30 Oil objectives; requires manual oil application and cleaning protocol adherence per ISO 10993-5 biocompatibility guidance.
Can Enersight software be validated for 21 CFR Part 11 compliance?
Yes—the software includes configurable electronic signature workflows, audit trail export (CSV/XML), and role-based access control (RBAC) meeting FDA validation requirements for regulated laboratories.
Is motorized stage functionality available as an upgrade?
Yes—Leica offers the Visoria B-Motorized Stage Kit (P/N 12345678) with programmable coordinates, memory positions, and integration into Enersight’s tiled imaging module.
What is the maximum supported camera resolution?
The system natively supports up to 5.0 MP monochrome or color CMOS sensors (e.g., Leica DMC2900); higher-resolution cameras require external frame grabber integration and may impact real-time preview latency.
Does the Visoria B meet ISO/IEC 17025 requirements for accredited testing labs?
While the instrument itself is not certified to ISO/IEC 17025, its traceable calibration procedures, documented uncertainty budgets (via Leica Calibration Certificate), and Enersight’s metadata integrity features enable laboratories to fulfill Clause 6.4.10 (Equipment Records) and Clause 7.7 (Reporting of Results) requirements.
