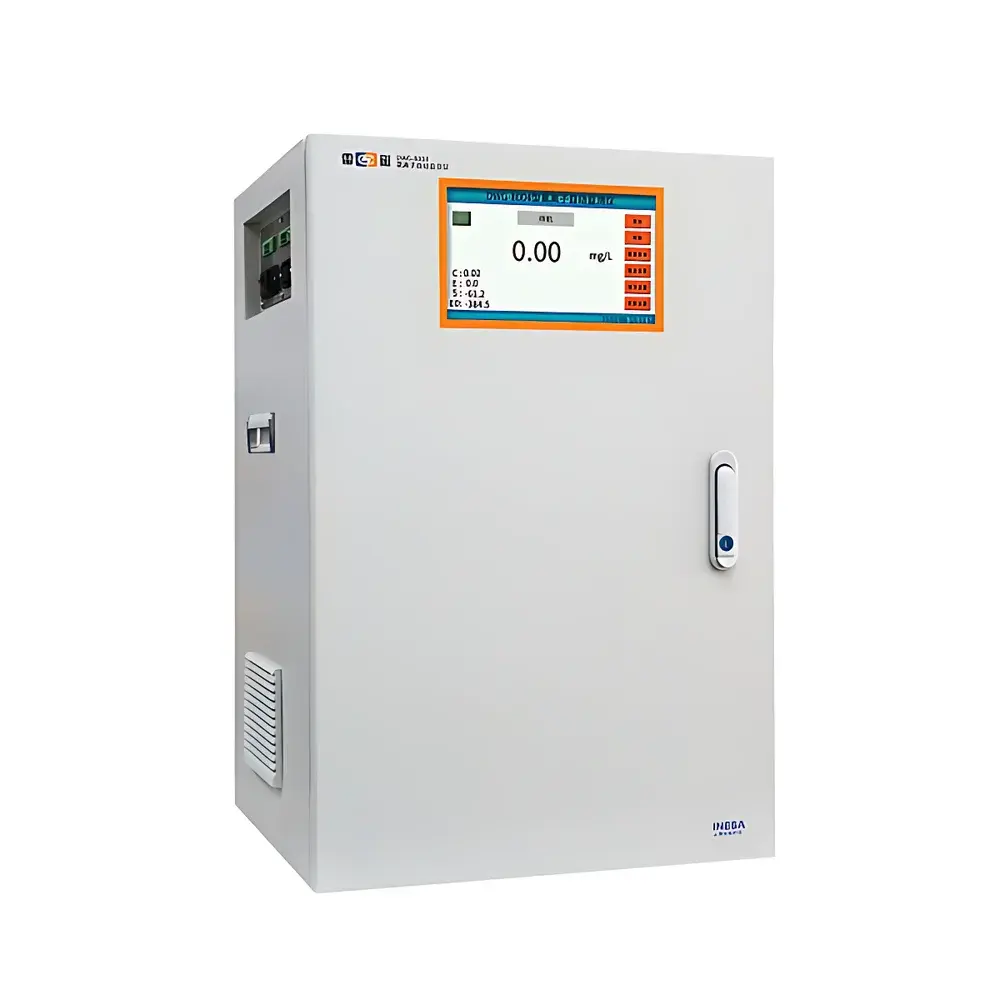

Leici DWG-8004 Online Chloride Ion Monitor

Overview

The Leici DWG-8004 Online Chloride Ion Monitor is an industrial-grade, continuous water quality analyzer engineered for reliable, long-term quantification of chloride ion concentration in natural surface waters, municipal drinking water distribution systems, wastewater effluents, and industrial discharge streams. It operates on the potentiometric principle using a solid-state chloride-selective electrode (CSE) paired with a stable reference electrode—compliant with ISO 10523 and ASTM D512-20 methodologies for ion-selective measurement. The system integrates real-time temperature compensation via an embedded Peltier-controlled thermal module, ensuring measurement integrity across ambient fluctuations typical in unconditioned field installations. Designed for 24/7 operation in Class II environmental enclosures (IP65-rated cabinet), the DWG-8004 meets structural and electrical requirements for fixed-site deployment under IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emission) standards.

Key Features

• Potentiometric detection using a factory-calibrated, low-drift chloride-selective electrode with Ag/AgCl reference system
• Integrated thermoelectric (Peltier) temperature regulation maintaining sample cell at 25.0 ± 0.3 °C—eliminating thermal drift without external chillers or heaters
• 7-inch capacitive-touch TFT display with intuitive Chinese/English bilingual UI; supports multi-level user access (operator, technician, administrator)
• Programmable auto-calibration cycles (interval: 1–168 h); optional single-point or two-point calibration using NIST-traceable KCl standards
• Automated peristaltic cleaning sequence triggered by elapsed time or measurement deviation threshold to minimize fouling in turbid or high-Ca²⁺ matrices
• Dual isolated analog output: fully configurable 4–20 mA signal with independent upper/lower range mapping for SCADA integration
• RS-485 Modbus RTU or RS-232 ASCII protocol support for direct connection to PLCs, DCS, or centralized data loggers
• Non-volatile internal memory retaining ≥100,000 timestamped entries (measurement value, calibration log, alarm event, system status)
• Fail-safe architecture: EEPROM-backed configuration retention, brown-out recovery, and automatic reinitialization after power interruption

Sample Compatibility & Compliance

The DWG-8004 is validated for aqueous matrices with pH 4.0–8.5 and total suspended solids (TSS) < 50 mg/L. It exhibits minimal interference from bromide (<5% signal contribution at [Br⁻]/[Cl⁻] ≤ 1:10), sulfate, nitrate, and common cations (Na⁺, Ca²⁺, Mg²⁺) under standard operating conditions. The instrument conforms to GB/T 32205–2015 (Chinese national standard for online chloride analyzers) and supports audit-ready operation per GLP and ISO/IEC 17025 documentation requirements. All calibration and maintenance events are automatically logged with digital timestamps and user IDs—enabling traceability for regulatory submissions under EPA Method 300.0 and EU Directive 2000/60/EC (Water Framework Directive) monitoring programs.

Software & Data Management

Data export is supported via USB mass storage mode (FAT32-formatted drive) or serial dump through terminal emulation software. The embedded firmware implements cyclic redundancy check (CRC-16) for all stored records and enforces write-protection on historical logs to prevent tampering. Optional Leici DataBridge PC software (v3.2+) provides trend visualization, statistical summary (mean, SD, CV%), and automated report generation compliant with FDA 21 CFR Part 11 Annex 11 requirements—including electronic signatures, audit trails, and role-based permissions. Remote diagnostics via Modbus TCP gateway integration enable predictive maintenance alerts based on electrode impedance trending.

Applications

• Real-time compliance monitoring of chloride discharge limits at municipal wastewater treatment plant (WWTP) outfalls
• Early detection of seawater intrusion in coastal aquifer-fed drinking water intakes
• Process control of de-icing salt runoff in stormwater retention basins
• Monitoring chloride breakthrough in ion exchange resin beds used for boiler feedwater pretreatment
• Regulatory reporting for industrial effluent permits (e.g., NPDES, UK EA Environmental Permitting Regulations)
• Long-term trend analysis in lake and reservoir trophic state assessment programs

FAQ

What sample pretreatment is required prior to analysis?
No filtration or chemical conditioning is necessary for clarified waters; however, for samples with >20 mg/L TSS or visible particulates, a 50-µm inline filter is recommended upstream of the flow cell.
Can the DWG-8004 be integrated into an existing SCADA system?
Yes—via its isolated 4–20 mA output (HART-enabled upon request) or Modbus RTU over RS-485, with register mapping documentation provided in the Engineering Manual.
How often must the chloride electrode be replaced?
Under typical freshwater applications, the solid-contact CSE demonstrates ≥18 months of stable performance; replacement interval extends to 24+ months in low-conductivity, low-oxidant environments.
Is validation against certified reference materials (CRMs) supported?
Yes—the system accepts CRM traceability certificates aligned with ISO Guide 35, and calibration verification reports can be exported in CSV or PDF format with digital signature fields.
Does the instrument support remote firmware updates?
Firmware upgrades require local USB interface access and authenticated admin credentials; over-the-air (OTA) updates are not implemented for security and regulatory validation reasons.
