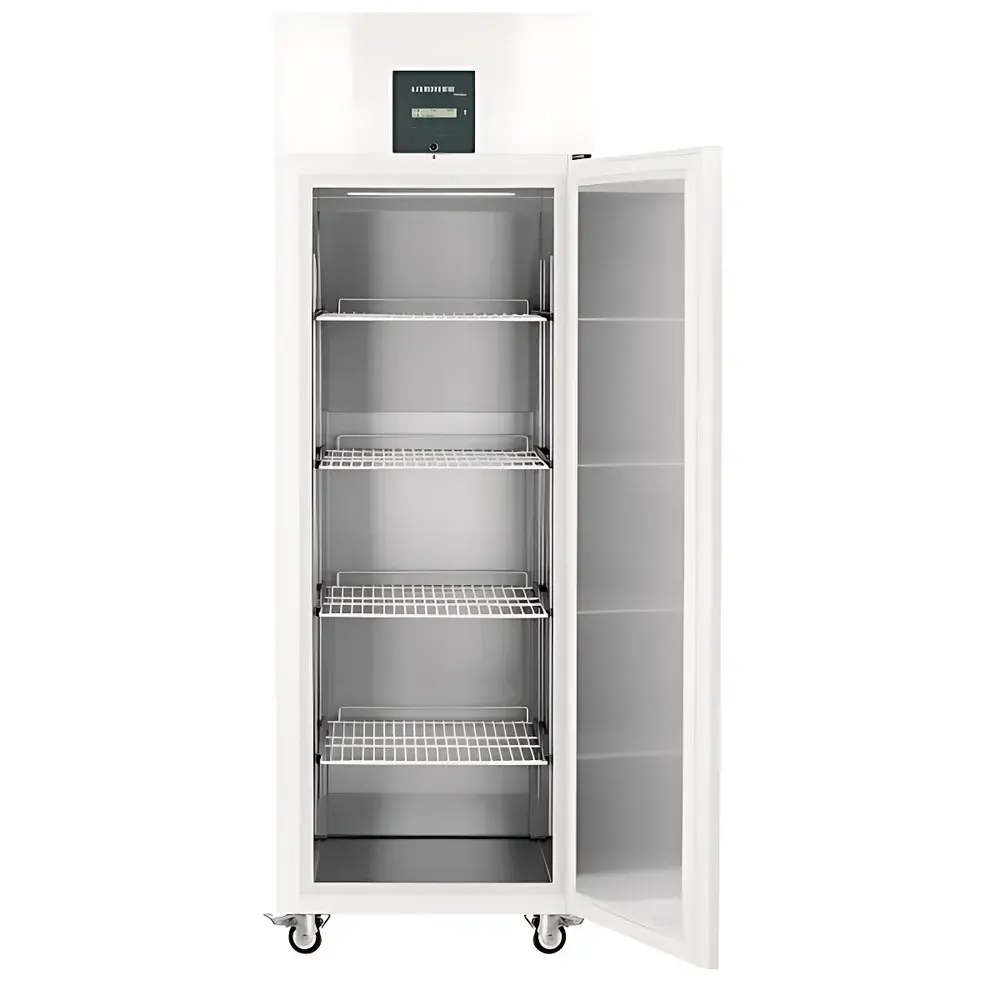

Liebherr LKPv 6520 Flagship Laboratory Refrigerator

Overview

The Liebherr LKPv 6520 Flagship Laboratory Refrigerator is a CE-certified, European-manufactured cold storage solution engineered specifically for mission-critical life science applications requiring stable, uniform, and traceable temperature conditions between –2 °C and +16 °C. Designed in accordance with ISO 13485 and aligned with Good Laboratory Practice (GLP) and Good Manufacturing Practice (GMP) environmental control requirements, this unit employs forced-air circulation with rear-wall air guidance to ensure ≤±1 °C temperature uniformity across its 597 L net volume. Its core architecture integrates a high-efficiency 83 mm polyurethane insulation layer, a low-GWP natural refrigerant (R600a), and a precision electronic control system featuring 0.1 °C setpoint resolution—enabling reliable preservation of temperature-sensitive biologicals including monoclonal antibodies, cell culture media, primary tissues, enzymatic reagents, clinical serum samples, and diagnostic assay kits.

Key Features

• Monolithic stainless steel side walls (0.7 mm gauge) eliminate seams and crevices—enhancing structural integrity, hygiene, and resistance to impact during transport and daily lab use.
• Spot-welded rear panel improves cabinet rigidity and minimizes thermal bridging.
• Self-closing door with SwingLine beveled edge design reduces mechanical stress on hinges and gasket, extending service life and maintaining seal integrity over >100,000 cycles.
• Dual-key mechanical lock prevents unauthorized access; compliant with institutional biosafety and data integrity policies.
• Four independent alarm channels (temperature excursion, door ajar, sensor failure, power loss) trigger audible/visual alerts and can be configured for remote notification via optional relay or RS485 integration.
• Removable U-shaped sliding shelves allow flexible vertical positioning at 27.5 mm increments and support up to 60 kg per shelf—optimized for stacked cryoboxes, multiwell plates, and large-volume media bottles.
• Hygienic interior lining resists acids, solvents, and common disinfectants (e.g., 70% ethanol, 1% sodium hypochlorite); fully autoclavable shelf components available upon request.
• Calibration port enables connection of an NIST-traceable external probe for independent verification—supporting audit readiness under FDA 21 CFR Part 11 and ISO/IEC 17025 requirements.

Sample Compatibility & Compliance

The LKPv 6520 maintains thermal stability essential for preserving molecular integrity of diverse biospecimens. It is routinely deployed in academic research laboratories, pharmaceutical QC/QA environments, biobanks, public health laboratories (e.g., CDC-affiliated facilities), and contract development and manufacturing organizations (CDMOs). The unit complies with IEC 61010-1 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use) and meets the environmental classification per EN 60068-2-1 (cold test) and EN 60068-2-2 (dry heat). Its data logging functionality records timestamped temperature values at user-defined intervals (default: 10-minute intervals), retaining ≥12 months of continuous history in non-volatile memory—fully compatible with electronic lab notebook (ELN) and LIMS integration workflows.

Software & Data Management

No proprietary software installation is required. Temperature logs are accessible via front-panel display or exported as CSV files using the built-in USB port. For enterprise-scale deployment, the RS485 interface supports Modbus RTU protocol, enabling centralized monitoring of up to 20 LKPv units through third-party SCADA or environmental monitoring systems (EMS). All logged parameters—including setpoint, actual chamber temperature, compressor runtime, defrost cycle timestamps, and alarm events—are time-stamped with millisecond precision and include cryptographic checksums to prevent tampering—meeting ALCOA+ (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) data integrity principles.

Applications

• Long-term storage of clinical specimens (serum, plasma, CSF) under CLIA- and CAP-accredited conditions.
• Stabilization of thermolabile enzymes, cytokines, and recombinant proteins prior to functional assays.
• Holding zone for pre-chilled reagents in flow cytometry, ELISA, and qPCR workflows.
• Controlled-temperature staging for microbial culture media preparation and quality release testing.
• Buffer and standard solution storage in analytical chemistry labs complying with USP Analytical Instrument Qualification guidelines.
• Secure short-term retention of investigational medicinal products (IMPs) in early-phase clinical trial logistics.

FAQ

Is the LKPv 6520 suitable for storing flammable solvents?

No. This unit is not explosion-proof and lacks ATEX certification. Flammable liquid storage requires dedicated safety refrigerators meeting UL 4750 or EN 14460 standards.
Can the internal temperature be validated using a 3rd-party calibrated probe?

Yes. A dedicated calibration port allows insertion of an external NIST-traceable PT100 or thermistor probe without compromising door seal integrity.
Does the unit support 21 CFR Part 11 compliance?

While the hardware supports audit-trail generation (user ID, timestamp, parameter change), full Part 11 compliance requires implementation of procedural controls (e.g., role-based access, electronic signatures) within your organization’s validated IT infrastructure.
What maintenance is required beyond routine cleaning?

Annual inspection of condenser coil cleanliness, door gasket compression force, and alarm functionality is recommended. Liebherr-certified technicians perform preventive maintenance per ISO/IEC 17025-accredited procedures.
Is remote monitoring possible without additional hardware?

RS485 output is standard; however, integration with networked EMS platforms requires a protocol converter (e.g., RS485-to-Ethernet gateway) and configuration by qualified systems personnel.
