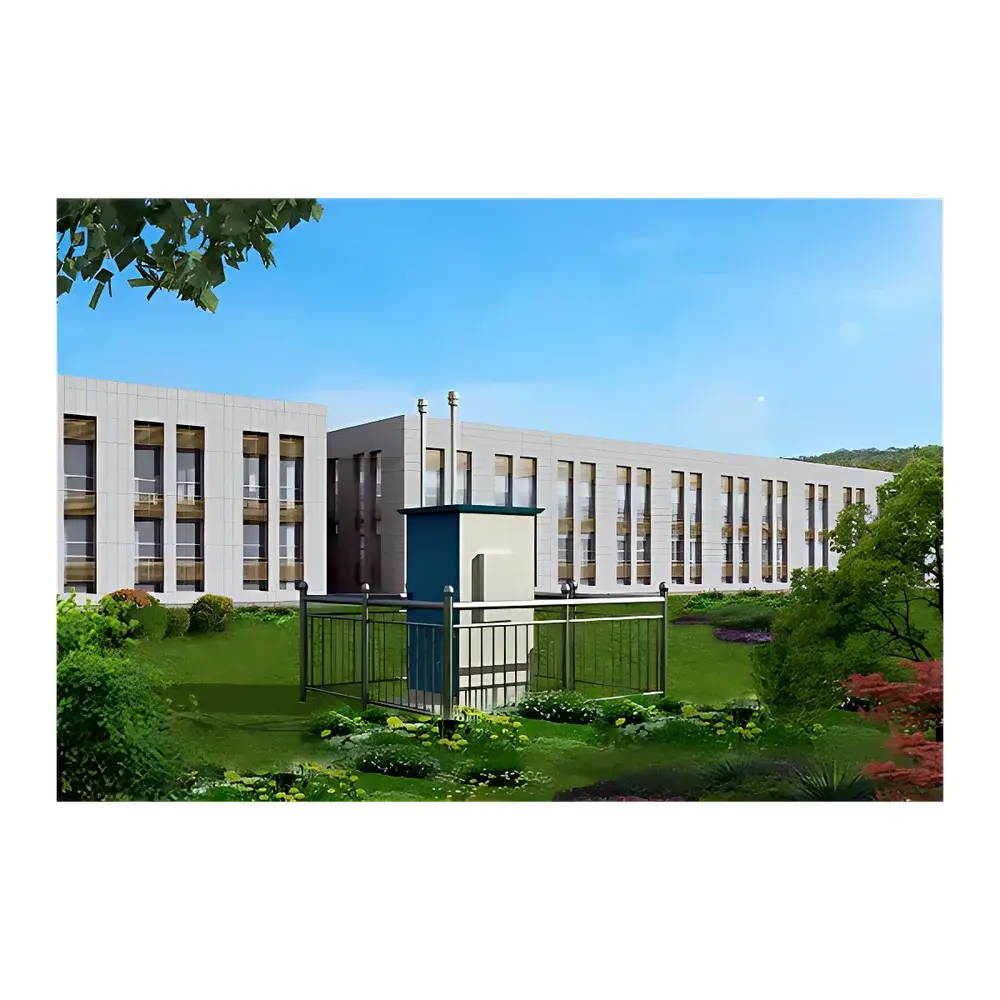

Lihero NMHC Boundary Integrated Monitoring System

Overview

The Lihero NMHC Boundary Integrated Monitoring System is a turnkey environmental monitoring solution engineered for continuous, real-time measurement of Non-Methane Hydrocarbons (NMHC) at industrial park boundaries and emission-sensitive perimeters. Built upon the principle of gas chromatography coupled with flame ionization detection (GC-FID), the system delivers high-sensitivity, selective quantification of total non-methane volatile organic compounds (VOCs) in ambient air—excluding methane—per regulatory definitions under Chinese national standards (e.g., HJ 604–2017, HJ 1013–2018) and aligned with international NMHC reporting frameworks. The system integrates atmospheric sampling, on-line GC-FID analysis, dynamic calibration, carrier gas supply, meteorological parameter acquisition, and centralized data handling into a single robust architecture designed for unattended operation in outdoor industrial environments.

Key Features

• Regulatory-Compliant Direct Measurement: Implements standardized direct injection GC-FID methodology per HJ 604–2017, eliminating derivatization or pre-concentration artifacts and ensuring traceability to national reference methods.
• Cryogenic Preconcentration Module: Equipped with low-temperature (–30 °C to –40 °C) adsorbent trap enrichment prior to GC separation, enhancing detection sensitivity down to sub-ppb (v/v) levels for C₂–C₁₂ hydrocarbons without compromising cycle time.
• Auto-Reignition & Fault Recovery: Integrated FID flame supervision logic detects flameout events (e.g., due to gas pressure fluctuation or moisture ingress) and executes fully automated reignition sequences with post-restart baseline stabilization and zero/span verification—minimizing downtime and preserving data continuity.
• Comprehensive Operational Logging: Embedded controller maintains timestamped, tamper-resistant logs including instrument status, valve actuation history, temperature profiles, FID signal stability metrics, and full chromatographic raw data (peak tables + digitized chromatograms) stored locally for ≥90 days.
• Multi-Parameter Environmental Synchronization: Co-located meteorological sensor suite (wind speed/direction, temperature, relative humidity, atmospheric pressure) enables spatiotemporal correlation of NMHC concentration spikes with dispersion conditions—critical for source attribution modeling and fence-line compliance assessment.

Sample Compatibility & Compliance

The system is validated for ambient air matrices across temperature ranges of –20 °C to +50 °C and relative humidity up to 95% RH (non-condensing). Sample introduction utilizes inert, heated (60 °C) stainless-steel or fused-silica sampling lines with particulate filtration (≤2.5 µm) and moisture removal (membrane dryer or Nafion-based). All analytical procedures comply with the method performance criteria outlined in HJ 1013–2018 for online NMHC monitoring systems. Data integrity safeguards—including audit trails, electronic signatures, and user-access controls—support alignment with GLP principles and facilitate readiness for environmental regulatory audits (e.g., MEP inspections, provincial ECAs).

Software & Data Management

The embedded Linux-based data acquisition and analysis platform provides real-time chromatogram visualization, automatic peak integration using retention time locking (RTL), and NMHC calculation via methane subtraction (CH₄ measured separately or estimated from background calibration). Raw and processed data are structured in CSV and XML formats compliant with China’s “Environmental Monitoring Data Transmission Technical Specification” (HJ 212–2017). Secure TLS 1.2 encrypted transmission supports integration with municipal or provincial environmental monitoring centers (EMMCs) via wired Ethernet or 4G LTE. Local database storage includes full spectral archives, calibration records, maintenance alerts, and QC flagging (e.g., “CAL-FAILED”, “FID-OFFLINE”)—all exportable for third-party validation or trend analysis in MATLAB, Python (Pandas), or commercial LIMS platforms.

Applications

• Fence-line NMHC monitoring for chemical parks, petrochemical refineries, and pharmaceutical manufacturing sites
• Early-warning detection of VOC leaks during routine operations or maintenance activities
• Source apportionment support through temporal correlation with wind sector data
• Compliance reporting against local boundary emission limits (e.g., DB11/447–2015, DB31/933–2015)
• Integration into broader smart environmental management platforms for cross-parameter analytics (e.g., NMHC vs. ozone precursor potential)

FAQ

What regulatory standards does this system meet?
It complies with HJ 604–2017 (determination of NMHC in ambient air), HJ 1013–2018 (technical requirements for online NMHC analyzers), and HJ 212–2017 (data transmission protocol).
Is methane measured separately or calculated?
Methane is either measured directly via a dedicated GC channel or derived from total hydrocarbon (THC) and NMHC difference; dual-channel configurations support simultaneous THC/NMHC quantification.
How often is dynamic calibration performed?
User-configurable calibration intervals (e.g., every 2, 4, or 8 hours) with optional event-triggered calibration after maintenance or environmental excursions.
Can the system operate autonomously during power interruptions?
Yes—integrated UPS support (optional) maintains critical control functions and data logging for ≥30 minutes; system resumes analysis automatically after power restoration.
What data security measures are implemented?
Role-based access control (RBAC), encrypted local storage, TLS-secured remote communication, and immutable audit logs meeting basic requirements for environmental data integrity under China’s “Measures for the Administration of Environmental Monitoring Data” (MEP Order No. 37).
