Linkam THMS600 Heating and Cooling Stage

Overview

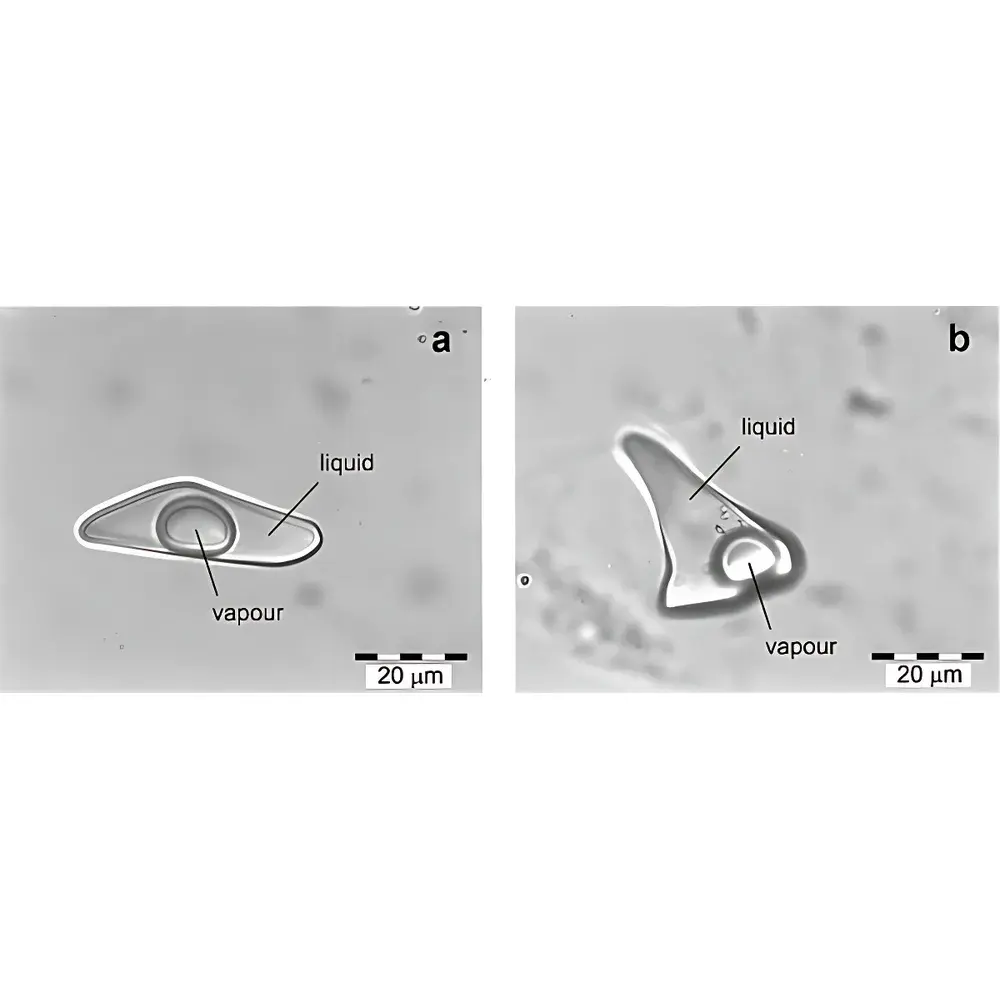

The Linkam THMS600 is a high-precision, computer-controlled heating and cooling stage engineered for integration with upright metallurgical and optical microscopes. Designed around the Couette–Poiseuille thermal architecture, it enables in situ observation of phase transitions, solid-state reactions, crystallization kinetics, and thermal degradation mechanisms under precisely regulated temperature conditions. Its core thermal module consists of a highly polished silver heating block—selected for its exceptional thermal conductivity (429 W/m·K) and low thermal mass—paired with a calibrated Pt100 resistance thermometer embedded directly within the block. This configuration ensures rapid thermal response, minimal thermal lag, and measurement traceability to ITS-90 standards. The stage operates across a continuous range from ambient to +600 °C, with programmable ramp rates up to 150 °C/min and long-term stability maintained within ±0.1 °C at setpoint—critical for quantitative thermal analysis in materials science, geology, and pharmaceutical solid-state research.

Key Features

• Optimized thermal architecture featuring a monolithic silver heating element with integrated Pt100 sensor for sub-0.1 °C accuracy and high reproducibility across repeated thermal cycles
• Airtight sample chamber with dual gas ports enabling precise control of atmosphere—including inert (N₂, Ar), reducing (H₂/N₂), or humidified environments—per ASTM E2936 and ISO 11357 standards
• Lateral sample loading mechanism allowing insertion of quartz crucibles or liquid samples without opening the top window—minimizing thermal disturbance and contamination risk
• Ultra-thin 0.17 mm coverslip-compatible top window optimized for both transmitted-light brightfield/darkfield and reflected-light epi-illumination configurations
• Motorized X–Y translation stage (16 mm travel per axis) with micrometer-scale repeatability, compatible with automated stage controllers and coordinate-mapped image acquisition workflows
• Direct liquid coolant circulation path through the base plate for active cooling down to ambient or below, supporting rapid quenching protocols and extended low-temperature hold capability
• Full USB/RS232 interface with Linkam’s TC94+ software suite for ISO/IEC 17025-compliant temperature logging, multi-step ramp programming, and real-time T–t curve visualization

Sample Compatibility & Compliance

The THMS600 accommodates standard metallurgical specimens (polished metallographic mounts, thin sections, solder joints), powder compacts, polymer films, and volatile liquids sealed in fused silica crucibles. Its 22 mm diameter sample zone and 2.0 mm central optical aperture ensure compatibility with high-NA objectives (including 50× metallurgical objectives with 4.5 mm working distance) and condensers (≥12.5 mm WD). The stage conforms to IEC 61000-6-3 (EMC) and IEC 61010-1 (safety) requirements. When operated with validated software and audit-trail-enabled logging, it supports GLP and GMP environments compliant with FDA 21 CFR Part 11 for regulated thermal characterization studies.

Software & Data Management

Control and data acquisition are managed via Linkam’s TC94+ software—a Windows-based platform supporting deterministic temperature profiling, synchronized image capture triggers (via TTL or software API), and export of timestamped temperature/time series in CSV or HDF5 format. The software implements electronic signature support, user-access levels, and immutable audit trails for all parameter changes and run logs—meeting ALCOA+ data integrity principles. Raw thermal data is traceable to NPL-calibrated reference sensors, and calibration certificates are provided with each unit. Integration with third-party imaging platforms (e.g., Olympus Stream, Zeiss ZEN, or open-source Micro-Manager) is supported through documented COM/ActiveX interfaces.

Applications

• In situ observation of eutectic melting, peritectic reactions, and polymorphic transitions in alloys, ceramics, and battery electrode materials
• Thermal stability assessment of pharmaceutical co-crystals and amorphous dispersions per USP and ICH Q5E guidelines
• Dynamic analysis of solder reflow profiles, intermetallic growth kinetics, and void formation in microelectronic packaging
• Hydration/dehydration behavior of clays, zeolites, and MOFs under controlled humidity and temperature gradients
• Crystallization onset detection and metastable zone width determination in supersaturated solutions
• Thermomechanical property mapping of shape-memory alloys and polymer composites via coupled thermal–optical strain analysis

FAQ

What is the maximum recommended objective magnification for use with the THMS600?
The stage is fully compatible with standard 50× metallurgical objectives (10× eyepieces yielding 500× total magnification), provided the objective has ≥4.5 mm working distance and is corrected for 0.17 mm coverslip thickness.
Can the THMS600 be used under vacuum conditions?
No—the stage is designed for sealed gas environments only; it is not rated for vacuum operation. For vacuum-compatible thermal stages, consider the Linkam TS1500 or FS301 series.
Is calibration verification performed before shipment?
Yes—each THMS600 undergoes factory calibration against NPL-traceable reference thermometers at three points (100 °C, 300 °C, and 500 °C), with full calibration report and uncertainty budget supplied.
Does the stage support differential thermal analysis (DTA) or simultaneous TGA coupling?
No—the THMS600 is a standalone thermal microscopy stage. For combined thermal analysis, Linkam offers the DSC600 or homologated interfaces for select TA Instruments and Mettler Toledo systems.
What cooling fluids are compatible with the direct-cooling circuit?
Deionized water or 30% ethylene glycol/water mixtures are recommended; glycerol-based coolants are not advised due to viscosity-related flow resistance at low temperatures.
