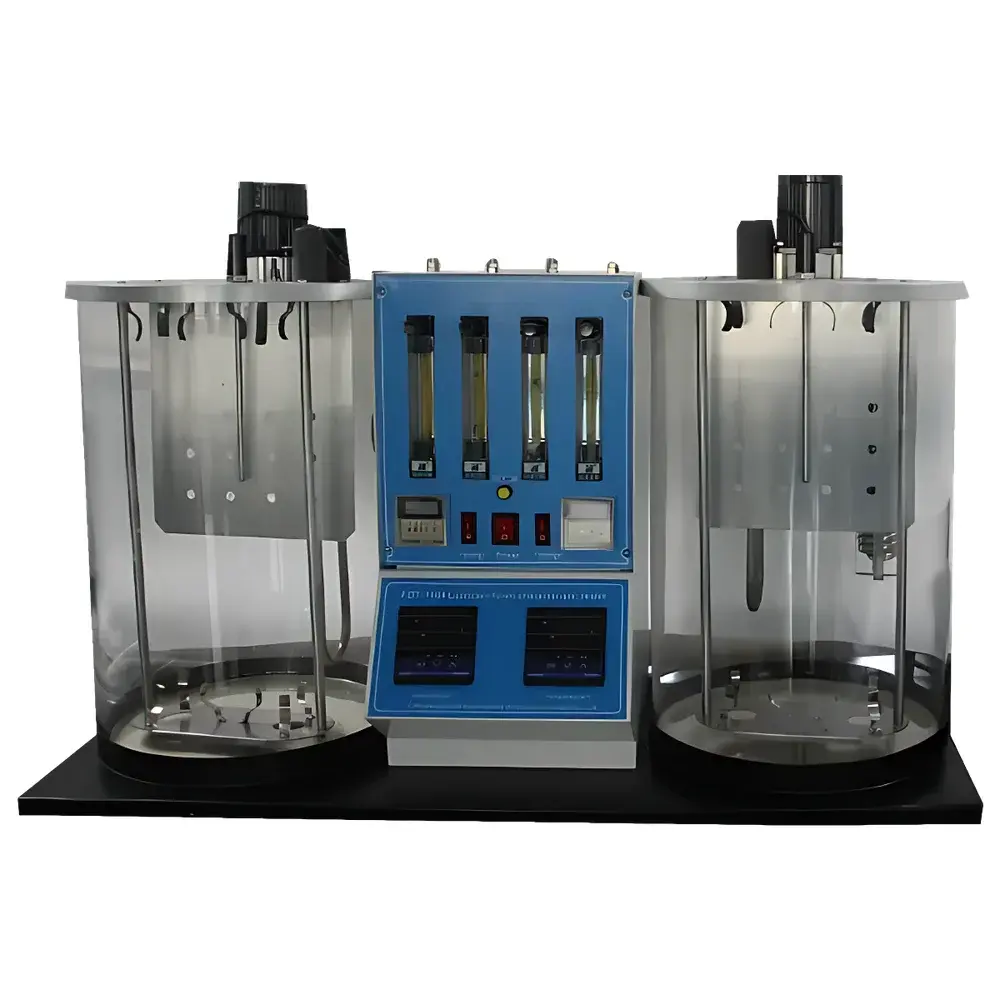

Lubricating Oil Foam Characteristics Tester FDT-1102

Overview

The FuLand FDT-1102 Lubricating Oil Foam Characteristics Tester is an engineered solution for evaluating foam formation and stability in lubricants according to standardized test methods including ASTM D892 and ISO 6247. It operates on the principle of controlled air sparging through a precision-calibrated diffuser disc into a defined volume of oil within a thermostatically regulated bath. Foam volume and collapse behavior are quantified at specified time intervals—immediately after air introduction (foam tendency) and after a standardized rest period (foam stability). The instrument’s dual-bath design enables simultaneous or sequential testing at both 24 °C (representing ambient operating conditions) and 93.5 °C (simulating high-temperature engine environments), ensuring comprehensive assessment across thermal regimes critical to real-world performance.

Key Features

• Integrated dual-temperature bath system with independent PID-controlled heating and active refrigeration, enabling precise stabilization at 24 °C and 93.5 °C per ASTM D892 requirements.
• High-accuracy PT100 platinum resistance temperature sensors with ±0.1 °C repeatability ensure traceable thermal control across both operating ranges.
• Self-contained, oil-free diaphragm air pump delivering stable, pulse-free airflow—eliminating reliance on external compressed air sources and minimizing contamination risk.
• Calibrated 25.4 mm stainless-steel sintered diffuser disc with certified air permeability (3000–6000 mL/min at 2.4 kPa), meeting dimensional and flow specifications outlined in ASTM D892 Annex A1.
• Digital electronic timer with programmable start/stop logic synchronized to air injection initiation, supporting automated measurement at 0, 5, and 10 minutes post-sparging.
• Modular benchtop architecture with casters and tool-free disassembly—facilitating relocation, maintenance access, and integration into QC laboratories with space constraints.
• 1000 mL borosilicate glass test cylinder with laser-etched volume graduations conforming to ASTM D892 dimensional tolerances (±1 mL).

Sample Compatibility & Compliance

The FDT-1102 is validated for use with mineral-based, synthetic, and semi-synthetic lubricating oils—including engine oils, hydraulic fluids, gear oils, and turbine oils. Its thermal and airflow parameters align with the operational envelope defined in ASTM D892 Type I (24 °C) and Type II (93.5 °C) test protocols. All wetted components—including the diffuser, cylinder holder, and bath chamber—are constructed from corrosion-resistant materials compatible with hydrocarbon-based formulations. The instrument supports GLP-compliant documentation when paired with laboratory information management systems (LIMS); its digital timer output and thermal logging capability provide auditable timestamps and setpoint records required under FDA 21 CFR Part 11 for regulated environments.

Software & Data Management

While the FDT-1102 operates as a standalone hardware platform without embedded software, it delivers analog and digital outputs suitable for integration into third-party data acquisition systems. The digital timer provides TTL-level trigger signals at key event points (start, 5-min mark, 10-min mark), enabling synchronization with external cameras, pressure transducers, or LIMS interfaces. Temperature readings from the PT100 sensor can be routed via 4–20 mA or RS-485 Modbus RTU for centralized monitoring. Laboratories implementing electronic recordkeeping may configure external PCs to log timestamped operator entries, bath temperatures, and observed foam volumes—supporting full audit trails consistent with ISO/IEC 17025 clause 7.5.2 on result reporting integrity.

Applications

• Quality control release testing of finished lubricants against OEM specifications (e.g., GM dexos1®, Ford WSS-M2C945-A, API SP).
• R&D evaluation of antifoam additive packages during formulation development.
• Stability benchmarking of re-refined or bio-based lubricants under thermal stress conditions.
• Failure analysis of field-used oils exhibiting excessive foaming or air entrainment in hydraulic or circulating systems.
• Supporting root-cause investigations related to pump cavitation, lubricant oxidation, or water contamination—where foam behavior serves as a diagnostic indicator.

FAQ

Does the FDT-1102 comply with ASTM D892 and ISO 6247?
Yes—the instrument meets all mechanical, thermal, and airflow requirements specified in ASTM D892 (2023 edition) Sections 6–8 and ISO 6247:2021 Clauses 4–6, including diffuser geometry, bath temperature tolerance, and timing protocol.
Is external compressed air required?
No—the integrated diaphragm air pump eliminates dependency on shop air, reducing noise, moisture carryover, and calibration drift associated with variable-pressure external sources.
Can the unit operate continuously at 93.5 °C?
Yes—the 2500 W heater and reinforced insulation enable sustained thermal equilibrium at 93.5 °C; duty cycle is managed via adaptive PID control to maintain ±0.2 °C stability over 60-minute test sequences.
What maintenance is required for the air diffuser?
The sintered stainless-steel disc should be cleaned ultrasonically in petroleum ether after every 10 tests and inspected for pore blockage using optical microscopy per ASTM D892 Annex A2.
Is the 1000 mL cylinder supplied with NIST-traceable calibration?
The cylinder is manufactured to ASTM E542 dimensional tolerances and includes a factory calibration certificate; users may perform in-house verification using certified volumetric standards per ISO/IEC 17025 Section 6.6.
