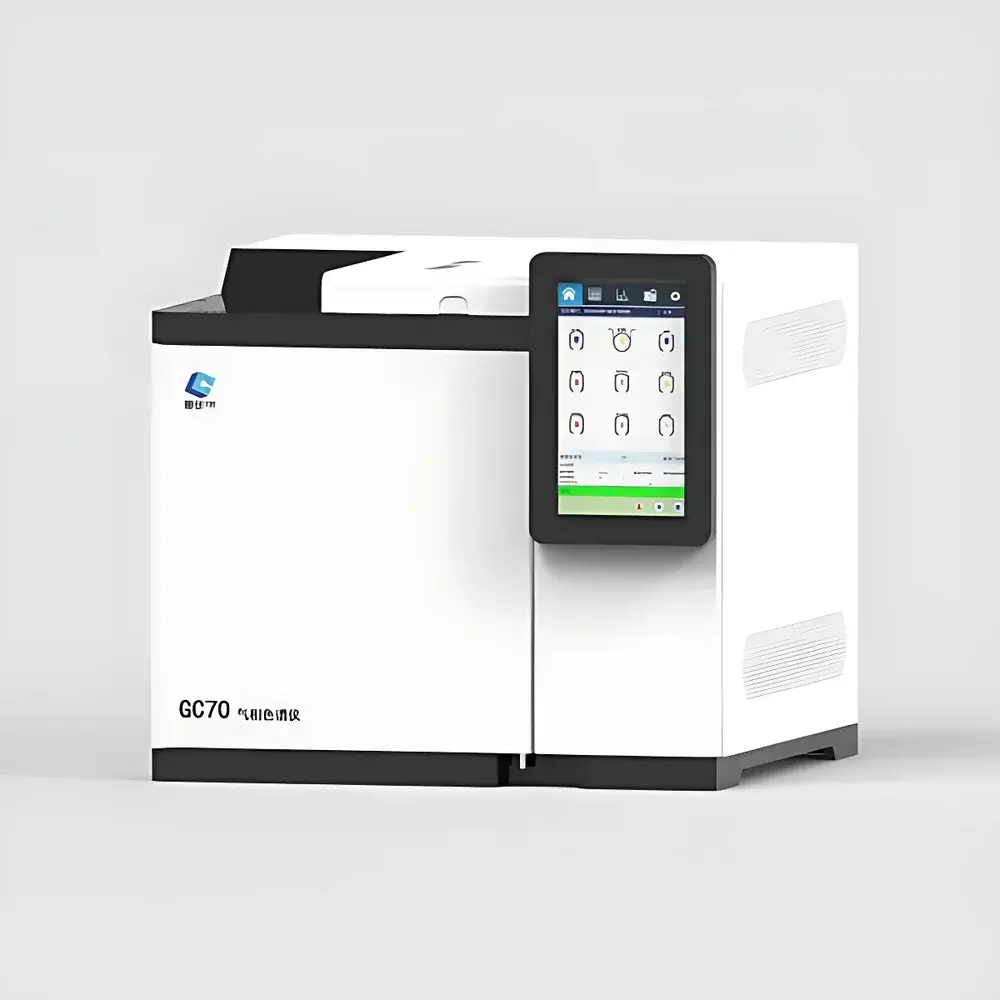

Luchuang GC70 Advanced Gas Chromatograph with Electronic Pressure Control (EPC) and Remote Instrument Control
| Brand | Luchuang |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Laboratory Gas Chromatograph |
| Model | GC70 |
| Temperature Control Range | Ambient +8 °C to 450 °C |
| Maximum Ramp Rate | 65 °C/min |
| Cooling Rate | 3.5 min (300 °C → 100 °C at 25 °C ambient) |
| Temperature Stability | ±0.01 °C |
| Programmed Temperature Steps | Up to 99 |
| Carrier Gas Flow Range | 0–1200 mL/min |
| Carrier Gas Pressure Range | 0–1000 psi |
| Inlet Temperature Max | 450 °C |
| Inlet Pressure Setpoint Range | 0–1000 psi |
| Inlet Total Flow Setpoint Range | 0–1000 mL/min |
| EPC Precision | ±0.001 psi (pressure), ±0.001 mL/min (flow) |
| Inlet Configurations | Up to 3 simultaneously installed, 6 optional inlet types |
| Detector Capacity | 1–4 modular detectors (FID, TCD, ECD, FPD, NPD) |
| FID Detection Limit | ≤2×10⁻¹² g/s (n-hexadecane) |
| TCD Sensitivity | ≥10,000 mV·mL/mg (n-hexadecane) |
| ECD Detection Limit | ≤1×10⁻¹⁴ g/mL (63Ni source) |
Overview
The Luchuang GC70 is a high-performance laboratory gas chromatograph engineered for precision, reproducibility, and regulatory-compliant operation in environmental testing laboratories. It employs classical gas chromatographic separation principles—partitioning of analytes between a mobile phase (inert carrier gas) and a stationary phase (capillary or packed column)—with modern enhancements including fully electronic pressure and flow control (EPC/EFC), real-time thermal management, and modular detector architecture. Designed for routine and method-developed analyses per EPA Method 8260, 8270, ISO 11843, and ASTM D3612, the GC70 delivers robust retention time stability, sub-ppb detection capability, and full traceability required for GLP and ISO/IEC 17025 environments.
Key Features
- 10-inch capacitive touchscreen interface with intuitive graphical workflow navigation—enabling rapid method setup, real-time parameter adjustment, and visual diagnostics without keyboard input.
- Integrated EPC system for carrier gas, split vent, and makeup gas with resolution of 0.001 psi and 0.001 mL/min; supports up to 8-step pressure/flow programming per inlet.
- Advanced thermal management architecture featuring optimized heat distribution, low-mass oven design, and dual-sensor feedback loops—achieving ±0.01 °C temperature accuracy and <3.5 min cool-down from 300 °C to 100 °C.
- Modular inlet system supporting simultaneous installation of three independently configurable inlets (e.g., split/splitless, PTV, on-column, cool-on-column); six inlet options available to accommodate volatile, thermolabile, or high-boiling compounds.
- Detector module compatibility: FID, TCD, ECD (⁶³Ni), FPD, and NPD—each field-replaceable and hot-swappable; up to four detectors may be mounted concurrently with independent power and signal conditioning.
- Fully remote-controllable via secure Ethernet or Wi-Fi connection; supports instrument status monitoring, method execution, and data acquisition from off-site locations using browser-based or desktop client software.
Sample Compatibility & Compliance
The GC70 accommodates a broad range of sample matrices—including aqueous extracts, soil leachates, air canister samples, and solvent-based standards—when paired with appropriate sample introduction techniques (e.g., headspace, purge-and-trap, liquid injection). Its dual-column TCD configuration supports both single- and dual-column analysis with post-column make-up gas, enabling differential detection strategies for complex environmental mixtures. All critical parameters—including temperature setpoints, pressure profiles, detector baselines, and calibration events—are timestamped and logged with user attribution, satisfying audit requirements under FDA 21 CFR Part 11, EU Annex 11, and ISO/IEC 17025 clause 7.7. Data integrity is reinforced by write-protected audit trails, electronic signatures, and immutable raw data storage.
Software & Data Management
The GC70 operates with Luchuang ChromaLink™ v4.x, a validated chromatography data system (CDS) compliant with analytical data lifecycle principles. The software provides automated peak integration, multi-level calibration (linear, quadratic, weighted), compliance-ready reporting templates (PDF, CSV, XML), and batch processing for high-throughput labs. Integrated instrument control allows synchronized method deployment across multiple GC units, while role-based access controls enforce SOP adherence. Raw data files are stored in vendor-neutral .cdf format (compatible with OpenChrom and Chromeleon), and all processing steps—including baseline correction, retention time alignment, and response factor calculation—are fully traceable and reversible.
Applications
- Environmental analysis: VOCs and SVOCs in water, soil, and air per EPA Methods 502.2, 524.4, 8021B, and 8270D.
- Residual solvent quantification in pharmaceutical excipients and packaging materials (ICH Q3C guidelines).
- Fuel hydrocarbon profiling (PIONA analysis) and additive screening in petrochemical QA/QC.
- Pesticide residue screening in food and agricultural commodities using multi-residue methods (e.g., QuEChERS-GC-ECD/FID).
- Industrial hygiene monitoring for workplace airborne contaminants (e.g., benzene, toluene, xylene, formaldehyde derivatives).
FAQ
Does the GC70 support 21 CFR Part 11 compliance?
Yes—the ChromaLink™ CDS includes electronic signature workflows, audit trail logging, and data integrity safeguards aligned with FDA 21 CFR Part 11 Subpart B requirements.
Can I run dual-detector configurations such as FID + ECD simultaneously?
Yes—the GC70 chassis supports up to four independent detector modules; common configurations include dual-FID, FID+ECD, or TCD+FPD with fully decoupled signal processing.
What is the minimum detectable concentration for chlorinated pesticides using the ECD?
Under optimized conditions (63Ni source, 30 m × 0.25 mm ID DB-5ms column, 1 µL injection), the GC70 achieves ≤0.5 pg on-column detection for endosulfan sulfate (EPA 8081B equivalent performance).
Is column oven cooling performance verified per ASTM E1510?
Yes—cooling rate validation is performed during factory acceptance testing using NIST-traceable Pt100 sensors; results are documented in the Certificate of Conformance supplied with each unit.
How frequently does the EPC system require recalibration?
The EPC modules are factory-calibrated and drift-compensated in real time; no user-performed recalibration is required under normal operating conditions. Annual verification against certified flow/pressure standards is recommended for ISO/IEC 17025 accreditation.
