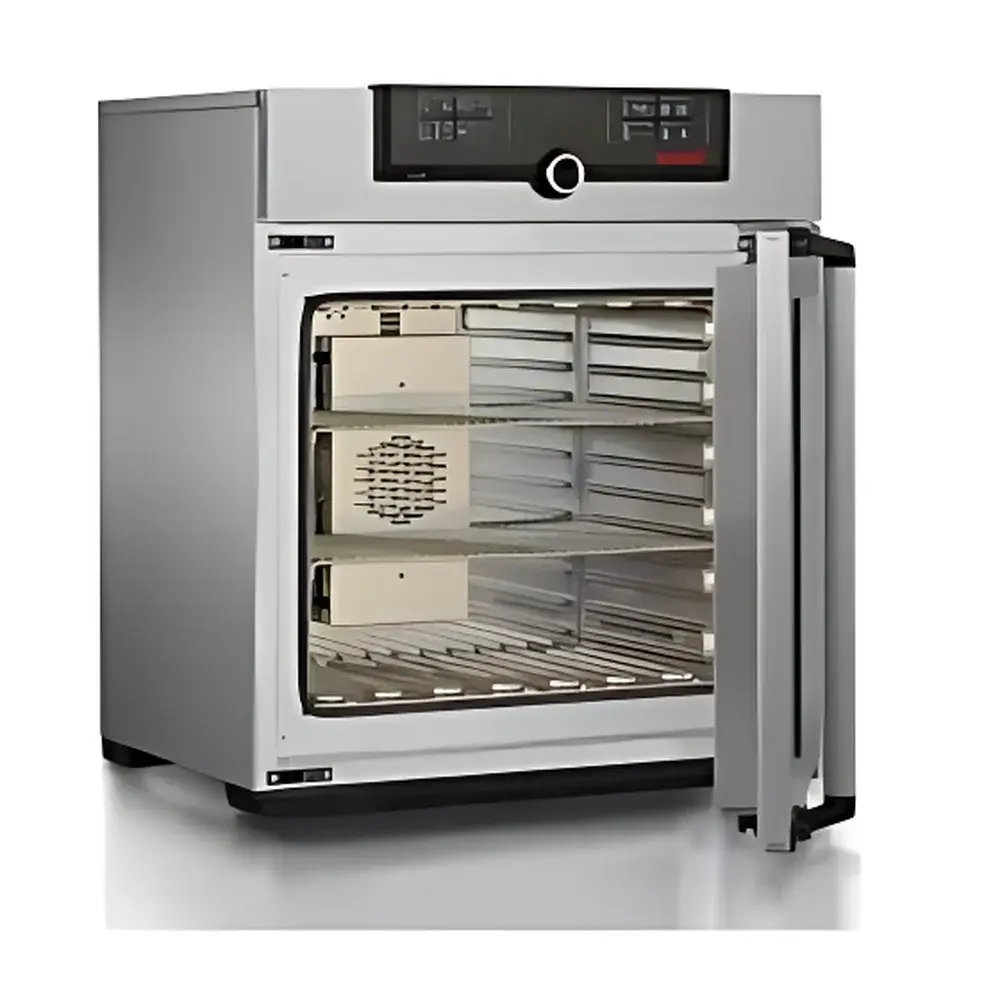

Memmert I-Series Temperature-Controlled Incubators (IN/INplus/IF/IFplus Models)

Overview

The Memmert I-Series Temperature-Controlled Incubators are precision-engineered environmental chambers designed for reproducible, stable thermal conditions across life science research, pharmaceutical development, clinical diagnostics, and food safety testing. Based on Memmert’s proprietary Peltier-free heating architecture and high-resolution PID control with dual-sensor feedback (chamber wall and core air), the I-Series maintains setpoint accuracy within ±0.1 °C across the full operating range of +20 °C to +80 °C — without requiring external refrigeration or humidity modules. Unlike conventional forced-air incubators that induce evaporative stress on sensitive biological samples, the I-Series offers two distinct airflow strategies: natural convection (IN/INplus) for ultra-gentle thermal equilibration ideal for cell monolayers, microbial cultures, and enzyme assays; and variable-speed forced convection (IF/IFplus) with 10-step fan modulation for accelerated uniformity in larger volumes — all while preserving sample surface hydration through intelligent air preheating and laminar flow optimization.

Key Features

• German-engineered stainless-steel inner chamber (AISI 304) with seamless welded corners and electropolished finish for corrosion resistance and cleanability
• Dual independent temperature sensors (wall-mounted and free-air) enabling real-time deviation monitoring and adaptive compensation
• Integrated fresh-air preheating system: ambient intake air is conditioned to near-setpoint temperature before entering the chamber, eliminating thermal shock and minimizing drying effects
• High-stability heating elements embedded in chamber walls ensure uniform thermal distribution without hot spots or radiant gradients
• INplus and IFplus models support validated dry-heat sterilization at +160 °C for 4 hours — compliant with DIN EN ISO 14644-1 Class 5 cleanroom maintenance protocols
• TwinDISPLAY interface (IFplus/INplus) provides simultaneous readout of setpoint, actual temperature, fan speed (%), and sterilization status — with password-protected configuration access
• Robust mechanical door lock with magnetic seal and integrated gasket ensures consistent chamber integrity during extended operation

Sample Compatibility & Compliance

The I-Series accommodates a broad spectrum of sample formats — including Petri dishes, multiwell plates, flasks, vials, and custom racks — supported by standardized stainless-steel shelving (1–14 shelves per model, 30 kg load capacity per shelf). Its absence of internal humidity generation eliminates condensation-related contamination risks, making it suitable for applications where moisture variability must be excluded (e.g., stability studies per ICH Q1A(R3), microbiological enumeration per ISO 4833-1, or enzyme kinetics under strictly defined dry-thermal conditions). The incubators comply with EN 61010-1 (safety), EN 61326-1 (EMC), and are CE-marked. Optional IQ/OQ documentation packages support GLP, GMP, and FDA 21 CFR Part 11–aligned validation workflows, including audit-trail-enabled event logging and electronic signature readiness via AtmoCONTROL software integration.

Software & Data Management

AtmoCONTROL software (Windows-based, USB or Ethernet connection) enables remote parameter configuration, real-time data visualization, and automated report generation. It supports configurable alarm thresholds (deviation, time-out, door-open), trend analysis over extended periods, and export of timestamped CSV files for LIMS integration. All models record operational history — including temperature logs, sterilization cycles, door openings, and error events — with non-volatile memory retention (>10 years). For regulated environments, AtmoCONTROL supports user role management (admin/operator), electronic signatures, and secure data encryption — fulfilling requirements for ALCOA+ data integrity principles.

Applications

• Cell culture maintenance (adherent and suspension) under tightly controlled thermal profiles
• Microbial growth studies (bacteria, yeast, molds) per ISO 7218 and USP <61>
• Stability testing of APIs and finished pharmaceutical products (ICH Q5C)
• Enzyme activity assays requiring precise thermal ramping and hold phases
• Seed germination and plant tissue culture in agricultural R&D
• Food spoilage modeling and shelf-life prediction per ISO 21527-1
• Calibration of temperature-sensitive reference materials and biosensors

FAQ

Does the I-Series support humidity control?
No — the standard I-Series is a temperature-only incubator. Humidity control requires integration with external humidification systems or selection of Memmert’s HPP or VWR series.
Can the IF-series forced convection damage delicate samples?
Not when properly configured: the 10-step fan speed adjustment allows users to match airflow intensity to sample sensitivity — many labs operate IF models at ≤30% fan speed for cell culture applications.
Is sterilization traceable and compliant with regulatory standards?
Yes — INplus/IFplus models log each +160 °C cycle with start time, duration, peak temperature, and cooling profile; raw data export and certificate generation are supported via AtmoCONTROL.
What is the maximum allowable ambient temperature for continuous operation?
The units are rated for ambient temperatures up to +35 °C; operation above this requires derating per technical manual Section 4.2 and may impact temperature uniformity specifications.
Are replacement shelves and accessories available globally?
Yes — all stainless-steel shelves, universal racks, and calibration adapters are stocked by Memmert’s authorized distributors and shipped with serialized traceability documentation.
